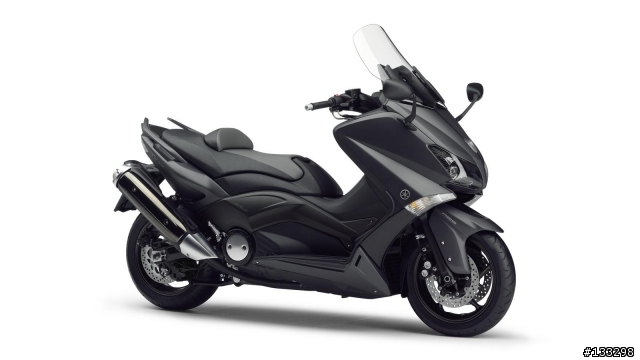

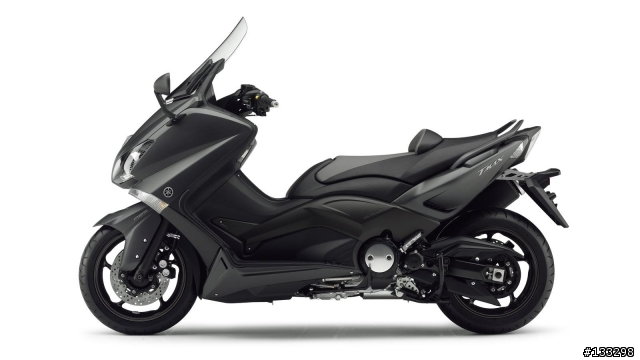

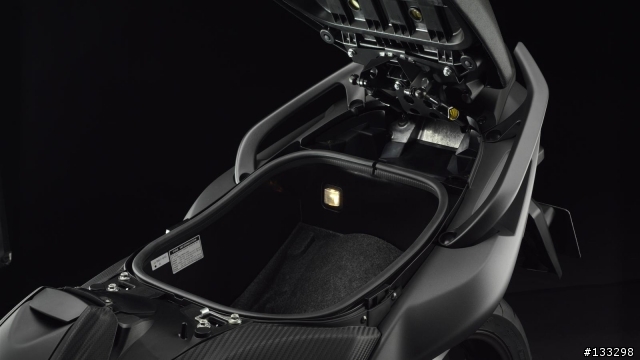

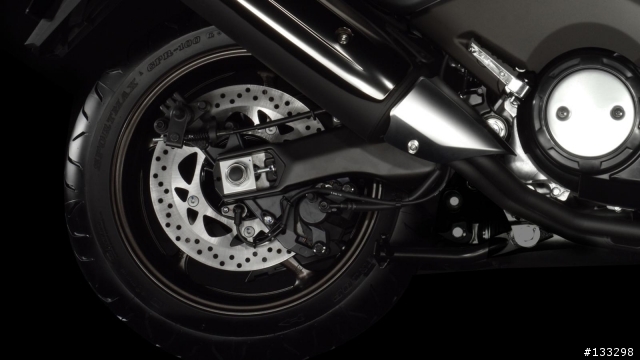

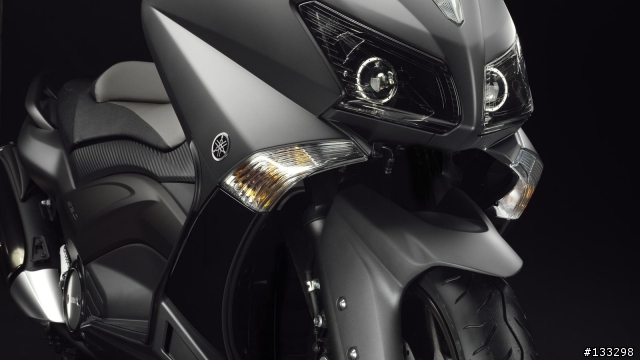

以下圖片擷取自YAMAHA官網, 純分享, 若有侵擾之處請通知我, 立刻移除
2143 wrote:
不負責任消息聽說是5...(恕刪)
儀表上就寫了...
規格表
Engine
Engine type Forward-inclined parallel 2-cylinder, liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement 530.0cc
Bore x stroke 68.0 mm x 73.0 mm
Compression ratio 10:9 : 1
Maximum Power 34.2 kW @ 6,750 rpm
Maximum Torque 52.3 Nm @ 5,250 rpm
Lubrication system Dry sump
Fuel system Fuel Injection
Ignition system TCI
Starter system Electric
Transmission system V-Belt Automatic
Chassis
Front suspension system Telescopic fork
Front travel 120 mm
Rear suspension system Swingarm
Rear Travel 116 mm
Front brake Hydraulic dual disc, Ø 267 mm
Rear brake Hydraulic single disc, Ø 282 mm
Front tyre 120/70-15
Rear tyre 160/60-15
Dimensions
Overall length 2,200 mm
Overall width 775 mm
Overall height 1,420-1,475 mm (adjustable windscreen)
Seat height 800 mm
Wheelbase 1,580 mm
Minimum ground clearance 125 mm
Wet Weight 217 kg /ABS221 kg
Fuel tank capacity 15.0 litres
