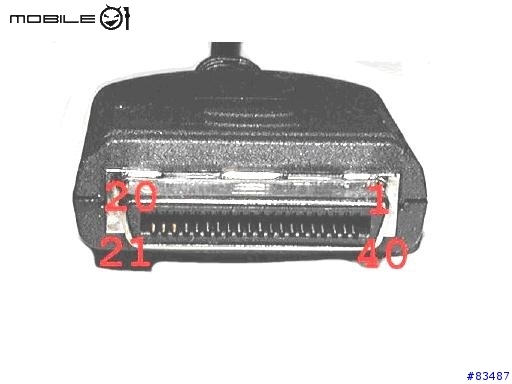

01 GND (shield),
02 (No Connection)
03 +5.5V, also on USB charger cable PCB (red)
04 +5.5V, also on USB charger cable PCB (red)
05 +5.5V, also on USB charger cable PCB (red)
06 +5.5V, also on USB charger cable PCB (red)
07 +5.5V, also on USB charger cable PCB (red)
08 +5.5V, also on USB charger cable PCB (red)
09 (No Connection)
10 Unknown
11 (No Connection)
12 Unknown
13 Unknown
14 Unknown
15 GND (shield),
16 (No Connection)
17 (No Connection)
18 (No Connection)
19 (No Connection)
20 GND (shield),
21 GND (shield),
22 Unknown
23 Unknown
24 GND (shield),
25 USB Device, Data + (green),
26 USB Device, Data - (white),
27 GND (shield),
28 Unknown
29 Unknown
30 GND (shield),
31 TxD (grey),
32 RTS (red),
33 DTR (brown),
34 DSR (blue),
35 DCD (yellow),
36 RxD (green),
37 CTS (orange),
38 GND (shield),
39 GND (shield),
40 Unknown
