MIB II主機車系VCDS設定

前情提要。延續 34 樓

今天看到機車騎士撞到開門要上車的車主有感,多改了一樣。

外側尾燈隨打開的車門側亮

i.e. 左邊車門一打開 (不論前後),左外尾燈馬上跟著亮;右側亦同

原理很簡單,就是讓尾燈跟著裝在門下的警告燈亮。(我的車沒實裝,這應該算是軟體上的事件吧)

Address 09,
5Q0 937 086 AK,channel ENG116956-ENG116264-Leuchte20BR LA71-Lichtfunktion F 20,adapted from,not active ,to,Tuerausstiegslicht links , [把左外尾燈亮的條件 F 指定為左側門離開燈亮]

Address 09,
5Q0 937 086 AK,channel ENG116957-ENG116283-Leuchte21BR RC8-Lichtfunktion F 21,adapted from,not active ,to,Tuerausstiegslicht rechts , [把右外尾燈亮的條件 F 指定為右側門離開燈亮]

還有如果只要改這個,亮度記得也要設定。參考 34 樓。這邊不重複。
融會貫通可以玩很多花樣。

現在應該 VW 都只剩下四門下方的反光片了,如果有改線路疑慮或不想花錢另外裝的話,用這方式替代也不錯。
安全一點...

效果圖:


caleb0322 wrote:
這是我第二部VW的...(恕刪)




自動啟閉確實有這種自動記憶功能的配件可安裝

https://audiamant.de/index.php/shop-nachruesten/vw/tiguan/tiguan-ii/ssam-modul-944-964-965-967-971-html
關閉自動啟停 VCDS 16.8.0 電壓法

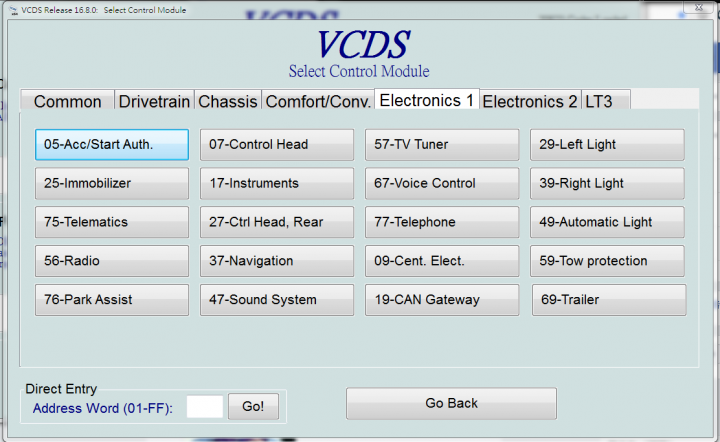

1. Enter 19-CAN Gateway (see screen shot above)
2. Click on Adaptation (see screen shot above)
3. From drop down channel list, select Start/Stop start voltage limit
In New value box, enter 12.0 (default stored value = 7.6V) Note: forums report that a value greater than 10V will work for this tweak - maximum permissible value =12.1V
Click Do it! tab





bearsjhtw wrote:
關閉自動啟停 VCDS...(恕刪)



這個設定似乎是騙過自動啟停作動的電壓
應該中間顯示幕上會一直顯示A背值星帶
就是自動啟停不會開啟(因為電壓條件改變)

不過中控上的自動啟停按鈕應該就形同虛設了
如果開車中途臨時想要來個自動啟停,好像也沒辦法
除非就是很徹底討厭自動啟停功能的人
後座按不到中控鎖?
now508 wrote:
老爸下車買涼水時誰說...(恕刪)

scorpian wrote:
後座按不到中控鎖?...(恕刪)


懶人有幫助懶人方便的方法
何不用?
講那麼多贛話作什麼..

當你太座如果有機會坐第三排時
再叫他起身到駕駛座按中控
嗯,你爽就好
12 12 12 已解除嘍🙏感謝各位

希望多多大家分享隱藏功能
不管上一次熄火時冷氣是不是設定在內循環,一開始發動時車子預設冷氣都是對外進氣,可是外面空氣不好,現在可以記憶冷氣內循環:
1.Access 08-Auto HVAC
2.Long Coding
3.Byte 4,Bit 4設為1


--------------------------------------------------------------------------------
原本當冷氣設為AUTO模式時,中央旋鈕是看不到當下風量是幾級,現在可以讓它顯示出來了:
1.Access 08-Auto HVAC
2.Long Coding
3.Byte 11,Bit 6設為1

以上兩者互相搭配,AUTO模式下也可以記憶內循環的設定喔。

YoYoCome wrote:
Enable Fob...(恕刪)


發動中搖控上鎖..應該是沒錯
http://www.golfmk6.com/forums/showthread.php?t=35329
caleb0322 wrote:
不管上一次熄火時冷...(恕刪)


空調還有個溫度調整可以調整成炎熱國家。冷氣會冷比較快。
個人覺得有點用,不過不知道是不是心理因素

Open VCDS
1. Go To Select Modules
2. Under the "Installed Modules" window - select number 08 - Auto HVAC
3. After the control loads - select Coding - 07
4. Click the button for "Long Coding Helper"
5. Press Tab or arrow down key until you see "Byte 12" selected
6. Under the drop-down for "Bit 4-7" select "10 Temperature Adjustment: Cold (Hot Countires)"
7. In the top-left corner of the window - select the "Exit" menu item
8. Press the "Do It" button to save the new setting
9. If all goes well - you should see a popup "Coding Accepted"

網路轉貼來源 http://forums.vwvortex.com/showthread.php?7974521-2015-GTI-VCDS-AC-quot-Hot-Country-quot #8
