[07/18]超簡單歌美G2整合國外CM9_nightly＆AOKP更新包教學
跟這篇:
修正飞羽 0622固件在Aniol7 极光版v3触摸屏不正常的BUG
發現/init.sun4i.rc裡面的觸控模組區塊是:
#insmod key & tp driver
# insmod /system/vendor/modules/sun4i-ts.ko
# insmod /system/vendor/modules/sun4i-keyboard.ko
# insmod /system/vendor/modules/ft5x_ts.ko
insmod /system/vendor/modules/ft5x_ts_5606.ko
然後bootloader裡面的script.bin跟script0.bin裡面的模組名稱是ft5x_ts
所以我用這篇裡面MAX大提供的PullScript跟UpdateScript把script.bin跟script0.bin裡面的模組名改成ft5x_ts_5606再放回去
可是還是無效
用dmesg看一下開機訊息的錯誤是
<6>[ 5.260000] ===========================ft5x_ts_init=====================
<6>[ 5.270000] ctp_fetch_sysconfig_para.
<3>[ 5.280000] ctp_fetch_sysconfig_para: name ft5x_ts_5606H淑餐. does not mat
ch CTP_NAME.
<3>[ 5.310000] ft5x_ts
<6>[ 5.310000] ft5x_ts_init: err.
<6>[ 5.310000] init: command 'insmod' r=-1
看起來轉回bin的名稱有錯誤.....到這邊我就不行了= =
看有沒有正常動作的人可以執行lsmod指令看看模組名稱是什麼
然後看一下/init.sun4i.rc跟script.bin裡面的模組名稱一不一樣
有些的主機刷0.8的bootloader會把主機....
==0.85 測試版本==
以後的刷機包都不會動到 bootloader 了，
這樣就可以避免這個錯誤。
A90_SystemPackage_Pre-release_0.85_ODEX.zip
A10_SystemPackage_Pre-release_0.85_ODEX.zip
刷壞本來就是自己需承擔的風險
所以當務之急還是能夠找到修復的方法囉～
目前依照大家的回報，刷了各種官方或自製ROM都無法解決觸控的問題...
不過我也不是什麼高手XD，不知道這個方向對不對
總之希望請目前A90觸控正常的人可以提供以下線索
首先打開debug模式接上電腦
1. 執行
adb shell lsmod
看看觸控模組名稱是什麼
2. 看看/init.sun4i.rc裡的觸控模組名稱
取得檔案方式：執行
adb pull /init.sun4i.rc
把檔案get到電腦

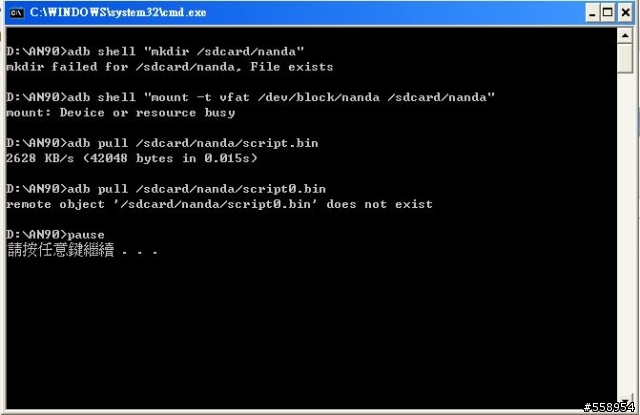

3. 提供script.bin跟script0.bin檔
取得方式：
adb shell "mkdir /sdcard/nanda"
adb shell "mount -t vfat /dev/block/nanda /sdcard/nanda"
adb pull /sdcard/nanda/script.bin
adb pull /sdcard/nanda/script0.bin
謝謝囉
andante wrote:
小弟也很感謝minj...(恕刪)
init.sun4i.rc檔
import init.sun4i.usb.rc
on early-init
export EXTERNAL_STORAGE /mnt/sdcard
mkdir /mnt/sdcard 0000 system system
# for backwards compatibility
symlink /mnt/sdcard /sdcard
mkdir /mnt/extsd 0000 system system
mkdir /mnt/usbhost1 0000 system system
on fs
mount ext4 /dev/block/nandd /system wait noatime nodev barrier=0
# try to mount /data
wait /dev/block/nande
mount ext4 /dev/block/nande /data wait noatime nosuid nodev barrier=0
setupfs /dev/block/nande
umount /data
exec /system/bin/logwrapper /system/bin/e2fsck -y /dev/block/nande
exec /system/bin/busybox mount -t ext4 -o noatime,nosuid,nodev,barrier=0,journal_checksum,noauto_da_alloc /dev/block/nande /data
# try to mount /cache
mount ext4 /dev/block/nandh /cache wait noatime nosuid nodev barrier=0
setupfs /dev/block/nandh
umount /cache
exec /system/bin/logwrapper /system/bin/e2fsck -y /dev/block/nandh
exec /system/bin/busybox mount -t ext4 -o noatime,nosuid,nodev,barrier=0,journal_checksum,noauto_da_alloc /dev/block/nandh /cache
format_userdata /dev/block/nandi USERDATA
on boot
# insmod key & tp driver
insmod /system/vendor/modules/ft5x_ts_5606.ko
# touch key
insmod /system/vendor/modules/hv2605.ko
# insmod mali driver
insmod /system/vendor/modules/ump.ko
insmod /system/vendor/modules/mali.ko
# insmod gsensor driver
insmod /system/vendor/modules/bma250.ko
# insmod vibrator
insmod /system/vendor/modules/sun4i-vibrator.ko
chmod 777 /sys/class/timed_output/sun4i-vibrator/enable
# csi module
insmod /system/vendor/modules/videobuf-core.ko
insmod /system/vendor/modules/videobuf-dma-contig.ko
insmod /system/vendor/modules/gc0308.ko
insmod /system/vendor/modules/gc0308b.ko
#insmod /system/vendor/modules/gt2005.ko
#insmod /system/vendor/modules/sun4i_csi1.ko
insmod /system/vendor/modules/sun4i_csi0.ko
# lock rotation gpio module
chmod 777 /system/vendor/modules/sun4i_lockrotation.ko
insmod /system/vendor/modules/sun4i_lockrotation.ko
# network module
insmod /system/vendor/modules/usbnet.ko
insmod /system/vendor/modules/asix.ko
insmod /system/vendor/modules/qf9700.ko
# insmod /system/vendor/modules/mcs7830.ko
# insmod /system/vendor/modules/rtl8150.ko
# -------- bluetooth related services ----------
chmod 0660 /dev/ttyS1
chmod 0770 /system/bin/hciattach
# Disable bluetooth service
setprop ro.bluetooth.disable 0
#change rfkill permissions for bluetooth power management
chown system system /sys/class/rfkill/rfkill0/state
chmod 0777 /sys/class/rfkill/rfkill0/state
write /sys/class/rfkill/rfkill0/state 0
setprop rw.bluetooth.status "0"
service hciattach /system/bin/hciattach -n -s 115200 /dev/ttyS1 rda 500000 noflow
class main
user root
group bluetooth net_bt_admin
disabled
oneshot
#add for realtek wifi
service wpa_supplicant /system/bin/wpa_supplicant -Dnl80211 -iwlan0 -c/data/misc/wifi/wpa_supplicant.conf
socket wpa_wlan0 dgram 660 wifi wifi
group wifi inet
disabled
oneshot
andante wrote:
阿sorry忘了加一...(恕刪)
OK...沒有script0.bin?
https://www.box.com/s/5efa0d60b55e30465c39
沒上傳檔案權限
