呆呆滴蜜蜂 wrote:
不好意思石光大上次...(恕刪)

如果有下雨，那現在這樣數據和之前來講沒多大變動，表示還不錯

VDSL會有一些臨時性的干擾，只要不是一直增加FEC和讓SNR一直drop，使用上都還可以

那顆splitter可以考慮收起來，或是把他接到其他家中電話分機前(當然線不要接錯不然沒用)

如果是透天的，我覺得戶外香菇頭那邊會影響FEC，一般香菇頭都是銅線去纏那個螺絲，久了都生鏽

怕有問題還是報修查一下線，剛看你上一篇是6號發的，到今天Link才3 days可能有斷過一次線

也许是一场难圆的梦一场没有结局的梦多少的笑语飞散在风中又围绕在我耳边

h541010a

h541010a
個人積分：60分
文章編號：52592173

60分

362樓

2014-10-12 1:54

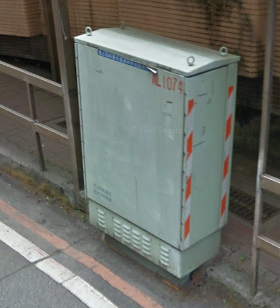

這是光化箱嗎?

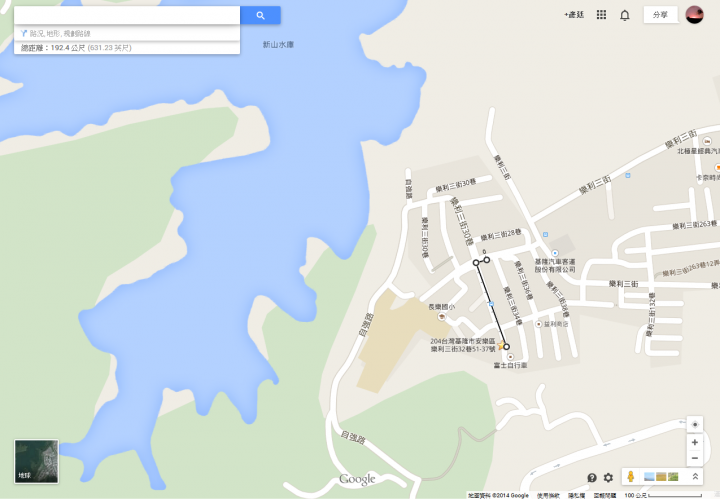

這我家離光化箱的距離

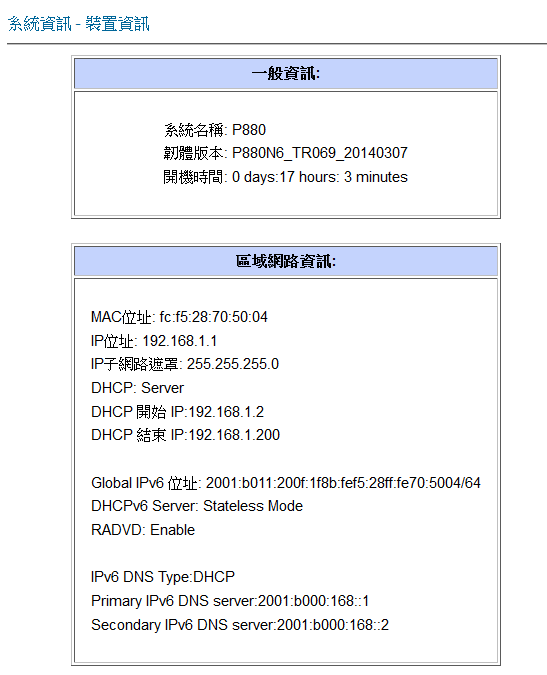

這是我硬凹來的P880的數據(不然原本是P874)(各位大大有何建議?)
網速50M/10M(免費生速升不上)
測試時間2014/10/12上午01:52
濕度:72%
溫度:24.2度C

================================================

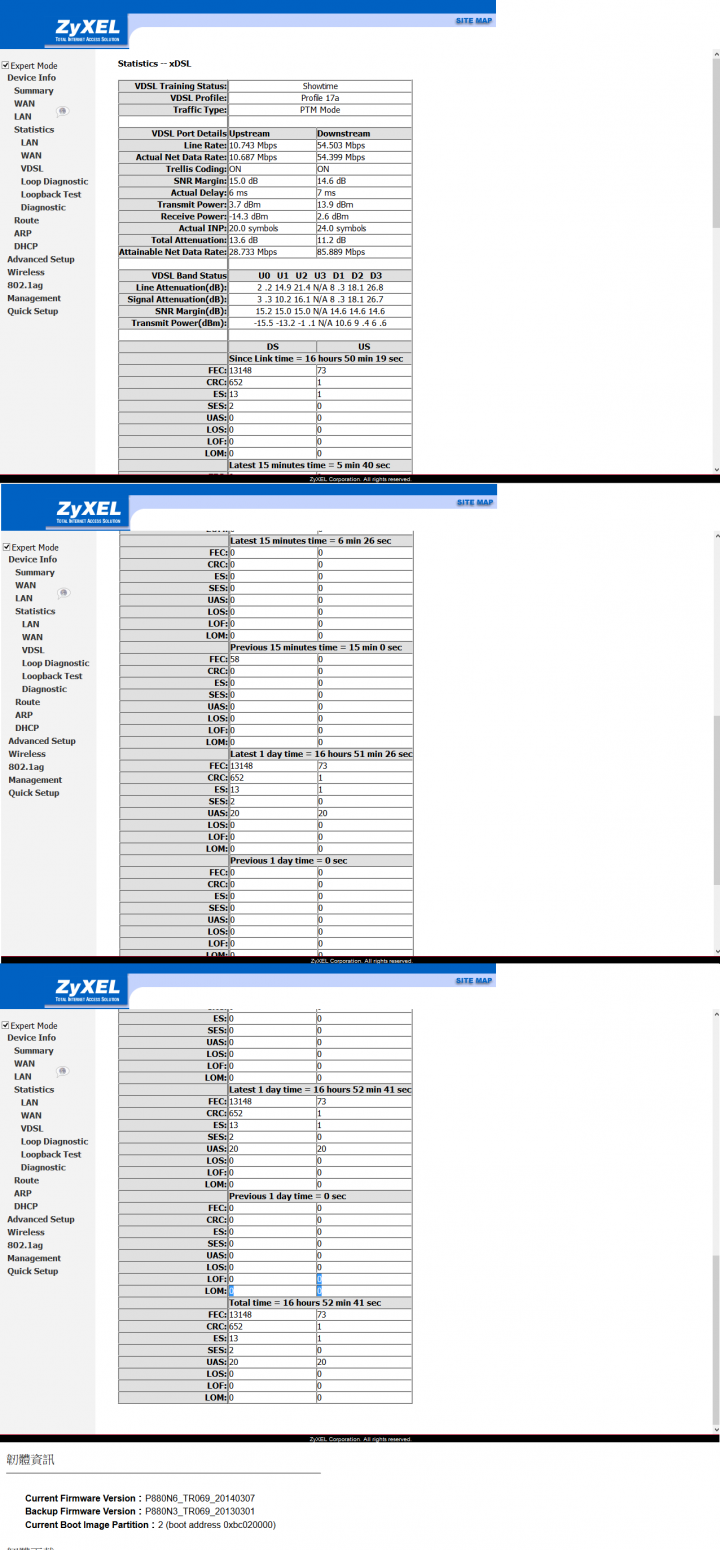

Loop Diagnostic Result
VDSL Port Details Upstream Downstream
Attainable Net Data Rate: 28597 kbps 85776 kbps
Actual Aggregate Tx Power: 3.7 dBm 13.9 dBm
============================================================================
VDSL Band Status U0 U1 U2 U3 D1 D2 D3
Line Attenuation: 2.2dB 14.9dB 21.4dB N/A 8.3dB 18.1dB 26.8dB
Signal Attenuation: 3.3dB 10.1dB 16.0dB N/A 8.3dB 18.1dB 26.8dB
SNR Margin: 14.9dB 15.0dB 15.0dB N/A 14.6dB 14.6dB 14.6dB
================================================================================
HILOG-PS
DOWNSTEAM:
Line 0 DS HLOG (dB) (grouped by 8 tones):
0 : -96.0 -96.0 -96.0 -96.0 -96.0 -9.5 -5.7 -3.9 -3.9 -3.9
10 : -4.1 -4.1 -4.3 -4.5 -4.6 -4.8 -4.8 -4.9 -5.0 -5.2
20 : -5.4 -5.6 -5.8 -5.9 -6.0 -6.1 -6.2 -6.3 -6.5 -6.6
30 : -6.7 -6.9 -7.1 -7.2 -7.3 -7.5 -7.6 -7.7 -7.8 -7.9
40 : -8.0 -8.1 -8.2 -8.3 -8.4 -8.4 -8.5 -8.6 -8.7 -8.8
50 : -8.9 -9.0 -9.1 -9.2 -9.3 -9.4 -9.5 -9.5 -9.6 -9.7
60 : -9.8 -10.0 -10.1 -10.2 -10.3 -10.4 -10.5 -10.6 -10.6 -10.7
70 : -10.8 -10.9 -11.0 -11.1 -11.1 -11.2 -11.3 -11.3 -11.4 -11.5
80 : -11.6 -11.6 -11.7 -11.8 -11.8 -11.8 -11.9 -12.0 -12.1 -12.1
90 : -12.2 -12.3 -12.4 -12.5 -12.5 -12.6 -12.7 -12.8 -12.8 -12.9
100 : -13.0 -13.1 -13.1 -13.2 -13.2 -13.3 -13.4 -13.4 -96.0 -96.0
110 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
120 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
130 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
140 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
150 : -96.0 -96.0 -16.1 -16.1 -16.2 -16.2 -16.2 -16.3 -16.4 -16.4
160 : -16.5 -16.5 -16.6 -16.6 -16.7 -16.7 -16.8 -16.8 -16.9 -16.9
170 : -17.0 -17.0 -17.0 -17.1 -17.1 -17.2 -17.3 -17.3 -17.3 -17.4
180 : -17.5 -17.5 -17.6 -17.6 -17.6 -17.7 -17.8 -17.8 -17.9 -17.9
190 : -17.9 -18.0 -18.1 -18.1 -18.2 -18.2 -18.3 -18.3 -18.4 -18.4
200 : -18.5 -18.5 -18.5 -18.6 -18.6 -18.7 -18.7 -18.8 -18.8 -18.9
210 : -18.9 -19.0 -19.1 -19.1 -19.1 -19.2 -19.2 -19.3 -19.3 -19.4
220 : -19.4 -19.4 -19.5 -19.5 -19.5 -19.6 -19.6 -19.6 -19.7 -19.7
230 : -19.8 -19.8 -19.8 -19.9 -19.9 -19.9 -20.0 -20.0 -20.0 -20.1
240 : -20.1 -20.2 -20.2 -20.2 -20.3 -20.3 -96.0 -96.0 -96.0 -96.0
250 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
260 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
270 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
280 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
290 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
300 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
310 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
320 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
330 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
340 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
350 : -24.4 -24.4 -24.5 -24.5 -24.6 -24.6 -24.7 -24.7 -24.8 -24.8
360 : -24.9 -24.9 -25.0 -25.0 -25.0 -25.0 -25.1 -25.1 -25.1 -25.2
370 : -25.1 -25.2 -25.2 -25.2 -25.2 -25.2 -25.3 -25.3 -25.3 -25.3
380 : -25.3 -25.4 -25.4 -25.4 -25.4 -25.4 -25.4 -25.5 -25.6 -25.6
390 : -25.6 -25.7 -25.7 -25.7 -25.8 -25.8 -25.9 -25.9 -25.9 -26.0
400 : -26.0 -26.0 -26.1 -26.1 -26.1 -26.1 -26.2 -26.2 -26.3 -26.3
410 : -26.4 -26.4 -26.5 -26.5 -26.6 -26.6 -26.7 -26.6 -26.7 -26.8
420 : -26.8 -26.9 -26.9 -26.9 -27.0 -27.0 -27.0 -27.1 -27.1 -27.2
430 : -27.2 -27.3 -27.3 -27.3 -27.4 -27.4 -27.5 -27.4 -27.5 -27.6
440 : -27.6 -27.5 -27.6 -27.6 -27.7 -27.7 -27.7 -27.8 -27.9 -27.9
450 : -27.9 -28.0 -28.0 -28.1 -28.2 -28.2 -28.3 -28.3 -28.4 -28.5
460 : -28.5 -28.6 -28.7 -28.8 -28.8 -29.0 -29.0 -29.1 -29.2 -29.3
470 : -29.5 -29.5 -29.6 -29.8 -29.9 -30.1 -30.2 -30.3 -30.4 -30.5
480 : -30.6 -30.8 -30.8 -31.1 -31.1 -31.3 -31.4 -31.6 -31.8 -32.1
490 : -32.4 -32.6 -32.9 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
500 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
510 : -96.0 -96.0
==================================
UPSTEAM
Line 0 US HLOG (dB) (grouped by 8 tones):
0 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
10 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
20 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
30 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
40 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
50 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
60 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
70 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
80 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
90 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
100 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
110 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
120 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
130 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
140 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
150 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
160 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
170 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
180 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
190 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
200 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
210 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
220 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
230 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
240 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
250 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
260 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
270 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
280 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
290 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
300 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
310 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
320 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
330 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
340 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
350 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
360 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
370 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
380 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
390 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
400 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
410 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
420 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
430 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
440 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
450 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
460 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
470 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
480 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
490 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
500 : -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0 -96.0
510 : -96.0 -96.0
============================================================================
QLN-PS
DOWNSTEAM
Line 0 DS QLN (dBm/Hz) (grouped by 8 tones):
0 : -160.0 -160.0 -160.0 -160.0 -160.0 -117.2 -94.9 -109.9 -111.8 -112.3
10 : -113.6 -116.9 -114.7 -115.4 -116.1 -116.3 -115.3 -114.7 -113.6 -112.0
20 : -111.5 -111.7 -110.6 -104.6 -112.0 -112.4 -111.3 -111.6 -111.4 -110.8
30 : -111.4 -110.8 -111.4 -111.9 -111.9 -111.6 -111.0 -110.5 -110.9 -109.8
40 : -109.9 -109.2 -110.1 -109.8 -109.8 -110.1 -109.8 -110.1 -110.3 -109.6
50 : -109.8 -108.9 -109.1 -109.1 -107.8 -108.1 -107.1 -106.5 -105.6 -107.1
60 : -107.6 -106.6 -107.6 -108.5 -109.8 -108.4 -106.7 -108.4 -108.8 -109.8
70 : -108.9 -107.9 -109.6 -109.7 -109.0 -108.4 -108.9 -108.8 -109.1 -108.3
80 : -108.6 -107.4 -108.8 -108.7 -108.8 -108.3 -108.9 -108.8 -107.1 -108.6
90 : -108.7 -107.8 -107.9 -107.9 -107.3 -108.0 -107.4 -107.9 -107.6 -108.9
100 : -107.7 -107.6 -108.8 -108.0 -108.1 -109.6 -110.3 -112.3 -160.0 -160.0
110 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
120 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
130 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
140 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
150 : -160.0 -160.0 -110.6 -110.2 -109.4 -108.8 -108.8 -108.7 -108.3 -107.7
160 : -108.1 -108.7 -109.1 -108.7 -109.1 -108.3 -109.3 -108.6 -109.0 -107.8
170 : -108.4 -108.3 -107.6 -108.7 -107.8 -107.9 -108.2 -107.6 -107.1 -106.9
180 : -107.4 -107.1 -107.4 -108.0 -108.4 -107.6 -107.8 -107.8 -106.9 -107.5
190 : -107.8 -108.1 -108.3 -108.9 -108.4 -108.4 -107.4 -108.3 -109.9 -108.6
200 : -108.4 -109.1 -108.9 -108.8 -109.7 -108.4 -109.3 -109.4 -108.8 -108.8
210 : -109.8 -109.8 -109.7 -109.8 -109.5 -110.5 -109.8 -109.4 -109.2 -109.4
220 : -109.0 -109.6 -109.4 -109.0 -109.6 -109.8 -108.3 -108.9 -108.6 -108.6
230 : -109.3 -108.9 -108.8 -109.3 -108.6 -109.3 -108.4 -108.6 -109.2 -108.9
240 : -109.3 -108.8 -109.3 -108.6 -108.9 -108.9 -160.0 -160.0 -160.0 -160.0
250 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
260 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
270 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
280 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
290 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
300 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
310 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
320 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
330 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
340 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
350 : -114.9 -116.9 -115.8 -117.1 -117.1 -116.9 -115.7 -116.4 -116.8 -116.3
360 : -117.1 -115.9 -117.2 -116.3 -117.3 -117.2 -117.3 -117.8 -116.6 -116.8
370 : -115.5 -115.4 -115.8 -115.6 -114.6 -115.1 -114.4 -114.9 -114.9 -115.1
380 : -113.9 -115.5 -115.0 -115.2 -114.7 -115.2 -115.1 -114.8 -115.5 -115.9
390 : -115.8 -114.6 -114.3 -115.6 -115.4 -115.6 -115.0 -115.2 -116.0 -115.6
400 : -115.6 -115.9 -116.3 -115.5 -115.1 -115.8 -116.0 -116.4 -115.8 -115.6
410 : -116.1 -115.4 -116.9 -115.4 -117.1 -116.0 -116.6 -116.3 -116.2 -116.6
420 : -116.8 -116.3 -116.6 -116.4 -116.8 -116.4 -116.3 -117.1 -116.6 -116.8
430 : -116.9 -117.1 -117.5 -117.8 -117.8 -117.3 -117.4 -116.5 -117.4 -117.7
440 : -117.6 -116.3 -117.4 -117.7 -117.4 -116.9 -117.8 -116.8 -117.2 -117.3
450 : -118.3 -117.7 -117.1 -117.8 -117.2 -117.6 -116.8 -117.2 -117.1 -117.6
460 : -117.4 -116.8 -118.1 -116.8 -117.0 -117.3 -116.8 -117.0 -117.6 -118.3
470 : -118.0 -118.0 -117.5 -119.1 -118.1 -117.8 -117.9 -117.9 -118.1 -118.3
480 : -118.1 -117.4 -119.2 -118.4 -117.9 -118.2 -117.9 -118.1 -117.9 -118.7
490 : -118.8 -118.8 -118.4 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
500 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
510 : -160.0 -160.0
=======================================
UPSTEAM
Line 0 US QLN (dBm/Hz) (grouped by 8 tones):
0 : -160.0 -160.0 -160.0 -160.0 -138.1 -160.0 -160.0 -160.0 -160.0 -160.0
10 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
20 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
30 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
40 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
50 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
60 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
70 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
80 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
90 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
100 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
110 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
120 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
130 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
140 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
150 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
160 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
170 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
180 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
190 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
200 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
210 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
220 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
230 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
240 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
250 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
260 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
270 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
280 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
290 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
300 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
310 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
320 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
330 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
340 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
350 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
360 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
370 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
380 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
390 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
400 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
410 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
420 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
430 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
440 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
450 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
460 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
470 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
480 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
490 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
500 : -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0 -160.0
510 : -160.0 -160.0
=============================================================================
SNR-PS
DOWNSTEAM
Line 0 DS SNR (dB) (grouped by 8 tones):
0 : 0.0 0.0 0.0 0.0 0.0 41.3 30.2 47.3 48.1 50.3
10 : 52.4 53.8 45.0 52.4 52.8 53.3 52.9 52.6 51.2 49.3
20 : 48.6 48.9 49.2 38.8 49.4 50.7 50.0 49.4 49.5 48.6
30 : 48.9 48.7 48.9 48.6 48.3 47.9 47.6 46.8 46.3 45.5
40 : 45.4 45.2 45.4 45.2 46.0 45.9 46.9 46.4 46.3 46.1
50 : 45.9 45.1 45.3 44.8 44.4 44.6 44.9 44.5 45.0 44.7
60 : 44.7 44.7 44.2 44.2 43.8 43.2 43.3 43.1 43.1 42.6
70 : 42.3 42.3 42.4 42.3 42.6 42.1 41.9 41.8 41.8 41.4
80 : 41.6 41.1 41.8 41.8 41.5 41.4 41.4 40.9 40.6 40.8
90 : 40.8 40.3 40.1 39.4 39.5 39.4 39.3 39.8 39.2 39.4
100 : 39.7 39.4 39.7 39.8 39.3 39.8 39.4 39.8 0.0 0.0
110 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
120 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
130 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
140 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
150 : 0.0 0.0 36.3 36.3 36.8 36.6 36.6 36.3 36.3 36.3
160 : 36.4 36.3 36.1 36.4 36.4 36.1 36.4 36.4 36.1 36.2
170 : 35.9 35.6 35.8 36.2 33.2 35.6 35.4 35.3 35.1 34.8
180 : 35.0 34.9 34.8 34.4 34.3 34.6 34.8 35.1 34.3 34.2
190 : 34.2 34.3 34.5 34.3 34.1 34.4 34.3 34.1 34.6 34.3
200 : 34.0 33.8 34.3 34.0 34.3 33.8 34.0 34.1 33.6 33.7
210 : 33.8 33.7 33.8 33.6 33.6 33.5 33.6 33.6 33.1 33.1
220 : 33.4 32.8 32.5 32.4 32.5 32.4 31.9 32.4 32.1 32.2
230 : 32.5 32.7 32.3 32.6 31.9 32.1 32.0 31.3 32.2 31.8
240 : 31.9 31.6 31.4 31.6 31.4 32.1 0.0 0.0 0.0 0.0
250 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
260 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
270 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
280 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
290 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
300 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
310 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
320 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
330 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
340 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
350 : 29.2 29.9 29.6 29.9 30.2 29.9 29.4 29.1 29.8 29.1
360 : 29.9 29.3 29.8 29.4 29.8 29.7 29.6 29.7 29.6 29.2
370 : 27.9 28.0 27.9 28.0 28.1 28.1 27.4 27.6 27.7 27.5
380 : 27.3 27.3 27.4 27.2 27.6 27.6 27.4 27.2 27.2 27.0
390 : 27.6 27.5 27.2 27.3 27.6 27.6 27.4 27.3 27.6 27.2
400 : 27.6 27.7 27.8 27.4 27.6 27.3 27.3 27.3 27.4 27.6
410 : 27.1 27.3 27.6 27.3 27.8 27.4 27.3 27.7 27.3 27.5
420 : 27.3 27.3 27.4 27.1 27.3 27.3 27.8 27.3 28.1 27.5
430 : 27.6 27.8 27.4 27.3 27.3 27.5 27.4 27.3 27.3 28.3
440 : 27.2 26.9 27.1 27.8 26.8 27.6 27.2 27.0 27.5 27.4
450 : 27.2 26.6 27.3 26.6 26.8 26.6 26.4 26.6 26.3 26.4
460 : 26.3 26.0 26.5 26.5 26.7 26.1 26.2 26.3 26.6 26.9
470 : 26.6 26.7 26.6 26.4 26.0 26.1 25.9 26.0 26.3 26.1
480 : 25.9 25.9 25.8 26.1 25.9 25.9 25.8 25.6 25.8 26.1
490 : 26.0 25.9 25.9 0.0 0.0 0.0 0.0 0.0 0.0 0.0
500 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
510 : 0.0 0.0
===============================
UPSTEAM
Line 0 US SNR (dB) (grouped by 8 tones):
0 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
10 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
20 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
30 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
40 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
50 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
60 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
70 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
80 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
90 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
100 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
110 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
120 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
130 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
140 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
150 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
160 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
170 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
180 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
190 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
200 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
210 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
220 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
230 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
240 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
250 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
260 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
270 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
280 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
290 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
300 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
310 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
320 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
330 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
340 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
350 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
360 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
370 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
380 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
390 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
400 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
410 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
420 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
430 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
440 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
450 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
460 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
470 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
480 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
490 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
500 : 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
510 : 0.0 0.0
=======================================================================
HLIN-PS
DOWNSTEAM
Line 0 DS HLIN (grouped by 8 tones):
real part:
0 : -1 -1 -1 -1 -1 0 0 0 0 0
10 : 0 0 0 0 0 0 0 0 0 0
20 : 0 0 0 0 0 0 0 0 0 0
30 : 0 0 0 0 0 0 0 0 0 0
40 : 0 0 0 0 0 0 0 0 0 0
50 : 0 0 0 0 0 0 0 0 0 0
60 : 0 0 0 0 0 0 0 0 0 0
70 : 0 0 0 0 0 0 0 0 0 0
80 : 0 0 0 0 0 0 0 0 0 0
90 : 0 0 0 0 0 0 0 0 0 0
100 : 0 0 0 0 0 0 0 0 -1 -1
110 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
120 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
130 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
140 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
150 : -1 -1 0 0 0 0 0 0 0 0
160 : 0 0 0 0 0 0 0 0 0 0
170 : 0 0 0 0 0 0 0 0 0 0
180 : 0 0 0 0 0 0 0 0 0 0
190 : 0 0 0 0 0 0 0 0 0 0
200 : 0 0 0 0 0 0 0 0 0 0
210 : 0 0 0 0 0 0 0 0 0 0
220 : 0 0 0 0 0 0 0 0 0 0
230 : 0 0 0 0 0 0 0 0 0 0
240 : 0 0 0 0 0 0 -1 -1 -1 -1
250 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
260 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
270 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
280 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
290 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
300 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
310 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
320 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
330 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
340 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
350 : 0 0 0 0 0 0 0 0 0 0
360 : 0 0 0 0 0 0 0 0 0 0
370 : 0 0 0 0 0 0 0 0 0 0
380 : 0 0 0 0 0 0 0 0 0 0
390 : 0 0 0 0 0 0 0 0 0 0
400 : 0 0 0 0 0 0 0 0 0 0
410 : 0 0 0 0 0 0 0 0 0 0
420 : 0 0 0 0 0 0 0 0 0 0
430 : 0 0 0 0 0 0 0 0 0 0
440 : 0 0 0 0 0 0 0 0 0 0
450 : 0 0 0 0 0 0 0 0 0 0
460 : 0 0 0 0 0 0 0 0 0 0
470 : 0 0 0 0 0 0 0 0 0 0
480 : 0 0 0 0 0 0 0 0 0 0
490 : 0 0 0 -1 -1 -1 -1 -1 -1 -1
500 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
510 : -1 -1

imaginary part:
0 : -1 -1 -1 -1 -1 0 0 0 0 0
10 : 0 0 0 0 0 0 0 0 0 0
20 : 0 0 0 0 0 0 0 0 0 0
30 : 0 0 0 0 0 0 0 0 0 0
40 : 0 0 0 0 0 0 0 0 0 0
50 : 0 0 0 0 0 0 0 0 0 0
60 : 0 0 0 0 0 0 0 0 0 0
70 : 0 0 0 0 0 0 0 0 0 0
80 : 0 0 0 0 0 0 0 0 0 0
90 : 0 0 0 0 0 0 0 0 0 0
100 : 0 0 0 0 0 0 0 0 -1 -1
110 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
120 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
130 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
140 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
150 : -1 -1 0 0 0 0 0 0 0 0
160 : 0 0 0 0 0 0 0 0 0 0
170 : 0 0 0 0 0 0 0 0 0 0
180 : 0 0 0 0 0 0 0 0 0 0
190 : 0 0 0 0 0 0 0 0 0 0
200 : 0 0 0 0 0 0 0 0 0 0
210 : 0 0 0 0 0 0 0 0 0 0
220 : 0 0 0 0 0 0 0 0 0 0
230 : 0 0 0 0 0 0 0 0 0 0
240 : 0 0 0 0 0 0 -1 -1 -1 -1
250 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
260 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
270 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
280 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
290 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
300 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
310 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
320 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
330 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
340 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
350 : 0 0 0 0 0 0 0 0 0 0
360 : 0 0 0 0 0 0 0 0 0 0
370 : 0 0 0 0 0 0 0 0 0 0
380 : 0 0 0 0 0 0 0 0 0 0
390 : 0 0 0 0 0 0 0 0 0 0
400 : 0 0 0 0 0 0 0 0 0 0
410 : 0 0 0 0 0 0 0 0 0 0
420 : 0 0 0 0 0 0 0 0 0 0
430 : 0 0 0 0 0 0 0 0 0 0
440 : 0 0 0 0 0 0 0 0 0 0
450 : 0 0 0 0 0 0 0 0 0 0
460 : 0 0 0 0 0 0 0 0 0 0
470 : 0 0 0 0 0 0 0 0 0 0
480 : 0 0 0 0 0 0 0 0 0 0
490 : 0 0 0 -1 -1 -1 -1 -1 -1 -1
500 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
510 : -1 -1
scaled by 0/2^30
=======================================
UPSTEAM
Line 0 US HLIN (grouped by 8 tones):
real part:
0 : -1 0 0 0 0 -1 -1 -1 -1 -1
10 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
20 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
30 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
40 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
50 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
60 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
70 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
80 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
90 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
100 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
110 : 0 0 0 0 0 0 0 0 0 0
120 : 0 0 0 0 0 0 0 0 0 0
130 : 0 0 0 0 0 0 0 0 0 0
140 : 0 0 0 0 0 0 0 0 0 0
150 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
160 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
170 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
180 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
190 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
200 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
210 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
220 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
230 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
240 : -1 -1 -1 -1 -1 -1 -1 -1 0 0
250 : 0 0 0 0 0 0 0 0 0 0
260 : 0 0 0 0 0 0 0 0 0 0
270 : 0 0 0 0 0 0 0 0 0 0
280 : 0 0 0 0 0 0 0 0 0 0
290 : 0 0 0 0 0 0 0 0 0 0
300 : 0 0 0 0 0 0 0 0 0 0
310 : 0 0 0 0 0 0 0 0 0 0
320 : 0 0 0 0 0 0 0 0 0 0
330 : 0 0 0 0 0 0 0 0 0 0
340 : 0 0 0 0 0 0 0 -1 -1 -1
350 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
360 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
370 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
380 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
390 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
400 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
410 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
420 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
430 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
440 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
450 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
460 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
470 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
480 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
490 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
500 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
510 : -1 -1

imaginary part:
0 : -1 0 0 0 0 -1 -1 -1 -1 -1
10 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
20 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
30 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
40 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
50 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
60 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
70 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
80 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
90 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
100 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
110 : 0 0 0 0 0 0 0 0 0 0
120 : 0 0 0 0 0 0 0 0 0 0
130 : 0 0 0 0 0 0 0 0 0 0
140 : 0 0 0 0 0 0 0 0 0 0
150 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
160 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
170 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
180 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
190 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
200 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
210 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
220 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
230 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
240 : -1 -1 -1 -1 -1 -1 -1 -1 0 0
250 : 0 0 0 0 0 0 0 0 0 0
260 : 0 0 0 0 0 0 0 0 0 0
270 : 0 0 0 0 0 0 0 0 0 0
280 : 0 0 0 0 0 0 0 0 0 0
290 : 0 0 0 0 0 0 0 0 0 0
300 : 0 0 0 0 0 0 0 0 0 0
310 : 0 0 0 0 0 0 0 0 0 0
320 : 0 0 0 0 0 0 0 0 0 0
330 : 0 0 0 0 0 0 0 0 0 0
340 : 0 0 0 0 0 0 0 -1 -1 -1
350 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
360 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
370 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
380 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
390 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
400 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
410 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
420 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
430 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
440 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
450 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
460 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
470 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
480 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
490 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
500 : -1 -1 -1 -1 -1 -1 -1 -1 -1 -1
510 : -1 -1
scaled by 0/2^30

石光上林

石光上林
個人積分：15828分
文章編號：52595859

15828分

樓主

2014-10-12 12:43

taotu wrote:
若是17A，將D3的第一個8_GROUP乘上10就可得大約的衰減距離(公尺)。D3的第一個8_GROUP的位置應該在第350 ＂8_GROUP"，合勤的ＧＲＯＵＰ是從0到511，很好找。
假如是30Ａ的話，同樣取D3的第一個8_GROUP，位置您可以找找，找到告訴大家。
不過這些和ＬＤＭ提供的等效距離或電氣長度一樣，都是衰減距離，線路異常衰減距離會變長。
補充說明:上述在700公尺內有效。

抱歉，如果我看樓上大大的，應該是沒有用的

Hlog就是band衰減的倒數，你把各band的中心頻率拿出來比就是了

QLN是在不傳送的狀態從最低敏感度-160去看他增加多少功率，就是你講的背景雜訊功率

SNR不用講了，這邊就是細分各tone的SNR

QLN和SNR都不可能拿來當作反推距離的參考

唯一就是和衰減相關的Hlog了，但你直接拿D3 band衰減去*10，會發現根本不是
用D3第一個tone(350*8*4.125+138khz 約等於12Mhz)去*10，也明顯不是

~~~~~~~~~~~~~~~~~~~

如果真的按照這個公式算

那樓上大大的供裝距離再244公尺，足足比他地圖標出來的多了50公尺...

如果中華內部都用這個算法，那會造成今天這樣浪費設備也不意外了...

也许是一场难圆的梦一场没有结局的梦多少的笑语飞散在风中又围绕在我耳边

石光上林

石光上林
個人積分：15828分
文章編號：52595910

15828分

樓主

2014-10-12 12:47

h541010a wrote:
這是光化箱嗎?這我家...(恕刪)

我推看起來距離再短一點，約180~190公尺吧，可能因為線路狀況比較好吧

看起來單線上100沒有問題，衰減都沒有過大

不能單線上60M可能是因為目前你的電話線在交接箱接的是最老舊的VES1624FA，所以不能上60M

請他抽換VDSL Switch，將你現在使用的VES1624FA換成VES1724，就可以了

甚至可以請規設科單線上100M

感謝大大附上詳盡資料

也许是一场难圆的梦一场没有结局的梦多少的笑语飞散在风中又围绕在我耳边

taotu

taotu
個人積分：20分
文章編號：52597271

20分

365樓

2014-10-12 14:53

石光上林 wrote: 抱歉，如果我看樓上大大的，應該是沒有...(恕刪)

中華目前用的距離算法是死的，是電纜最初在放線時回報的資料，是早在市話時代就有的資料，沒有因為有新的設備工具去即時更新資料，我也認為不是很準

12Mhz*(-10)是少數師傅會用到的方法(教材就放在那，有興趣的人才會去看)我相信大部份的師傅不會看這東西,中華有測試系統可以不必斷線，就可以撈出這些資料，還把圖形都畫好，判斷問題就很快，

我個人感覺是蠻準的，算出來跟地圖差50公尺也很合理，
因為管道裡的纜線不見得完全是按著地圖的線這樣拉，
可能會因為手孔設計的位置多走一點，
每個手孔裡又會多預留兩三米供接續用，
手孔到引上的DJ箱也要再加幾米，
纜線裡用的銅線徑也有差，纜線的絞距也會增加距離，
交接箱裡的跳線和引下距離也會增加四,五米，
用戶家的內線幾米每一家都說不定，平均至少也都超過10米吧

不知道我這樣解釋說的通嗎？

石光上林

石光上林
個人積分：15828分
文章編號：52597862

15828分

樓主

2014-10-12 15:55

taotu wrote:
我個人感覺是蠻準的，算出來跟地圖差50公尺也很合理，
因為管道裡的纜線不見得完全是按著地圖的線這樣拉，
可能會因為手孔設計的位置多走一點，
每個手孔裡又會多預留兩三米供接續用，
手孔到引上的DJ箱也要再加幾米，
纜線裡用的銅線徑也有差，纜線的絞距也會增加距離，
交接箱裡的跳線和引下距離也會增加四,五米，
用戶家的內線幾米每一家都說不定，平均至少也都超過10米吧

不知道我這樣解釋說的通嗎？)

你講的都是對的...

但是不能夠當成中華供裝距離限制不實際的理由

你把h541010a大大的數據拿去和那個愛爾蘭論壇的比較，去找衰減差不多的數據

然後看看人家回答多少公尺，不可能到誤差50公尺去，尤其距離在200米內的

也许是一场难圆的梦一场没有结局的梦多少的笑语飞散在风中又围绕在我耳边

taotu

taotu
個人積分：20分
文章編號：52598224

20分

367樓

2014-10-12 16:36

石光上林 wrote: 你講的都是對的... 但是不能夠...(恕刪)

那麼論壇那邊的用戶回答的距離有把我講的這些因素算進去??

還是用地圖拉出來距離來驗證??

最準確的方式就是拿兩綑兩百米的內線到交接箱把每個長度的資料掛出來，話說這麼簡單的實驗，連公式都有了，肯定有研究把這實驗做到爛了，石大你翻得到嗎？

不過我認為公式再準確也只是參考用，套用在實務上有太多因素可以影響了，

石光上林

石光上林
個人積分：15828分
文章編號：52600383

15828分

樓主

2014-10-12 19:51

taotu wrote:
那麼論壇那邊的用戶回答的距離有把我講的這些因素算進去??

裡面沒有提到你講得這個公式

那串討論中我只有看到一篇他自己要換線把屋內一二樓換掉，還有室外(我猜是他院子下的線)的線

大概說20幾米。過幾天我再把它找出來給你看

其他篇沒看到有再提這個

回到我這篇一開始提到的，何以愛爾蘭的可達頻寬利用率這麼高，而台灣這麼低，甚至還要浪費port去搞沒有vectoring的bonding

從結果來看就是中華供裝判斷失準

也许是一场难圆的梦一场没有结局的梦多少的笑语飞散在风中又围绕在我耳边

h541010a

h541010a
個人積分：60分
文章編號：52603297

60分

369樓

2014-10-12 23:02

石光上林 wrote:
我推看起來距離再短一...(恕刪)

不好意思石大
要如何請他抽換？打電話？又要如何講？
會不會不給換？還是是要多打幾次？

石光上林

石光上林
個人積分：15828分
文章編號：52606309

15828分

樓主

2014-10-13 7:26

h541010a wrote:
不好意思石大要如何請...(恕刪)

抄下交接箱編號

打123請他派單子規設科，註明交接箱的編號，XX-1234之類的，請他把VES1624FA換成VES1724

或是箱子上有電話，打進去問出規設科的電話直接打給規設科，轉道規設科後，問他某箱子是誰負責的(XX代表局號，後面數字才是交接箱的編號)

和負責該箱子的人說 XX-1234號箱子需要換VES1724，然後給他電路編號，說目前應該是用VES1624FA所以60M升不上去，請在抽換後一併幫你這路轉上去

也许是一场难圆的梦一场没有结局的梦多少的笑语飞散在风中又围绕在我耳边
