fcu8809 wrote:
不錯啦...舊用戶還...(恕刪)
用料 還異常的多 我有跟師傅借一台來拆(新品不良) 這幾天要還他
只有一根螺絲

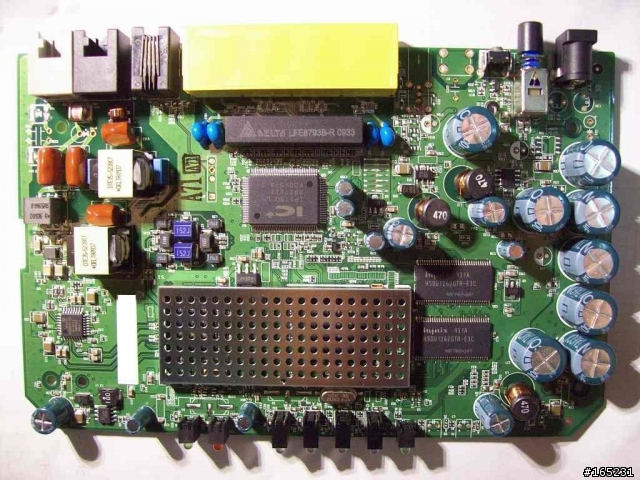

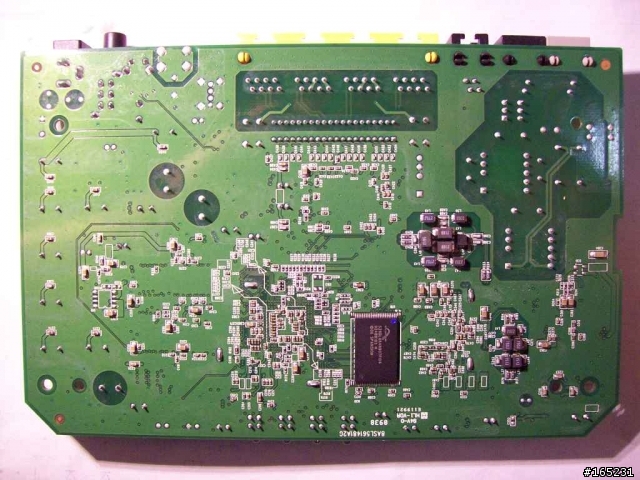

來個開箱文
自己看
<RUN了4小時 CPU溫溫的 (不小心 被我看到 "空焊" 幫他修好了)
自己用只有在HUB IC 貼一顆散熱片
不知道 他是拿那一台 用的 還有USB 回路 = =""
fcu8809 wrote:
感謝您的分享!654...(恕刪)
============================20號================================

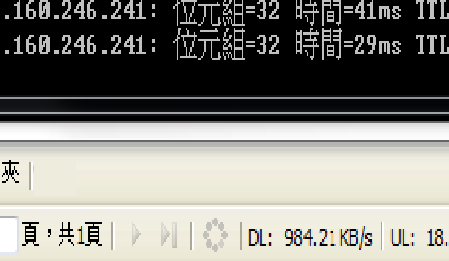

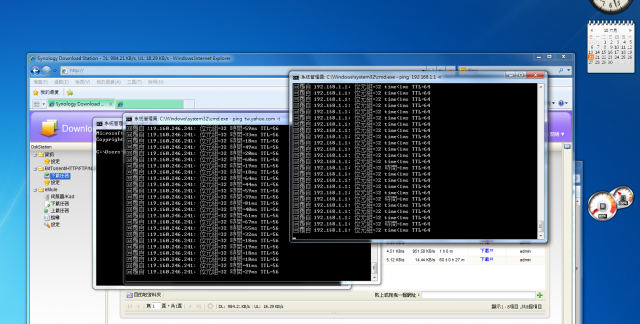

測試 下載 MAX 全速 還不錯 穩定度夠
沒有872HA 還會有不定時 降速
一路穩穩850~9XXKB 在下載 B.
B機 全速狀況其他電腦 在玩ONLINE GAME 也沒有拖慢 現象

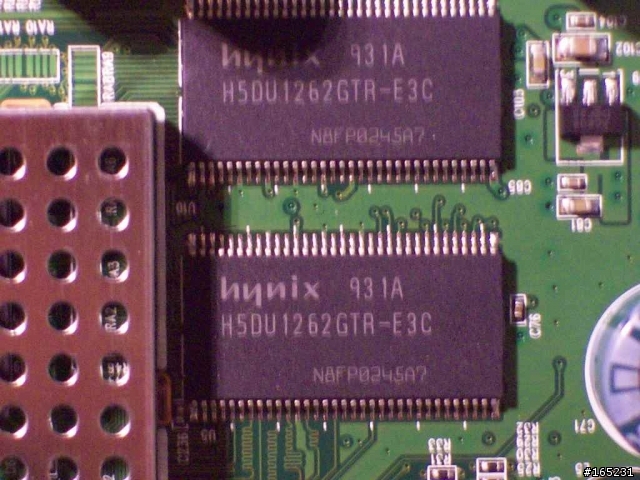

猜測應該是他的RAM 裝的購大

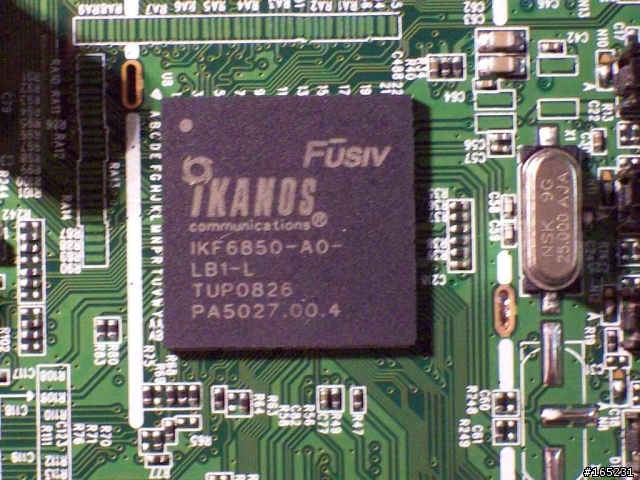

還有聽說CPU 是一顆
Fusiv Vx180
600/500 MHz 32-bit MIPS-based™ host processor (不知道其他機種 是裝哪一種)
手上拿到這台 韌體 功能都被拿光光版本 只能 簡單的硬潑 其他設定都被關光光
原來是要用不是秘密的密碼 進入

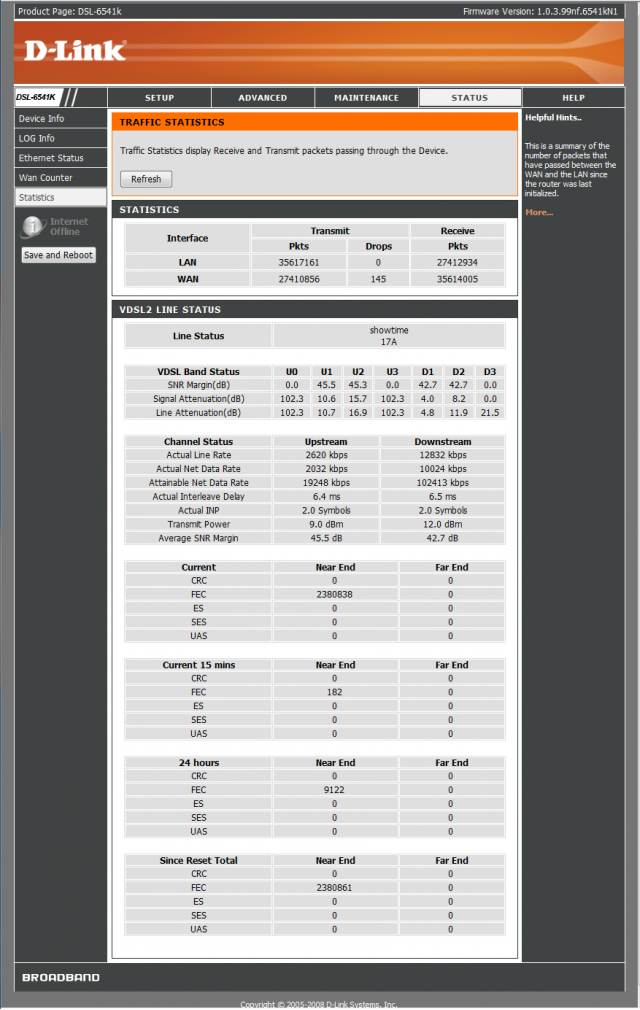

看到我的線路品質 不是很優
--------------------------------------------------27號-------------------------------------------------------------
U-Boot 1.1.4.8.f8r32 for FUSIV chipset by Ikanos(Mar 30 2009 - 08:21:49)
CPU: IKANOS Fusiv 180 Family
DRAM: 32 MB

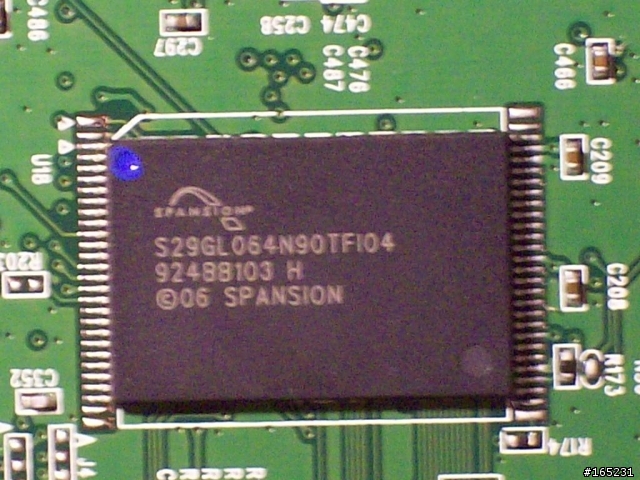

Flash: 8 MB
In: serial
Out: serial
Err: serial
Net: Registered Ethernet Driver
voxEmac
Type "h" for HELP. Have fun!
Hit any key to stop autoboot: 0
## Booting image from active region 2 at bfc10000 ...
Image Name: Ikanos_kernel_2.6.18.2
Created: 2009-10-07 9:16:51 UTC
Image Type: MIPS Linux Kernel Image (lzma compressed)
Data Size: 746281 Bytes = 728.8 kB
Load Address: 80010000
Entry Point: 8022e000
Verifying Checksum ... OK
Uncompressing Kernel Image ... OK
Starting kernel ...
Linux version 2.6.18.8 (antonio@bsd2.alphanetworks.com) (gcc version 3.4.3) #1 P
REEMPT Wed Oct 7 17:14:51 CST 2009
arg[1] root=/dev/mtdblock6
CPU revision is: 0001964c
Determined physical RAM map:
memory: 01800000 @ 00000000 (usable)
Built 1 zonelists. Total pages: 6144
Kernel command line: root=/dev/mtdblock6
Primary instruction cache 32kB, physically tagged, 4-way, linesize 32 bytes.
Primary data cache 32kB, 4-way, linesize 32 bytes.
Synthesized TLB refill handler (20 instructions).
Synthesized TLB load handler fastpath (32 instructions).
Synthesized TLB store handler fastpath (32 instructions).
Synthesized TLB modify handler fastpath (31 instructions).
Cache parity protection disabled
PID hash table entries: 128 (order: 7, 512 bytes)
Dentry cache hash table entries: 4096 (order: 2, 16384 bytes)
Inode-cache hash table entries: 2048 (order: 1, 8192 bytes)
Memory: 21848k/24576k available (1879k kernel code, 2728k reserved, 284k data, 1
48k init, 0k highmem)
Mount-cache hash table entries: 512
Checking for 'wait' instruction... available.
NET: Registered protocol family 16
Fusiv PCI: starting...
NET: Registered protocol family 2
IP route cache hash table entries: 256 (order: -2, 1024 bytes)
TCP established hash table entries: 1024 (order: 0, 4096 bytes)
TCP bind hash table entries: 512 (order: -1, 2048 bytes)
TCP: Hash tables configured (established 1024 bind 512)
TCP reno registered
Squashfs 2.1-r2 (released 2004/12/15) (C) 2002-2004 Phillip Lougher
LZMA decompressor support based on LZMA SDK 4.05 by Oleg I.Vdovikin
devfs: 2004-01-31 Richard Gooch (rgooch@atnf.csiro.au)
devfs: boot_options: 0x1
Initializing Cryptographic API
io scheduler noop registered (default)
Serial: 8250/16550 driver $Revision: 1.3 $ 2 ports, IRQ sharing disabled
serial8250: ttyS0 at MMIO 0xb9020000 (irq = 6) is a 16450
nbd: registered device at major 43
PPP generic driver version 2.4.2
NET: Registered protocol family 24
On Board flash device: 0x800000 at 0x1f800000
ELBOX physically mapped flash: Found 1 x16 devices at 0x0 in 16-bit bank
Amd/Fujitsu Extended Query Table at 0x0040
number of CFI chips: 1
cfi_cmdset_0002: Disabling erase-suspend-program due to code brokenness.
[ACTIVE REGION]: 2
ELBOX physically mapped flash: squashfs filesystem found at block 4928
Creating 8 MTD partitions on "ELBOX physically mapped flash":
0x00000000-0x00030000 : "uboot"
0x00004000-0x00008000 : "ubootconfig"
0x007f0000-0x00800000 : "rgdb"
0x00030000-0x00800000 : "firmware(reserve)"
0x00030000-0x00410000 : "upgrade"
0x004d0020-0x0078e020 : "rootfs"
0x00410000-0x007f0000 : "upgrade2"
0x00000000-0x00800000 : "flash"
ip_conntrack version 2.4 (192 buckets, 1536 max) - 312 bytes per conntrack
ip_tables: (C) 2000-2006 Netfilter Core Team
ClusterIP Version 0.8 loaded successfully
arp_tables: (C) 2002 David S. Miller
TCP bic registered
NET: Registered protocol family 1
NET: Registered protocol family 17
Bridge firewalling registered
Ebtables v2.0 registered
802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
All bugs added by David S. Miller <davem@redhat.com>
VFS: Mounted root (squashfs filesystem) readonly.
Mounted devfs on /dev
Freeing unused kernel memory: 148k freed
init started: BusyBox v1.00 (2009.10.06-11:50+0000) multi-call binary
[/etc/init.d/S03config.sh]
Mounting proc and var ...
Start xmldb ...
[/etc/scripts/misc/profile.sh] init ...
[/etc/scripts/misc/profile_action.sh] get ...
[/etc/scripts/misc/defnodes.sh] ...
SH [/etc/defnodes/S10syncnodes.sh] ...
SH [/etc/defnodes/S11setext.sh] ...
PHP [/etc/defnodes/S12setnodes.php] ...
SH [/etc/defnodes/S13setext.sh] ...
[/etc/defnodes/S13setext.sh] ...
PHP [/etc/defnodes/S14setnodes.php] ...
SH [/etc/defnodes/S15syncnodes.sh] ...
PHP [/etc/defnodes/S20setnodes.php] ...
SH [/etc/defnodes/S20upnp_igd.sh] ...
SH [/etc/defnodes/S22setext.sh] ...
SH [/etc/defnodes/S30setnode.sh] ...
PHP [/etc/defnodes/S40brand.php] ...
SH [/etc/defnodes/S40syncnodes.sh] ...
: cannot createpv4/neigh/default/gc_thresh1
: cannot createpv4/neigh/default/gc_thresh2
SH [/etc/defnodes/S41setext.sh] ...
PHP [/etc/defnodes/S42setnodes.php] ...
[/etc/scripts/misc/defnodes.sh] Done !!
[/etc/templates/timezone.sh] ...
[/etc/templates/logs.sh] ...
[/var/run/logs_run.sh] ...
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/ap_code/lib/fusivlib_lkm.ko
fusivlib_lkm: module license 'proprietary' taints kernel.
fusiv library initializing...
Buffer Copy Through DMA is enabled
fusiv library initialized SUCCESSFULLY...
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/bm/bmdriver_lkm.ko
Buffer Manager is initializing...
BMU GIGE clock
Slave Mem Alloc: Req size 32 Ptr2Block 0x191f0000
Load into BM APU Successful !!!
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/timerlib/timers_lkm.
ko
Timers are getting initalized
Timers are initilized SUCCESSFULLY...
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/ap2ap/ap2ap_lkm.ko
AP2AP fastpath initialized SUCCESSFULLY...
Added AP PREROUTE Hook
Added AP POSTROUTE Hook Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/dri
vers/ethdriver/ethdriver_lkm.ko
eth0: Netpro Sierra Ethernet found at 0xb9110000, irq 14
GIGE 1 clock dev->baseAddr b9110000
Slave Mem Alloc: Req size 32 Ptr2Block 0x191f0020
eth1: Netpro Sierra Ethernet found at 0xb9150000, irq 13
GIGE 2 clock dev->baseAddr b9150000
Slave Mem Alloc: Req size 32 Ptr2Block 0x191f0040
Ethernet Driver is initialized SUCCESSFULLY
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/switch/icplus/ip175d
_lkm.ko

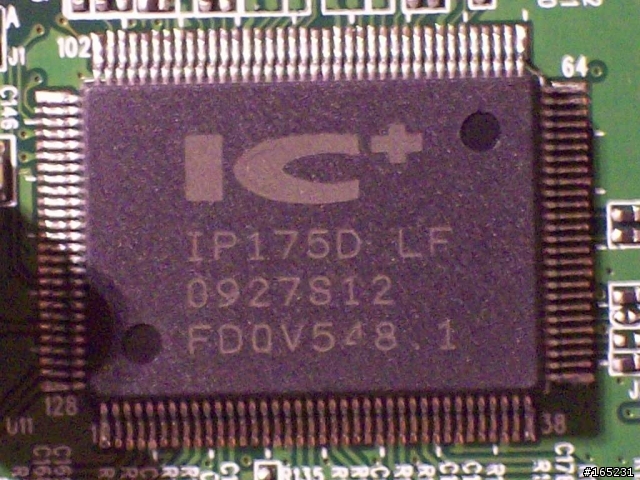

Found IC+ 175d switch hardware
ICPLUS registered to ethernet port eth0
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/ethdriver/sysKCode_l
km.ko
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/peri_ap/periap_drive
r_lkm.ko
periApDriverInit: doneSlave Mem Alloc: Req size 32 Ptr2Block 0x191f0060
*******LOAD firmware to AP:PERI_ID result:0Load into PERI_AP APU Successful !!!
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/pppoe_passthru/pppoe
Passthrough_lkm.ko
***** PPP over Ethernet Relay driver registered with Major number: 253 *****
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/ipqos/ipqos_lkm.ko
System Speed is 166MHz
Enable IRQ for IPQOS timer
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/opensrc/opensrc_lkm.
ko
Using /lib/modules/2.6.18.8/kernel/bmedrv_init: Registered BME device with Major
number 252
fusbmedrv_init: Region 0x01800000 - 0x01ffffff allocated successfully
ivBME Driver has been loaded SUCCESSFULLY
_src/kernel/drivers/bmedriver/bmedrv.ko
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/vdsldriver/vdsldrive
r_lkm.ko
VDSL AP and VDSL PHY clocks are enabled
eth2: Netpro VDSL Ethernet found at 0x0, irq 36
VDSL PHY default parameters configured successfully
User parameters for VDSL AP configured successfully
Slave Mem Alloc: Req size 32 Ptr2Block 0x191f0080
VDSL AP started successfully
default parameters configured successfully
VDSL Driver is initialized SUCCESSFULLY
Using lib/modules/ifx_nfext_core.ko
CPE start address is a1800000
ipos system initialized
Using lib/modules/ifx_oam.ko
Loading Factory Reset driver
Using /lib/modules/freset.ko
BME 1 is coming up
b1p0 iposBmeStartBlk cmdtag 0 status: IN PROGRESS
cpe> No wireless device
Transfer to SDRAM Successful
BmeHw: Downloading BME 1 software.....
BmeHw: Bme 1 software code downloaded successfully
b1p0 iposBmeStartBlk cmdtag 0 status: COMPLETE
cpe> Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/policyVlan/vlan
_classifier_lkm.ko
vlan_classifier_lkm module loaded SUCCESSFULLY...
Using /lib/modules/2.6.18.8/kernel/fusiv_src/kernel/drivers/igmpsnoop/igmpsnoop_
lkm.ko
IGMP Snoop Module inserted successfully
Loading LED driver
Using /lib/modules/drv_led_lkm.ko
Using /lib/modules/ifresetcnt.ko
Network interface reset count v1.0
[/etc/templates/timezone.sh] ...
Sat Jan 1 16:00:10 PST 2000
[/etc/templates/timezone.sh] ...
Sat Jan 1 00:00:00 PST 2000
[/etc/init.d/S03config.sh] done!
[/etc/init.d/S10system.sh]
[/etc/templates/vlan.sh] [start]...
alm freq 20
status freq 30
b1p0 iposPeriodicReportEnable cmdtag 99 status: IN PROGRESS
cpe>
b1p0 iposPeriodicReportEnable cmdtag 99 status: COMPLETE
cpe> [/var/run/vlan_start.sh] ...
Start Switch LAN setting disable switch vlan feature...
[/etc/scripts/layout.sh] [start] ...
[/var/run/layout_start.sh] ...
Start router layout ...
device eth0 entered promiscuous mode
br0: port 1(eth0) entering learning state
br0: topology change detected, propagating
br0: port 1(eth0) entering forwarding state
[/etc/templates/wan_vlan.sh] [start] ...
[/var/run/wan_vlan_start.sh] ...
Start WAN VLAN ...
Set name-type for VLAN subsystem. Should be visible in /proc/net/vlan/config
[/etc/templates/lan.sh] [start] ...
[/var/run/lan_start.sh] ...
Start LAN ( br0/192.168.1.1/255.255.255.0.)...
DHCP server is disabled!
[/etc/templates/thttpd.sh] [start] ...
Starting THTTPD ...
[/etc/templates/webs.sh] [start] ...
auto ,en ,dir = /www
[/var/run/webs_start.sh] ...
Starting HTTPD ...
UPnP is disabled !
[/etc/templates/logd.sh] ...
OamOptionMask Set to 3
Please execute 'vdsl' in 1 seconds to enter into Supervisor mode
[/var/run/logd_start.sh] ...
Starting logd ...
>>> ALPHA Log:
/bin/alphaLogd: create logd_ipc(3) OK !
[/etc/templates/rg.sh] [start] [] [] [] []...
[/var/run/rg_start.sh] ...
0
sendto_unsock(/var/run/portt.unixsocket, flush)
[/etc/templates/tftpd.sh] [restart] ...
[/var/run/tftpd_start.sh] ...
Starting tftpd ...
[/etc/templates/housekeeper.sh] [start] ...
[/var/run/housekeeper_start.sh] ...
Starting housekeeper ...
[/etc/templates/dns.sh] [start] ...
[/var/run/dns_start.sh] ...
Changing port profile #2 BAND_PLAN=0x1 PTM MODE=0x0
OamoptionMask 3
optionMask 8
b1p0 iposBmeProvision cmdtag 0 status: IN PROGRESS
cpe> [/etc/templates/dnrd.sh] [start] [] ...
b1p0 iposBmeProvision cmdtag 0 status: COMPLETE
cpe>
b1p1 iposPmConfig cmdtag 0 status: IN PROGRESS
cpe>
b1p1 iposPmConfig cmdtag 0 status: COMPLETE
cpe> [/var/run/dnrd_start.sh] ...
Start DNRD ...
Notice: caching turned off
[/etc/templates/upnpd.sh] [start] ...
[/var/run/upnpd_start.sh] ...
UPNP function is not enabled !!
[/etc/templates/proto_vlan.sh] [start] ...
[/var/run/proto_vlan_start.sh] ...
[/etc/templates/dhcp_option.sh] [start] ...
: cannot create
[/etc/templates/flash_agent.sh] [start] ...
[/var/run/flash_agent_start.sh] ...
>>> ALPHA Flash Agent:
00:00:04 FLASHAGENT: Create fa_r_fa_ipc(4) OK !
[/etc/templates/diap.sh] [start] ...
[/var/run/diap_start.sh] ...
Starting DIAP ...
[/etc/templates/telnetd.sh] [start] ...
[/var/run/telnetd_start.sh] ...
Starting telnetd ...
[/etc/templates/sshd.sh] [start] ...
[/var/run/sshd_start.sh] ...
Starting SSH ...
[1066] Jan 01 00:00:04 Running in background
[/etc/templates/oam_snoop.sh] [start] ...
[/var/run/oam_snoop_start.sh] ...
Enable ALPHA OAM parser ...
[/etc/templates/tr069.sh] [start] ...
[/var/run/tr069_start.sh] ...
Starting TR069, but Disable ...
[/etc/templates/snmp.sh] [start] ...
[/var/run/snmp_start.sh] ...
Starting SNMP ...
SNMP is disabled!
[/etc/templates/igmpsnoop.sh] [start] ...
enable igmpsnooping of 175D
[/var/run/igmpsnoop_start.sh] ...
[/etc/templates/cfm.sh] [start] ...
[/var/run/cfm_start.sh] ...
Enable ALPHA CFM ...
[/etc/templates/tftpd.sh] [start] ...
[/var/run/tftpd_stop.sh] ...
[/var/run/tftpd_stop.sh] ...
[/var/run/tftpd_start.sh] ...
Starting tftpd ...
[/etc/templates/alg.sh] start ...
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_conntrack_h323.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_nat_h323.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_conntrack_ipsec.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_nat_ipsec.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_nat_snmp_basic.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_conntrack_irc.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_nat_irc.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_conntrack_ftp.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_nat_ftp.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_conntrack_tftp.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_nat_tftp.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_conntrack_amanda.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_nat_amanda.ko
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_conntrack_pptp.ko
ip_conntrack_pptp version 3.1 loaded
Using /lib/modules/2.6.18.8/kernel/net/ipv4/netfilter/ip_nat_pptp.ko
ip_nat_pptp version 3.0 loaded
[/etc/init.d/S10system.sh] done!
rcS done!
login:
DSL-6541k Configure Menu
01. WAN
02. LAN
03. VLAN
04. VDSL2
05. DNS
06. Dynamic DNS
07. DHCP Server
08. Option Map to DHCP
09. Filter
10. QoS
11. Virtual Server
12. Routing
13. TR069
14. SNMP
15. IGMP
16. Misc
17. LoopBack Test
18. CFM
19. Configuration
20. Firmware Information
->
bZIP
內文搜尋
從 APP 打開
X
