石光上林 wrote:
路由器不能自備 才...(恕刪)
So... V7610 確實可取代中華提供的光世代路由器, 是嗎?
drkh wrote:
So... V7610...(恕刪)
是
補教學
refer http://forums.whirlpool.net.au/archive/2632717
1. Login to the router using your normal admin username and password.
2. Click the "Advanced Tab"
3. Click "Administration" -> "Backup Settings"
4. Click the "Back Up" button
5. The config will download to a file called NETGEAR_V7610.cfg.
6. Open up the config file with notepad. It's encoded in Base64, so easily reversible.
7. Copy the entire contents of the file to clipboard.
8. Go to https://www.base64encode.org/
9. Paste the Base64 content into the decode portion
10. Once it's decoded, paste it into another notepad document
11. Look for the line: X_BROADCOM_COM_LoginCfg 在這一行下的框框內加入帳號
12. You'll see a <SupportPassword> section. Delete that line and replace it with this:
<AdminUserName>admin</AdminUserName>
<AdminPassword>aGFja21lMTIzAA==</AdminPassword>
<SupportUserName>support</SupportUserName>
<SupportPassword>aGFja21lMTIzAA==</SupportPassword>
12.2 Find value G.993.2_Annex_K_PTM and replace it as G.993.2_Annex_A
13. Copy the entire text of the file into clipboard and go back to https://www.base64encode.org/
14. Click the "Encode" link at the top and paste the contents in to encode it.
15. Paste the encoded config file back into the original NETGEAR_V7610.cfg file.
16. Go back to your router config page and click the "Choose File" button and upload the config back into the router.
17. When the router reboots, login with:
Username: admin
Password: hackme123
也许是一场难圆的梦
一场没有结局的梦
多少的笑语飞散在风中
又围绕在我耳边

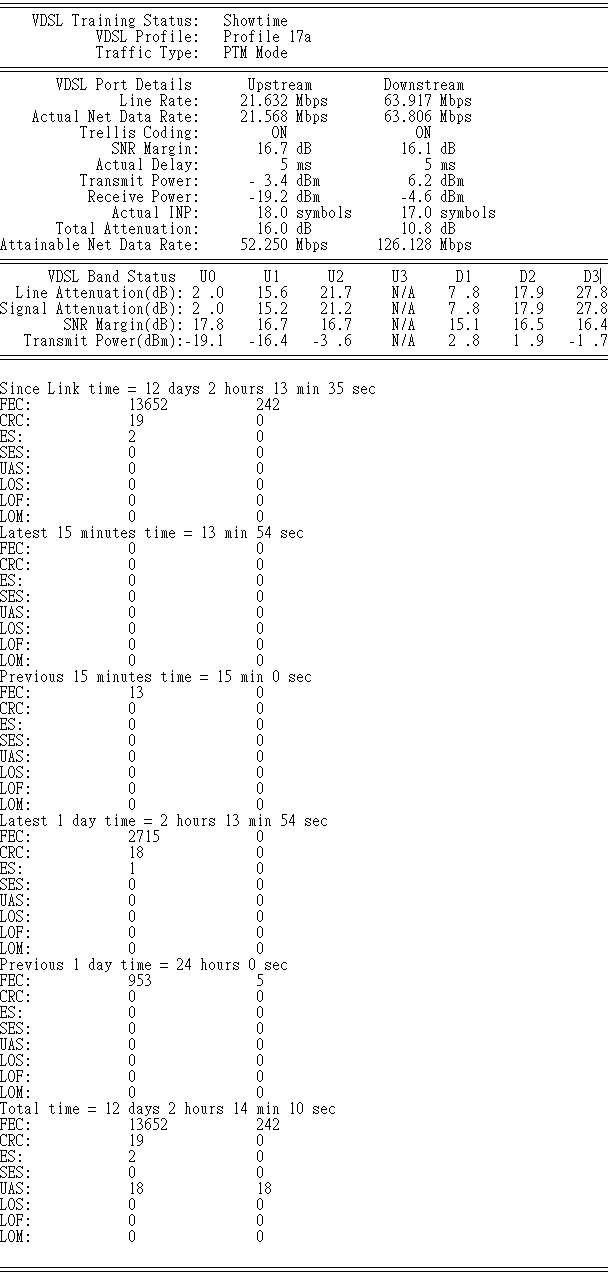

以下是升速後的 VDSL status:
http://drkh.myweb.hinet.net/VDSL_status_100m_40m.jpg
李大媽 wrote:
今天改成FTTH了，在施工之前留念一下
3-4年前改成FTTH了，在施工之前留念一下
住所歷經終端設備過程
ADSL：SpeedTouch 340→CT-511C(良品)→T07A
VDSL：DSL-5540c→DSL-6641K→DSL-7740C
GPON：I-040GW
露天表示:www.ruten.xxx
五月紅 wrote:
昨天家裡終於升到60M...(恕刪)
DSL1 單線就可以100M了，看大大要不要先退回元速率試試看
→ Windcws9Z: 不是有拉光纖 你家就能用光纖 08/04 20:00
→ Windcws9Z: 光纖便宜 是設備在貴
→ Windcws9Z: 更何況假設你今天20M改FTTH 那光纖接線盒就少一個Port 08/06 11:41
→ Windcws9Z: 可以給那些要用100M 甚至是300M或更高的人使
→ Windcws9Z: 不然低速率還是照樣給你用銅線供裝 08/06 15:51
→ Windcws9Z: 之前還很愛搞雙銅線供裝勒
我是不知道這個人用了甚麼晶片 是不是活在平行時空
現在是2018年第三季，Broadcom、LANTIQ同功能的router CPE，GPON已經比DSL便宜了
新的BCM63158更是包含GPON和DSL雙上連
很簡單，BOSA比DSL Line driver便宜。
所以DSL不能換GPON是因為機器貴?
還是他要跟我說16口GPON卡比64路DSL貴? 別忘記1個GPON口可以帶128隻CPE阿
把更貴的DSL PORT空出來給不能裝GPON的用戶用不是也很好嗎? 分光器GPON卡版這麼便宜
PLC分光器不到台幣1000就買到1分32了，但算起來可能還比GPON CPE貴點。不知道這位92認為分光器是設備還是光纖呢?
說得好像被裝bonding是用戶活該，應該吞下去，沒被裝要叩謝。台灣就是反智的人太多了才給對岸超過去
也许是一场难圆的梦
一场没有结局的梦
多少的笑语飞散在风中
又围绕在我耳边
Line Status up 30a
Link-up Time 2 days 6 hours 23 min 9 sec
Channel Status Downstream Upstream
Actual Net Data Rate100016 kbps42494 kbps
Attainable Net Data Rate105195 kbps43478 kbps
Actual Interleave Delay5.0 ms4.0 ms
Actual INP35.00 Symbols26.00 Symbols
Transmit Power14.3 dBm9.6 dBm
Average SNR Margin6.5 dB5.4 dB
Line Attenuation0.0 dB0.0 dB
Signal Attenuation0.0 dB0.0 dB
VDSL Band Status U0 U1 U2 U3 U4 D1 D2 D3
Line Attenuation(dB) N/A10.816.126.9N/A 6.714.022.8
Signal Attenuation(dB) N/A10.015.626.3N/A 6.714.022.6
SNR Margin(dB) N/A5.45.45.4N/A 6.46.46.5
Tx Power(dBm) N/A-8.91.78.7N/A 7.56.612.4
Since Link up Total Near End Far End
CRC0 0
FEC42 448
ES0 0
SES0 0
UAS0 0
Current 15 mins Near End Far End
CRC0 0
FEC0 0
ES0 0
SES0 0
UAS0 0
24 hours Near End Far End
CRC0 0
FEC10 46
ES0 0
SES0 0
UAS0 0
Since Reset Total Near End Far End
CRC0 0
FEC42 448
ES0 0
SES0 0
UAS17 17
LOL0 0
想請石光上林大大幫忙看看
Attainable Net Data Rate和SNR每隔幾個禮拜就下降
前幾個禮拜SNR有稍微提高到7.8現在又降回6.5這樣需要保修嗎？
如果需要的話要怎麼跟客服說呢？
