偽微 wrote:
系統:p880韌體版...(恕刪)
石光上林 wrote:
今天剛好想到一個智...(恕刪)

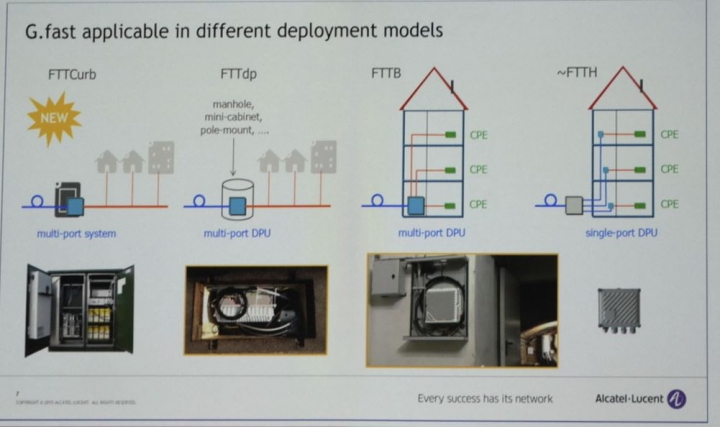

個人認知是如此，這簡報做的似乎怪，右下那張照片似乎不是single port??，但標題卻是single，
有時這種簡報貼圖，最好是有製作者現場講解
可以幫我看看能不能從20M/5M升級成60M/20M嗎?

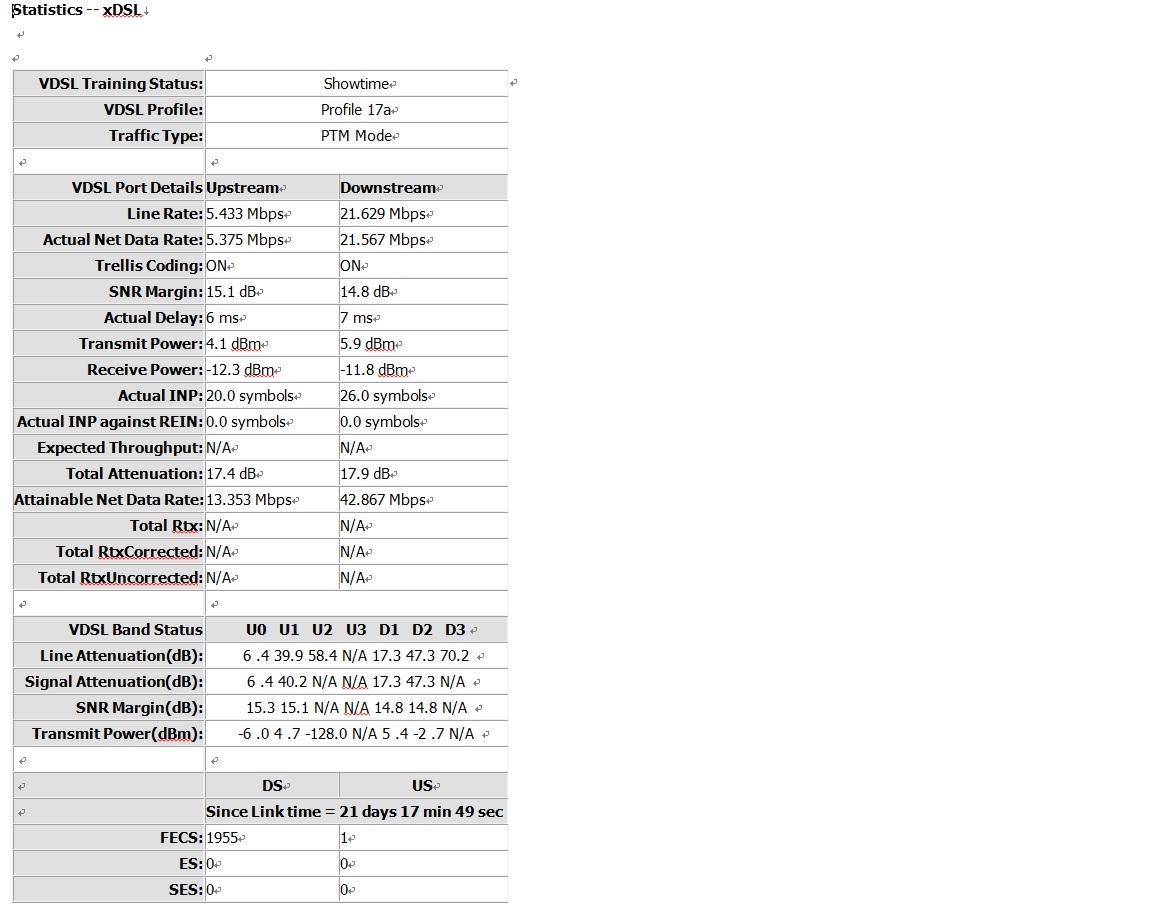

Statistics -- xDSL
VDSL Training Status: Showtime
VDSL Profile: Profile 17a
Traffic Type: PTM Mode
VDSL Port Details Upstream Downstream
Line Rate: 5.433 Mbps 21.629 Mbps
Actual Net Data Rate: 5.375 Mbps 21.567 Mbps
Trellis Coding: ON ON
SNR Margin: 15.1 dB 14.8 dB
Actual Delay: 6 ms 7 ms
Transmit Power: 4.1 dBm 5.9 dBm
Receive Power: -12.3 dBm -11.8 dBm
Actual INP: 20.0 symbols 26.0 symbols
Actual INP against REIN: 0.0 symbols 0.0 symbols
Expected Throughput: N/A N/A
Total Attenuation: 17.4 dB 17.9 dB
Attainable Net Data Rate: 13.353 Mbps 42.867 Mbps
Total Rtx: N/A N/A
Total RtxCorrected: N/A N/A
Total RtxUncorrected: N/A N/A
VDSL Band Status U0 U1 U2 U3 D1 D2 D3
Line Attenuation(dB): 6 .4 39.9 58.4 N/A 17.3 47.3 70.2
Signal Attenuation(dB): 6 .4 40.2 N/A N/A 17.3 47.3 N/A
SNR Margin(dB): 15.3 15.1 N/A N/A 14.8 14.8 N/A
Transmit Power(dBm): -6 .0 4 .7 -128.0 N/A 5 .4 -2 .7 N/A
DS US
Since Link time = 21 days 17 min 49 sec
FECS: 1955 1
ES: 0 0
SES: 0 0
LOSs: 0 0
LOFs: 0 0
UAS: 0 0
CRC(CV): 0 0
FEC: 56692 1
LOMs: 0 0
Current 15 minutes time = 3 min 16 sec
FECS: 0 0
ES: 0 0
SES: 0 0
LOSs: 0 0
LOFs: 0 0
UAS: 0 0
CRC(CV): 0 0
FEC: 0 0
LOMs: 0 0
Previous 15 minutes time = 15 min 0 sec
FECS: 0 0
ES: 0 0
SES: 0 0
LOSs: 0 0
LOFs: 0 0
UAS: 0 0
CRC(CV): 0 0
FEC: 0 0
LOMs: 0 0
Current 1 day time = 18 min 16 sec
FECS: 0 0
ES: 0 0
SES: 0 0
LOSs: 0 0
LOFs: 0 0
UAS: 0 0
CRC(CV): 0 0
FEC: 0 0
LOMs: 0 0
Previous 1 day time = 24 hours 0 sec
FECS: 60 0
ES: 0 0
SES: 0 0
LOSs: 0 0
LOFs: 0 0
UAS: 0 0
CRC(CV): 0 0
FEC: 2709 0
LOMs: 0 0
Total time = 21 days 18 min 16 sec
FECS: 1955 1
ES: 0 0
SES: 0 0
LOSs: 0 0
LOFs: 0 0
UAS: 26 26
CRC(CV): 0 0
FEC: 56692 1
LOMs: 0 0
