VDSL Stats - Whats yours?

bazukazz wrote:
感覺啦...他說我距...(恕刪)

石光上林 wrote:

最後tune出來暫時這樣

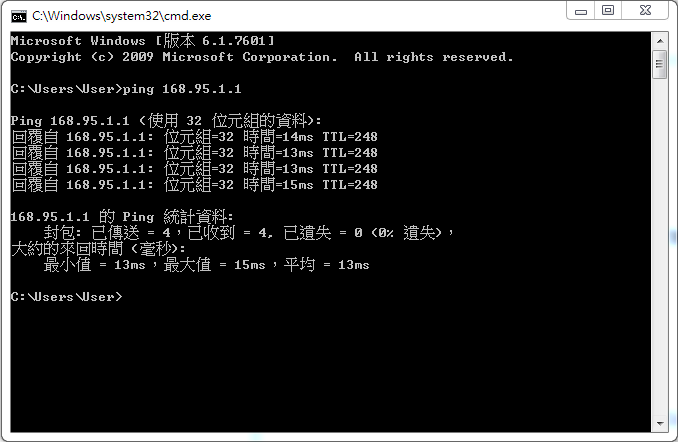

目前知道 phyReXmt(Us/Ds) Off/On 會影響ping

$ xdslcmd profile --show

Modulations:
G.Dmt Enabled
G.lite Enabled
T1.413 Enabled
ADSL2 Enabled
AnnexL Enabled
ADSL2+ Enabled
AnnexM Disabled
VDSL2 Enabled
VDSL2 profiles:
8a Enabled
8b Enabled
8c Enabled
8d Enabled
12a Enabled
12b Enabled
17a Enabled
30a Enabled
US0 Enabled
Phone line pair:
Inner pair
Capability:
bitswap On
sra Off
trellis On
sesdrop Off
CoMinMgn Off
24k Off
phyReXmt(Us/Ds) Off/On
TpsTc AvPvAa
monitorTone: On
dynamicD: On
dynamicF: Off
SOS: On
Training Margin(Q4 in dB): -1(DEFAULT)
$ xdslcmd info --stats
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 0
Max: Upstream rate = 54397 Kbps, Downstream rate = 135575 Kbps
Path: 0, Upstream rate = 36907 Kbps, Downstream rate = 97770 Kbps

Link Power State: L0
Mode: VDSL2 Annex A
StandardUsed: G.993.2_Annex_A
AllowedProfiles:8a,8b,8c,8d,12a,12b,17a,30a
VDSL2 Profile: Profile 17a
TPS-TC: PTM Mode
Trellis: U:ON /D:ON
Line Status: No Defect
Training Status: Showtime
Down Up
SNR (dB): 15.3 15.2
Attn(dB): 0.0 0.0
Pwr(dBm): 10.8 -10.6
VDSL2 framing
Path 0
B: 191 159
M: 1 1
T: 27 64
R: 16 16
S: 0.0625 0.1379
L: 26752 10266
D: 8 4
I: 209 177
N: 209 177
Counters
Path 0
OHF: 165279 94906
OHFErr: 0 0
RS: 165279 94906
RSCorr: 0 0
RSUnCorr: 0 0
LinkRetrain: 0
InitErrors: 0
InitTimeouts: 0
LossOfFraming: 0
ReXmt: 0 6696
ReXmtCorr: 0 5537
ReXmtUnCorr: 0 3583

Path 0
HEC: 0 0
OCD: 0 0
LCD: 0 0
Total Cells: 39483913 0
Data Cells: 8009945 0
Drop Cells: 0
Bit Errors: 0 0

ES: 0 0
SES: 0 0
UAS: 183 183
AS: 210

Path 0
INP: 17.00 17.00
PER: 1.26 2.20
delay: 5.00 5.00
OR: 151.70 68.87

Bitswap: 10 46

UPBOkle: 180
actualCE: 5
SNRmode: 1
AtucPhys SNRmode: 1
Total time = 22 min 32 sec
FEC: 124 9593
CRC: 0 0
ES: 0 0
SES: 0 0
UAS: 183 183
LOS: 0 0
LOF: 0 0
Latest 15 minutes time = 7 min 32 sec
FEC: 0 7
CRC: 0 0
ES: 0 0
SES: 0 0
UAS: 73 73
LOS: 0 0
LOF: 0 0
Previous 15 minutes time = 15 min 0 sec
FEC: 124 9586
CRC: 0 0
ES: 0 0
SES: 0 0
UAS: 110 110
LOS: 0 0
LOF: 0 0
Latest 1 day time = 22 min 32 sec
FEC: 124 9593
CRC: 0 0
ES: 0 0
SES: 0 0
UAS: 183 183
LOS: 0 0
LOF: 0 0
Previous 1 day time = 0 sec
FEC: 0 0
CRC: 0 0
ES: 0 0
SES: 0 0
UAS: 0 0
LOS: 0 0
LOF: 0 0
Since Link time = 3 min 29 sec
FEC: 0 0
CRC: 0 0
ES: 0 0
SES: 0 0
UAS: 0 0
LOS: 0 0
LOF: 0 0
$ xdslcmd info --pbParams
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 0
Max: Upstream rate = 54272 Kbps, Downstream rate = 135344 Kbps
Path: 0, Upstream rate = 36907 Kbps, Downstream rate = 97770 Kbps

Discovery Phase (Initial) Band Plan
US: (7,32) (871,1205) (1972,2782)
DS: (33,859) (1216,1961) (2793,3970)
Medley Phase (Final) Band Plan
US: (7,32) (871,1205) (1972,2782)
DS: (33,859) (1216,1961) (2793,3970)
VDSL Port Details Upstream Downstream
Attainable Net Data Rate: 54272 kbps 135344 kbps
Actual Aggregate Tx Power: - 10.6 dBm 10.8 dBm
============================================================================
VDSL Band Status U0 U1 U2 U3 D1 D2 D3
Line Attenuation(dB): 1.0 3.1 3.4 N/A 2.2 5.2 8.8
Signal Attenuation(dB): 1.0 2.8 3.2 N/A 2.2 5.2 8.8
SNR Margin(dB): 14.9 15.2 15.0 N/A 15.3 15.3 15.3
TX Power(dBm): -25.3 -18.1 -11.1 N/A 6.0 5.5 6.5

bazukazz wrote:
請問大哥, 我的還...(恕刪)

HDD265 wrote:
回 akw28888...(恕刪)

石光上林 wrote:
其他大大已經講解完...(恕刪)

彎道情人 wrote:
說堅持要改單線的話必須降速，說啥我之前P880+VES1724是單線沒錯，但中華那裡設定不是單線?
中華電信又在玩甚麼鳥阿怒)

h541010a wrote:
石大我最近P880...(恕刪)
