一直沒搞懂

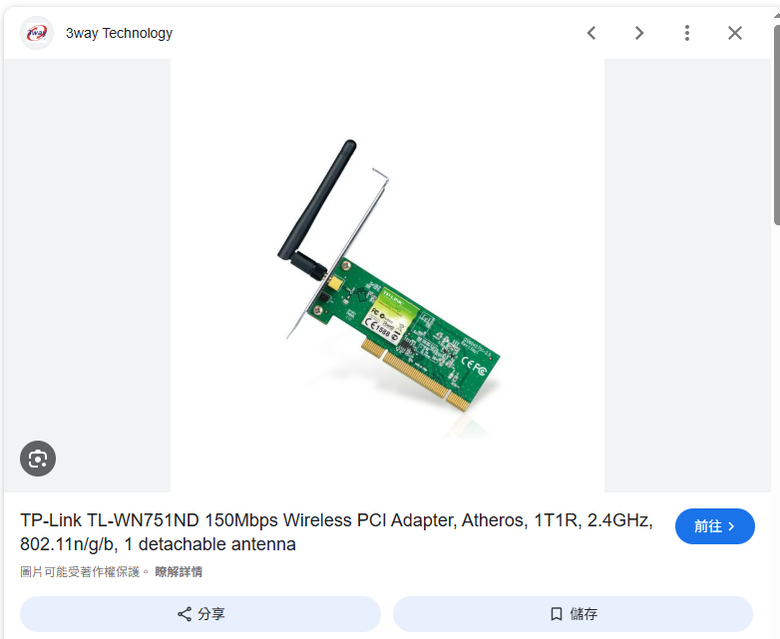

1T1R = 1 transmitter, 1 receiver 是同一根天線同時收發嗎? 還是二根?
然而許多 mini pcie 卡 都有二個接頭算 2T2R 2 transmitter, 2 receivers 都接一黑一白應該是二根天線吧
又常標為 MAIN / AUX, 是一傳一收, 還是一個 wifi 一個 Bluetooth?
RTL8814AU
802.11ac/abgn USB WLAN Network Controller
General Description
The Realtek RTL8814AU is a highly integrated single-chip that supports 3-stream 802.11ac solutions with MIMO (Multiple-Input, Multiple-Output) and Wireless LAN (WLAN) USB interface controller. It combines a WLAN MAC, a 4T4R, 3 spatial streams capable WLAN baseband, and RF in a single chip. The RTL8814AU provides a complete solution for a high-performance wireless device.
Features
General
QFN-128 10x10mm package
802.11 ac/abgn
802.11ac 4x4, 3 spatial streams MIMO
==
如果 1T1R 是一根天線 2T2R 是二根天線

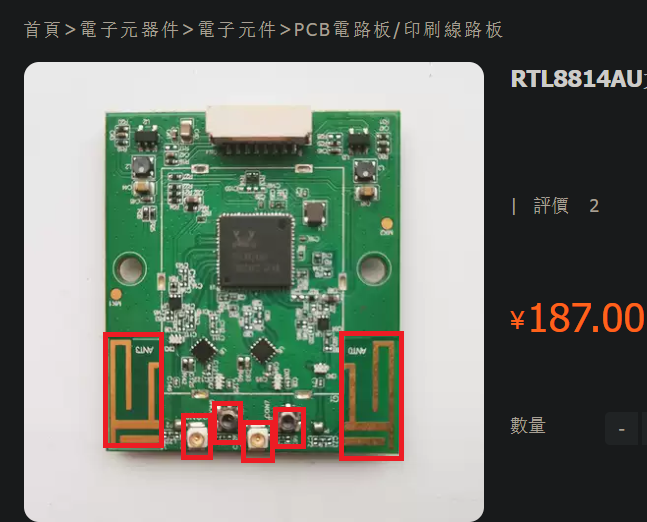

為何 RTL8814AU (4T4R?) 模組 看起來像 六根或四根天線? 又說 3 spatial streams ?
中間二個黑色圓圈可能不是天線接頭? 4T4R 和 3 spatial streams 又有什麼關係?
