繼上次[music]開箱Phanteks PH-TC14PE 對戰 Thermalright VX
之後發現了款兼具造型與性能的散熱器-Thermalright Silver Arrow SB-E
當然我又被毒走了...
==============================================================================================
我們老樣子，先來看看官方說明和圖片吧

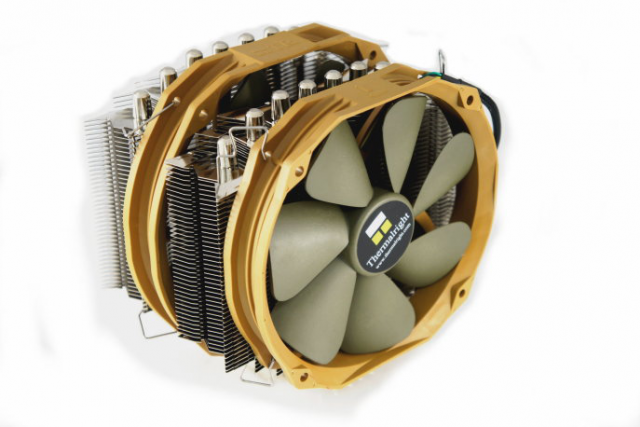

▼碩大的散熱器，承襲著Silver Arrow傳統，兩座塔型，也可搭配三風扇
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-8e54997ce58b438e49e648280b30a593.png)

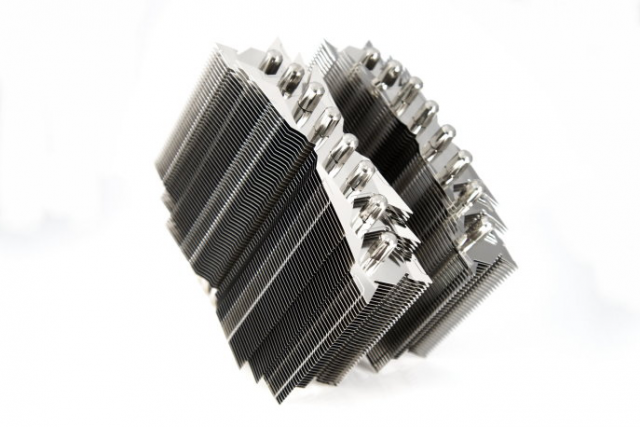

▼有著非常前衛的造型設計
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-d2fa0d6e16ef8a0af432334806fd9c2e.png)

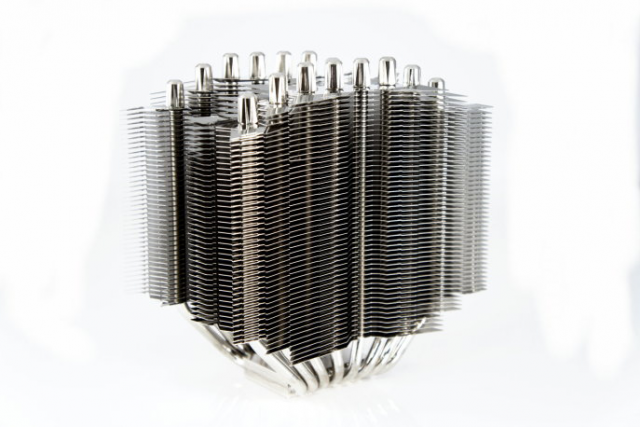

▼由此可見，熱導管數量不少
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-50cb98d0da3e1ac357f5701ba2c6511e.png)

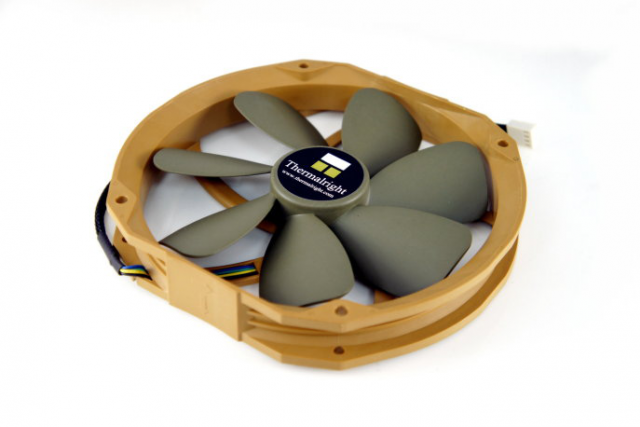

▼搭配巨大風扇
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-29106f6a2427ccfbb6af3dd50f9d872f.png)

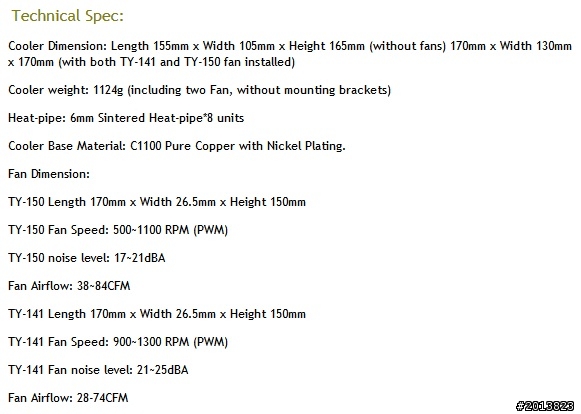

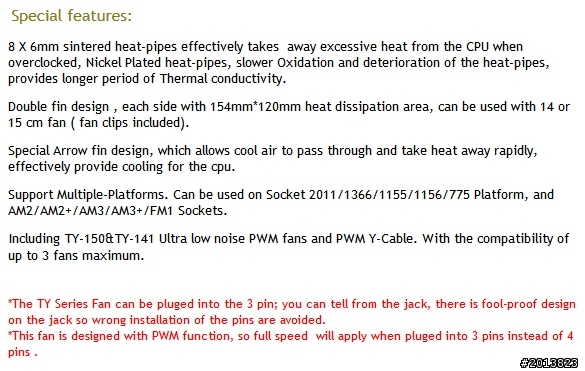

▼以下規格與技術介紹
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-f7981b7b61ff5e2626cd7d07809c3b8d.jpg)
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-b3b97a89b476196e3d9b1a14d7ba67eb.jpg)
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-f5280f72eb68c1debe35d4500b2ba520.jpg)
==============================================================================================
接下來，就開始來開箱囉~~~

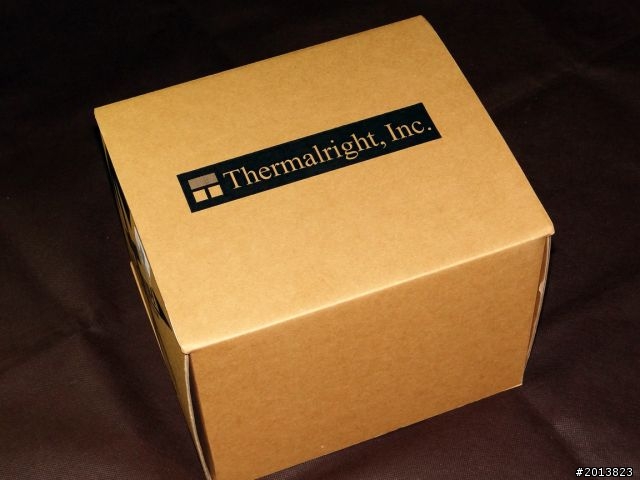

▼很普通的外盒包裝，非常環保
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-9e10ffdfbda7e4c867033cebc757051e.jpg)

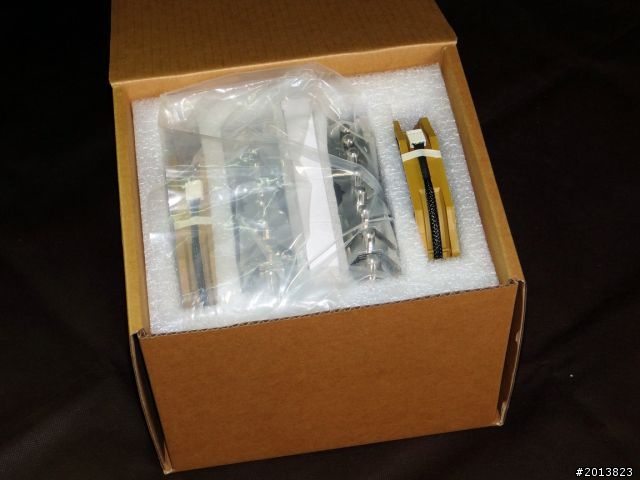

▼打開後，我們看到包覆的非常好
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-7cbe29e2339e5dd238bf7fa80b773354.jpg)

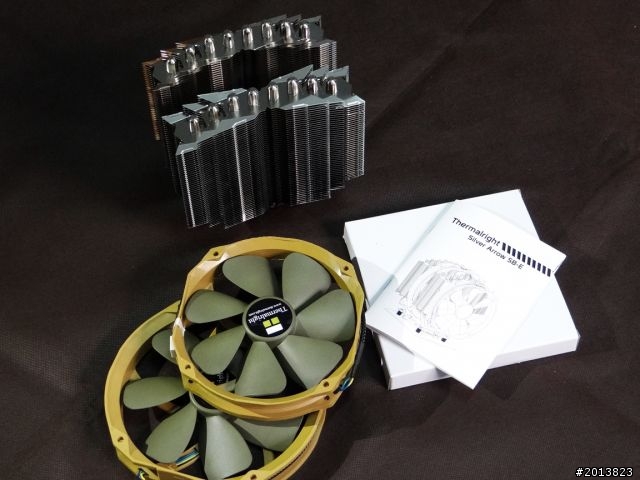

▼散熱器與配件說明書
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-835b4cac27fefab160e29afd8666d5c6.jpg)

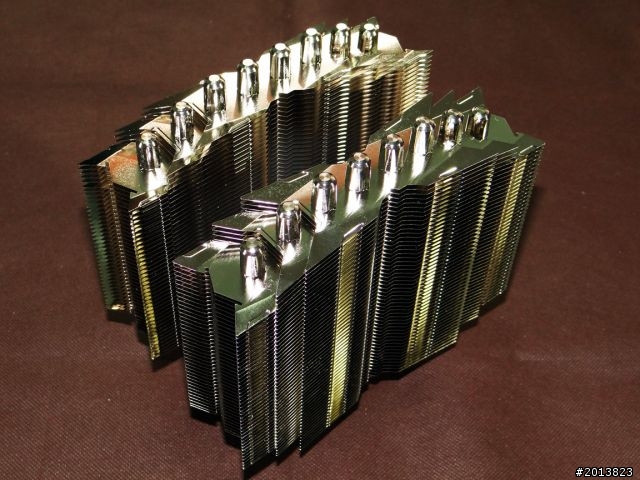

▼巨大的散熱器本體
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-66102327f10136879f11373b9c9ce8e3.jpg)

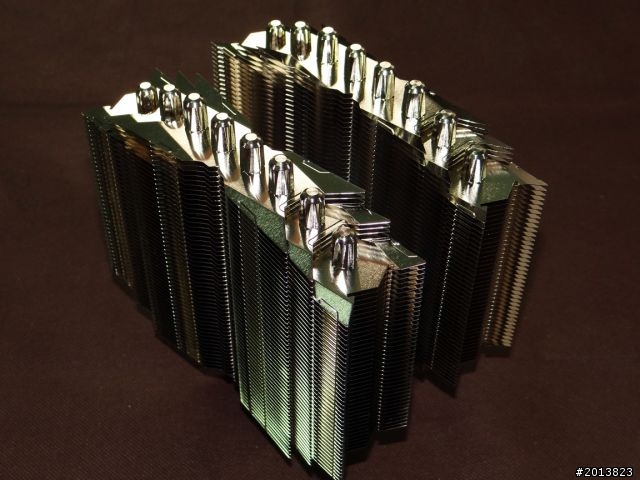

▼換個角度欣賞
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-8faf7aebb31bb7f39be5ff688519b11b.jpg)
▼這可怕的熱導管數量...有八根~
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-13ad7a392f2575415a7736d429622af3.jpg)

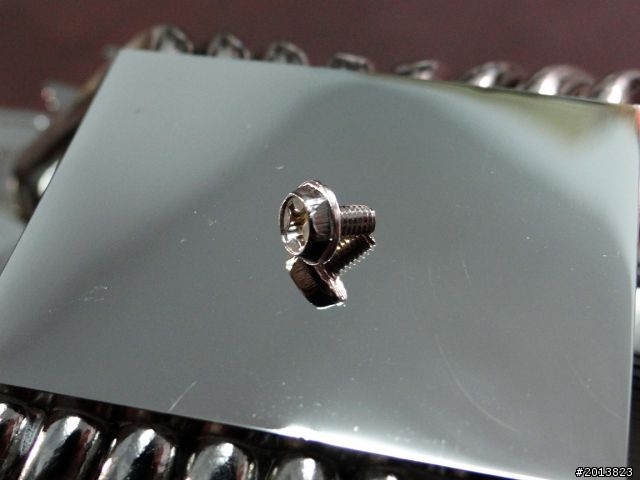

▼都可以拿來當鏡子的拋光~~
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-75b270e2db8728a75735bf983ed47f10.jpg)
▼躺好，讓大家看看你
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-2e140ab2e0211ff5024ee86c40aeda3a.jpg)

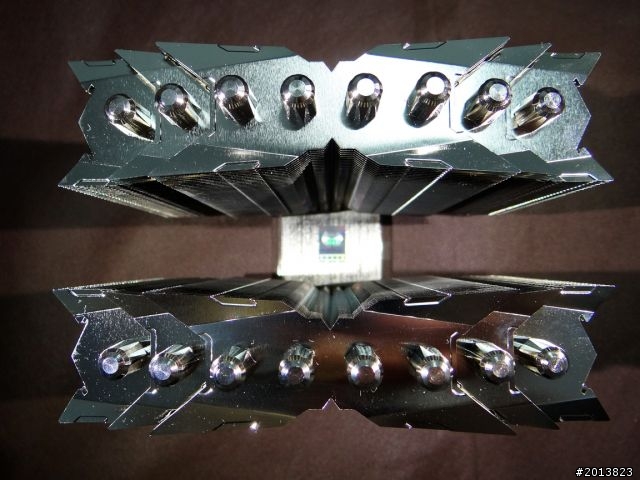

▼真是雄偉
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-e3d0bd97a6d8caa229622b4021b9738f.jpg)

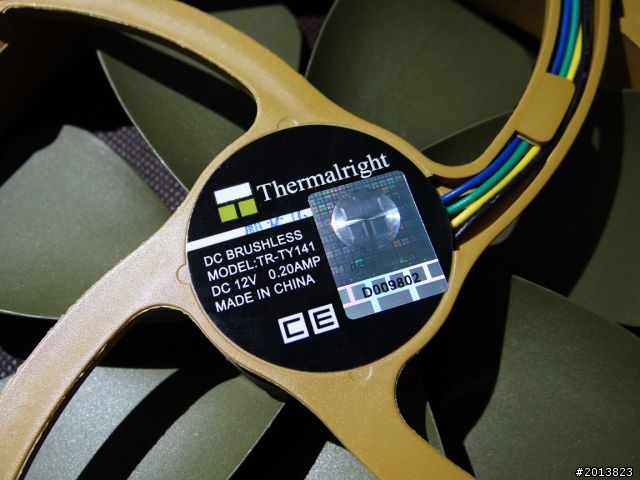

▼TY-141的風扇，風量真的很大(該怎麼解釋呢...
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-47f3ac9430b65b11486a2ae5b0f65be2.jpg)

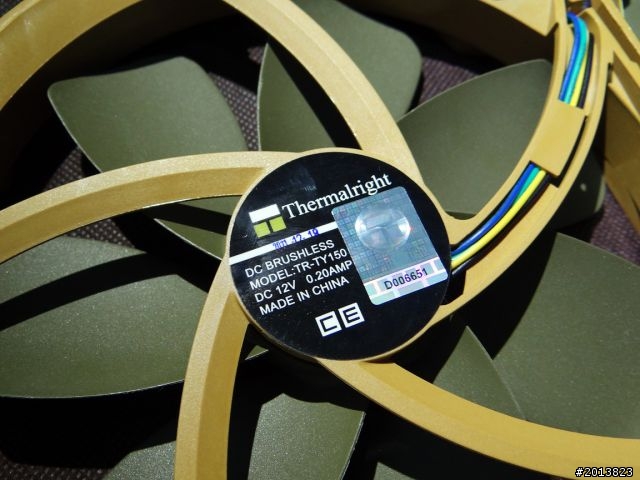

▼TY-150當然是更大囉~
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-2c021c632a8cffd272e2a78dda241a97.jpg)
==============================================================================================
接著，開始來安裝吧

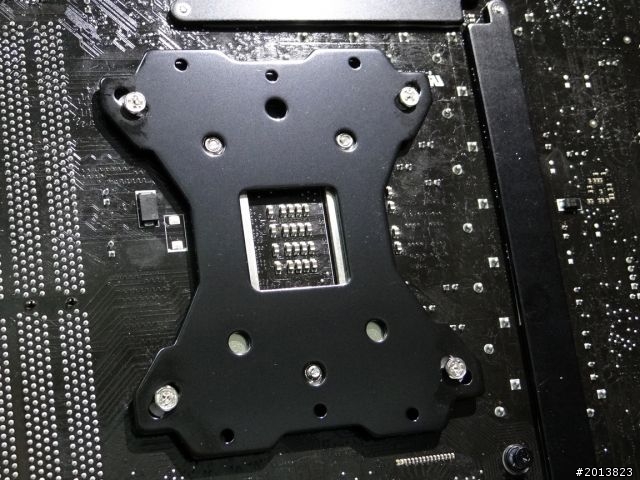

▼Intel腳位的強化被板，可供支援 775.1155.1156.1366
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-d38a0be04288b9cd57216e85ce374131.jpg)

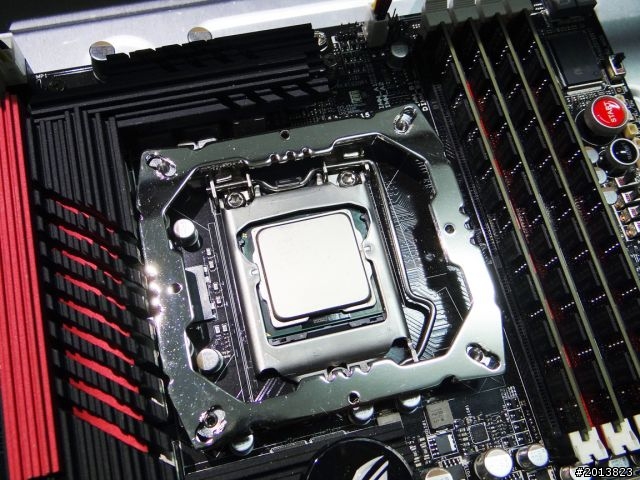

▼安裝基座，在這邊不免抱怨一下...
我發現他的螺絲無法跟腳位孔卡住，就是說~基座裝下去，上螺絲後~基座還是跑來跑去，無法對準1155腳位...
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-84a6bdc3e21bfdae67080947e02f8c22.jpg)

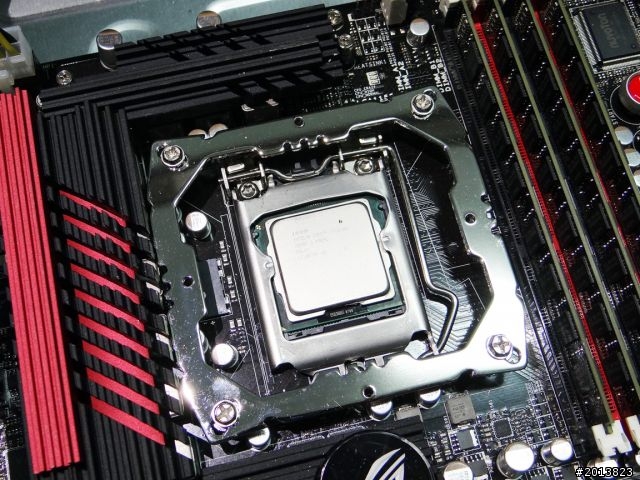

▼在這邊我就大怒了，鎖好後~基座會歪一邊...而且螺絲非常難鎖
害我又去找了螺帽較大的螺絲~但是螺紋是相同的...
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-265c4d15cdc3b0e6c55d7f281f74b04a.jpg)

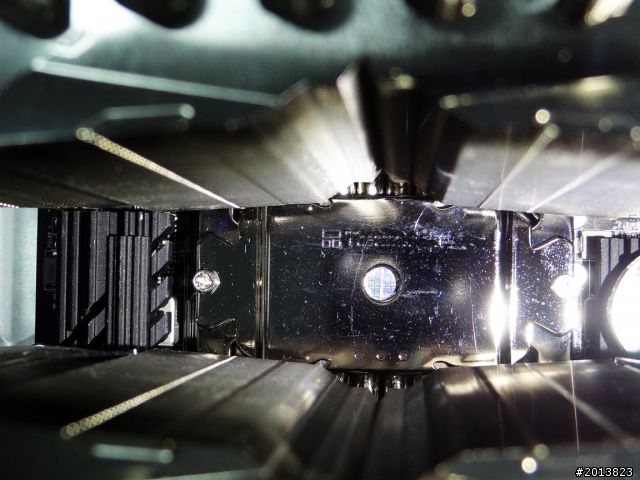

▼再來就是把散熱器和中軸固定上去，一樣!!!
螺絲太小了...把我的玉手刮好幾痕~痛爆了
換成大一點的螺帽後，就容易許多了
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-fd7eda28990536ba090fc85c79450856.jpg)

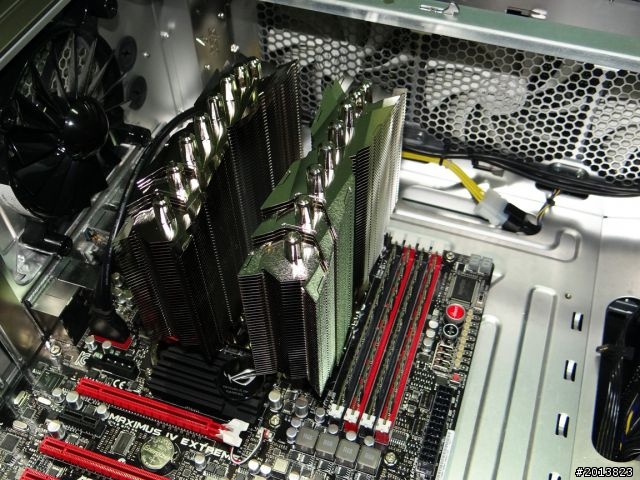

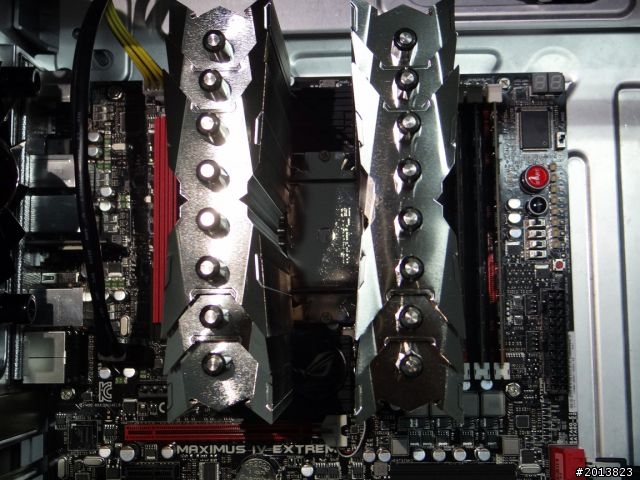

▼鎖好後，先來看看散熱器整體
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-fb8f707fd0cacfc047ead1889aade9d4.jpg)
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-aa2d8abb80967c9550aabb4adee9d793.jpg)

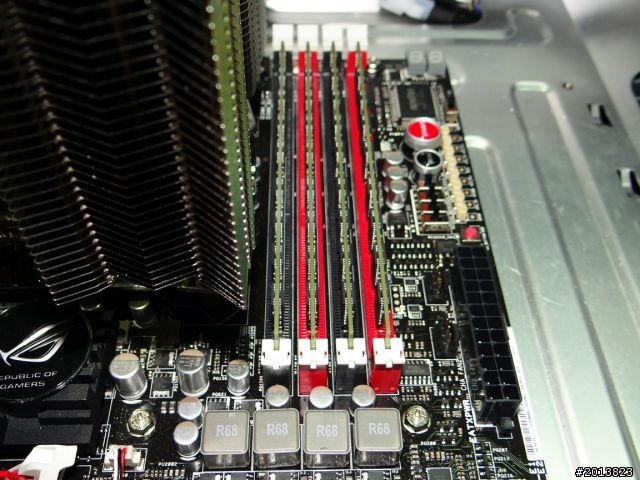

▼在RAM的部分，沒有風扇的情況下，長疏的RAM是可以順利安裝的喔!!
這部分，真的是值得推薦一下
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-1d6785838b5cdc0dbe20bf29da26213d.jpg)

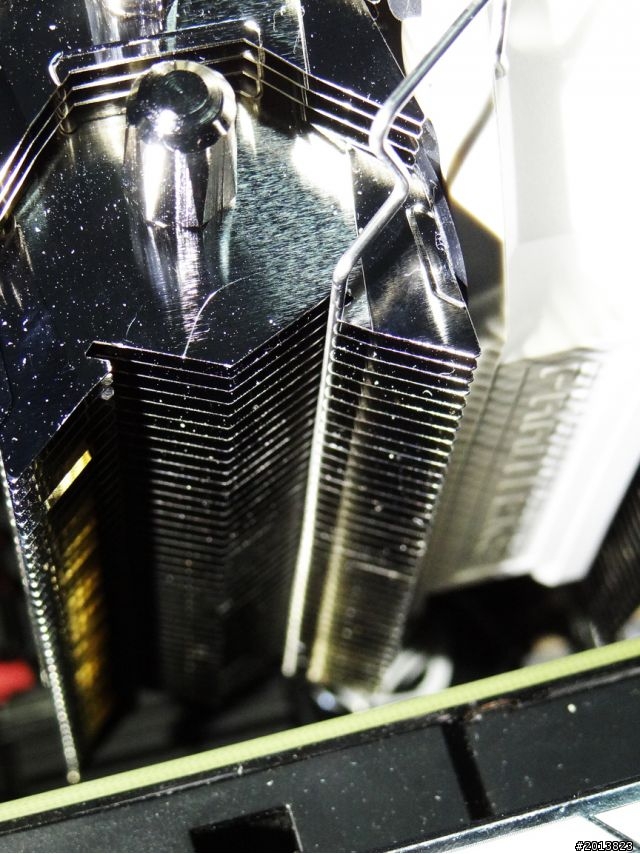

▼接著就是換風扇的安裝，雖然捨棄了VX以"孔"的方式安裝，對上下移動有了空間
但...真的也不好裝就是...
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-84e130a741211105bbb449a9628bf545.jpg)

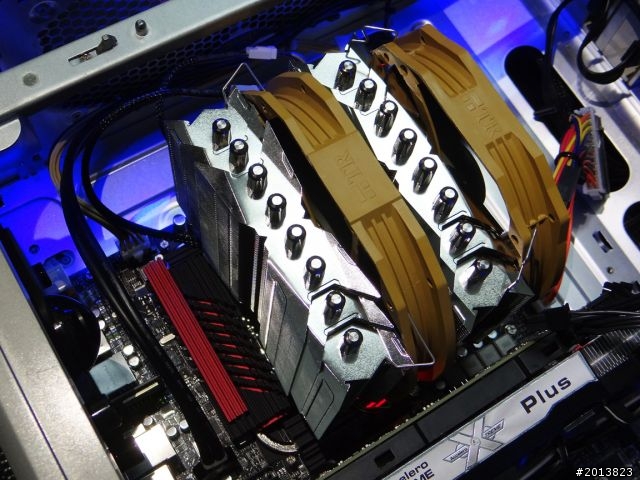

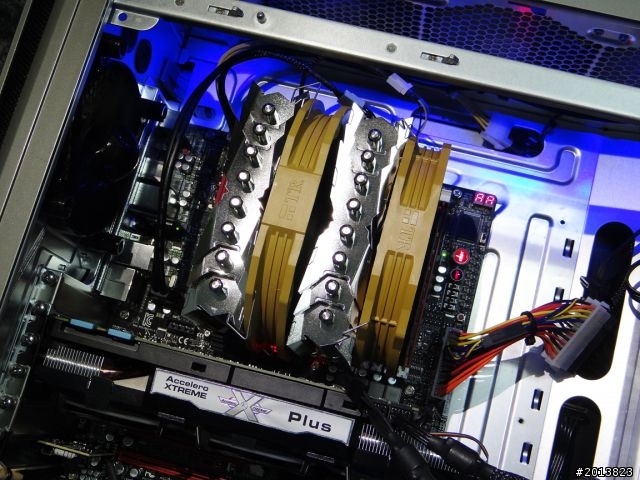

▼安裝完風扇後，來看看整體的殺傷力吧
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-7f3ba9eaba09f5f8e40ba93940023d2a.jpg)
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-b11d6a991ba842889334525002d3b572.jpg)
==============================================================================================
好不容易安裝完成以後，我們就來做個小小測試

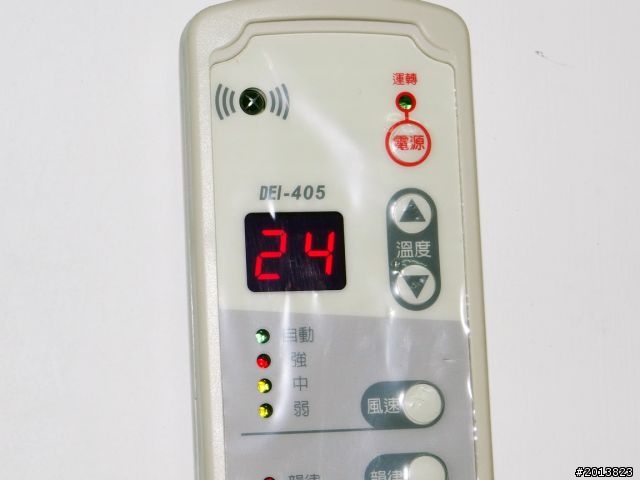

▼我們先來看看環境溫度
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-6d2a9c743856397e7f05e07118f42ef2.jpg)

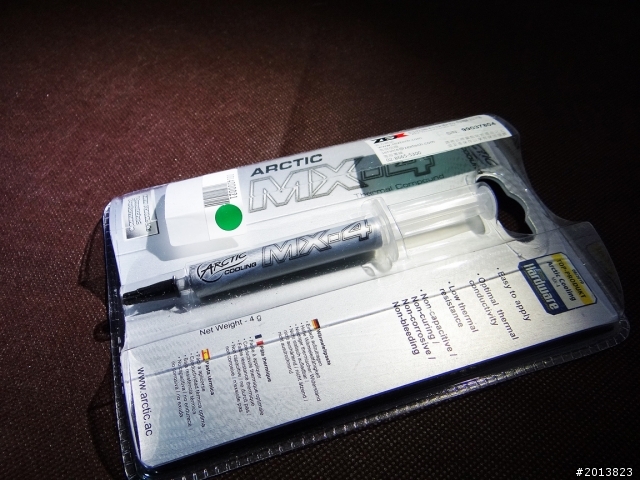

▼使用貴鬆鬆的MX-4散熱膏
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-54b7426e96ab5316d9858dc12ab9d87f.jpg)

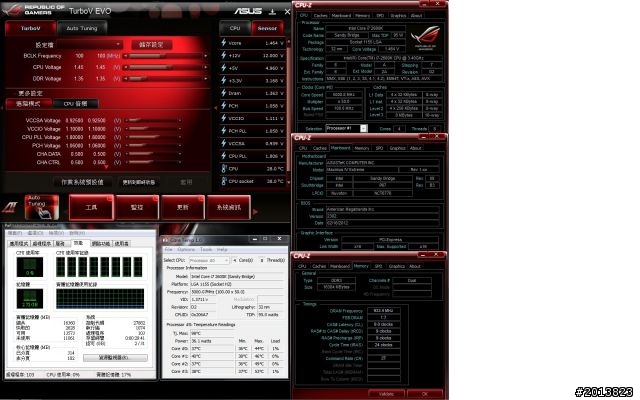

▼以5Ghz，1.45V的電壓下去測試
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-8d212dbe7309790480e55411050b2354.jpg)
先來測試Phanteks吧~

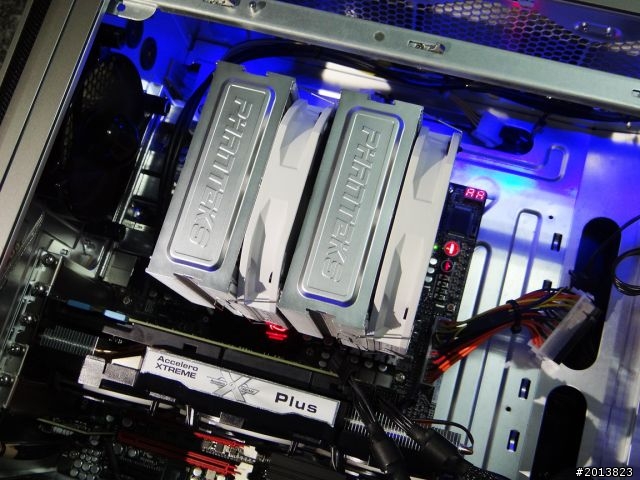

▼散熱環境，是Phanteks原廠風扇
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-164873d0829e5bc48189827730521508.jpg)

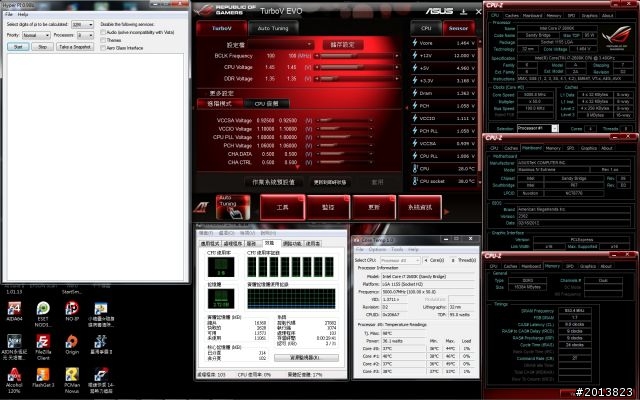

▼待機時的溫度，最低是36度
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-bfcd20711a2670f46e26ea58fd8b86b6.jpg)

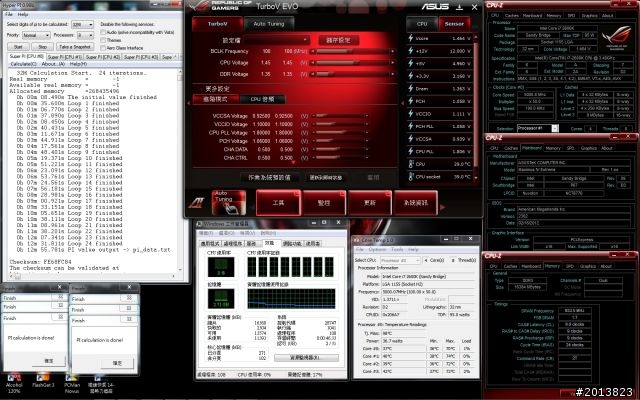

▼PI燒機後的溫度，最高74度
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-14fb795b9916bc813ff504ea2356ecaf.jpg)

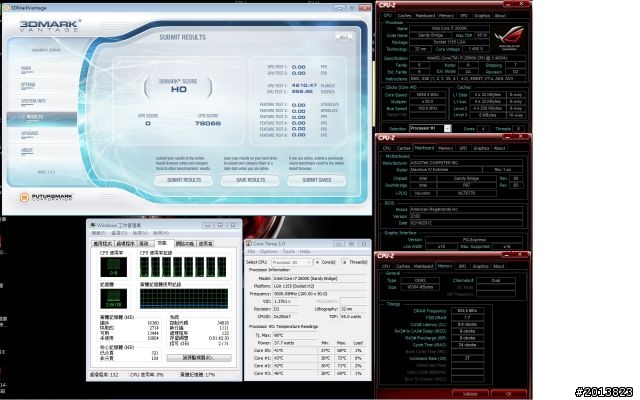

▼3DMark V跑完後，最高是72度
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-fd7e6a818af67ab283a776d8bb6e42e7.jpg)

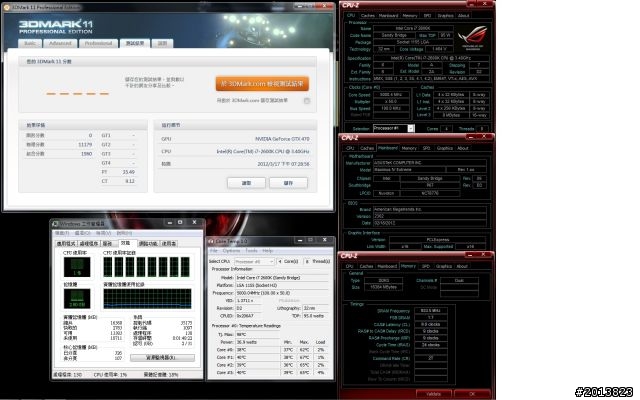

▼3DMark 11跑完後，最高是67度
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-4254de8d246c7b4ba0fa8cea2d3fdb55.jpg)
==============================================================================================
接下來換Silver Arrow SB-E上陣
▼散熱環境，是用Silver Arrow SB-E原廠風扇
▼待機溫度，最低是36度
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-d5b61cd2eb39b12437dc5fa70c8c17ff.jpg)

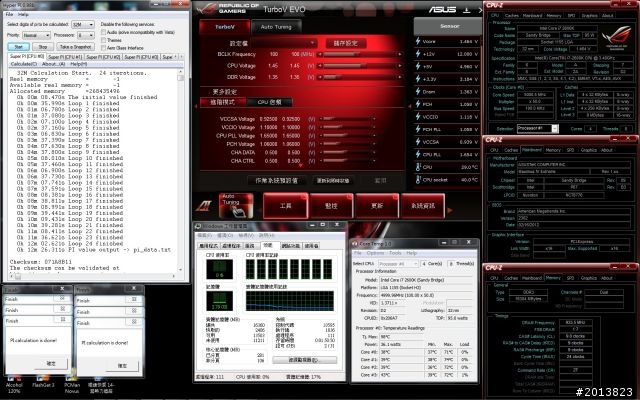

▼PI燒機的溫度，最高是74度
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-76f9bbfe98ce31a7df9898a8d96ab7cc.jpg)

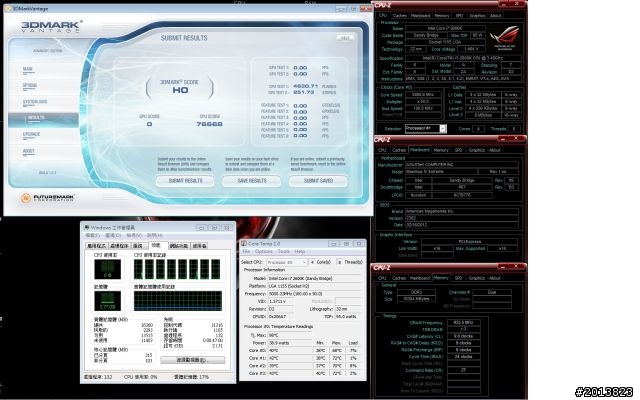

▼3DMark V，最高來到72度
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-79f585943305893eaecff29266961335.jpg)

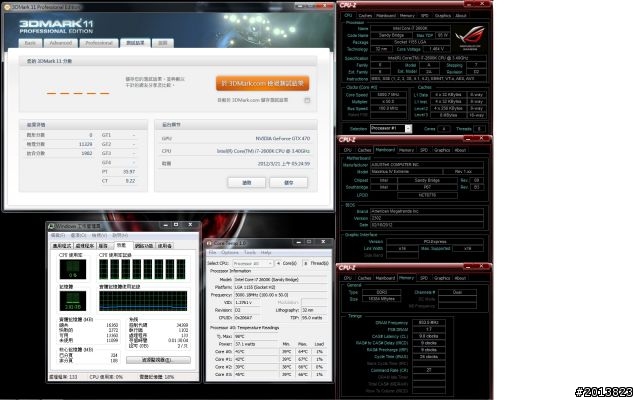

▼3DMark 11，最高在67度
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-9985ab19a76cd4185c3561d2a616d27c.jpg)

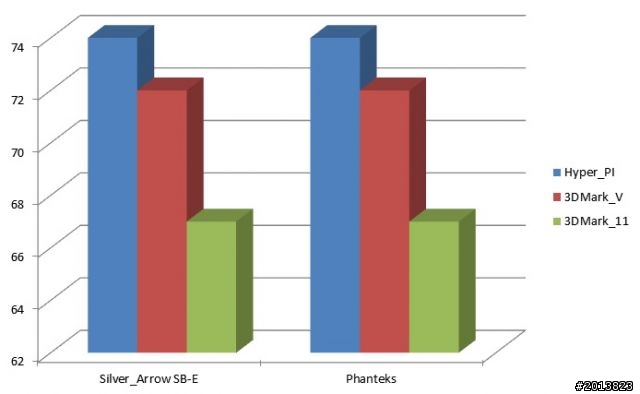

▼雖然結果差不多，我還是整理了一張圖表供大家參考
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-08eebe93497a08ff807a2327ac191c64.jpg)
結論:
Thermalright Silver Arrow SB-E這款散熱器，有著大器前衛的造型外~
扣具和風扇安裝，並沒有Phanteks來的方便
比起以前VX扣具，以前VX的安裝方式，容易許多
在壓制力性能上，真的表現出不凡的效能
由以上測試，可以看出效能上Silver Arrow SB-E與Phanteks並沒有差別太大
優點呢，當然就是他的塔型變扁了，很多玩家有長疏記憶體的~一樣可以安裝喔!!
至於後來，許多人講到風扇顏色...真的與主體不搭...(事實上，我也這樣認為)
於是~~
我就把Phanteks的風扇，拿來裝在Silver Arrow SB-E上了...

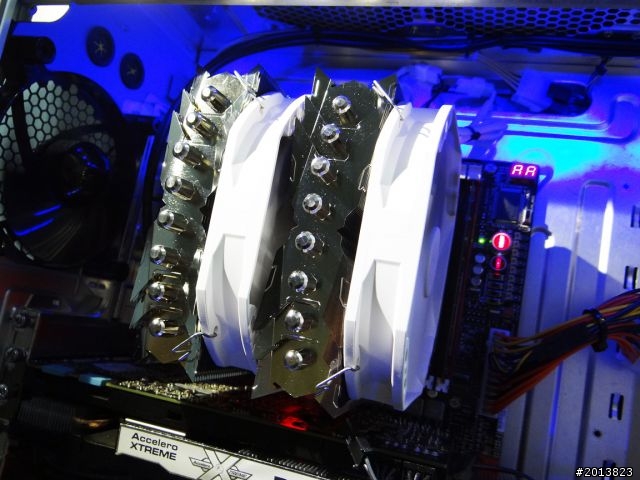

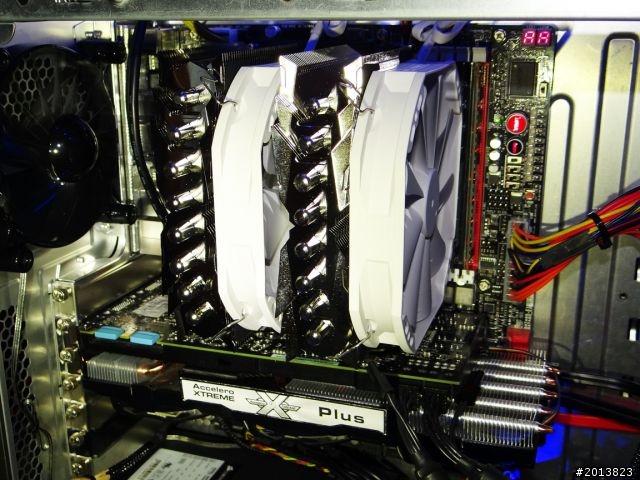

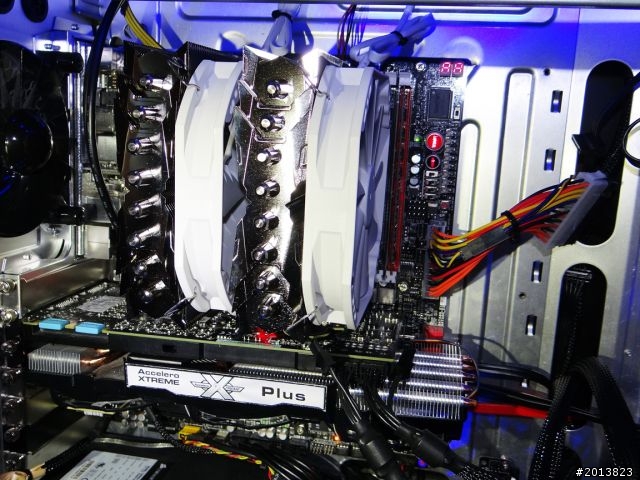

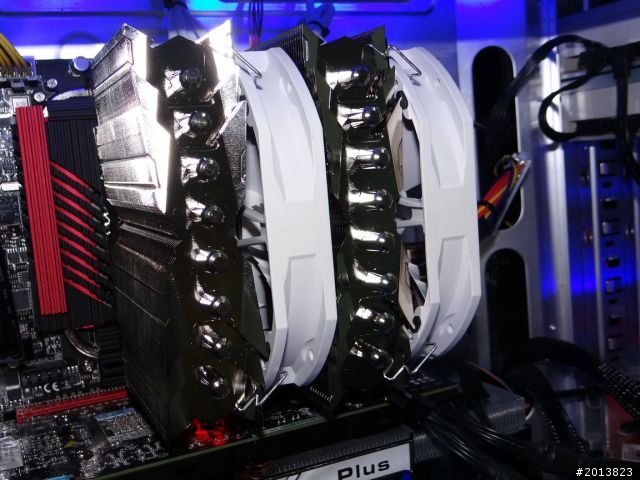

▼然後就變成這樣
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-56ed3f83bcbe55904e5b88c3db34afe4.jpg)
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-ce527973983e64cb2e935f476c96ca80.jpg)
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-f6c965f47ef9ef8a1bf8faf7c66d3ffc.jpg)
![[music]Thermalright Silver Arrow SB-E V.S Phanteks PH-TC14PE](http://attach.mobile01.com/attach/201203/mobile01-d97ca39dbe6a0a4ba03b889a3a7fb210.jpg)
好像有比較好看了吼 (誤
謝謝大家的觀賞，下台一鞠躬~~!!
