panest wrote:
購買前最好問一下廠商(恕刪)

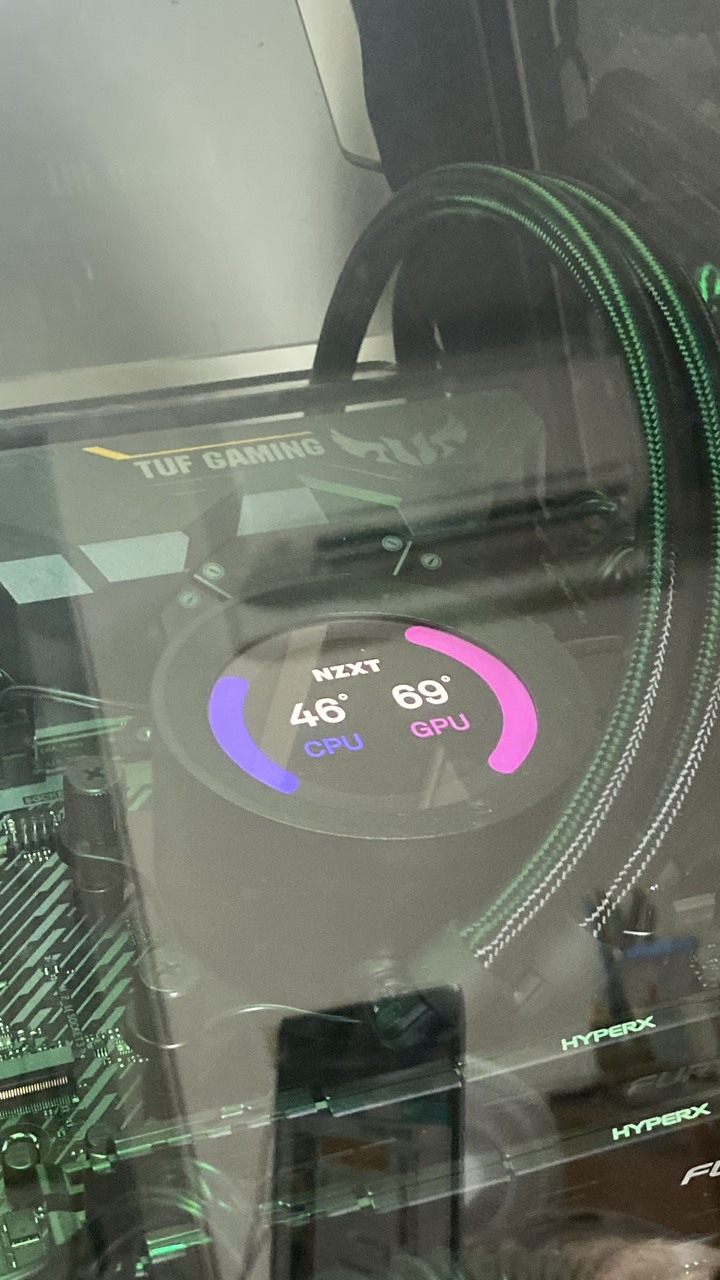

可以麻煩大大提供一下溫度數據嗎😄？
sa7811456 wrote:
不過我考慮要買的是3000...(恕刪)
風量要強可以參考一下~
EK-Furious Meltemi 120
Performance characteristics:
- Max Air Flow: 121 CFM = 205 m³/h
- Static Pressure: 7.13mm H2O = 70Pa
- Sleeved cable length: 500 mm
- Noise Level: 60.9dBA
我買了兩顆當外掛~
sa7811456 wrote:
可以問一下大大此款的(恕刪)
EKWB 德國電腦水冷零件設計大廠，
EK-Furious Meltemi 120這顆的軸承，
原廠提供的平均連續無故障時達50000小時。
換算成保固時間也足敷用家使用了
Mechanical and electrical specifications:
- Maximum speed: 1200-3500 RPM (+/- 10%)
- Rated Voltage: 12V DC
- Power Draw: 9.3W
- PWM Duty Cycle: 35-100%
- Connector: 4-pin PWM header
- Shaft bearing: Dual-Ball bearing
- Bearing durability: 50.000 hrs @ 40°C (MTBF)
- Dimensions: 120 x 120 x 38 mm
3500 RPM is no joke, and you should be extra careful around these fans if they are in operation.
風扇轉速達3500轉，
原廠提醒用家使用時要特別注意安全！
baby51763 wrote:
當然可以水冷最大散熱(恕刪)
baby兄說笑了~
10000轉?又不是硬碟~
140mm轉速反而低~
大面積葉片不需要高轉速就可以達到大風量和高靜壓等降溫條件~

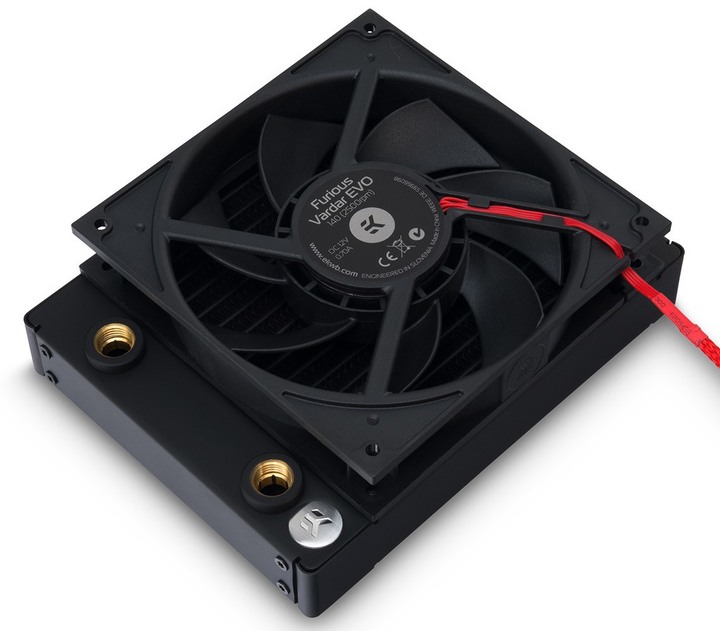

EK-Furious Vardar EVO 140 BB (2500rpm)
Mechanical and electrical specifications:
- Maximum speed: 2500 RPM (+/- 10%)
- Rated Voltage: 12V DC
- Power Draw: 9.07W
- PWM Duty Cycle: 40-100%
- Connector: 4-pin PWM header
- Shaft bearing: Double-Ball bearing
- Bearing durability: 50.000 hrs @ 40°C (MTBF)
- Dimensions: 140 x 140 x 25 mm
Performance characteristics:
- Max Air Flow: 144 CFM = 244 m³/h
- Static Pressure: 5.28mm H²O = 51.8 Pa
- Sleeved cable length: 400 mm
- Noise Level: 48.4 dBA
風量:每分鐘144立方尺=每小時244立方米~
靜壓:5.28mm H²O
噪音值:48.8dBA
PWM Duty Cycle: 40-100%~
根據Duty Cycle~
最低轉速1000轉時噪音值大概在19.52dBA附近~
