看起來就是很有霸氣的外箱
開外箱後的樣子:
效能上的發揮真的表現的很好
看起來真的可以說讚
使用心得:音質效能上發揮的很好. 清晰度也很夠.整體用來聽音樂或看電影.享受起來非常NICE‧而外觀看起來也做的不錯.整體給人的感覺就是舒服.聽起來更是舒適.總歸一句話就是讚啦.繼續研究更細微的功能.
商品介紹：
Xonar Essence STX在規格是非常強悍。在音頻質量上，該卡前端輸出信噪比高達驚人的124dB，比一般板載聲卡清晰64倍，同時耳機輸出信噪比110dB、線性輸入信噪比118dB；諧波失真方面前端輸出僅僅0.0003％，耳機輸出為0.001％，線性輸入則是0.0002％；另外頻率響應10-90KHz，耳機阻抗32-600歐姆。
聲卡本身採用PCI-E x1接口，配備華碩AV100高清音頻處理器、Burr-Brown PCM1792A DAC轉換器(信噪比127dB)、Cirrus-Logic CS5361 ADC轉換器(信噪比114dB)、德州儀器TPA6120耳放等等頂級芯片，電容普遍採用Nichicon Fine Gold，而華碩的Hyper Grounding布線技術自然也是少不了的。在聲卡尾部還有一個D型四針供電接口，搭配兩顆三洋固態電容。
擋板上的輸入輸出接口共有五個，從上到下依次是右聲道模擬輸出、左聲道模擬輸出、耳機輸出、線性/耳機輸入和數字S/PDIF輸出，均採用了鍍金設計，另外卡上還有四針Aux-in接頭。
除此之外該卡還支持可更換運放、杜比數字家庭影院、DS3D GX 2.5 3D音效引擎等技術，兼容Windows Vista/XP/MCE 2005等操作系統。
商品特色：
1、領先業界的124dB信噪比
2、完全密封的模擬輸出模式
3、採用音響專用電容
4、內建高功率耳擴
5、完整支持Dolby True HD & DTS Master Audio
商品規格：
Performance： Output Signal-to-Noise Ratio (A-Weighted):
124dB for Front-out,117dB for Headphone-out (600ohms) dB
Input Signal-to-Noise Ratio (A-Weighted):
118 dB
Output THD+N at 1kHz:
0.0003% (-110dB) for Front-out, 0.001% (-100dB) for Headphone-out
Input THD+N at 1kHz:
0.0002% (-113dB) for Line-in
Frequency Response (-3dB, 24-bit/192kHz input):
<10Hz to 90KHz
Output/Input Full-Scale Voltage
2 Vrms (5.65 Vp-p)
Bus Compatibility： PCI Express:
-PCI Express Rev. specification compatible
-Compatible with X1, X4, X8, X16 PCI Express slots
Main Chipset： Audio Processor:
ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit)
24-bit D-A Converter of Digital Sources:
Texas Instruments PCM1792A*1 for Front-Out (127dB SNR, Max. 192kHz/24bit)
24-bit A-D Converter for Analog Inputs:
Cirrus-Logic CS5381* 1 (120dB SNR, Max. 192kHz/24bit)
High Fidelity Headphone Amplifier:
Texas Instruments 6120A2*1 (120dB SNR, 100dB THD+N @ Vcc±12V, RL=600Ω, f=1kHz)
Sample Rate
and Resolution： Analog Playback Sample Rate and Resolution:
44.1K/48K/96K/192KHz @ 16/24bit
Analog Recording Sample Rate and Resolution:
44.1K/48K/96K/192KHz @ 16/24bit
S/PDIF Digital Output:
44.1K/48K/96K/192KHz @ 16/24bit, Dolby Digital
ASIO 2.0 Driver Support:
Supports 44.1K/48K/96K/192KHz @16/24bit with very low latency
I/O Ports： Analog Output Jack:
RCA jack *2 (Front R / Front L), 6.30mm jack*1 (Headphone out)
Analog Input Jack:
6.30mm jack *1 (Shared by Line-In/Mic-In)
Other line-level analog input (for CD-IN/TV Tuner):
Aux-In (4-pin header on the card)
Digital S/PDIF Output:
High-bandwidth Coaxial/TOS-Link combo port supports 192KHz/24bit
Front-Panel Header:
Shared by Headphone out / 2 channels out /
Microphone in S/PDIF Header: Connects to compatiable graphic cards for
HDMI output
Driver Features： Operation System:
Windows Vista/XP(32/64bit)/MCE2005
Dolby® Technologies:
Dolby® Digital Live
Dolby Digital Live encodes any audio signal on PC in real-time to Dolby Digital (AC3) 5.1 surround sounds to your home theater environment through one single S/PDIF connection
Dolby® Headphone
Dolby Headphone technology allows users to listen to music, watch movies, or play games with the dramatic 5.1-channel surround or realistic 3D spacious effects through any set of stereo headphones.
Dolby® Virtual Speaker
Dolby Virtual Speaker technology simulates a highly realistic 5.1-speaker surround sound listening environment from as few as two speakers.
Dolby® Pro-Logic II
Dolby Pro-Logic II is the well-known technology to process any native stereo or 5.1- channel audio into up to 6.1 channel output, creating a seamless, natural surround soundfield.
Smart Volume Normalizer™:
Smart Volume Normalizer™
Normalizes the volume of all audio sources into a constant level and also enhances your 3D sound listening range and advantages in gaming
Xear 3D™ Virtual Speaker Shifter:
Virtual 7.1 speaker positioning
Magic Voice™:
Xonar Essence STX provides VocalFX, the latest vocal effect technologies for gaming and VoIP, including: -VoiceEX: produces vivid environmental reverberation for your voice in EAX games -ChatEX: emulates different background environment effects when you chat online -Magic Voice: changes your voice pitch to different types (Monster/Cartoon…) for disguising your real voice or just for fun in online chatting
Karaoke Functions:
Music Key-Shifting and Microphone Echo effects like professional Karaoke machine
FlexBass™:
Professional Bass Management/Enhancement system
3D Sound Engines/APIs:
Vista: DirectSound3D® GX 2.5, DirectSound® HW, DirectSound SW, A3D®1.0, OpenAL generic modes, 128 3D sounds processing capability
XP: DirectSound2.5 SW, A3D®1.0, OpenAL generic modes, 128 3D sounds processing capability
Accessories： 1 x 3.5mm-to-RCA adaptor cable (8ch)
1 x S/PDIF optical adaptors
Essence STX 的配件不算多，但都很實用且重要，包括光纖轉換接頭以及大型耳機轉一般耳機的接頭。

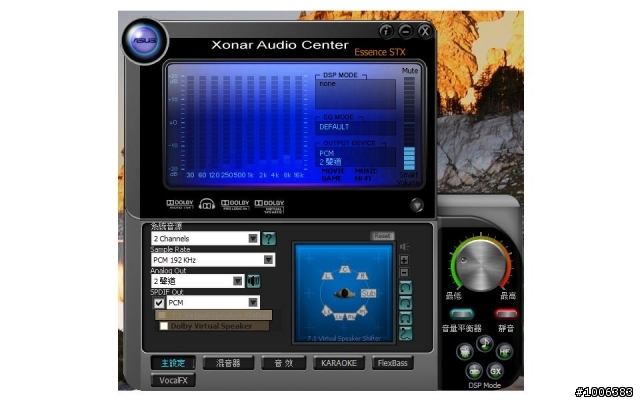

控制介面的部分, ASUS音效卡基本上都類似
ASUS XONAR STX在驅動的部份就比較用心, 也比較人性化
最後, 好的音效卡, 要具備什麼條件, 我不知道. 我知道用你的耳朵體會每一次所聽到的聲音, 畢竟好的聲音, 並沒有那麼容易聽到. 音響絕對是條不歸路, 追求是無窮無盡的…
