Toshiba 3TB*3 RAID5 初始化所需時間
RAID5 rebuild 速度實測
RAID6 初始化及 rebuild 速度實測
SAMBA/CIFS 檔案複製速度實測 (GB/MB)
SAMBA/CIFS 小檔案複製速度實測 (KB)
ftp 寫入 NAS 實測
NAS 內部 RAID 5/6 傳輸效能實測 (以 fio)
Btrfs相關連結
Btrfs wiki
新一代 Linux 文件系统 btrfs 简介
Oracle Linux Administrator's Solution Guide
測試環境
NAS: DS916+
DSM: DSM 6.2 beta

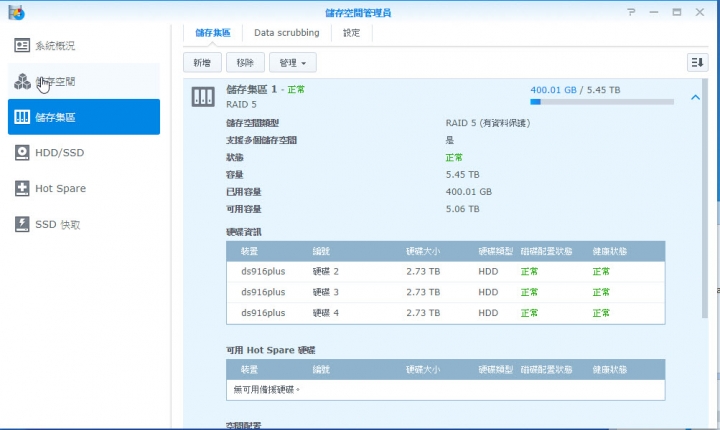

DISK: Toshiba DT01ACA300 3TB HDD*3 (RAID5), tray#1 ssd 未使用.(預留日後測試用)
DS916+ NAS 的設計:

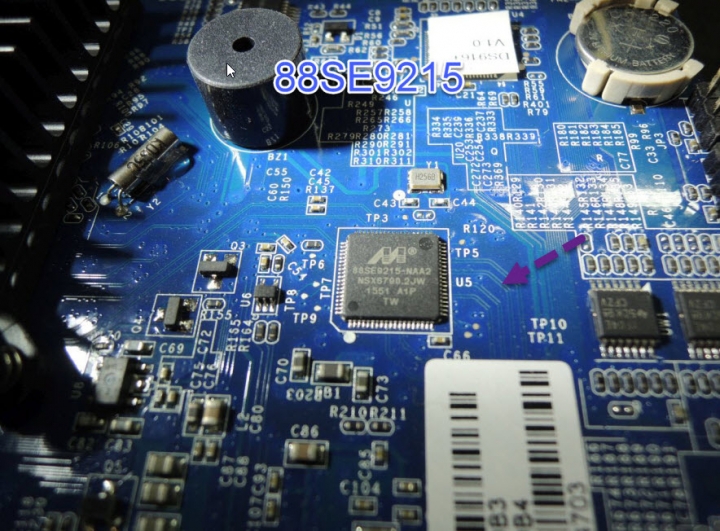

DS916+ 採用 N3710 CPU, 內建 SATA III SATA3 Port*2, 此台為 4bay NAS, 另外增加的 SATA III Port 是利用 Marvell SATA controller 達成, 拆了機器及查了一下 data sheet, 箭頭處即為 2 port SATA controller signel, 連接至 NAS SATA 背板.
看了一下背板的線路, DS916+ 的設計上, Tray#1/#2 是接至 Marvell SATA Controller, 而 Tray#3/#4 才是接到 N3710 CPU 原生 SATA Port*2.
hdparm 小測
hdparm 為一個方便的硬碟測速程式, 可以大略曉得硬碟和NAS 之間的傳輸效能, 可當做參考.
如下, Toshiba 3TB 硬碟是接在 Tray#2/3/4, 這 DT01ACA300 HDD 之前也在 DS918+/DS418 實測過, 以 hdparm 測出來的傳輸效能大約在 190MB/s 左右. 在此 DS916+ 結果也差不多.
root@ds916plus:~# uname -a
Linux ds916plus 3.10.105 #22259 SMP Mon Oct 2 02:41:43 CST 2017 x86_64 GNU/Linux synology_braswell_916+
/dev/sdb:
Timing buffered disk reads: 574 MB in 3.01 seconds = 190.97 MB/sec
root@ds916plus:~# hdparm -t /dev/sdc
/dev/sdc:
Timing buffered disk reads: 584 MB in 3.01 seconds = 193.99 MB/sec
root@ds916plus:~# hdparm -t /dev/sdd
/dev/sdd:
Timing buffered disk reads: 570 MB in 3.01 seconds = 189.66 MB/sec
SMART 資訊.
root@ds916plus:~# smartctl -d ata -i /dev/sdb
smartctl 6.5 (build date Sep 30 2017) [x86_64-linux-3.10.105] (local build)
Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Toshiba 3.5" DT01ACA... Desktop HDD
Device Model: TOSHIBA DT01ACA300
LU WWN Device Id: 5 000039 fe6d913fe
Firmware Version: MX6OABB0
User Capacity: 3,000,592,982,016 bytes [3.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: In smartctl database [for details use: -P show]
ATA Version is: ATA8-ACS T13/1699-D revision 4
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sun Nov 5 11:42:02 2017 CST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
root@ds916plus:~# smartctl -d ata -i /dev/sdc
smartctl 6.5 (build date Sep 30 2017) [x86_64-linux-3.10.105] (local build)
Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Toshiba 3.5" DT01ACA... Desktop HDD
Device Model: TOSHIBA DT01ACA300
LU WWN Device Id: 5 000039 fe6d9138f
Firmware Version: MX6OABB0
User Capacity: 3,000,592,982,016 bytes [3.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: In smartctl database [for details use: -P show]
ATA Version is: ATA8-ACS T13/1699-D revision 4
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sun Nov 5 11:42:04 2017 CST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
root@ds916plus:~# smartctl -d ata -i /dev/sdd
smartctl 6.5 (build date Sep 30 2017) [x86_64-linux-3.10.105] (local build)
Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Toshiba 3.5" DT01ACA... Desktop HDD
Device Model: TOSHIBA DT01ACA300
LU WWN Device Id: 5 000039 fe6d16487
Firmware Version: MX6OABB0
User Capacity: 3,000,592,982,016 bytes [3.00 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: In smartctl database [for details use: -P show]
ATA Version is: ATA8-ACS T13/1699-D revision 4
SATA Version is: SATA 3.0, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sun Nov 5 11:42:04 2017 CST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
