趁著今天有空檔,跑了一趟NOVA,好好給他瞧一瞧。
本來想找Aivx或是Alfa,就是找不到,難道一定要找經銷商嗎?
找著找著就看到今天的主角了 Baru BR3000,為什麼會選它呢?
因為它可以錄影,這…太吸引人了,當下決定放棄有VGA-OUT機種,把他打包回家,
4張小朋友有找,沒有內建硬碟。
先來看看原廠的介紹
原廠的網站 http://www.xuting.net/Index.html
產品特色:
◆ 支援影片檔案格式:
*MPEG-1 (.MPG, .DAT )
*MPEG-2 (.VOB, .PS)
*MPEG-4 (.AVI, .ASF, .XviD)
◆ 支援 JPG,JPEG 圖片格式。
◆ 超強圖片瀏覽功能:
*支援音樂幻燈片模式(有背景音樂的幻燈圖片);
*圖片放大、旋轉功能;
*九畫面預覽。
◆ 用戶可以方便地進行韌體升級,以隨時獲得最新功能。
產品規格:
電源: 100~240VAC,50/60HZ
消耗功率: 6W (正常播放狀態典型值)
外型尺寸: 137x77x25(長x寬x高mm)
電視系統: PAL/NTSC
頻率範圍: ± 3dB(20HZ~20KHZ)
雜訊比: ≧85dB
聲音動態範圍: ≧87dB
失真比: ≧85dB
聲音輸出: 2.0±0.2V (rms)
影像輸出: 1.0±0.2Vp-p,75Ω
USB傳輸: USB2.0-OTG, MAX 480 M bit/s
檔案格式: .AVI /.MPG /.MPEG / .DAT
/ .VOB / .WAV / .MP3 / .JPG
/ .AAC / .WMA / .ASF
硬碟檔案系統: 主要磁碟分區,FAT 格式
錄影速度: 20-30fps
錄影解析: 640 x 480
圖片壓縮格式: MPEG-4壓縮
圖片大小: 平均5KB (320 x 240)
照片都是用K800i拍的,拍的不好,如有傷眼,請見諒
現在不囉唆,趕快跟大家分享開盒照
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-ed742bb5ae869c33212c935aab6b2c91.jpg)
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-1dc2a646ccc5582bbf068a04613af226.jpg)
主體與遙控器,原廠的盒裝相當完善,可以妥善的保存機器,說明書有中、英文,說明詳細
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-2154d956318d33f13f3de85777dab685.jpg)

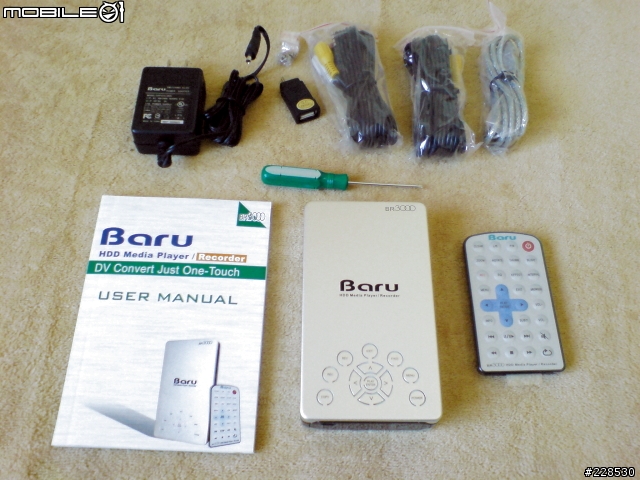

配件,變壓器、USB線、USB轉接頭(OTG的好幫手)、AV線*2(兩條都一樣,一個IN、一個OUT,方便我們錄影)、螺絲起子和固定螺絲,貼心的準備了螺絲起子,方便拿到後就可以組裝不需再找工具
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-971ad8271ad74b80a10399e21e75c5ae.jpg)

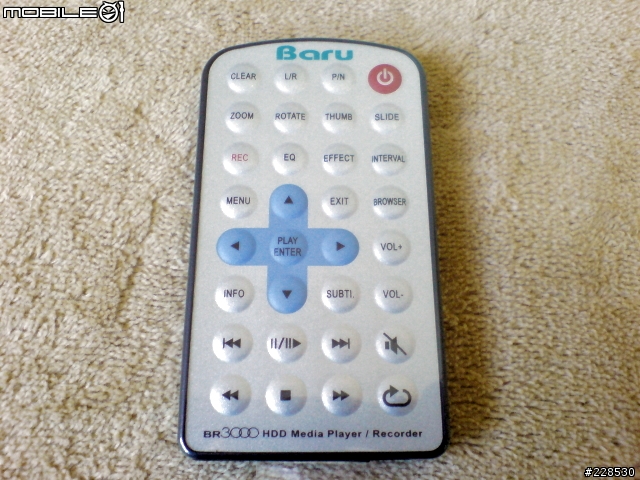

名片型的遙控器相當輕薄,所有的功能都可以透過他來操控,有看到嗎?原廠還很貼心的包膜了,不用怕弄髒了
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-ca28726fd08678e5d6d1495d6fac6200.jpg)

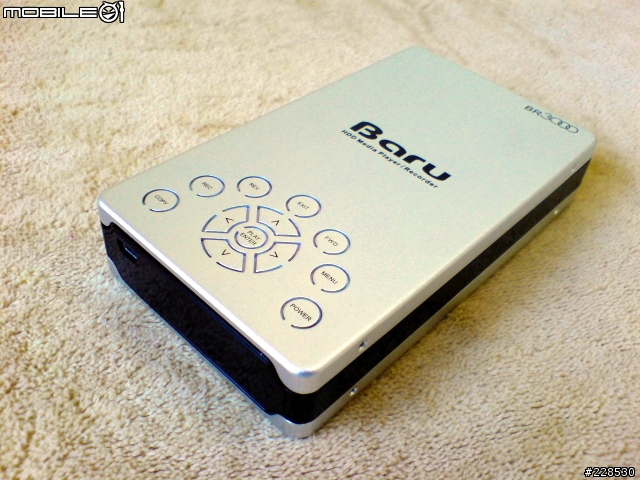

主角豋場了,簡約有形
主機下方只有一個USB孔及隱藏式的燈號顯示
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-4bd6bc3bff9c79318f08de590d7f1dd5.jpg)

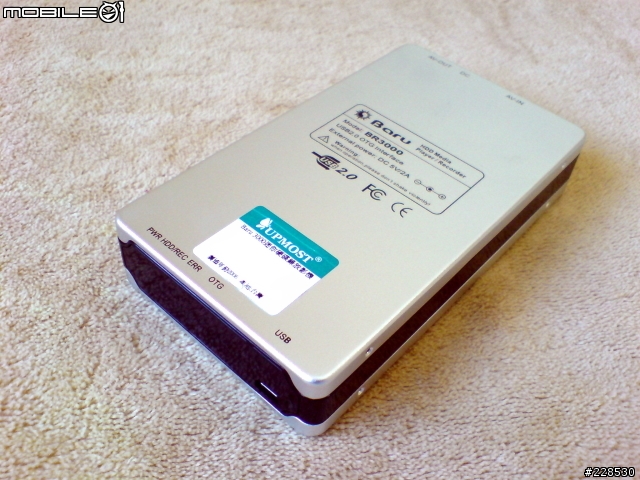

背面有註名燈號名稱及USB孔
怪怪,為什麼是貼UPMOST的貼紙呢?我也不暸,不要問我
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-42dc33a6429b70a0cd6101d20725cade.jpg)

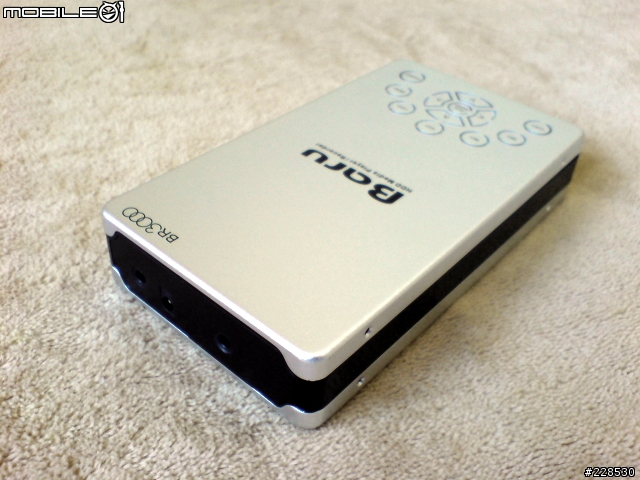

主機上方,有AV-OUT、DC、AV-IN
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-c3c0ad42f6328342b7389f1c81eca967.jpg)

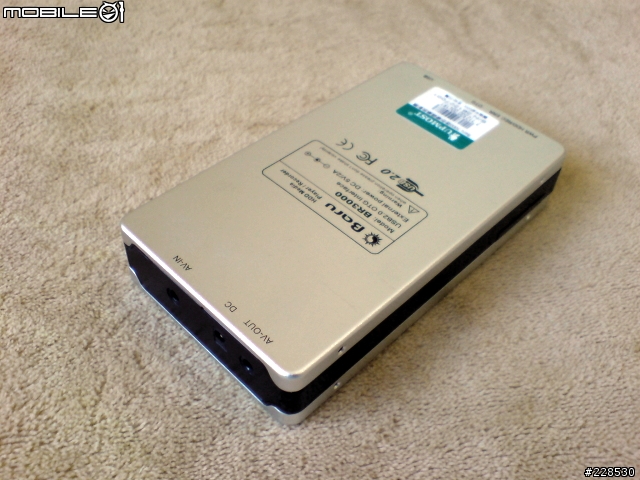

背面一樣有插孔名稱
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-cc25107086748456319f0346aed9c6d9.jpg)

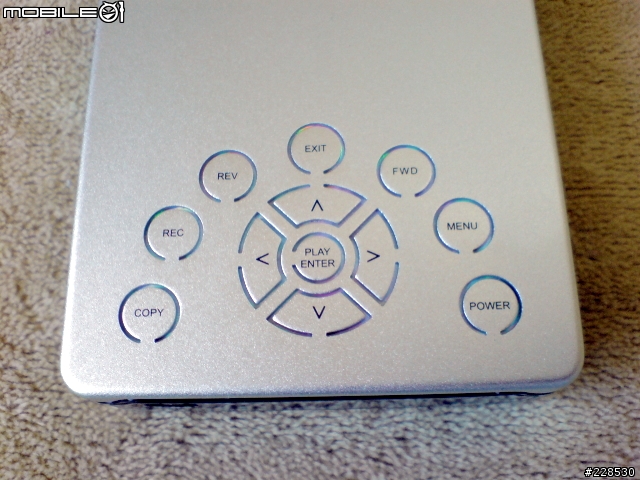

操作除了可以從遙控器控制,還可以從主機面板控制,不用怕遙控器不見或壞掉了
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-7fed25b6a47b6ac09845d696f7f433f0.jpg)

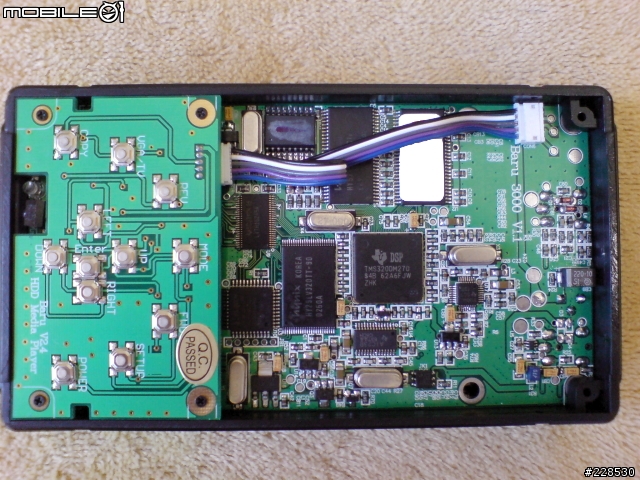

內部機板
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-5f20d5bd5c3bdc2475de76319a65e93d.jpg)

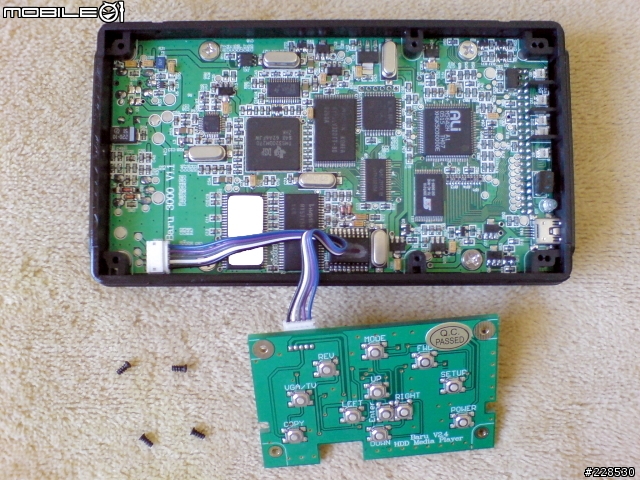

要鎖上硬碟的4顆螺絲,必須先把按鍵拆下來,還好不難拆
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-dddd8970adb6456b6f04a19829f48a39.jpg)

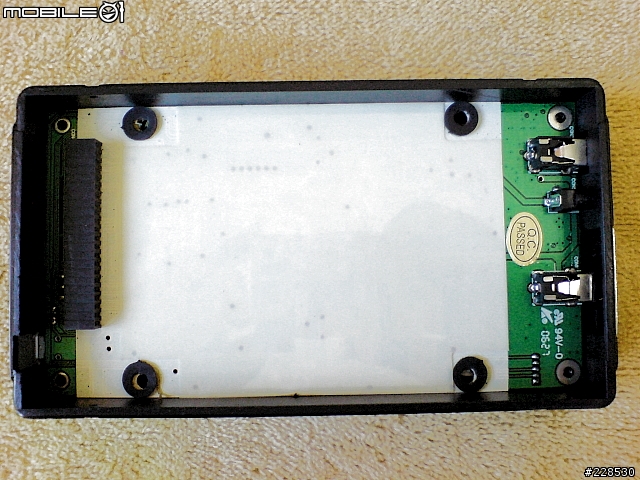

硬碟就塞這吧
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-81cb84384f51d2342c1ad10b72e086f9.jpg)

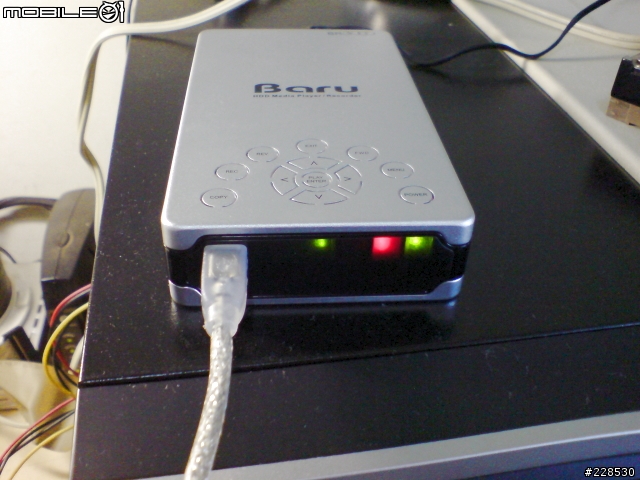

使用時燈號顯示
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-28184572c0484145b19e37ca7e4ded4a.jpg)
再來就看看他的操作介面吧

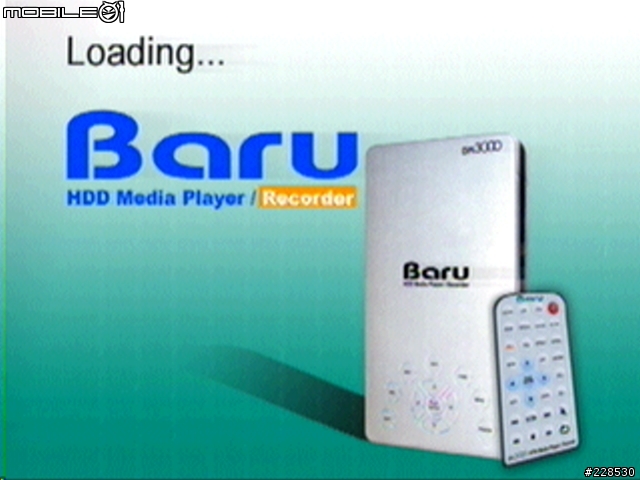

開機畫面
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-3c52b7cdfb7e39a82084ed1672b2ace7.jpg)

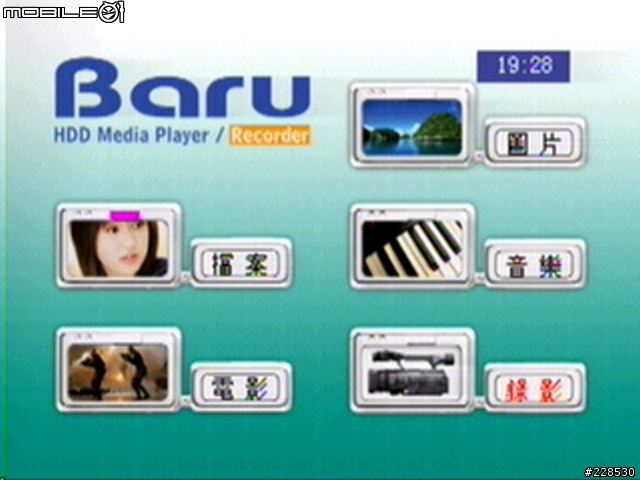

主選單
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-ebfe1eef8033edc94e586ddf65b325f5.jpg)
按下MENU後出現
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-00d6b122d420bed6b895806031aea636.jpg)

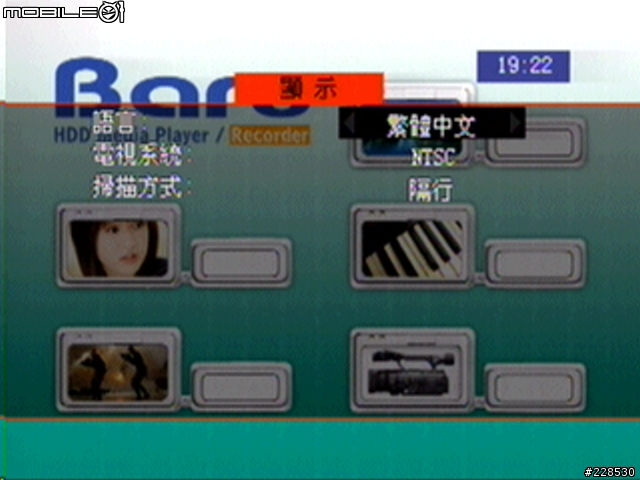

可選語言、系統
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-8b2163192ba80555181d66f2e74b325c.jpg)

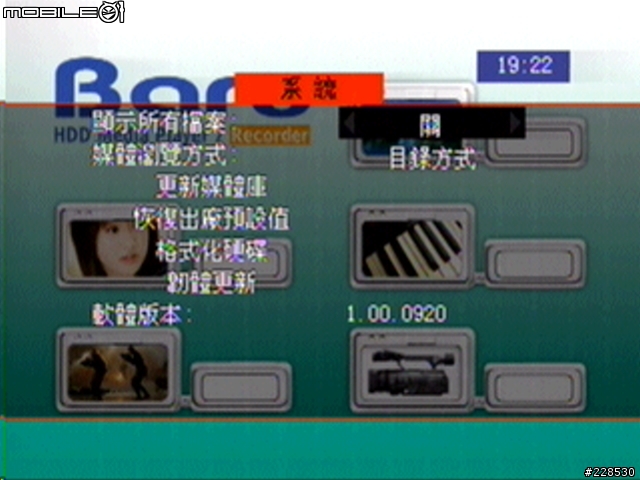

系統設定
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-7fc0268494b72fca1c3c23b81780d2ec.jpg)

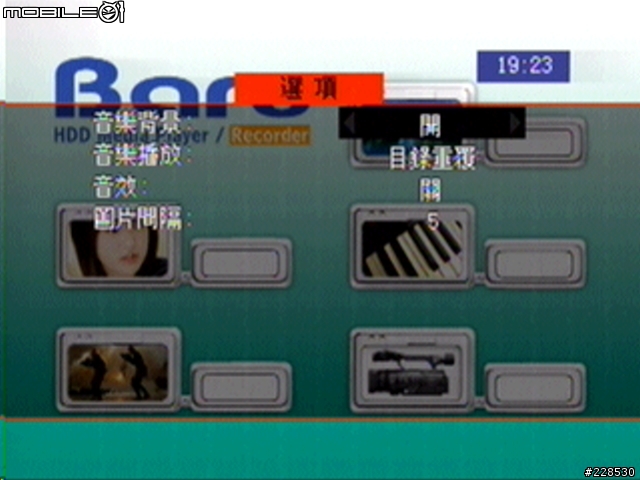

播放音樂時,背景可換成照片幻燈片
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-b9dcfbd01a5a767f0a3c50efe5727b16.jpg)

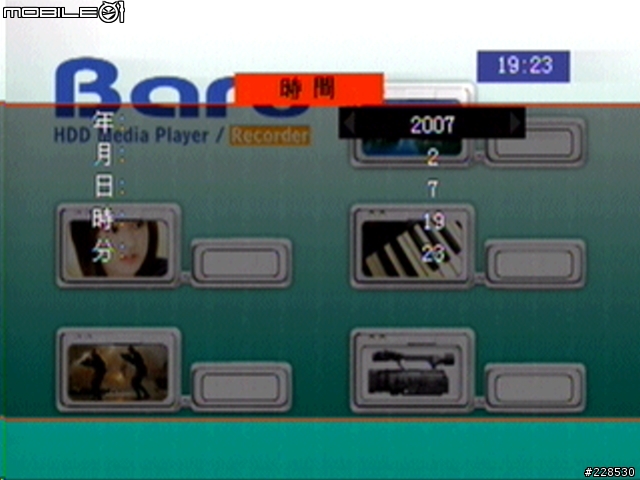

設定時間,這個要抱怨一下了,主機沒有內建電池,所以拔掉電源後,時間就不會走了,如果要預約錄影的話,必須重設時間
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-5d54f8b3e792cc1c68b5dcadac7f06be.jpg)

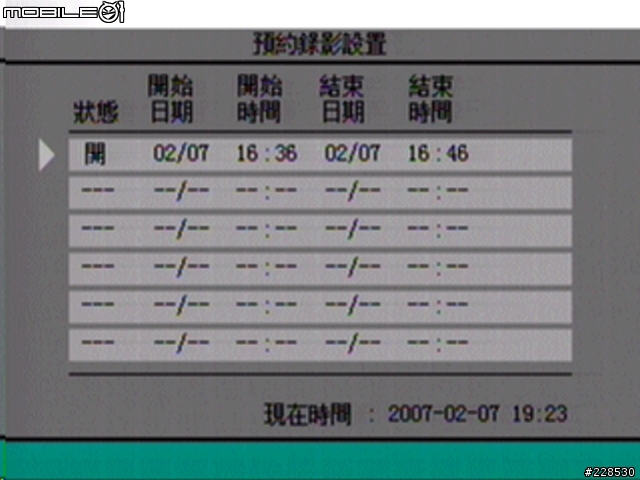

可以預約6個時段錄影,很不錯的設計
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-373a43e6960808daad0ba01795330a5f.jpg)

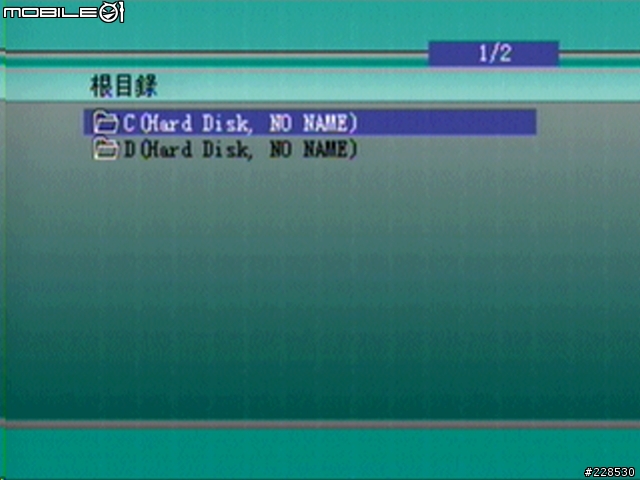

進入檔案後,可以顯示多個分割區,進入指定的磁碟
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-15e430332b27fec3b7292323f1ab510f.jpg)

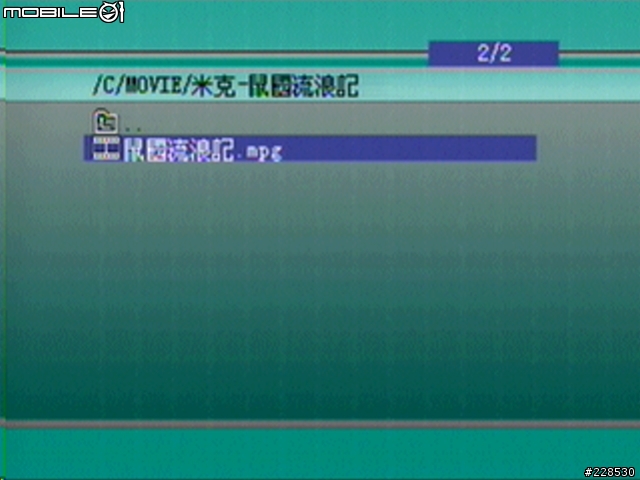

顯示中文完全沒問題
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-557752c002ddefd0b50e7c2868e76e1e.jpg)

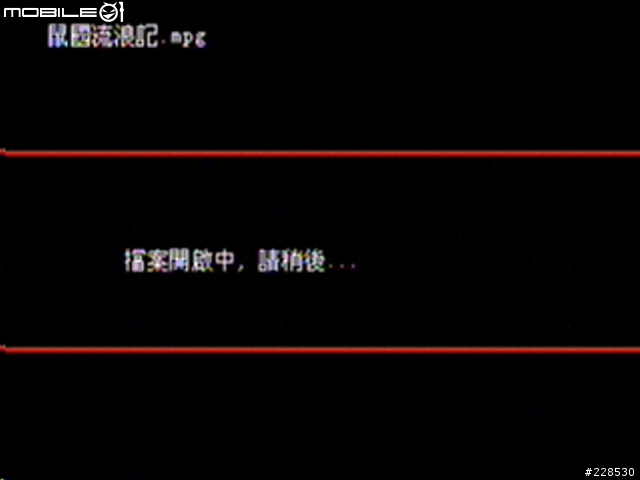

開啟影片
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-19d57b0e3692d03dac959780043f9a34.jpg)

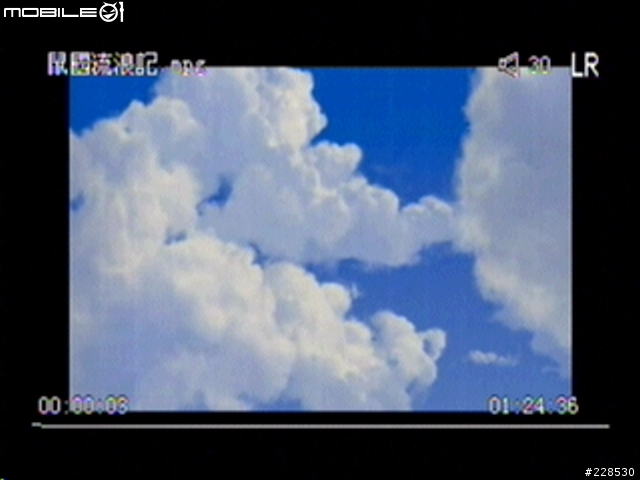

白色的訊息,大約播放10秒後會自動消失
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-96d0c2c9ec5989d8b8b8b8ffffe9331e.jpg)

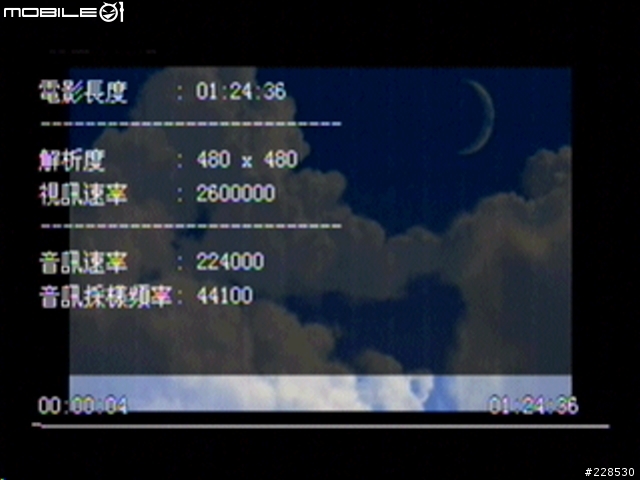

還可以顯示影片資訊
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-b7e33ee28b1a750d3ff7793242241dde.jpg)

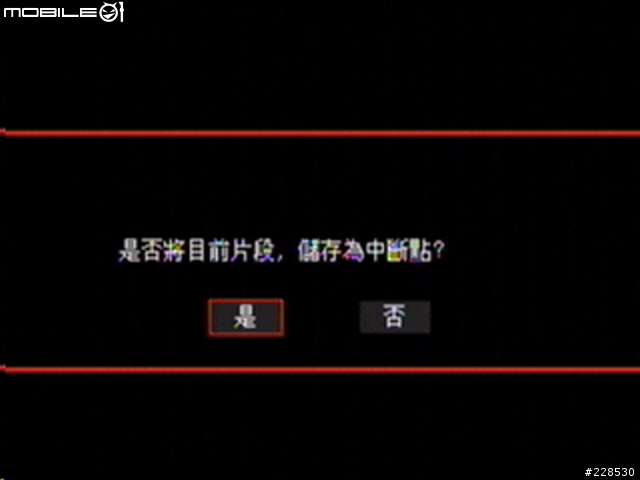

結束時會問要不要設為中斷點
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-b4d099ea5473a9c0f318202b89995e1b.jpg)
看照片時

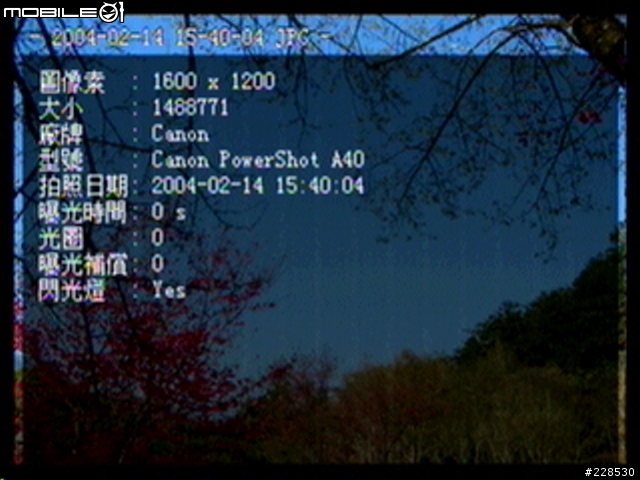

可以單張瀏覽、幻燈片瀏覽、3X3瀏覽,也可以顯示圖片資訊
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-cb995d2c9c026c8138376b8fea51d2ad.jpg)

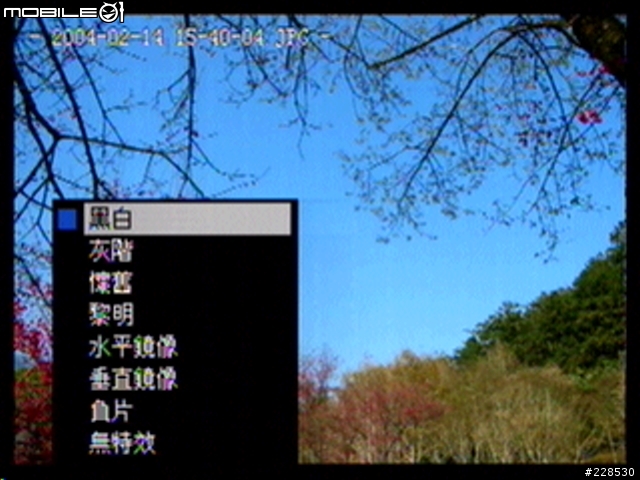

也可以選擇特效
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-eda14aeda299c9fb596115ba82e7f912.jpg)

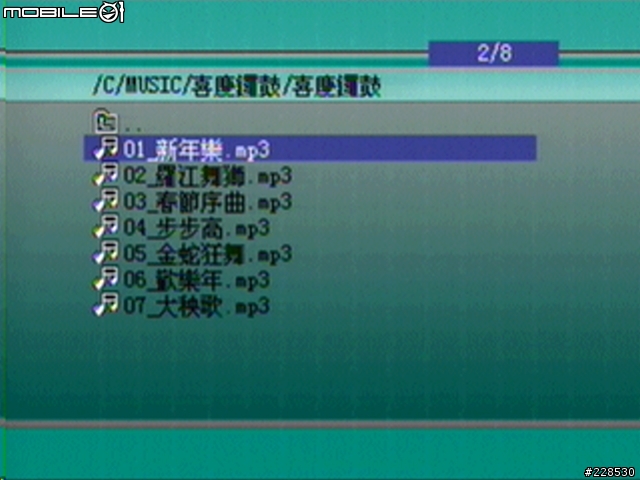

播放音樂
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-90c3f4ec157bc97f96678f5084eac116.jpg)

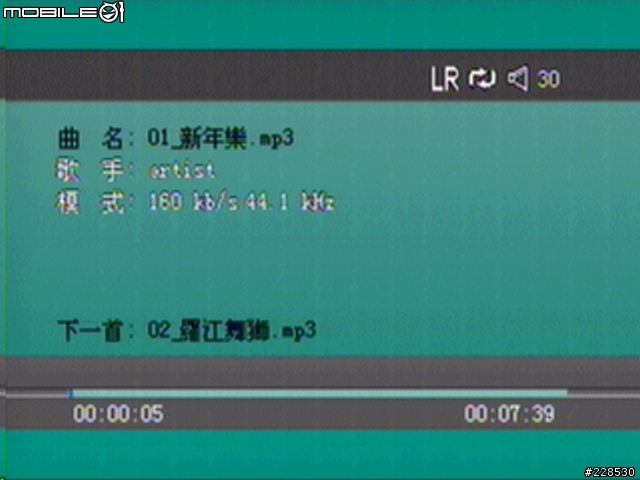

簡單明瞭的播放介面
MP3如已有建立歌詞,播放時也會顯示歌詞
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-f18c50324aae66133b0930ed37e7b49a.jpg)

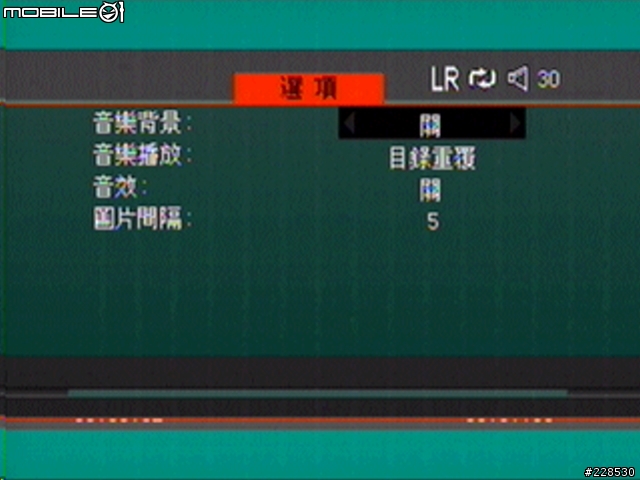

可以開啟音樂背景,背景就會使用照片幻燈片
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-6596a421b939faf68e2831b78d922d04.jpg)

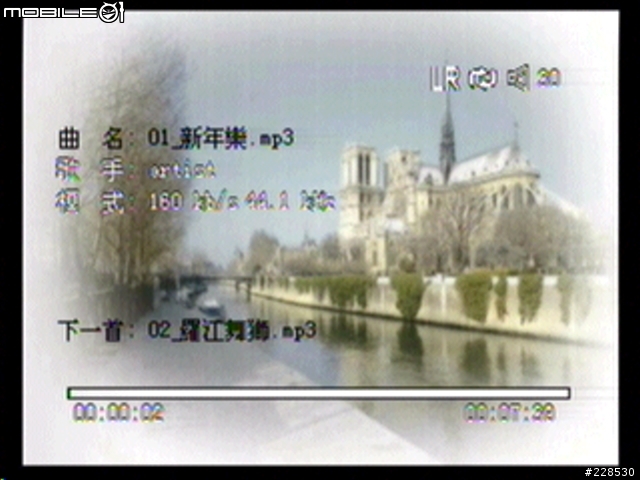

將照片放在 C:\PHOTO 目錄下,就會輪流變換照片,真是賞心悅目阿
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-7a69c53e7c8bd2cd340a20cc0da026e1.jpg)

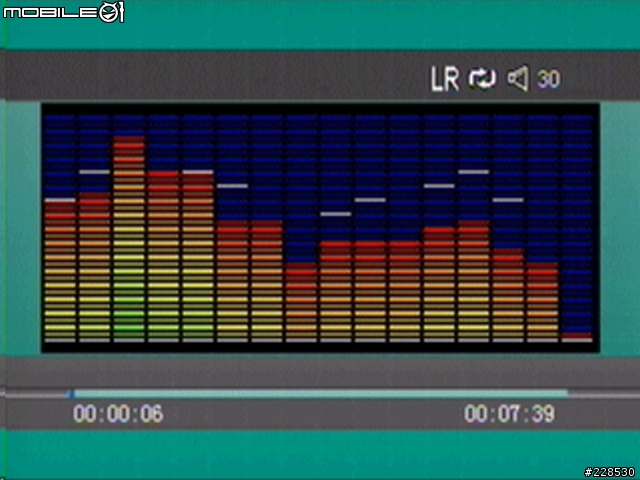

也可以開啟音樂頻譜
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-8772a25d8c2ec9f43de87ac0ce0c2ec2.jpg)

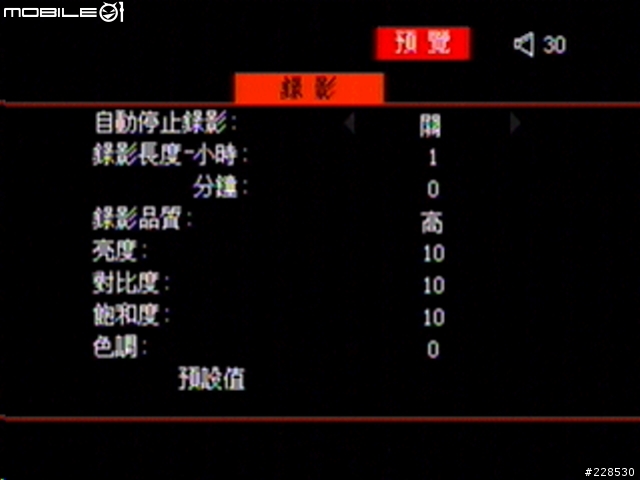

錄影設定
手動錄影時,可以設定停止時間、品質、影像設定
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-ee064bea6c8e4731008841d15d25a4ff.jpg)

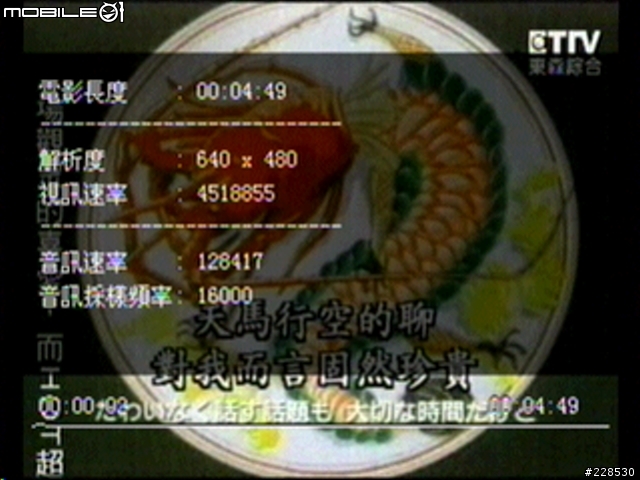

錄影的影片資訊,給各位參考,在一般電視看效果還不錯,
錄10分鐘影片大約用了300M
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-652cd5c80b72464b1ec12ff5bf2d7f3a.jpg)
USB OTG

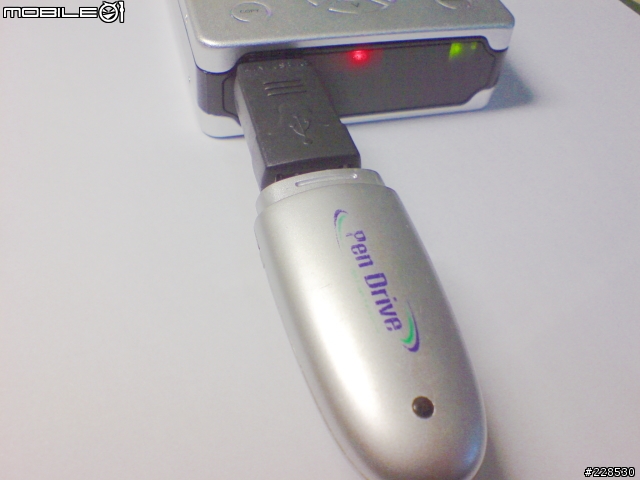

接好USB轉接頭後,可以按COPY鍵,記憶卡內的資料全部複製到BR3000建立的資料夾DSK0000X內,無論是接讀卡機、照相機、隨身碟都可以,很方便
![[分享]多媒體外接盒 Baru BR3000 開盒介紹(圖超多)](http://attach.mobile01.com/attach/200702/mobile01-74e3501e2b4eec08b3700d27cb2fc93b.jpg)
當成外接式硬碟的時候,電腦複製檔案到BR3000,1G的資料大約1分鐘,我是使用變壓器電源,這樣電力才夠穩,硬碟越大,吃電越兇,光用USB的電力不夠,不僅速度慢,有時還會找不到硬碟
關於影片AVI格式問題,並不是所有的AVI都可以播放,要看是用什麼編碼的,
目前測試除了MS MPEG-4不能看以外,XviD、Divx、ZJ Media MPEG-4都可以正常播放,外掛字幕SRT可以正常顯示。
我也試著把DVD的VIDEO_TS目錄直接複製到BR3000可以正常播放,字幕也能正常顯示,但DVD選單無法使用。
使用了一天感覺還不錯,除了播放不相容的檔案會卡住外,其他一切正常,發表出來跟大家分享,如有問題也可以提出來交流討論
