入手SanDisk Extreme Pro 500GB M.2 NVMe 3D SSD&瞎搞

前一陣子SanDisk Extreme Pro 500GB M.2 NVMe 3D SSD P家 "售完補貨中"
只好轉向蝦皮購買了


速度很快,有旅行後背包欸 (放了好些時日才拆開它)


嗯先放到一邊去...

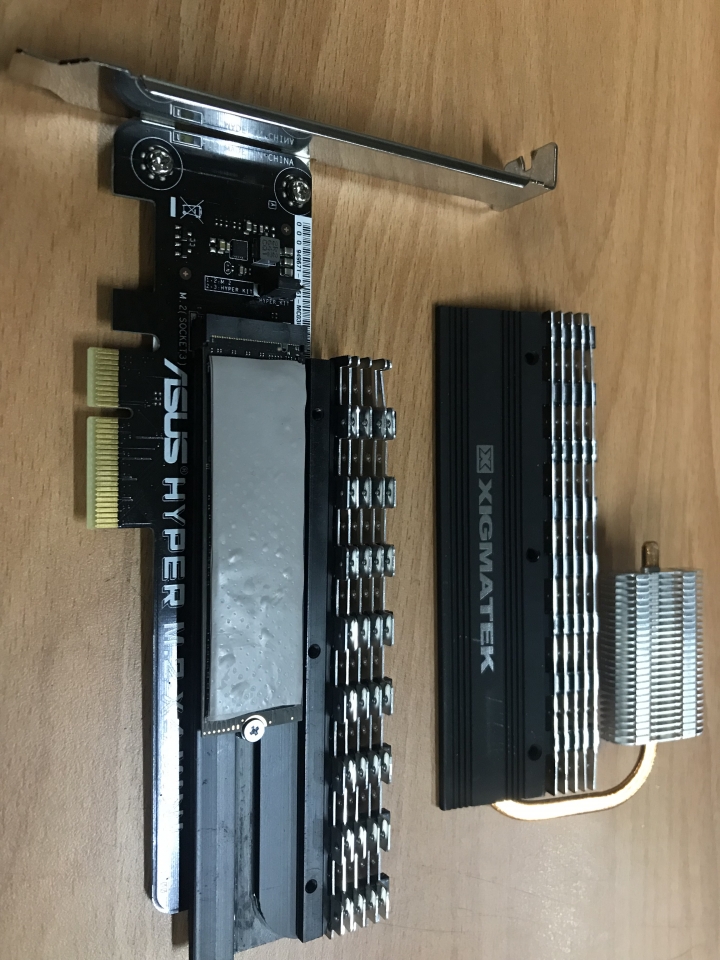

有鑑於NvmE都挺熱情,弄來記憶體散熱片來惡搞


拿出其中一個


鬆開螺絲 就上下兩層各都有崁入熱導管,翅片


將下層熱導管 拆下


上轉卡 之前要鑽好孔


穿過螺絲柱 放上Sandisk 並上好螺絲


在SSD上下兩層都墊上導熱片(內附的導熱係數就不得而知)


旋上螺絲 準備上機


冷開機 27度 待機30度~測試35度

AMI-BIOS修改NvmE
=========================================================

Aptio_4_AMI_Firmware_Update_Utility url

Aptio_V_AMI_Firmware_Update_Utility

UBU_v1_70_rc20_1 url

MMTool v4.50.0.23 (Microsoft YaHei) url

MMTool v5.0.0.7 (Microsoft YaHei) url

AfuDos url

NvmE&NTFS url



範例 1. Asus B850M-G BIOS 修改

將主板更新BIOS你要改的版本.


使用 AFUWINGUIx64.exe 點擊儲存或是 AfuWin64.exe 提取BIOS

AfuWin64.exe 3602.CAP /O

使用MMtool 開啟 3602.CAP
找到CSMCORE 依序插入Nvme.ffs、NvmeSmm.ffs、NvmeInt13.ffs (insert Compressed)
"Save Image" 即可


(準備 usb隨身碟 FAT32格式 & DOS工具)

1.DOS環境下用AFUDOS刷韌體

AFUDOS 3602.CAP /GAN

2.使用diskgenius建立DOS系統啟動碟
將修改過的BIOS 3602.CAP傳送到隨身碟上 並編輯fdauto.bat 內如下

@cls
@pause
@echo.
AFUDOS 3602.CAP /GAN

@echo.
AFUDOS CheckSum.CAP /O

重啟至BIOS環境下(W10_uefi) Win+X選單 WindowsPowerShell(系統管理員)

shutdown -fw -r -t 0

至BOOT頁面下方 "Boot Override" 選項 選擇隨身碟




系統遷移
AcronisTrueImageOEM_5128 legacy => uefi 處理過程
=========================================================






在執行備份前須先清除登錄資料

reg delete HKLM\SYSTEM\MountedDevices /va /f

ATI 階段工作已完成








附加壓縮檔: 201812/mobile01-ef10cb9c4792a8cfd69803559aa168a3.zip
重建 efi shell 相關檔案

bcdboot E:\windows /s D: /f UEFI /l zh-TW

此時新的SSD已能開機使用,更換SSD 處理後續 SetBCD


此 device 的值 提供SetBCD.bat {bootmgr}&{memdiag} 之用

bcdedit /enum {bootmgr}

附加壓縮檔: 201812/mobile01-0097fb7d6b485f2bb463c1d491403ac7.zip

SetBCD.bat

@echo. >>%COMPUTERNAME%-BCD(Backup).log
@echo %date%-%time% >>%COMPUTERNAME%-BCD(Backup).log
@bcdedit /enum all >>%COMPUTERNAME%-BCD(Backup).log

bcdedit /import BCD
@echo.
@Timeout 3
@echo OFF

@echo.
@echo Set {bootmgr}
bcdedit /set {bootmgr} device partition=\Device\HarddiskVolume1
bcdedit /set {bootmgr} path \EFI\Microsoft\Boot\bootmgfw.efi
bcdedit /set {bootmgr} description "Windows Boot Manager"
bcdedit /set {bootmgr} locale zh-TW
bcdedit /set {bootmgr} default {default}
bcdedit /set {bootmgr} resumeobject {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b}
rem bcdedit /set {bootmgr} displayorder {current}
bcdedit /set {bootmgr} toolsdisplayorder {memdiag}
bcdedit /set {bootmgr} timeout 3

@echo.
@echo Set {memdiag}
bcdedit /set {memdiag} device partition=\Device\HarddiskVolume1
bcdedit /set {memdiag} path \EFI\Microsoft\Boot\memtest.efi
bcdedit /set {memdiag} description "Windows 記憶體診斷"
bcdedit /set {memdiag} locale zh-TW
bcdedit /set {memdiag} inherit {globalsettings}
bcdedit /set {memdiag} badmemoryaccess Yes

@echo.
@echo Set {default}
bcdedit /set {default} device partition=C:
bcdedit /set {default} path \WINDOWS\system32\winload.efi
bcdedit /set {default} description "Windows 7"
bcdedit /set {default} locale zh-TW
bcdedit /set {default} inherit {bootloadersettings}
bcdedit /set {default} recoverysequence {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b}
REM bcdedit /set {default} displaymessageoverride Recovery
bcdedit /set {default} recoveryenabled No
REM bcdedit /set {default} isolatedcontext Yes
REM bcdedit /set {default} allowedinmemorysettings 0x15000075
bcdedit /set {default} osdevice partition=C:
bcdedit /set {default} systemroot \WINDOWS
bcdedit /set {default} resumeobject {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b}
bcdedit /set {default} nx OptIn
REM bcdedit /set {default} bootmenupolicy legacy

@echo.
@echo Set "Windows Resume Application"
bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} device partition=C:
bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} path \WINDOWS\system32\winresume.efi
bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} description "Windows Resume Application"
bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} locale zh-TW
bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} inherit {resumeloadersettings}
bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} recoverysequence {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b}
bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} recoveryenabled Yes
REM bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} isolatedcontext Yes
REM bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} allowedinmemorysettings 0x15000075
bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} filedevice partition=C:
bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} filepath \hiberfil.sys
REM bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} bootmenupolicy legacy
bcdedit /set {3eaf0d56-5356-11e8-ae0b-a8bdc68e083b} debugoptionenabled No

@echo.
@echo Set "Windows Recovery Environment"
bcdedit /set {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b} device ramdisk=[C:]\Recovery\WindowsRE\Winre.wim,{3eaf0d59-5356-11e8-ae0b-a8bdc68e083b}
bcdedit /set {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b} path \windows\system32\winload.efi
bcdedit /set {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b} description "Windows Recovery Environment"
bcdedit /set {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b} locale zh-TW
bcdedit /set {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b} inherit {bootloadersettings}
REM bcdedit /set {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b} displaymessage Recovery
bcdedit /set {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b} osdevice ramdisk=[C:]\Recovery\WindowsRE\Winre.wim,{3eaf0d59-5356-11e8-ae0b-a8bdc68e083b}
bcdedit /set {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b} systemroot \windows
bcdedit /set {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b} nx OptIn
REM bcdedit /set {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b} bootmenupolicy legacy
bcdedit /set {3eaf0d58-5356-11e8-ae0b-a8bdc68e083b} winpe Yes

@echo.
@echo Set ramdiskdevice
bcdedit /set {3eaf0d59-5356-11e8-ae0b-a8bdc68e083b} description "Windows Recovery"
bcdedit /set {3eaf0d59-5356-11e8-ae0b-a8bdc68e083b} ramdisksdidevice partition=C:
bcdedit /set {3eaf0d59-5356-11e8-ae0b-a8bdc68e083b} ramdisksdipath \Recovery\WindowsRE\boot.sdi

@timeout 5
@cls
@echo.
@pushd %SystemDrive%\Recovery
@attrib /s /d -a -s -r -h
echo 請將 Recovery 子目錄 (GUID) 更名為 WindowsRE
@echo.
@attrib /s /d
@echo.
@pause
@explorer %SystemDrive%\Recovery
@cls
@POPD
@bcdedit /enum all >>%COMPUTERNAME%-BCD(New).log
