我第一次發這樣的分享文章,如有不週詳請原諒,廢話不多說,請看圖~
MB:ASUS P8Z68 V-LE

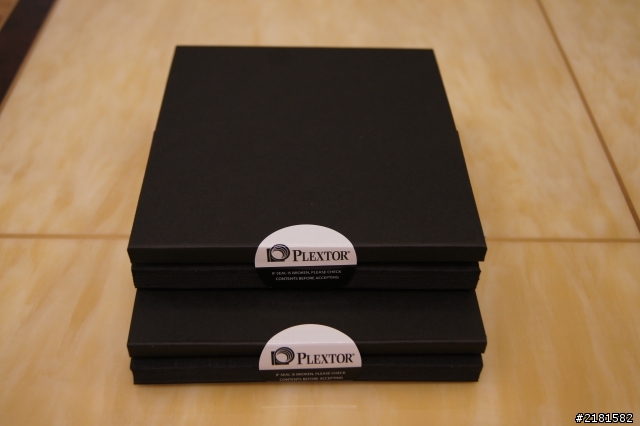

PLEXTOR M5 Pro 128GB 捷元貨
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-844d6b0aca52f9080b3bea224fca604f.jpg)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-b331f65b3fae185e44d8cb64d89fa89e.jpg)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-deb45f845c44daa06a03a0c6c0be3983.jpg)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-c8d6e99b0d3f07a507837391ec6305bb.jpg)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-3ebc1676d29c8ab987bfa785f315f27c.jpg)
銀欣 CP-08 SATA III 資料傳輸線
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-4367bb449efa4700de3635e9f4c89e50.jpg)
設定BIOS SATA Mode--RAID 重新開機
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-423dabe8f4c5b3c9d7ce16207d9a9028.jpg)

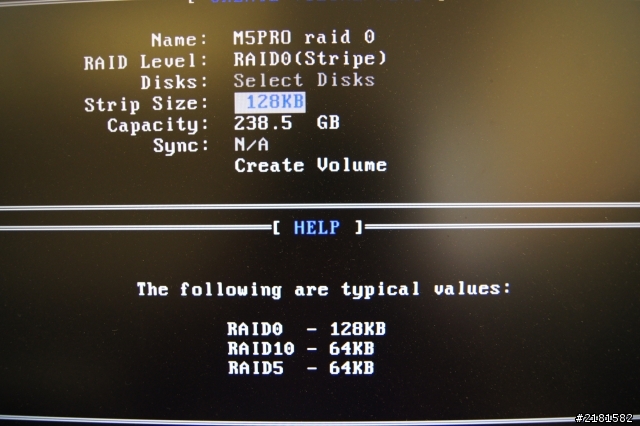

按Ctrl-I 設定 RAID 組態
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-d192ccb5fd407daf920f9668cacae6ed.jpg)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-5c52a647621bf80c0a0d0df72b6e08ab.jpg)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-df7196751bd8592166843755bc1b555e.jpg)
SAVE後會重新開機,再進BIOS設CD-ROM開機,放W7光碟片灌系統
為何沒圖片---第一次組RAID,也第一次自己灌系統,太緊張了,忘記拍照片
重頭戲看分數~~
CrystalDiskMark v3.0.1 x64
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-7c208d3a0372926c51013a450f87498d.png)

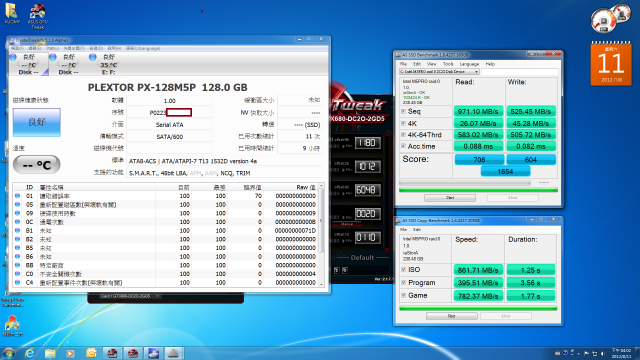

AS SSD Benchmark
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-a5d09d8b603a0dba0ff170e25d7add8f.png)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-87911fccd970b77dcd4bb127779850aa.png)
有支援 TRIM
4K好像不如預期,差太多了吧,我以為會超過100Mb/s!!
再來看開機時間
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-bbee36a57a29c1809ebfab677e0c27f4.png)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-820331146f8425ff98b1c0e47e8e1ad9.png)
謝謝大家
PS:第一次作就成功蠻高興的,組RAID為純自爽用,組了之後戰地風雲3也沒有比較會打
==================================================================
<2012/08/13更新>
4K Write 大爆漲
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-c1cd13576cf1d5ee011c1f24853e1ec0.png)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-13b2d58a2a7298a3c124192ffd486645.png)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-0902bb16959c25084aed3743a22be3c7.png)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-5ca4807921d9381164c8ad2c8e27a75c.png)
以上我只做兩個動作
1.把Intel Rapid Storage Technology 11.5版的驅動程式改為11.2
2.看下圖的黑框(回寫式快取選啟用,預設是未啟用)
![[更新]~PLEXTOR M5 Pro 128GB RAID 0 之效能~~](http://attach.mobile01.com/attach/201208/mobile01-ccbe12823c42cd743f00837ed4ec2651.png)
<????????有沒有誤判,因為差很大>
如果沒誤判,那PLEXTOR M5 Pro組RAID還真不錯~~
