隨著英特爾發佈新一代的Sandy Bridge處理器平台在型號上 分為 H61 H67 P67 以及後續會推出的Z、X系列
先讓大家耳目一新一下 在mini itx 這塊市場上 有哪些家的產品
ZOTAC H67-ITX WiFi
Intel® H67 Express chipset
Ready for 2000 Series Intel® Core™ i3, i5 and i7 processors
LGA1155 socket compatible
Support processors up to 130-watt TDP
2 x DDR3-1333 slots (dual-channel)
Support up to 16GB memory
DisplayPort, HDMI, DVI-I & VGA
PCI Express x16 expansion
2 SATA 6.0 Gb/s
4 SATA 3.0 Gb/s w/ RAID 0, 1, 0+1 & 5
4 USB 3.0 ports
8 USB 2.0 ports
Digital S/PDIF output (optical)
Onboard 802.11n WiFi (300 Mb/s)
Gigabit Ethernet
MSI H67 mini-ITX
Intel Sandy bridge does not have 24PIn ATX plug on the side, so it would be a perfect fit for the HDPLEX fanless H5 and H10 series case
Intel DH67CF
* Intel® Core™ i5-2000 Prozessoren (65 W TDP) LGA1155-Sockel
* Intel® Core™ i3-2000 Prozessoren (65 W TDP) LGA1155-Sockel
* Alle kompatiblen Intel® Prozessoren
* Vier 240-polige DDR3 -SDRAM-DIMM-Sockel
* Geeignet für DDR3-1333/1066-MHz-DIMMs
* Max. Systemspeicherkapazität: 16 GB
* Intel® H67 Express-Chipsatz
* Intel® Rapid-Storage-Technik für RAID 0, 1, 5 und 10
* High-Definition-Multimedia-Interface* (HDMI*)
* DVI-I
* DisplayPort*
* PCI-Express*-2.0-x16-Erweiterungssteckplatz für Grafikkarte
Intel® High-Definition-Audio (Intel® HD-Audio)
* 10-Kanal-Audio-Subsystem 7.1
* Interne S/P-DIF
Gigabit-LAN-Schnittstelle (10/100/1000 Mbit/s)
* Zwei Serial-ATA -Ports (6 Gbit/s)
* Zwei Serial-ATA-Ports (3 Gbit/s)
* eSATA-Port mit 3 Gbit/s
* SuperSpeed-USB-3.0-Ports
ASUS P8H67-I DELUXE
2x S0-DIMM DDR3-1600
2 SATA 6.0 Gb/s
2 SATA 3.0 Gb/s
DVI, VGA, HDMI
802.11b/g/n WiFi
USB 3.0 (2x extern/2x intern)
PCI Express (x16)
6x USB2.0 (4x extern/2x intern)
VGA, DVI, HDMI,
1x eSATA port, Bluetooth,
1x Gb-LAN,8-Kanal HD-Audio

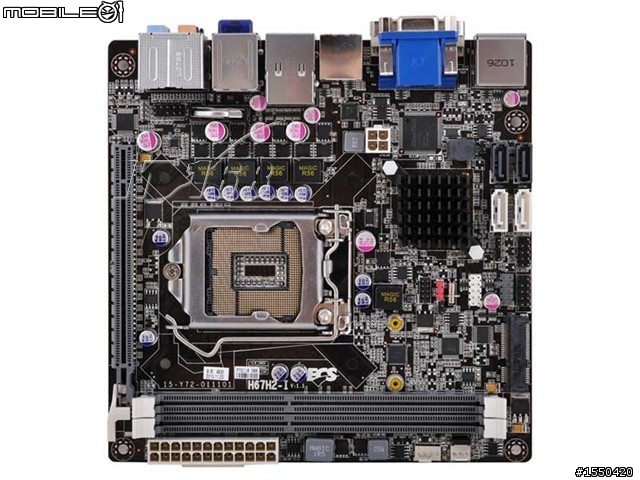

ECS H67H2-I
Intel® H67 Express chipset
Ready for 2000 Series Intel® Core™ i3, i5 and i7 processors
LGA1155 socket compatible
2 x DDR3-1333 slots
Support up to 8GB memory
2 SATA 6.0 Gb/s
2 SATA 3.0 Gb/s
PCI Express x16 expansion
DVI, HDMI and VGA display outputs
6 x USB 2.0 ports
2 x USB 3.0 ports
1 x eSATA port
1 x Gigabit Ethernet port
audio connectors and S/PDIF output
Foxconn H67S
Intel® H67 Express chipset
Ready for 2000 Series Intel® Core™ i3, i5 and i7 processors
LGA1155 socket compatible
- Supports Intel 32nm Hi-K CPU
- Dual channel DDR3 1333/1066 x 2 DIMMs, Max. 8GB
- 1* PCIe2.0 x16
- 1* SATA II , 2* SATA III ,1*eSATA II
- 7.1 channel HDA
- Gigabit LAN
- 10 USB 2.0 ports
1 x PS/2 keyboard port
1 x HDMI port
1 x DVI port
1 x eSATAII port
1 x Audio jack supports 6 jacks
1 x RJ45 LAN port
6 x USB 2.0 ports

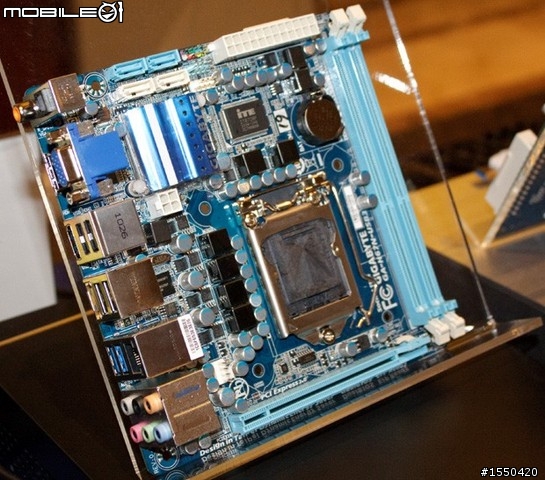

GA-H67N-USB3
Intel® H67 Express chipset
Ready for 2000 Series Intel® Core™ i3, i5 and i7 processors
LGA1155 socket compatible
2 x DDR3-1333 slots
Support up to 8GB memory
2 SATA 6.0 Gb/s
2 SATA 3.0 Gb/s
PCI Express x16 expansion
AsRock H67M-ITX
Intel® H67 Express chipset
Ready for 2000 Series Intel® Core™ i3, i5 and i7 processors
LGA1155 socket compatible
2 x DDR3-1333 slots
Support up to 8GB memory
2 x SATA 6.0 Gb/s
2 x SATA 3.0 Gb/s
PCI Express x16 expansion 2.0
DVI, HDMI and VGA display outputs
1x eSATA 2.0
CIR Remote
Blu-ray Stereoscopic 3D
ASL H67T
Ready for 2000 Series Intel® Core™ i3, i5 and i7 processors
LGA1155 socket compatible
Support up to 8GB memory
2 x DDR3-1333 slots (dual-channel)
4 x SATA 3.0 Gb/s
1 x PCI Express x16
1 x Mini PCI Express
8 x USB2.0 ports
2 x USB3.0 ports
以上轉至各國外網站 謝謝收看
