vincent6735 wrote:
懇請前輩協助......(恕刪)
Macbook規格都特殊的市面上除了創見出的專用SSD
市面上賣的要用在MAC上面一定要透過轉卡
安裝系統版本：10.14.6
使用的SSD：XPG SX8200 Pro
使用的轉接卡： https://shopee.tw/product/9647107/1819958011
速度測試(選填): W752.9/ R1264.6
是否能正確抓到SSD：YES
是否正常休眠並且無耗電情況：Yes
是否正常使用Boot Camp：無測試
2019.08.18更換SSD
2019.09.02近況更新
發現把螢幕蓋起來睡一晚
隔天要喚醒就會像是整個重開機
很多程式(Google Chrome, Line等）都會整個關掉
有時候輸入密碼後就會直接當機
需要強制關機後再開機，才能使用
無明顯耗電
安裝系統版本：10.14.6
使用的SSD：XPG SX8200 Pro 1TB
使用的轉接卡： ST-NGFF2013-C
速度測試(選填): Write 1272.9MB / Read 1485.0
是否能正確抓到SSD：YES
是否正常休眠並且無耗電情況：關閉休眠, 蓋螢幕一晚無明顯耗電
是否正常使用Boot Camp：無測試
2013-2014 的 MBPR 的 boot rom 的 NVMe driver 有缺陷
所以所有的 NVMe SSD(包含 Apple 原廠) 都會有休眠問題, 不嫌麻煩的可以更新 boot rom driver 去解決
細節可參考: https://forums.macrumors.com/threads/upgrading-2013-2014-macbook-pro-ssd-to-m-2-nvme.2034976/
Fixing Hibernation issues on 2013-2014 laptops
MacBook Pro retina 13" and 15", and MacBook Air 11" and 13" from 2013 to 2014 have in their BootRom a DXE NVMe Driver which is incompleted or compressed.
This driver isn't properly loaded or decompressed at wake up from hibernation and this cause those 2013-2014 models to loose contact with any NVMe drive at wake from hibernation (only).
The problem exists with every NVMe SSD, being them OWC aura Pro X NVMe SSDs, Transcend 850 NVMe SSDs, Apple "Polaris" NVMe SSD or any regular M.2 SSD from Adata, Crucial, Samsung, Toshiba etc.
This problem is only related to the DXE driver in the bootrom
To prevent this problem you have two solutions :
1. disable hibernation by typing "sudo pmset -a hibernatemode 0 standby 0 autopoweroff 0" in the terminal
2. you can "patch" the BootRom
Disabling hibernation has the drawback that your mac will consume more power when sleeping for a longer time than if hibernation is enabled with the default settings.
The process of patching the BootRom gives perfect results with hibernation but is risky and complicated. You also need a SPI programmer and the proper wiring.
An excellent guide has been made by Cmd+Q :
https://forums.macrumors.com/thread...ssd-to-m-2-nvme.2034976/page-65#post-26224320
You can, as an alternative, buy a "MattCard" patched with the proper DXE driver.
You can also ask Apple to fix the problem with hibernation and NVMe drives... This problem occurs with 2013-2014 macs any NVMe SSD : all M.2 NVMe SSD but also OWC Aura Pro X, Transcend 850 SSDs, and also Apple "Polaris" NVMe SSD
安裝系統版本：Mojave 10.14.6
使用的SSD：Intel 660p 512G
使用的轉接卡：從蝦皮某位熱心的大哥那購入

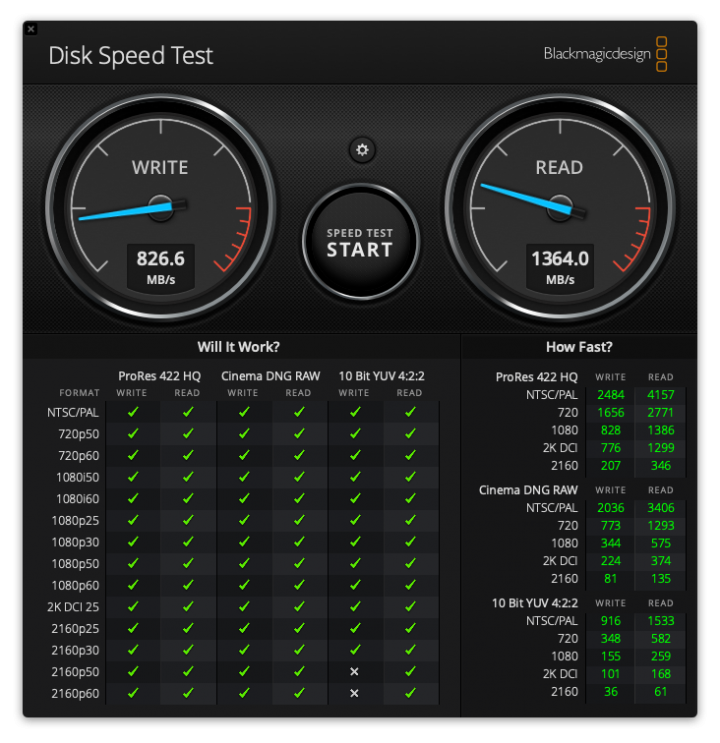

速度測試(選填): 大約R: 1364 MB/S，W: 826 MB/S
是否能正確抓到SSD：Y
是否正常休眠並且無耗電情況：
尚未測試
是否正常使用Boot Camp：沒有使用
備註：
我是從OS X Yosemite升級而來，當時的BootRom是MBP111.0138.B16
直接升級Mojave，BootRom不會一起升級，這點要注意
然後安裝nvme SSD時，會在安裝完成後，Boot抓不到硬碟
所以必須先升級High Sierra，安裝完後的BootRom是MBP111.0148.B00
這裡便可以使用了，個人則是繼續升級到最新Mojave，BootRom會更新為156.0.0.0.0
供大家參考
