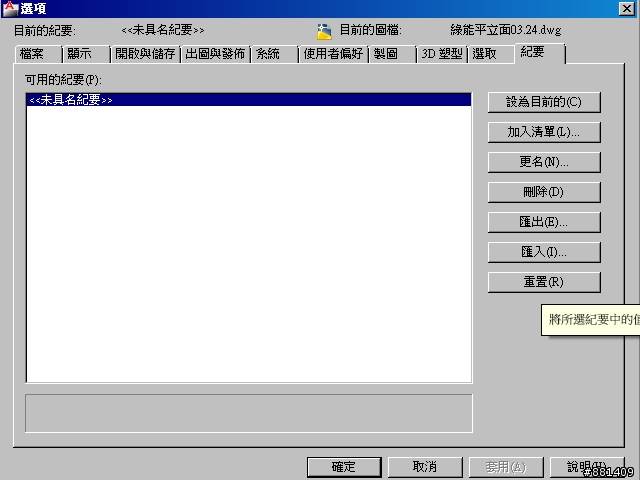

auto cad 每個版本翻譯都不一樣，所以無法給你正確的提示，就像我上面那一張圖叫"紀要"，而你的版本叫"個案設定"，而其實內容意思都一樣，可以麻煩你貼個個案設定的圖給我，我好給你一個意見參考，這個方式就是恢復初始設定，但我又怕你失敗，所以建議你先將目前的設定先儲存起來，然後在執行看看。
小強林 wrote:
早上開AUTOCAD...(恕刪)
會不會跟2008一樣的問題..
設定檔全跑掉了!
解決方法如下:
開啟 AutoCAD 2008 都會出現如下『無法載入個案設定檔…』的警告訊息，應該如何解決？
這可能是微軟 XML 語法分析器MSXML沒裝或毀損造成，解法請參考Autodesk 網站的技術資料TS1069914，XML語法分析器也可以從微軟網站下載。
http://usa.autodesk.com/adsk/servlet/ps/dl/item?siteID=123112&id=9450291&linkID=9240617
Error: Unable to load profile file
During the startup of your Autodesk software, you received the following error message:
Unable to load profile file. Some profile information saved in last session may not be restored.
After you clicked OK to dismiss this error, the program operated very slowly and certain commands did not function properly.
This error message will occur if the Microsoft® XML parser is not installed or has become corrupted. To resolve this error, use one of the following procedures, depending on your product version:
For AutoCAD 2008-based products and later versions:
Exit the affected Autodesk product.
Insert the AutoCAD-based product disk into the appropriate drive.
Close the installer, if it appears.
Browse to and run one of the following files:
For 32-bit operating systems:
\support\msxml\msxml6.msi
For 64-bit operating systems:
\support\msxml\msxml6_x64.msi
Note: If you are unsure whether you are running a 32- or 64-bit operating system, stop this procedure and contact your system administrator before proceeding.
Complete the installation by accepting all of the default settings.
Click Start menu (Windows) > Run.
In the Run dialog box, enter REGSVR32 MSXML6.DLL
Click OK.
Restart AutoCAD.
For AutoCAD 2007-based products and previous versions:
Exit the affected Autodesk product
Click Start menu (Windows) > Run,
In the Run dialog box, enter XMLINST. Click OK.
Note: If you receive an error that this file cannot be found, visit Microsoft's website and download and extract this file to your System32 folder (by default, C:\Windows\System32).
Click Start menu (Windows) > Run,
In the Run dialog box, enter REGSVR32 MSXML3.DLL
Note: If you receive an error that this file cannot be found, visit Microsoft's website and download and extract this file to your System32 folder (by default, C:\Windows\System32).
Restart AutoCAD.
For more information or questions about downloading, installing, or configuring the Microsoft XML Parser, contact Microsoft directly.
紅字是2007的解決方法!!
結果是重灌..那程式有問題.
我甚至把別台的選單檔copy過來都無效.
下次別裝了..
cad轉pdf方法很多,新版都內建了的樣子
你是要pdf轉cad嗎?
我就是要做這個才裝了那玩意.
要把客戶保護的pdf檔再轉成cad.
後來沒再試了.多年前都忘光了.
要不在我站上問看看,
也可以找人ˋ找工作
