Ｍarantz PM15S1使用上問題詢問 (第4頁)

Monte920

Monte920
個人積分：16723分
文章編號：72210733

16723分

31樓

2019-02-26 11:52

這個地方是Marantz讓人搞不懂的一個大秘密. orz

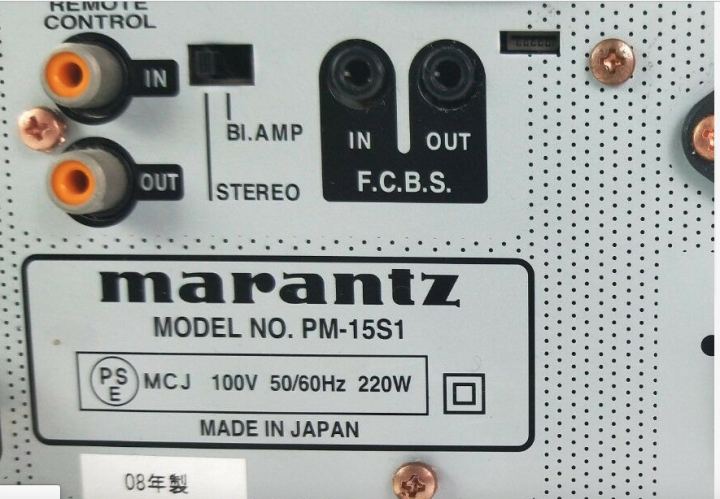

PM15S1其實有兩個版本, 2008?以前的版本是有附一個額外的電源插座(就是你圖片秀的),有日規,美規,(?歐規). 但較新的版本把電源插座取消掉了,而且只剩美規(與歐規?). 至於日規,則改名成PM13S1, 100V, 而且保留額外的電源插座.

那PM13S1與PM15S1除了電源伏特數不同以外,是不是內部線路都完全相同? 這我就不知道了,也許只有當年Marantz的高級主管可以告訴你! 不過可確定的, PM13S1是不在日本以外的國家銷售的.

這是沒有額外電源插座的120V, PM15S1, 2009年製造. 你的PM15S1是哪一年版?

Bear4212

Bear4212
個人積分：3109分
文章編號：72211064

3109分

32樓

2019-02-26 12:13

你確定????

15s1就是15s1，跟13s1與13s2是兩個完全不同的產品ok

Monte920 wrote:
這個地方是Marantz...(恕刪)

Monte920

Monte920
個人積分：16723分
文章編號：72211257

16723分

33樓

2019-02-26 12:28

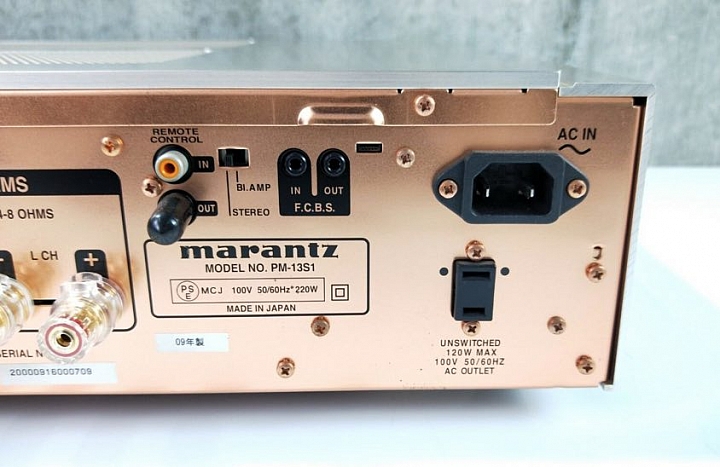

PM13S1後面是銅版,上蓋也不同. 只有日規, 2009年製.

是否跟PM15S1 120V美規, 2009年製的是完全不同的機器? 說真的, 沒有人能說死!

youbou

youbou
個人積分：119分
文章編號：72211357

119分

34樓

2019-02-26 12:36

13和15的差別以官方發表來看肉眼可辨的有:
1.改為鍍銅外殼
2.改為厚鋁製頂板
3.較大的變壓器及強化屏蔽
4.較大的20000uf濾波電容
5.重要部分使用訂製的藍色銅箔PP電容
6.功率晶體覆蓋銅板隔離

看不到的地方就不知了XD

tien.yu wrote:
昨晚試了reset...(恕刪)

Monte920

Monte920
個人積分：16723分
文章編號：72211438

16723分

35樓

2019-02-26 12:43

另外一個謎, 日本國內沒有出PM KI Pearl也沒有出PM15S2 Limited Edition. 而日本國外沒有出PM13S2. 那PM13S2到底是誰? PM15S2 LE還是PM KI Pearl?

PM13S2

根據官網描述, By redesigning the circuit design and making it a full discrete configuration that does not use operational amplifiers, the PM-15S2, which has greatly improved basic performance, has been refined into a more attractive model with refining the resolution and spatial reproducibility It was. PM - 13S2 is a special edition model based on its PM - 15S2, which improves the sound quality to further height by thorough tuning such as throwing luxurious high - quality parts and chassis vibration control. We realize artistic rich music play by using speaker driving force that makes you feel more expression and increased margin.

所以有人說PM13S2就是PM KI Pearl. 但又有人說PM13S2是PM15S2 LE, 也真的讓人搞不清楚!

PM15S2 Limited Edition

PM-15S2 Limited Edition is the epitome of extreme quality and is, quite simply, a masterpiece. In both performance and appearance, it stands out in the Premium Range, with exclusive silky-black finishing. As you would expect from such a limited edition player, it includes all the exceptional-quality components and subsystems as its thoroughbred stable mate, the PM-152. But in addition, it incorporates improved customized components and the use of a more efficient electrical signal path to elevate sound quality to even more sublime levels. The PM-15S2 Limited Edition represents a true milestone in the history of Marantz. It also represents a rare and precious opportunity to own a genuinely exclusive object of desire.
