captainwu wrote:
我看手冊應該是不行用...(恕刪)
感恩回覆.

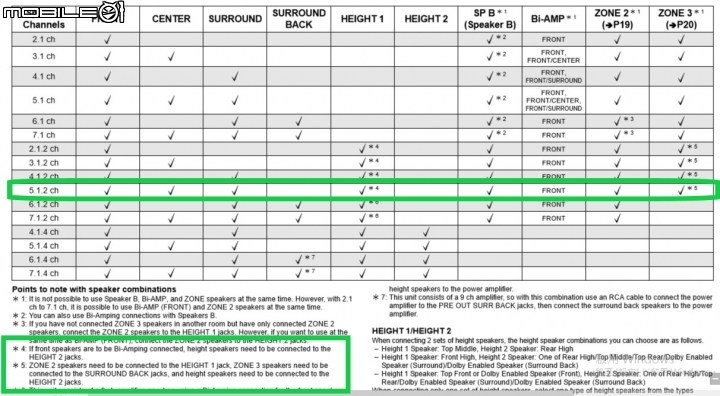

說明書截圖如下,應該是有這個配置.
惟zone2應接到Height 1 ,zone3 應接到surround back,天空聲道則接到Height 2
yangmn wrote:
感謝樓主與網兄回覆.
較之他牌環擴,Pioneer 2016年的機種,似乎在多區的支援上較有彈性.
至少說明書提到的接線方式,可以在不需更動實體喇叭線路的情況下,變更5.1.2+zone2(and or) zone3
至於能否同時發聲,就只能實測了
這台他可以同時接11個喇叭，但是，最多就是9個喇叭發聲
這是硬體限制，不用實測
所以，如果是main + Zone2 ＝ 7.1 + 2.0
如果是main + Z2 + Z3 ＝ 5.1 + 2.0 + 2.0
請看說明書的19頁、20頁
p.19內容
You can play through a maximum of 7.1 channels in the main
room during ZONE 2 playback.
p.20內容
During ZONE 3 playback, no sound is heard from the
surround back speakers or the height speakers and a
maximum of 5.1 channel playback is possible in the
main room.
altezza wrote:
這台他可以同時接11...(恕刪)
During ZONE 3 playback, no sound is heard from the
surround back speakers or the height speakers and a
maximum of 5.1 channel playback is possible in the
main room. Listening modes such as the Dolby Atmos
modes cannot be selected.
============================
感恩altezza兄詳細的說明.
若依說明書的20頁來做解讀,是否可以不需變更任何設定,在zone3未開啟的情況下,
主區即可選到Dolby Atmos mode(也就是主區5.1.2發聲)?
這部機器比較特殊的地方是,
在5.1(.2)+zone2+zone3這種speaker combination下
是把所有喇叭端子用到滿的.
有效最大化運用硬體資源,設定調整程序也相對簡化
與同為9聲道的Denon x4300來做對比.天空聲道會與zone2或zone3共用喇叭端子.讓surround back空浪費在那裏.
需要同時執行amp assign與實體喇叭線路的更換調整.才能達到主區支援天空聲道的需求.
