前言：
小弟我在上網無聊的時候看到了此款HDMI線，此款HDMI線漂亮的外型，以及特殊的規格，又勾起了我的敗家慾望

上各大拍賣網看了一下，發現沒有人在賣這個型號的線材，由於慾火上身(?)所以就想辦法從日本弄了一條回來

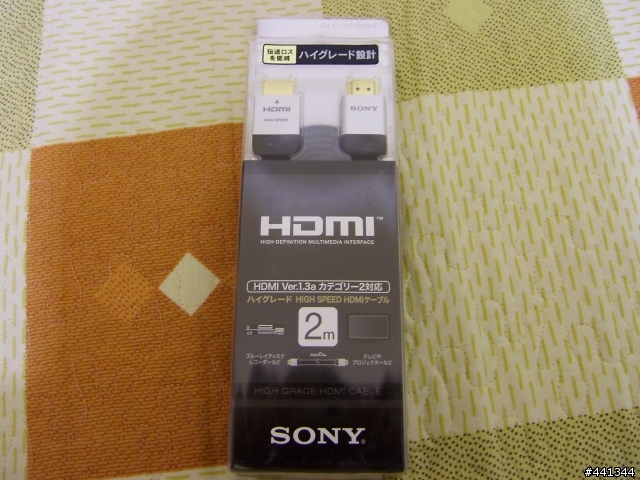

這就是這次的主角，型號為DLC-HD20HF(數字為長度，20代表2公尺)

SONY 原廠最高規格? HDMI 1.3a傳輸線DLC-HD"HF"系列

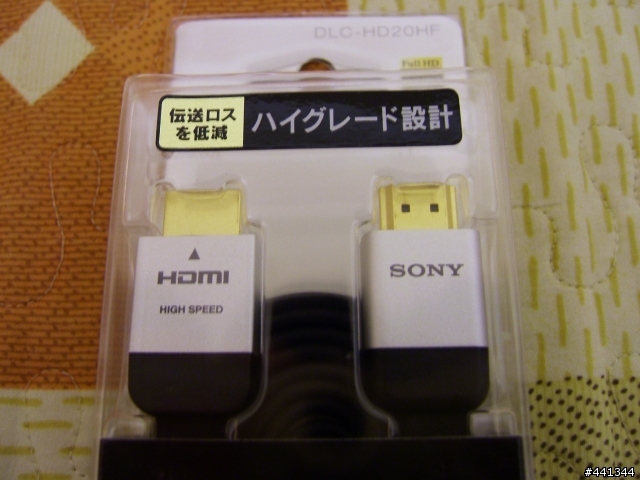

HIGH GRADE 設計(高等級設計?

)

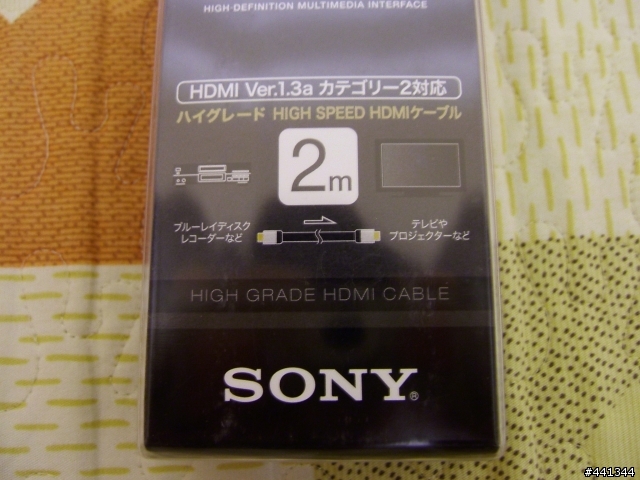

HDMI 1.3a category2(340MHz高速)對應

SONY 原廠最高規格? HDMI 1.3a傳輸線DLC-HD"HF"系列

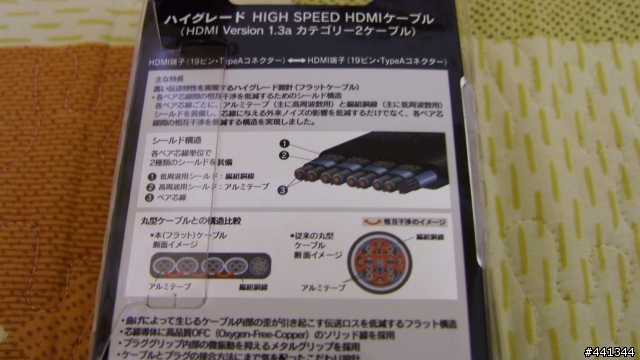

背面的說明，此種設計可降低每條線芯訊號的互相干擾

SONY 原廠最高規格? HDMI 1.3a傳輸線DLC-HD"HF"系列

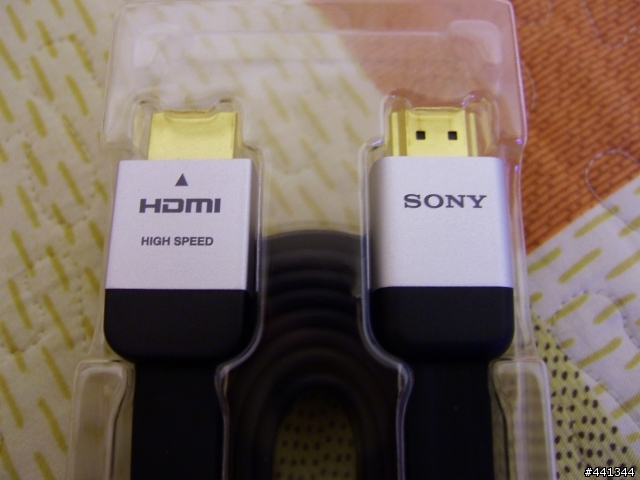

開箱，看到接頭上的"$ONY"MARK，爽度就夠了

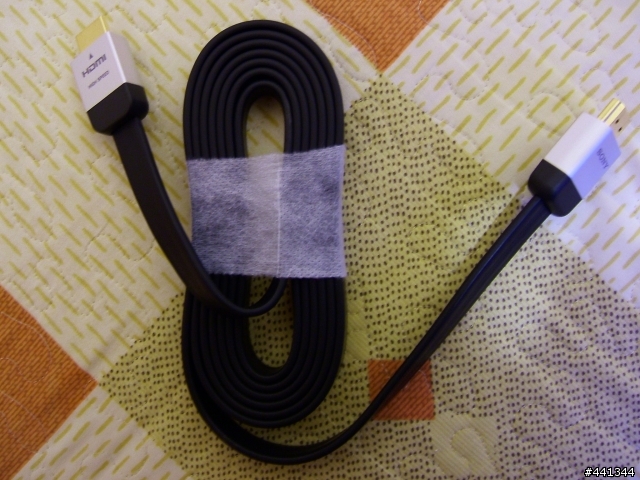

開箱2

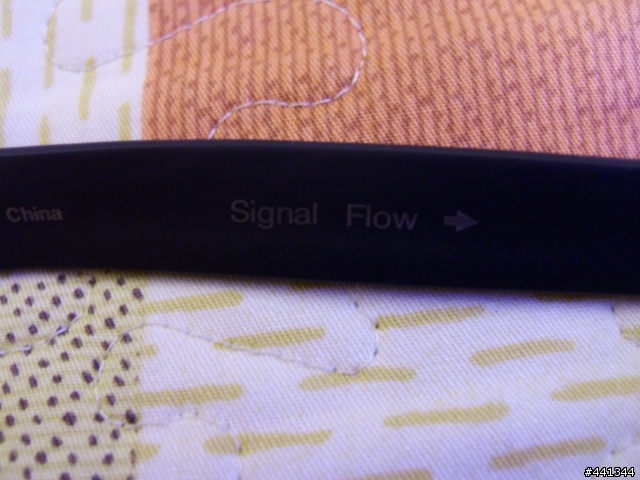

仔細看了一下線身，發現有標示訊號方向，不愧是發燒級線材(?)

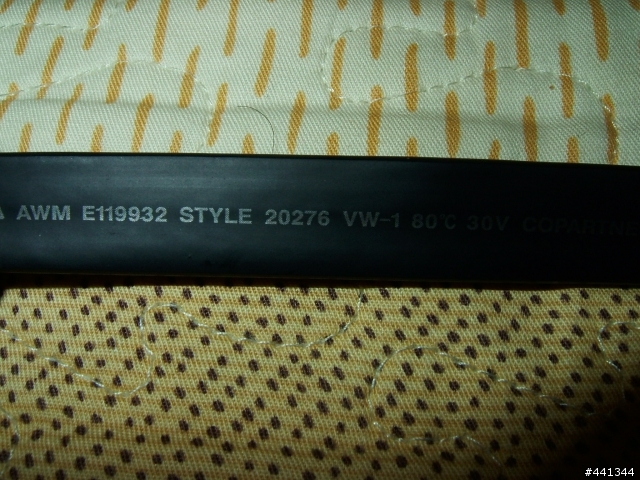

規格標示

由於手上沒有1.3規格的顯示器，所以也比較不出來有何差別

會買這款純粹只是一時興起 orz

至於價格方面，2公尺在日本Sony Style上的售價為5,980円（税込），+-0.5工尺大約加減500日圓，若有興趣的請私下內洽

謝謝收看!!

2008-05-16 1:48 發佈

文章關鍵字 SONY 原廠規格 HDMI 1.3a傳輸線DLC-HD 系列 HF 1.3

t65k2lin

t65k2lin
個人積分：83分
文章編號：7442852

83分

2樓

2008-08-08 2:24

看起來真是不錯
在拍賣上還真的找不到流口水

68102020

68102020
個人積分：169分
文章編號：7443303

169分

3樓

2008-08-08 6:06

我是買:1.3b版

1.3b 比 1.3a 規格強上好幾倍................

HDMI1.0→HDMI1.1→HDMI1.2→HDMI1.2a→HDMI1.3a→HDMI1.3b

期待:1.3c版推出.....

這個供參考

windsky2008

windsky2008
個人積分：910分
文章編號：7443445

910分

4樓

2008-08-08 7:06

68102020 wrote:
我是買:1.3b版1...(恕刪)

問題你哪來的訊號端和接收端來使用呢............現在的1.3b是好看的罷了

KakimotoRift

KakimotoRift
個人積分：45分
文章編號：7443489

45分

5樓

2008-08-08 7:20

68102020 wrote:
我是買:1.3b版1...(恕刪)

強上好幾倍?

Q. What is the difference between HDMI 1.3 and HDMI 1.3a, or 1.3b?

For consumers, there is no difference between HDMI version 1.3 and 1.3a or 1.3b. These minor revisions to the specification typically relate to manufacturing or testing issues and do not impact features or functionality. In addition, HDMI Licensing, LLC is actively working with manufacturers to reduce confusion for consumers by de-emphasizing version numbers and focusing instead on product features and functionality.

For Adopters, the latest HDMI Specification is v1.3a and the latest HDMI Compliance Test Specification (CTS) is 1.3b1.

以上來自 http://www.hdmi.org/

AND

以下來自 Wikipedia

HDMI 1.3

Released June 22, 2006.[12][13][76]

* Increases single-link bandwidth to 340 MHz (10.2 Gbit/s)
* Optionally supports Deep Color with 30-bit, 36-bit, and 48-bit xvYCC, sRGB, or YCbCr compared to 24-bit sRGB or YCbCr in previous HDMI versions.
* Incorporates automatic audio syncing (Audio video sync) capability.
* Optionally supports output of Dolby TrueHD and DTS-HD Master Audio streams for external decoding by AV receivers.[77] TrueHD and DTS-HD are lossless audio codec formats used on Blu-ray Discs and HD DVDs. If the disc player can decode these streams into uncompressed audio, then HDMI 1.3 is not necessary, as all versions of HDMI can transport uncompressed audio.
* Cable Categories 1 and 2 defined. Category 1 cable is tested up to 74.25 MHz while Category 2 cable is tested up to 340 MHz.
* Availability of a new Type C mini-connector for portable devices.[39][78]

[edit] HDMI 1.3a

Released November 10, 2006.[12]

* Cable and Sink modifications for Type C
* Source termination recommendation
* Removed undershoot and maximum rise/fall time limits.
* CEC capacitance limits changed
* sRGB video quantization range clarification
* CEC commands for timer control brought back in an altered form, audio control commands added.
* Concurrently released compliance test specification included.

[edit] HDMI 1.3b

Released March 26, 2007.[79][73][80]

* HDMI compliance testing revisions. Has no effect on HDMI features or functions since the testing is for products based on the HDMI 1.3a specification.

[edit] HDMI 1.3b1

Released November 9, 2007.[79][73][80]

* HDMI compliance testing revisions which added testing requirements for HDMI Type C mini-connector. Has no effect on HDMI features or functions since the testing is for products based on the HDMI 1.3a specification.
