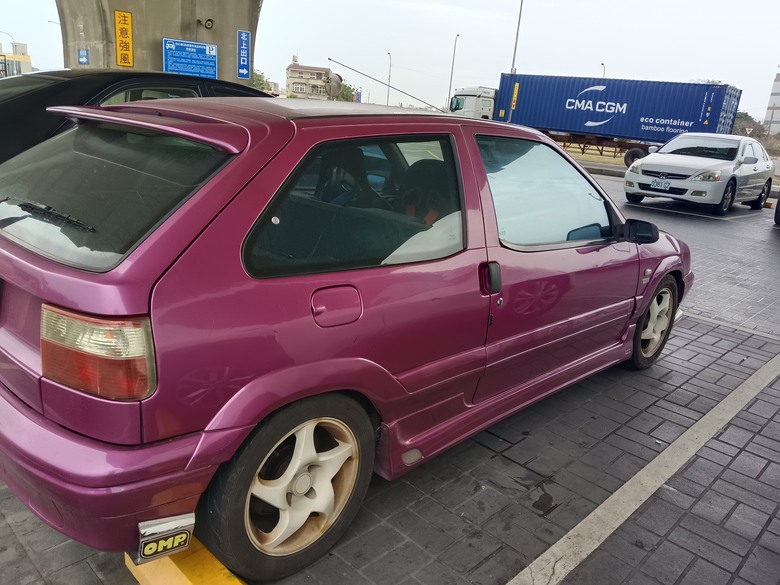

請問～遇到引擎燈偶而亮起，怠速不穩還會息火，初判是線路老化及脆化，需整理引擎線束，有建議的店家，願意整理30年的Citroen zx1.8嗎？
北部地區佳，感謝
剛隨便查一下,1.8 16V某兩個版本前線組料號,分別是6507KL跟6507EG還有供應
可以用車身號碼跟寶嘉查詢,搞不好原廠還有供應
16V以引擎號碼區分
WIRING UNDER BONNET LEFT HAND DRIVE And WITHOUT AIR CONDITIONING And Since OPR 07147
MAIN WIRING UNDER BONNET LEFT HAND DRIVE And AIR CONDITIONING And Since OPR 05411 Until OPR 05655
MAIN WIRING UNDER BONNET LEFT HAND DRIVE And AIR CONDITIONING And Since OPR 05656 Until OPR 06049
MAIN WIRING UNDER BONNET LEFT HAND DRIVE And AIR CONDITIONING And Since OPR 06050 Until OPR 06384
MAIN WIRING UNDER BONNET LEFT HAND DRIVE And AIR CONDITIONING And Since OPR 06385 Until OPR 06537
MAIN WIRING UNDER BONNET LEFT HAND DRIVE And AIR CONDITIONING And Since OPR 06538 Until OPR 06901
MAIN WIRING UNDER BONNET LEFT HAND DRIVE And AIR CONDITIONING And Since OPR 06902 Until OPR 07146
MAIN WIRING UNDER BONNET LEFT HAND DRIVE And AIR CONDITIONING And Since OPR 07147
MAIN WIRING UNDER BONNET LEFT HAND DRIVE And Until OPR 05410
以最老車身號碼而言又有區分配備版本
1 6502 1H 01 FRONT HARNESS,
Position 9623371480 HORN STANDARD And REAR SCREEN WIPER And NO FRONT FOG LIGHTS And REMOTE MANUAL HEADLAMP ADJUSTMENT And SINGLE OPTIC LAMPS And Until OPR 07266 Except (RC)
01 6507 GF 01 FRONT HARNESS,
Position 9628339880 W/O ABS BRAKES And HORN STANDARD And HEADLAMP WASHWIPE And NO FRONT FOG LIGHTS And SINGLE OPTIC LAMPS And Since OPR 07267 Except (RC)
01 6507 GF 01 FRONT HARNESS,
Position 9628339880 W/O ABS BRAKES And HORN STANDARD And NO FRONT FOG LIGHTS And REMOTE MANUAL HEADLAMP ADJUSTMENT And SINGLE OPTIC LAMPS And Since OPR 07267 Except (RC)
01 6507 CY 01 FRONT HARNESS,
Position 9628199080 DOUBLE OPTIC LAMPS Except (RC)
01 6507 CZ 01 FRONT HARNESS,
Position 9628136480 HORN STANDARD And W/O HEADLAMP WIPER And NO FRONT FOG LIGHTS And MANUAL HEADLAMP ADJUSTMENT And SINGLE OPTIC LAMPS Except (RC) Except POLICE - UNMARKED Except POLICE - MARKED
01 6507 CK 01 FRONT HARNESS,
Position 9627540180 FRONT FOG LIGHTS And SINGLE OPTIC LAMPS Except (RC)
01 6507 KL 01 FRONT HARNESS,
Position 9626452280 (RC)
01 6507 LA 01 FRONT HARNESS,
Position 9625871780 W/O HEADLAMP WIPER And NO FRONT FOG LIGHTS And MANUAL HEADLAMP ADJUSTMENT And SINGLE OPTIC LAMPS And Until OPR 07392 Except (RC)
01 6507 YN 01 FRONT HARNESS,
Position 9631524280 W/O HEADLAMP WIPER And NO FRONT FOG LIGHTS And MANUAL HEADLAMP ADJUSTMENT And SINGLE OPTIC LAMPS And Since OPR 07392 Except (RC)
可用對應配備來查配線
若查不到對應配線,可用其他配備配線,再改局部
例如 6507 KL跟6507 LA 這兩個料號差在頭燈雨刷,可以用6507 LA 再另外接頭燈雨刷電線。
可以從 https://catalogs.ssg.asia/citroen/?lang=en
或 https://7zap.com/en/catalog/cars/Citroen/
這兩個零件網站查詢
