喜歡自己DIY & 省小錢 花大錢的朋友可以看看!

===========================
Jimmy 每次 編輪都忘了順便買襯帶~~

事實上 一般車店 也不會放這種耗材~~~
常買的 FSA 一條 $100 拍賣上常見的最便宜也大約一車$100 左右~~
在"自行車聖經" 補胎篇中 有提到 若是爆胎孔在內胎的內側~ 可能是幅條太長造成的~~~
應急時 可以多貼兩圈膠帶 撐著~~~ 於是給了Jimmy一個靈感....

![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-48b71875ffa7cd459c94ea5f3e3399a7.jpg)

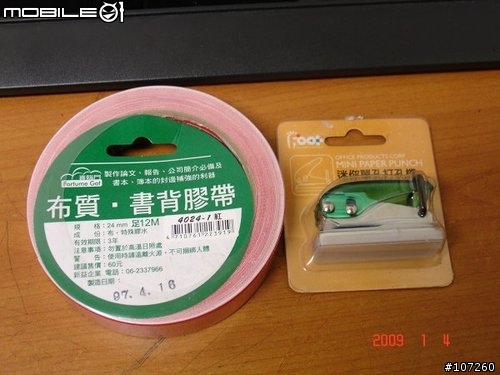

布質 .書背膠帶 + 打孔機 兩個加起來 $100有找~~~
膠帶 足12M 700C輪框是 622mm *3.14*2= 1953 mm 剛好6車份~~~

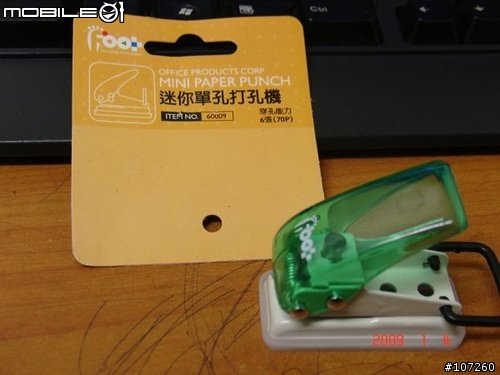

這個孔 Size剛剛好~~
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-4f9dc4d4512b8476b86d0c5a0747fc73.jpg)

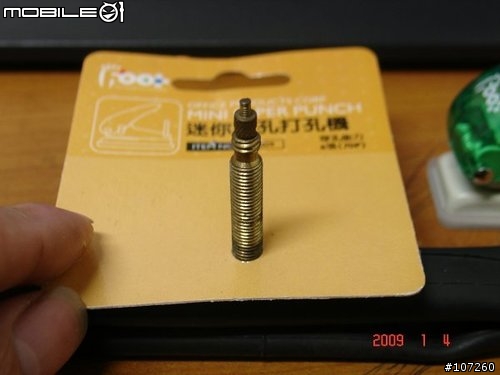

多剛好呢? 看看!

![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-607ef14c7c13ca8f5a4bd1f07ef02251.jpg)

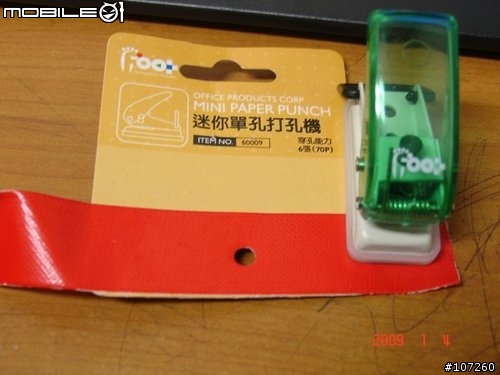

墊個 光滑面等 打完孔 , 膠布才拿的出來~~
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-8f1b933b0c7093b5d061462df1ab66a0.jpg)

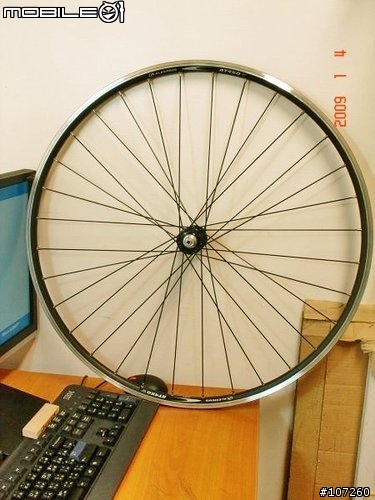

今天的主角~~~
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-da0a9fb9ac595747d3456ed15f64ed51.jpg)

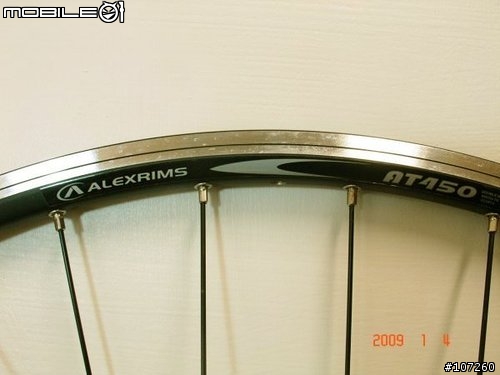

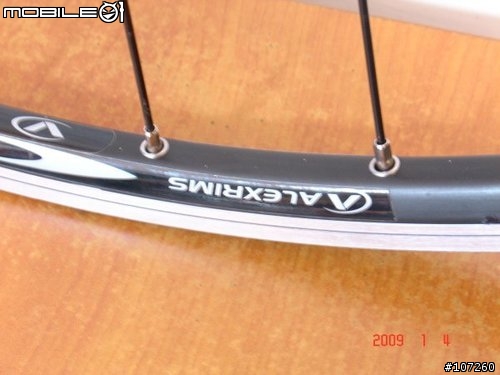

Alex AT-450 (同學小阿富提供)
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-7f622c1fdd48de18844f64a6418cecb8.jpg)

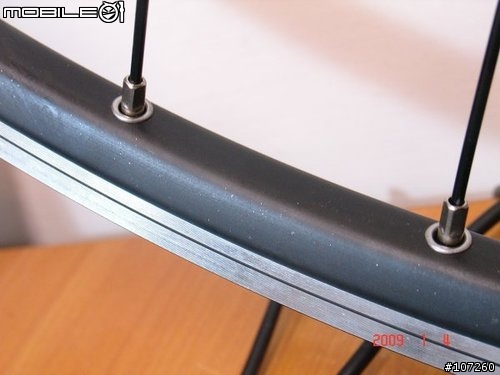

搭配國產 2.0單抽鋼絲 黑
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-49e35d8bc9e281f7379c3ffcc1c22247.jpg)
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-8477e3465fbe133898f4f7b9f7f7eb2c.jpg)

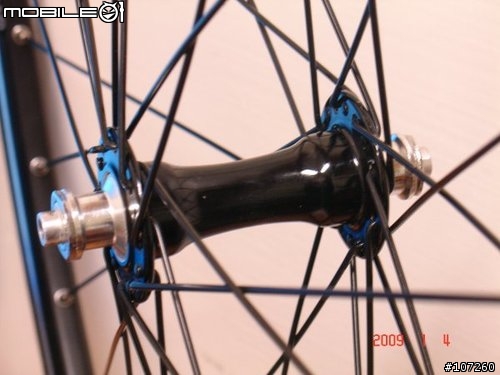

據說 是 久裕的前2後4 培林花鼓

![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-cb19ae8bc592f7979d46768fb0d9ccf9.jpg)
嘿嘿嘿~~ Jimmy又來胡搞瞎搞~~~

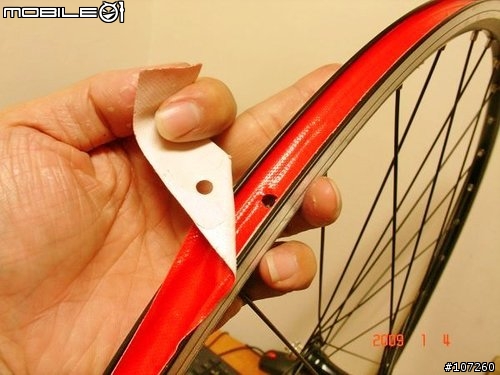

最後 讓膠布 交疊 & 適當位置 再打一孔!
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-ec76d0e6a43b9271bb151779644bfdda.jpg)

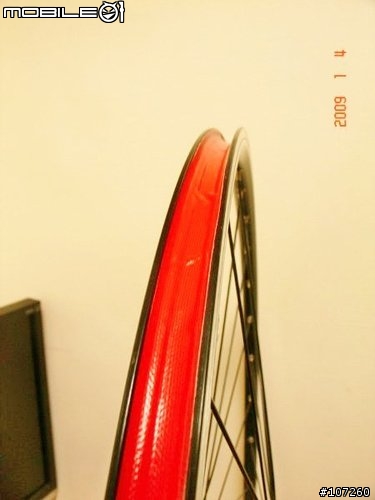

可惜 膠帶 只買到 25mm的 若是20mm應該會更順手~~
(根據 可靠消息來源指出, 書背膠帶的規格最小是 1" =2.54cm 唉~~ )
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-9f26fbe6e4180c9379481b6ee53a3af8.jpg)
是不是 跟真的一樣~~

![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-a5b113e2ef18cf21417a5a1fa06aaada.jpg)
=================================

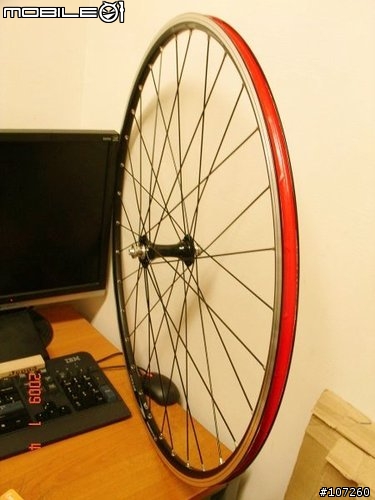

測試~~~

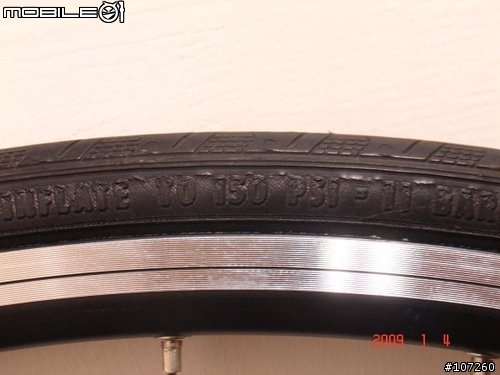

富哥 貢獻的 馬牌GP-3000 MAX 150Psi
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-bc3d3619d8ac25a0e190fb814935329f.jpg)

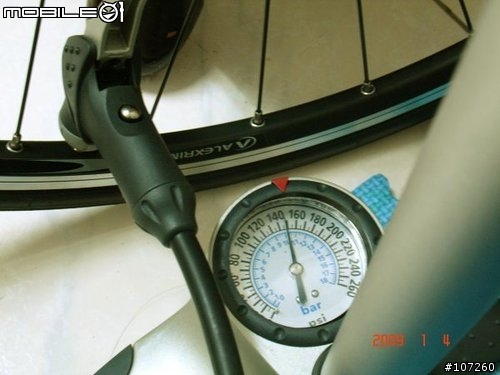

就直上 150Psi吧~~

![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-8f158977508b3eb227ffaba18be4ca58.jpg)
看來非常 正常~~~
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-c02fa1df4edf802cbf5b79ea4ca2a808.jpg)

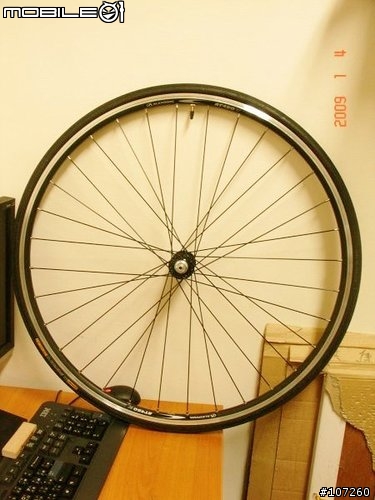

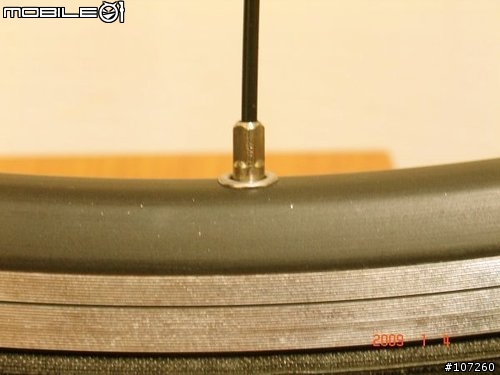

外觀上當然 看不出來~~~
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-5b88e57c924ea4bd8465a88ce52ed00f.jpg)
待 Jimmy試車看看~~ (預防萬一 還是帶條 備胎& 襯帶出門 嘿嘿)~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

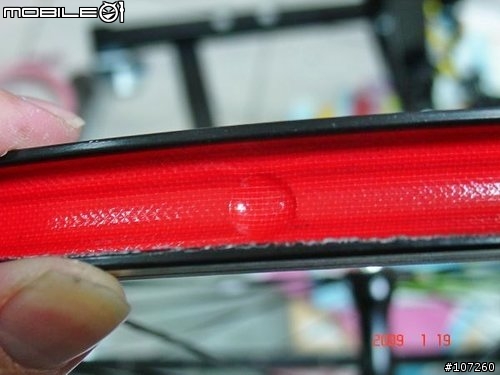

經過 兩個禮拜的摧殘 結果 TEST O.K 的啦
![[分享] 高壓襯帶 DIY](http://attach.mobile01.com/attach/200903/mobile01-4998adc3db6eeb9d0754a80da9f347f2.jpg)
以上~~ 請參考! 若是覺得有用~
請留個意見! 或是加個分 支持鼓勵一下~ 呵呵

原文Post於 Jimmy's Home
