Wilier Cento 1 SL 2012 安裝大盤問題

這個問題比較複雜,不知道有沒有高手可以解答?

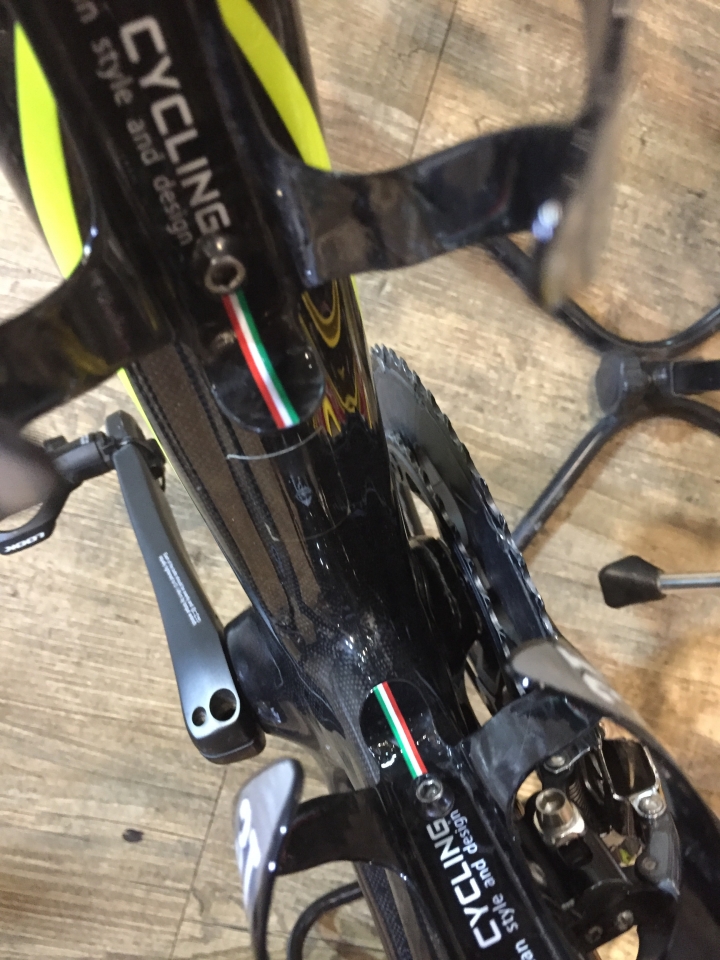

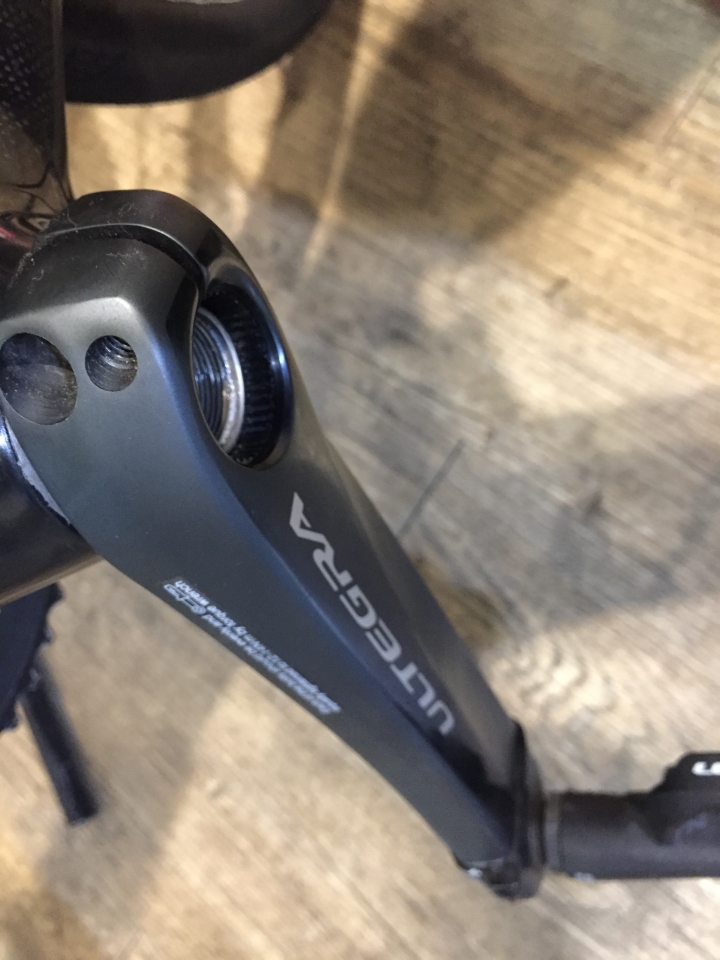

我的單車 Wilier Cento 1 SL 2012 使用6800套件,最近把車子送去車店做大保養,他們把大盤裝回去的時候說驅動側上的腿不夠長,穿過5通之後連接非驅動側就只剩下一點點,不能妥善的裝上去。

Wilier Cento 1 SL 2012 安裝大盤問題
Wilier Cento 1 SL 2012 安裝大盤問題
Wilier Cento 1 SL 2012 安裝大盤問題

他們徵詢台灣總代理的建議,建議裝上CP的大盤,才能妥善安裝。

這個當然可能我之前的組裝有問題,但是參考了網上的資料,原廠本身也有提供用Shimano套件的選擇。

這是我找到的官方介紹 ( https://www.torpedo7.com.au/products/W1FP1N2CS/title/wilier-cento1-superleggera--sl--carbon-frameset-2012 )

Bottom Bracket:
The diameter of where the bearings fit is 37mm, and the total width is 93mm. Bearings and spacers are supplied to suit Shimano cranks (BB86), but this also means that Campagnolo UltraTorque bearings press straight into the frame.

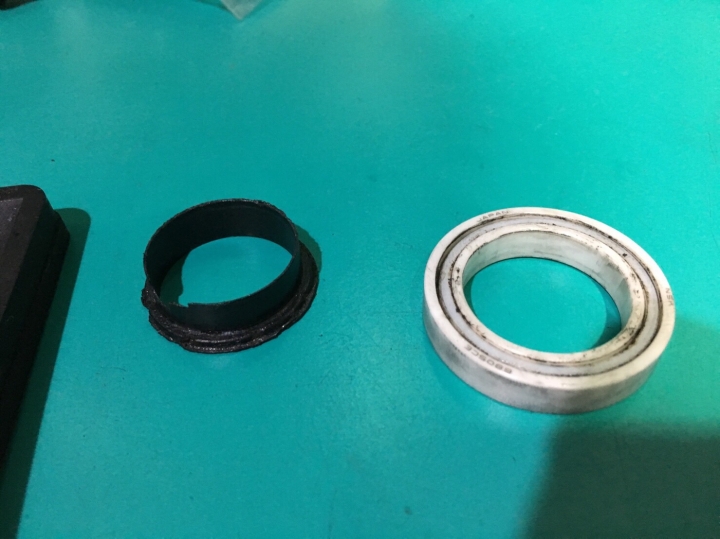

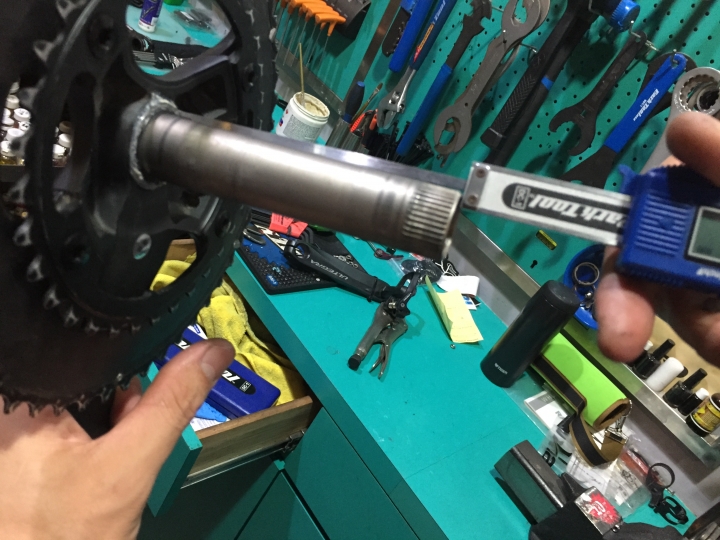

我現在一頭霧水,希望有高人可以指點。以下是單車拆掉大盤裏面的東西:

Wilier Cento 1 SL 2012 安裝大盤問題

自己做了一點分析,覺得買到一個 外徑37,內徑25,厚度6 規格培林應該就可以解決問題。因為黑色的套筒就不需要安裝,不需要占空間。

這個陪林方便找到嗎?
2016-12-08 14:33 發佈
