老婆的愛車KHS T3從買來到現在一年多都沒有好好保養過,今天要拆解下來好好的整修門面一番
照例要來個美容前與美容後做一個比較....

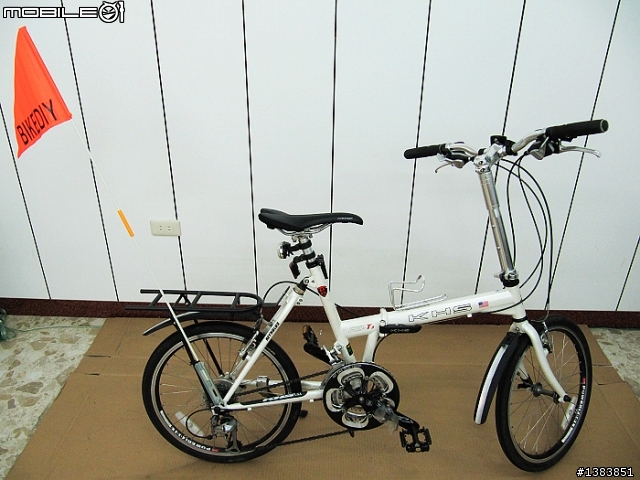

這是尚未開始拆解前的大頭照
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-c7203d96c8161857ab5a6f8d25e2ffde.jpg)

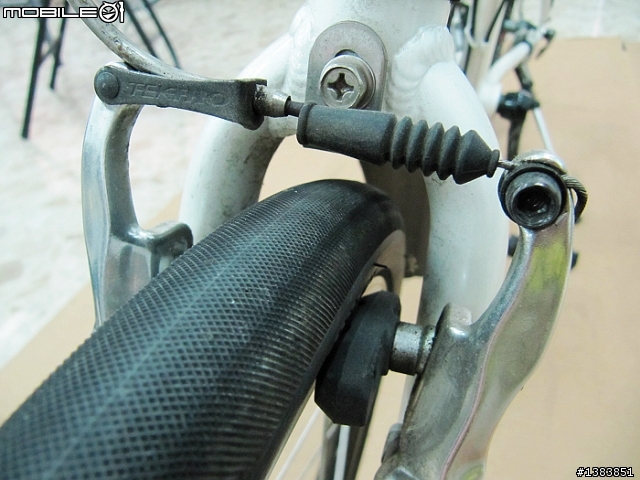

前剎車V夾器
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-1dc647b023eca7deabd4a2a6140e11a3.jpg)

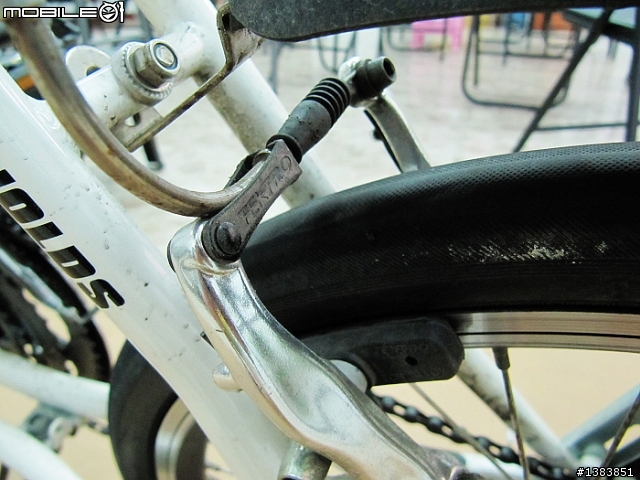

後剎車V夾器
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-f15209cc1a04b006d23feaa6589f3bcb.jpg)
大齒盤部分
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-762e44687b94772f655e081a1ca917b2.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-e0ad1d5cd00c47a85689496c468da140.jpg)

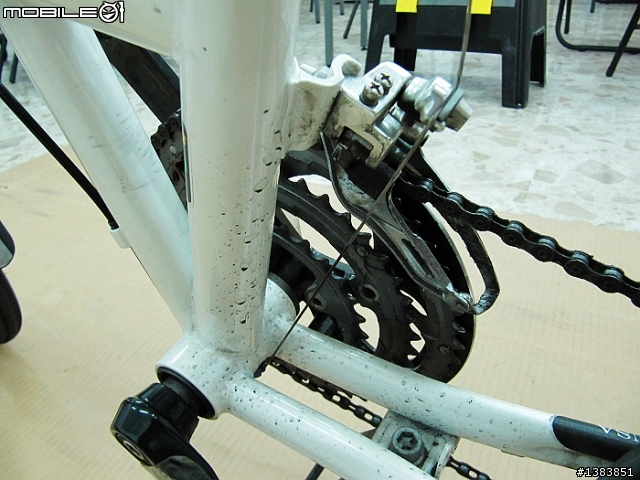

前變速器
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-ffef479630094677d3a54c3817417055.jpg)

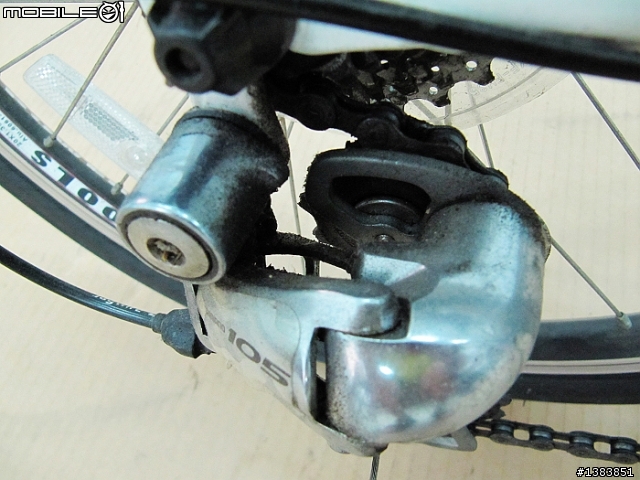

後變速器
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-dbd6337be816352a52fd91cae1eb994e.jpg)

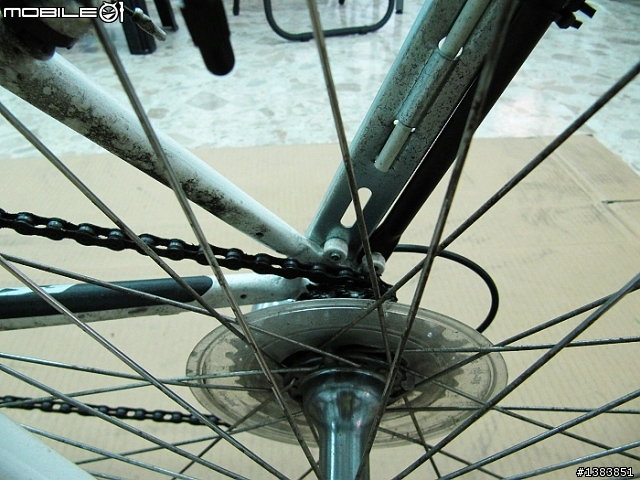

後輪圈組
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-a93cea680c0f1498e56fffd737ec27e5.jpg)
開始正式拆解前,先用鏈條尺量測鏈條是否延展過度而需更換,量測結果鏈條正常還不需更換
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-99f8faa4a38875088a316a85c1474158.jpg)

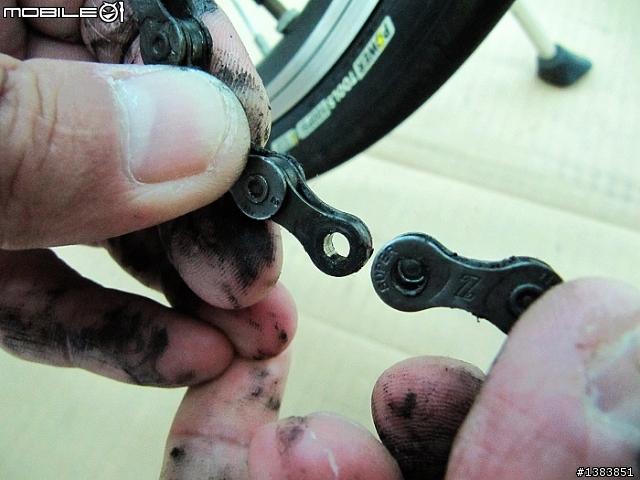

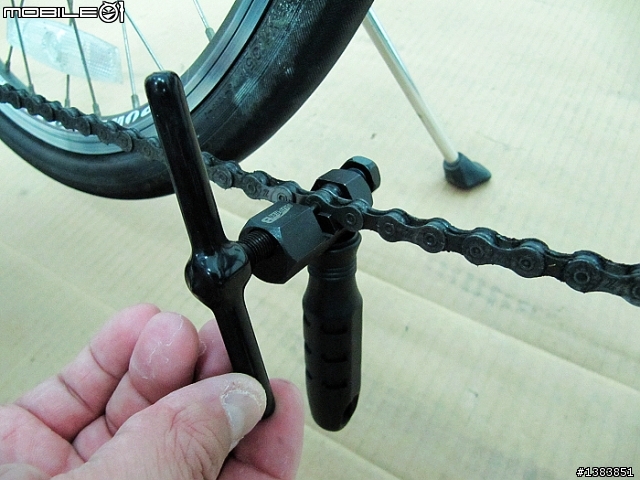

開始將史上最"髒"的鏈條拆解下來
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-d93f7dd222a87cb2d93ff8789dc05b87.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-98d7455aa4430dd73ce66e7f9683cd2b.jpg)
哈哈~夠髒吧......
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-c275518f6e2d02ed9af483983b74c007.jpg)

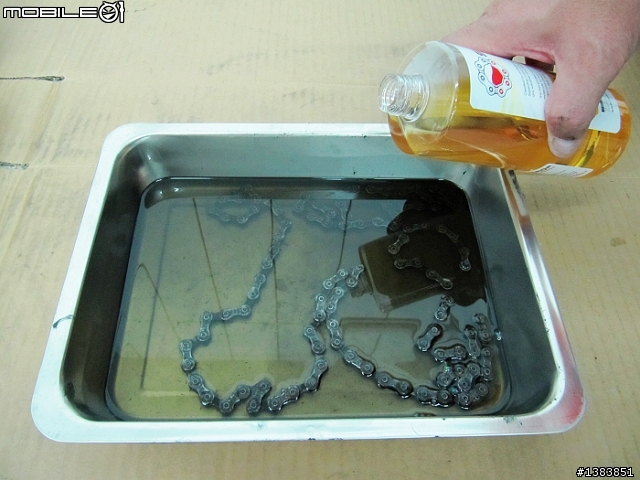

倒入清潔兼潤滑液第一次浸泡清潔
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-5677a609bc77a66dc7cdf313639563f5.jpg)
使用牙刷刷洗
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-a450bbc90eef97fabc8663a8fef29acc.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-28f9004f7b03adaafed890e2ea2ebb18.jpg)
將鏈條取出放入第二盤加入新的清潔兼潤滑油浸泡
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-723f01c68ca389bddab9393a784e6047.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-610f91e92921877f817a66b6f97d91d0.jpg)
開始拆踏板
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-ea3d02f90545bd314460d82a83a8b860.jpg)

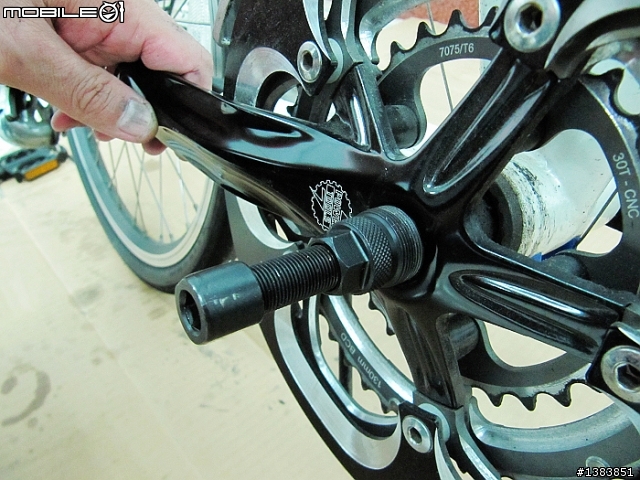

拆大齒盤
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-864b78bbd8919d92c7710dc8ae614a82.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-5899123de6303e2579143b3b021f60ff.jpg)

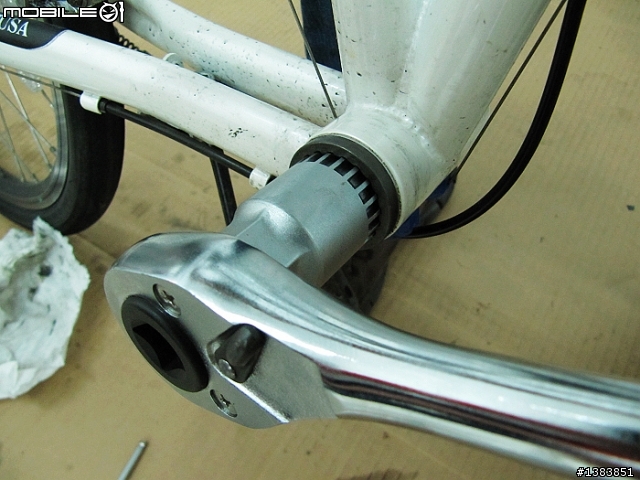

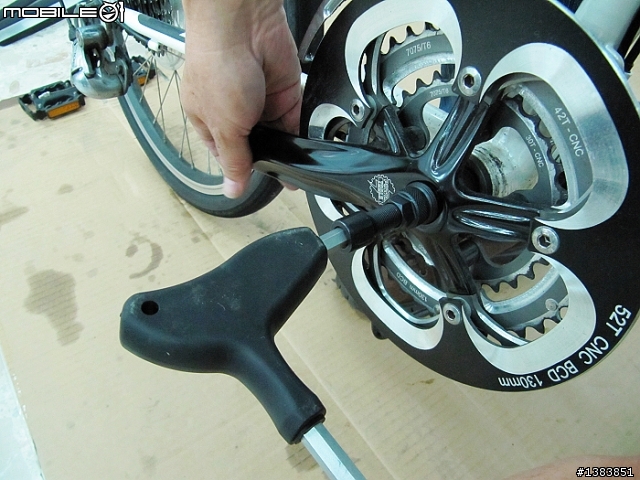

拆卸BB碗座
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-1c41b01f5a7c75ed0f9c73f03d9c7189.jpg)

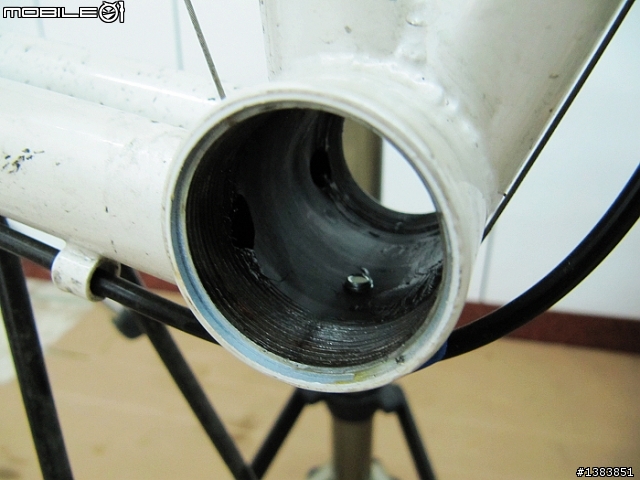

五通(BB)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-3a8cc945d83954a4923673bcb865f986.jpg)
分解大齒盤
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-dd05faa9c55dd9fbcd9f4d828934f114.jpg)
拆卸下來的BB中軸
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-d5eaf69a1b32bb24e4c4df822ecf3cc7.jpg)

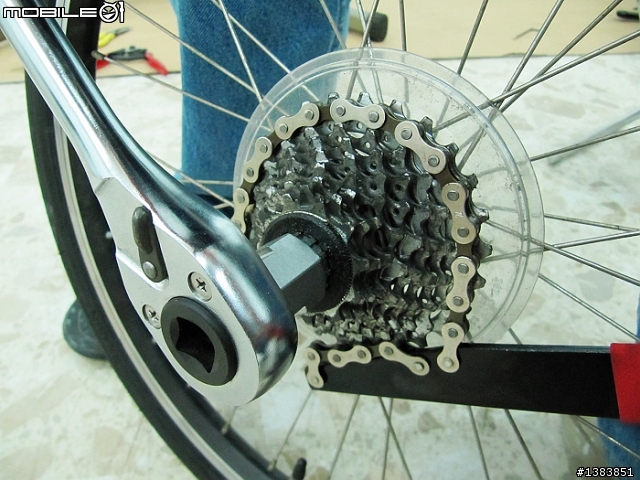

準備拆卸飛輪
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-20ebfe90de93b513ac5e19ac49e01543.jpg)
拆卸下來的前後變速器與飛輪
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-ff9c6d2aa57a2b4c22d6541735f1e220.jpg)
好髒的導輪喔~
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-e3894a0d5ca46e98eb2fc5ec4ab6c261.jpg)
前變速器
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-cccf00f2f78d91e16605b62d4c8e79be.jpg)

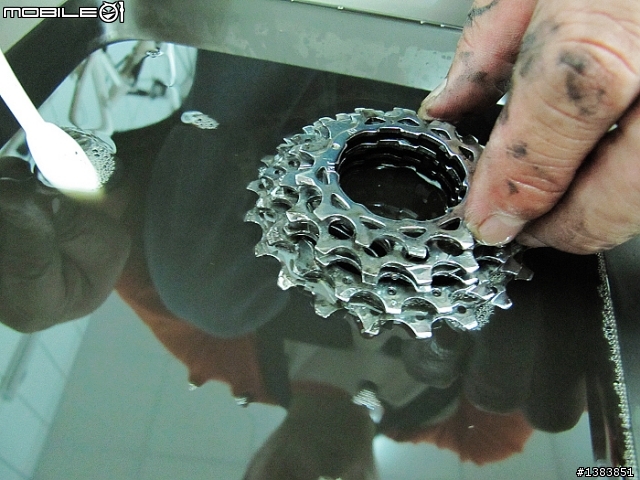

使用之前第一次洗鏈條的清潔潤滑油洗飛輪
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-285c760df2f81c996a975f797ad393d8.jpg)

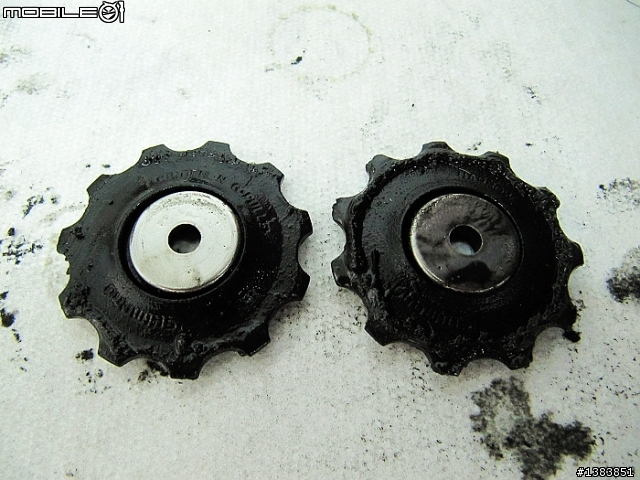

將後變速器的導輪拆卸下來清洗
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-76613d3d1be1a8a27ccb0de3cf37c2c1.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-e0169986dceab9d411f365c41a067c75.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-6d3ee94bfefa2df84cae72a89bbbd8ef.jpg)
只剩下車架與前叉~來一張紀念照
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-187f119133532d03525dd31624fd9ffc.jpg)
拆卸下來的零組件大拼盤
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-d81532830cdbf166c8dc1d5f5e6208d5.jpg)
不好意思~這是小弟我佔一個小版面露露臉.....
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-fa463cfab4a149fae389500220a65fe6.jpg)
車架&零組件&輪圈組&工具車大合照
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-1bb93f50ff3b4fbe4d69bd82cf58a231.jpg)

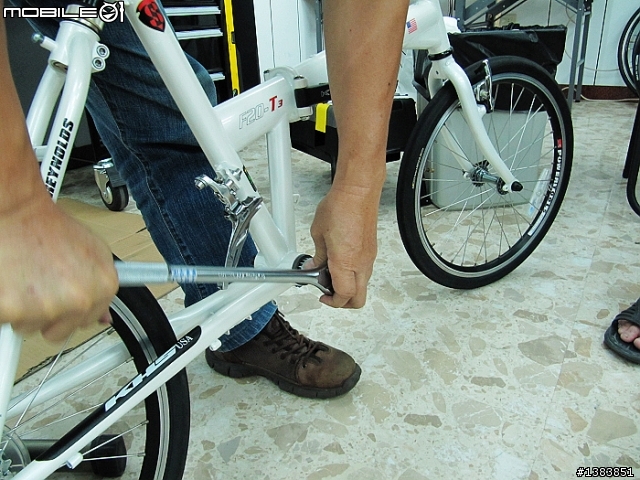

清潔完畢後開始組裝作業,首先先將輪圈組與BB碗座上車架
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-8debf3ac761363f3c3c0aa3ef138a4c9.jpg)

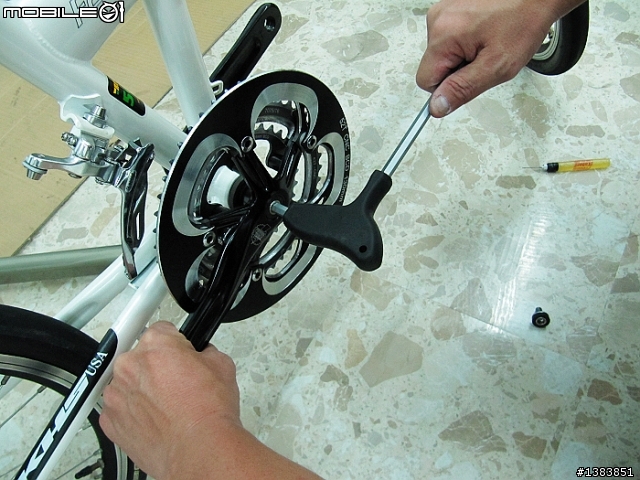

安裝大齒盤與曲柄
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-6cd755eb1d1f3d3dd2017a0fad8ecb29.jpg)
放上維修架方便安裝零組件
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-7b1d129b0bed36b38a49e9dbf14d5ce5.jpg)

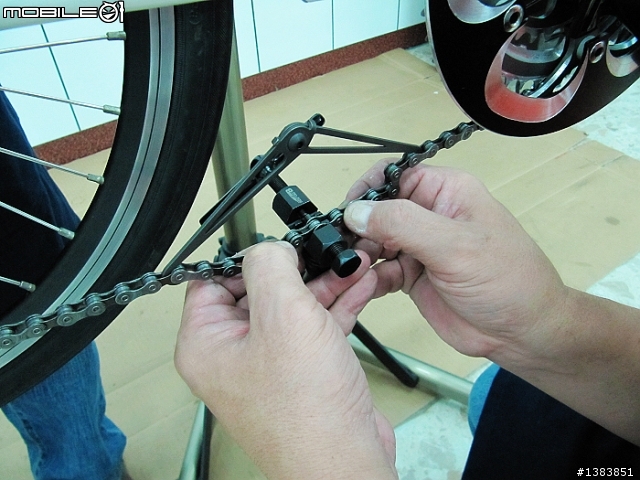

安裝鏈條
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-58bfd9498944e422dc828378065efdff.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-ca19278963cbb1c04de8d7d127cf6477.jpg)

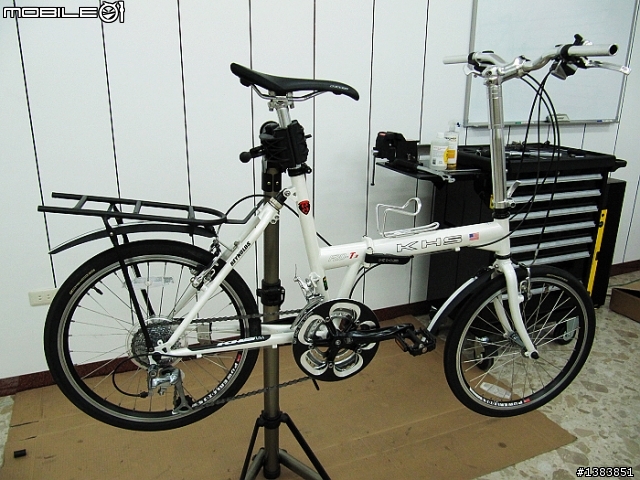

將後貨架裝上去,差不多已恢復本來的樣子囉~
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-bee6fcbe2b342cdfc44fe7148e7db5c5.jpg)
調整好剎車與變速傳動系統~插上我們的三角旗.......終於完成囉!!!......
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-4ebaba5824560acb2d2ed992b05ce85b.jpg)

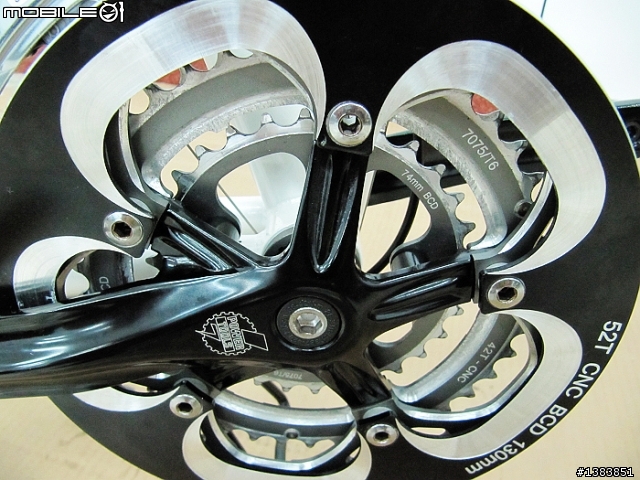

來檢查一下有沒有亮晶晶的感覺 ~
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-33b47be9a5b00268ec0e99a87a9d2093.jpg)

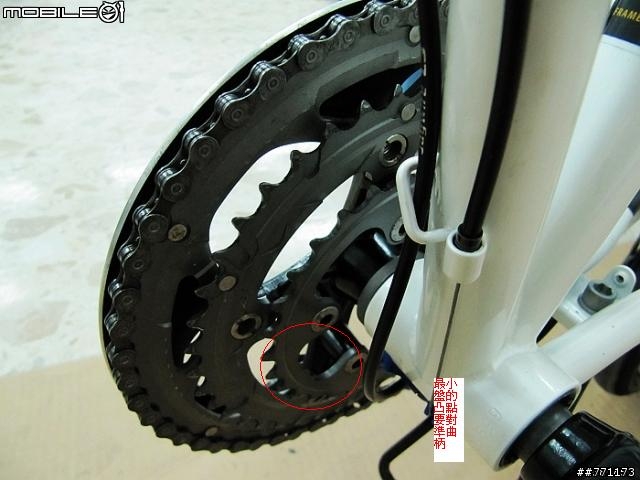

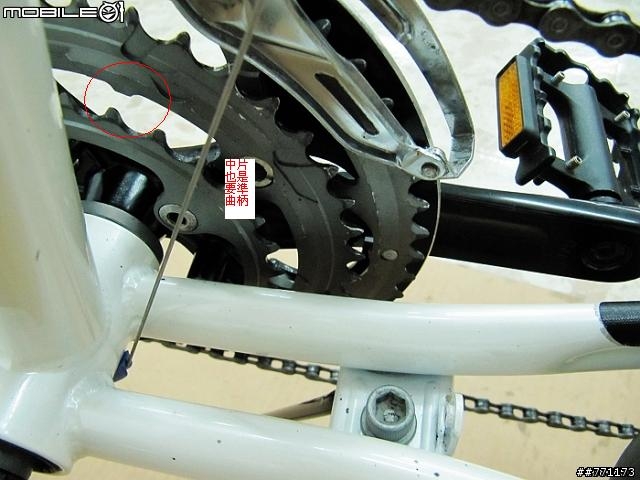

以下兩張圖經眼尖而專業的車友指正後已重新拆卸更正....(補充在下圖)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-da05b41820d6219479bbf3622fd5a048.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-f0f02f91086f0795300ae61a31463ac0.jpg)

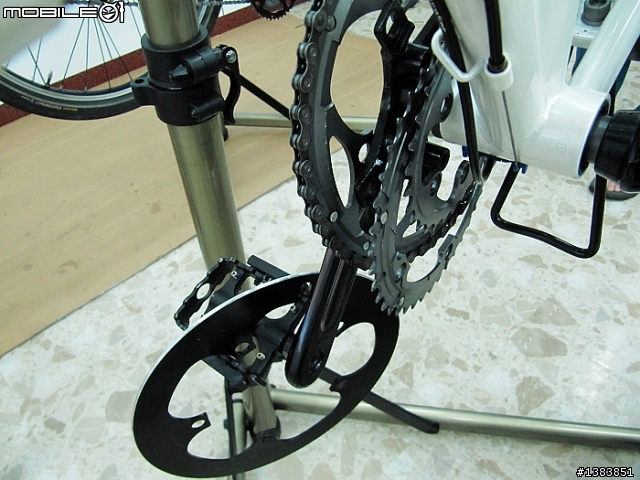

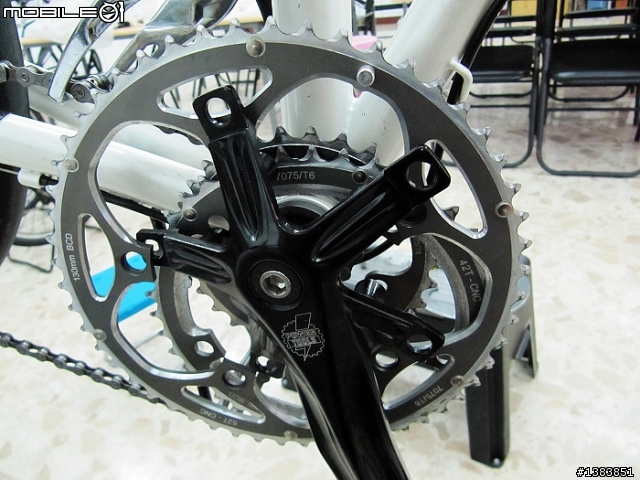

補上更正後的圖
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200909/mobile01-b04a168b3721b03bb7173a5cdc217a3f.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200909/mobile01-fa2ccb9f899bbd110ab08c5feab4aabe.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200909/mobile01-ebbee59ac8b3721b98f56a9747324049.jpg)

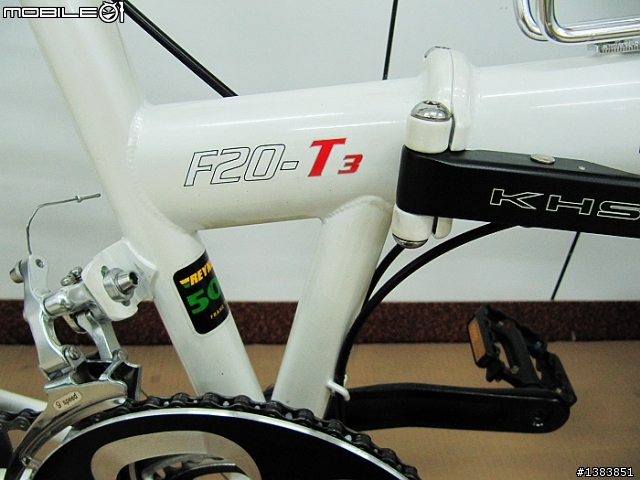

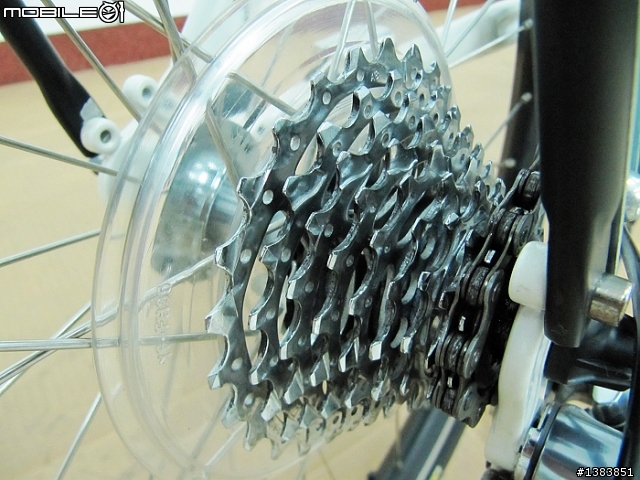

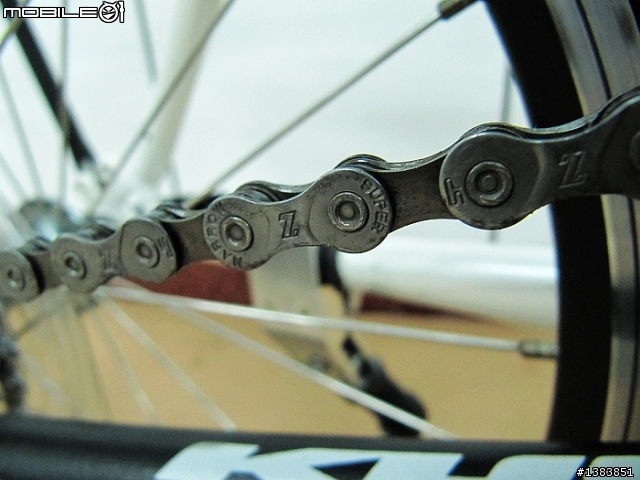

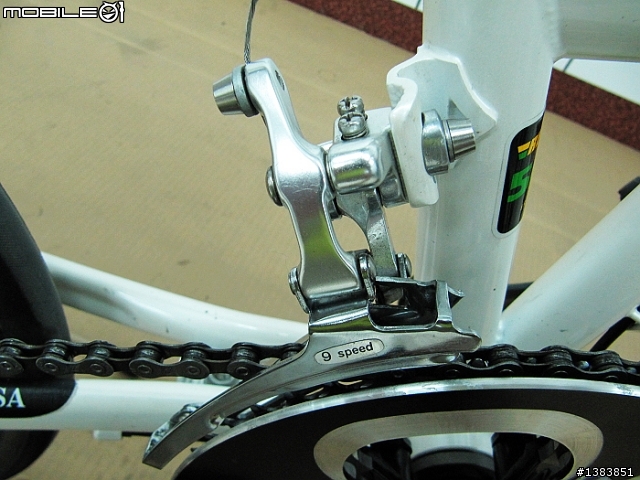

清洗後~
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-4bcbaeeee5a1117fc2ae405674e9b213.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-263dc36a9ae6f6c467ac19a7277390cf.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-4563536c051419830ba96336bf1cd8fa.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-8c6ad53807e36650618714e9bebfb595.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-3ddf0359c1ce8b38c25e9fa065097311.jpg)
![[單車保養] KHS T3折疊車大保養](http://attach.mobile01.com/attach/200908/mobile01-9dd7ea2ba3121cc78b88c09e8f8fd416.jpg)
請各位大大多多指教囉~
