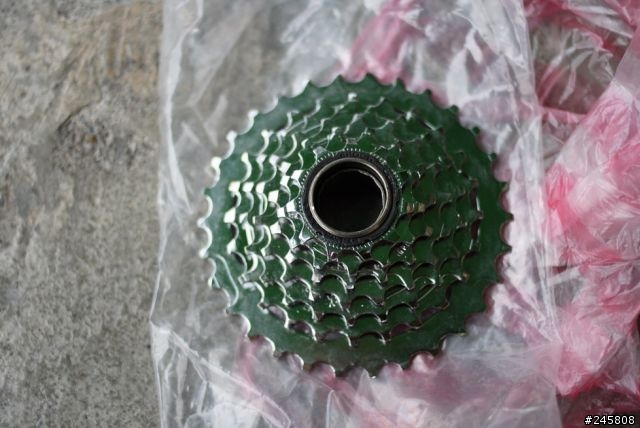

這就是主角,11-30T飛輪
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-60614b6ac13e77f0c84000584389e8d5.jpg)

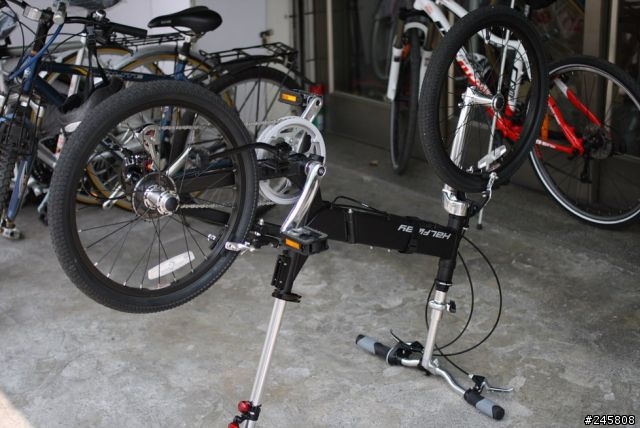

先把車子翻過來
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-c2811d2b54d31ff7caf3d77d01e83e91.jpg)

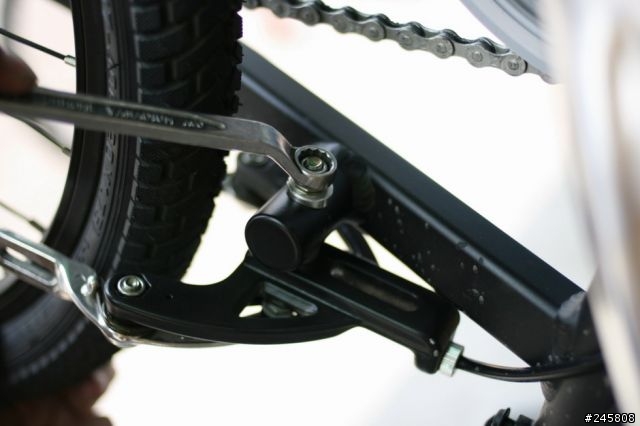

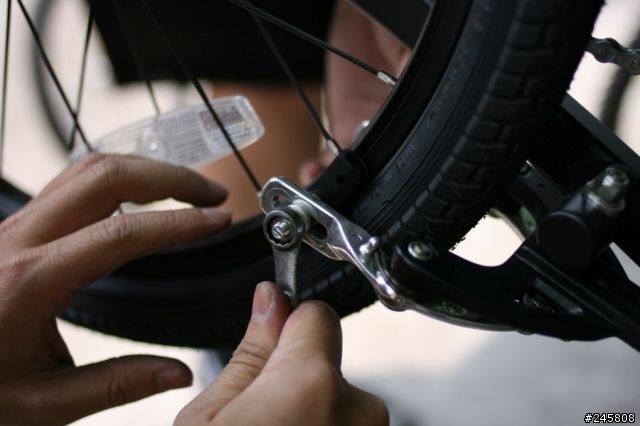

把後煞解開
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-e85421c09fb9db968f4110fff923c87f.jpg)
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-cb7afabd9d2c39128962f5afcf05be72.jpg)

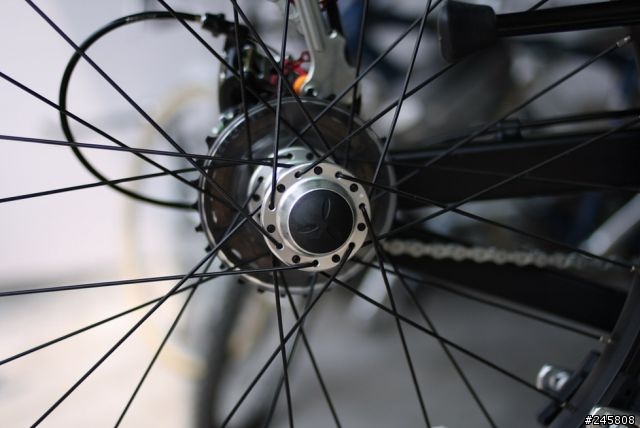

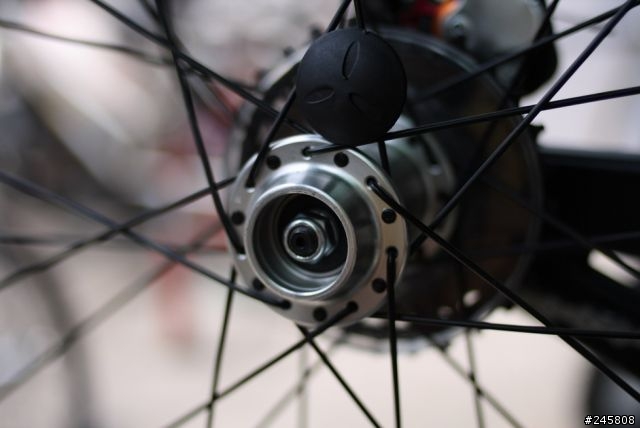

然後要把這個蓋子撬開
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-47bd540ef6c0f0e3a38f52f8553d7c23.jpg)
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-13a34834f673d4b4f0f69c69d94e1715.jpg)

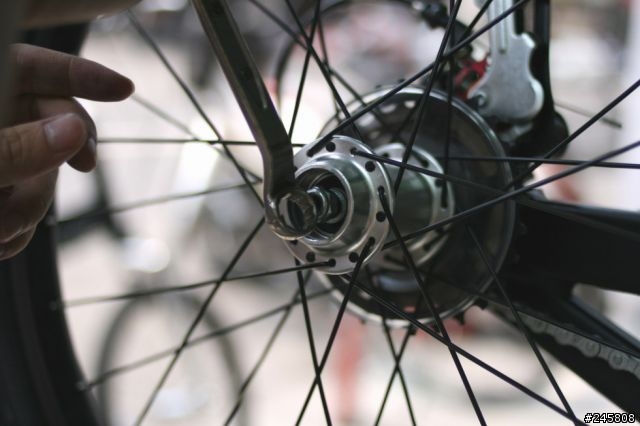

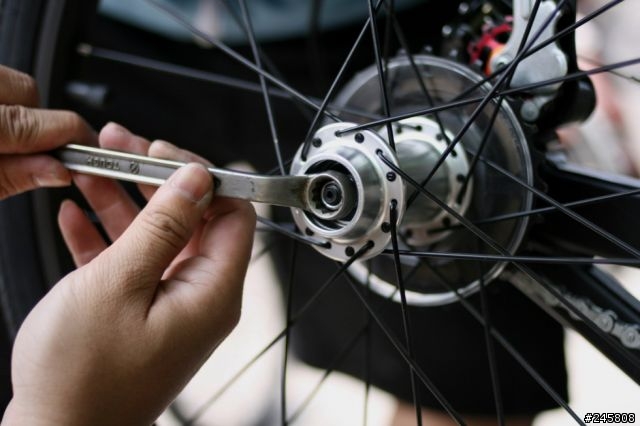

解開鎖住車輪的螺帽
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-f655a6fed6d67a233db87a2521d47829.jpg)
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-652d961693b0dbfa95e1fd88f1cde3a6.jpg)
就可以把輪框抽出來
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-87a50e10f5082cb3d530138189f0b424.jpg)

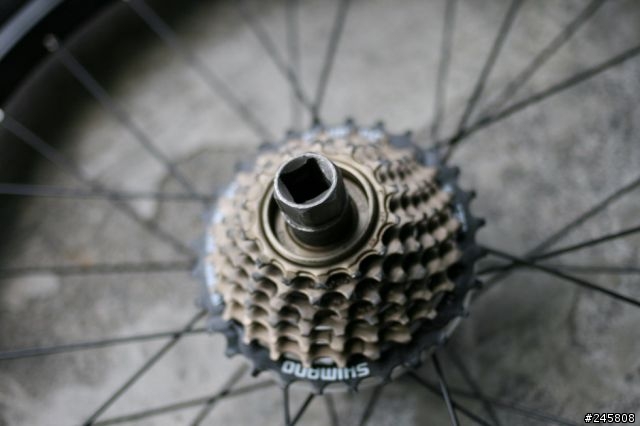

然後套上拆鎖牙飛輪的套桶
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-50292383822bdcc444d946d3896e2dcb.jpg)

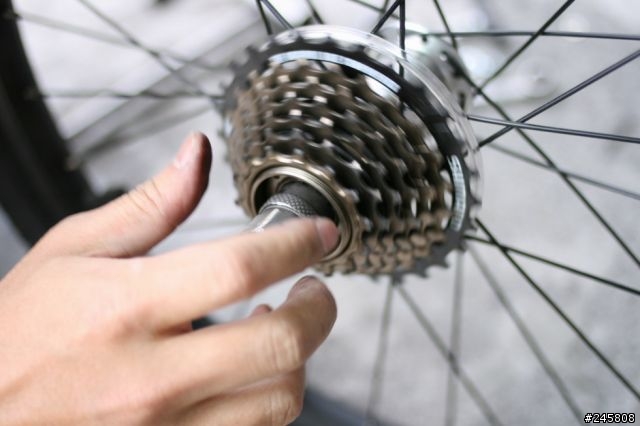

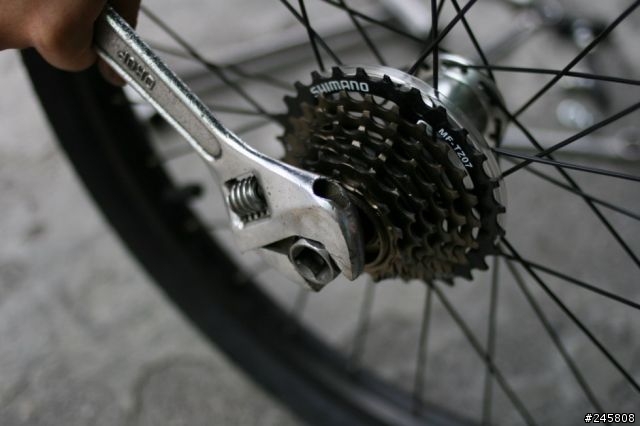

加上鈑手解開飛輪
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-6053b4774a79f5a336f7dc42df4eb7bf.jpg)
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-017fa37bcc1a68f329a296c397be9cff.jpg)

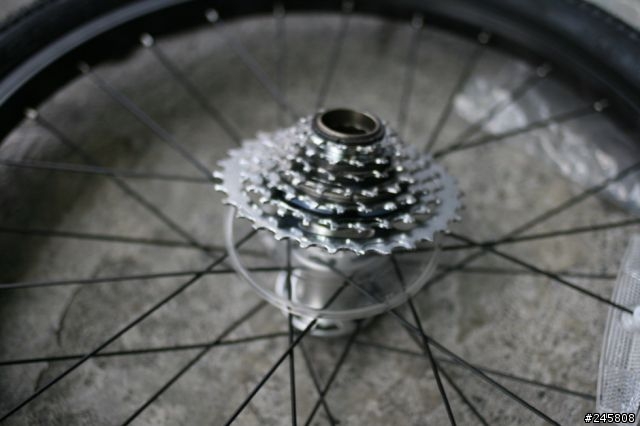

放上新的飛輪
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-79a9d8e85b20bfd3ba278a91afec23b3.jpg)

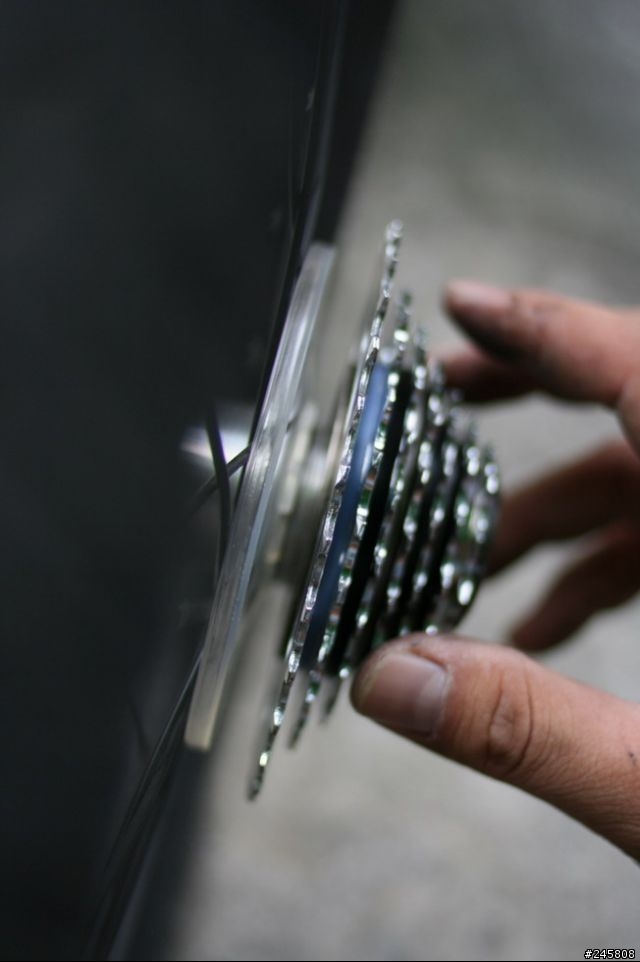

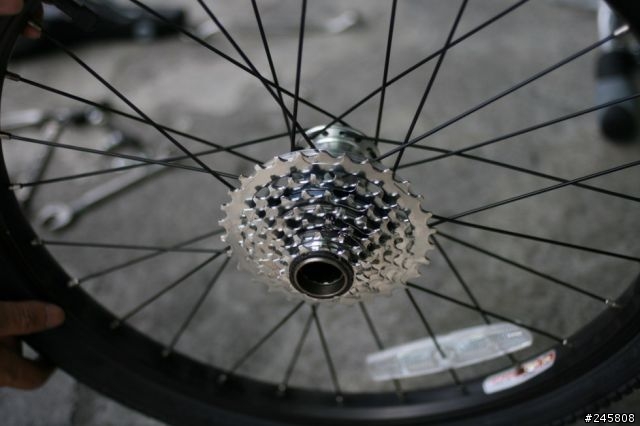

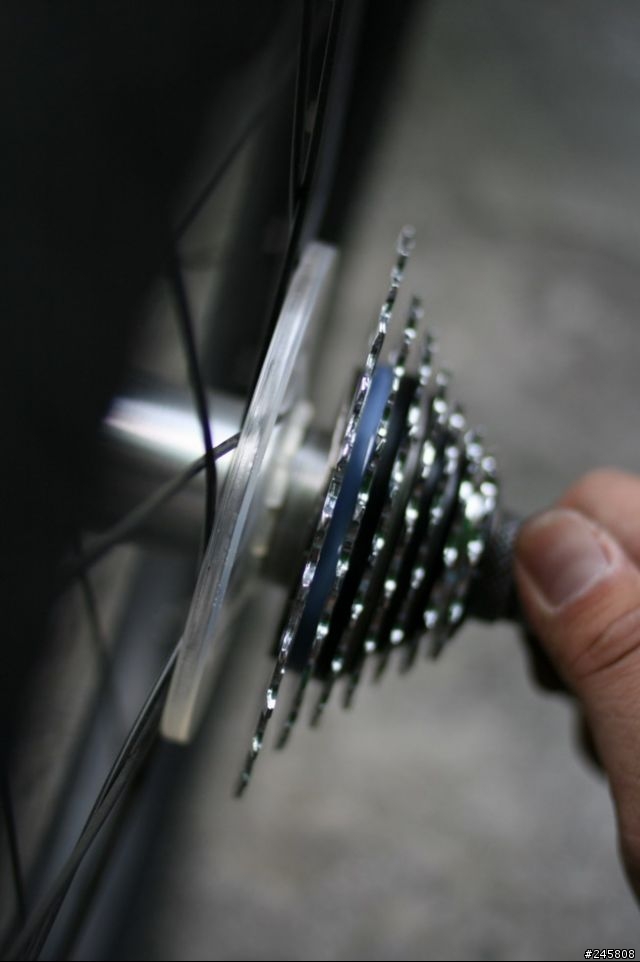

對好後鎖回去
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-66dde4ec64343d74cc97439b88fbc397.jpg)
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-7d0e1daaa144d141cd30348096eb78c6.jpg)
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-4a47f525861feb717f6116df34a690fb.jpg)

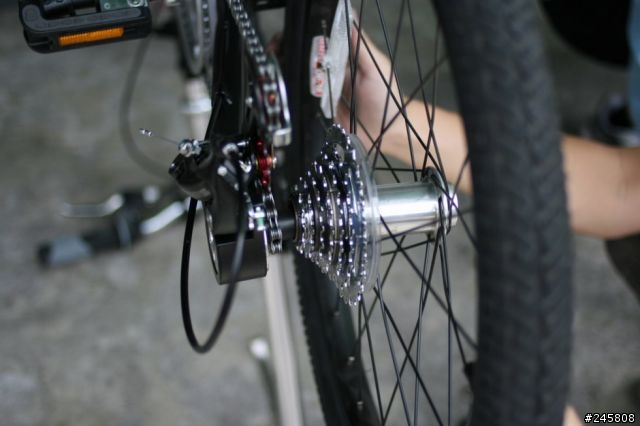

把輪框裝回去
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-4a8f084758c2de385e9f3edc5c75397e.jpg)

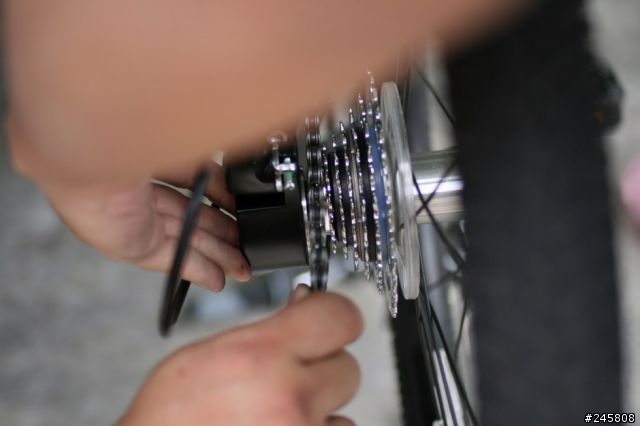

然後把鏈條拉好套上
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-53df90238ef77c68cd1d55fa5b3da6fa.jpg)

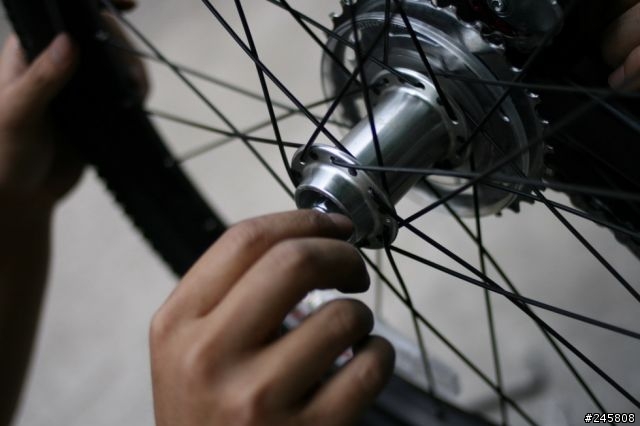

把螺帽鎖回去
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-3db5a224bb1c205cdc37f57ece27f03a.jpg)

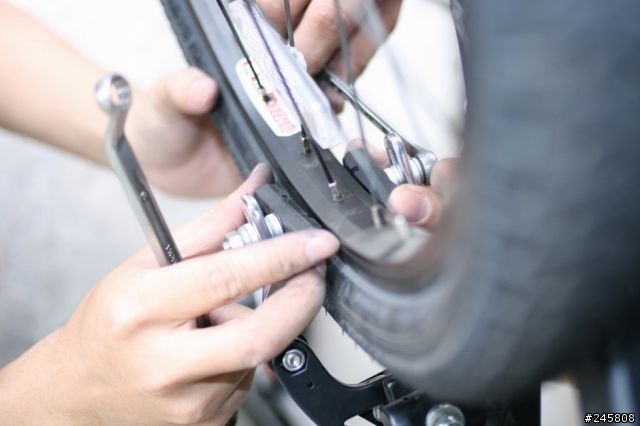

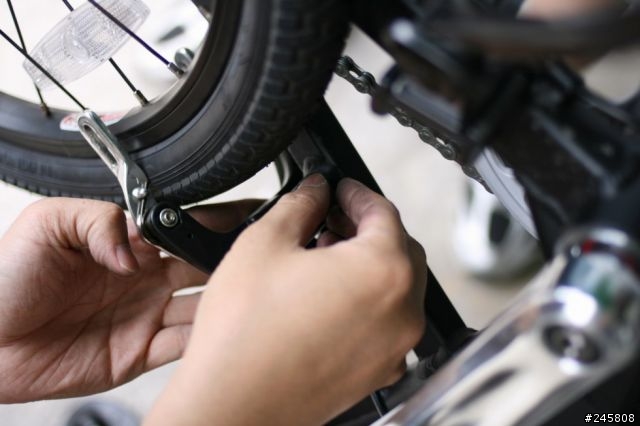

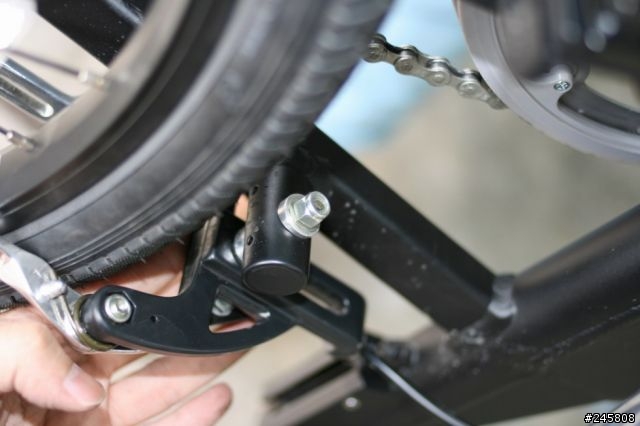

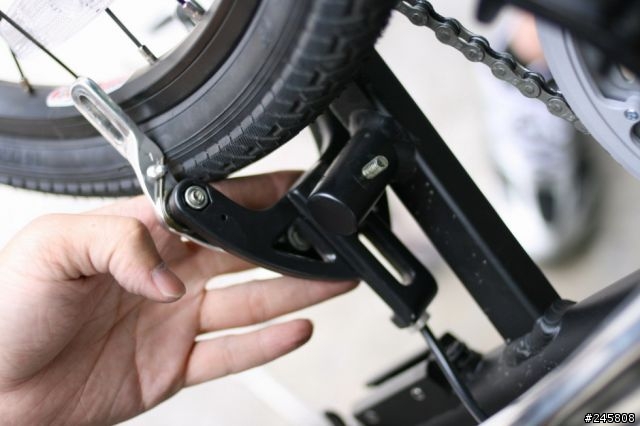

把後煞裝回去
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-b36a5e8415f59ff233853a2a83162b2b.jpg)
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-9a45b7c87c6a5bfea848c35b051335f3.jpg)
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-2e56fb1f569ea1bac68734f4d18ab51c.jpg)
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-e06e3ff3da4e37e5d26c78ee94ec466b.jpg)

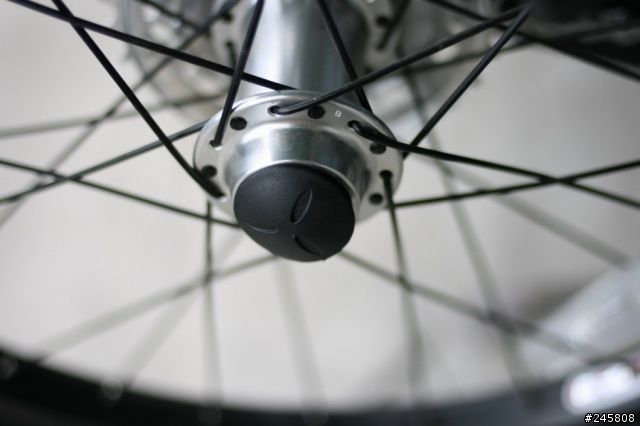

把蓋子蓋回去
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-ba5d54d3571eedb7b0be8722c46f3a97.jpg)

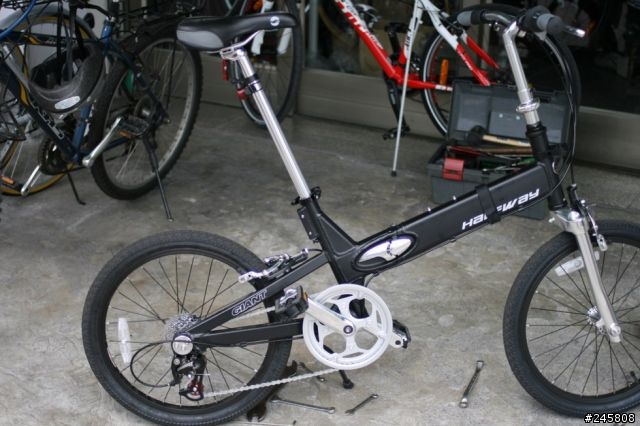

完工
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-f8fede86bf933c9efb525f2b55cad72c.jpg)

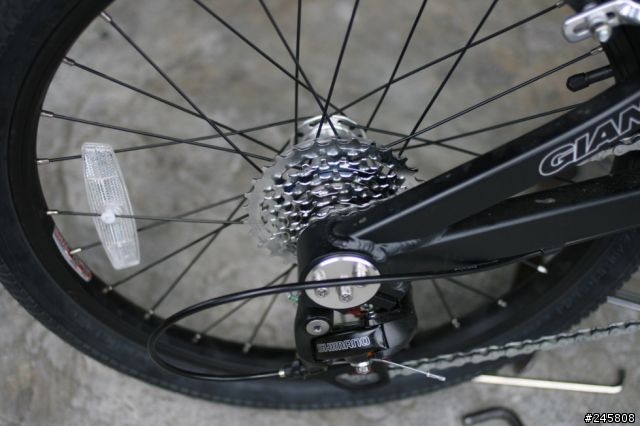

再來就是要調後變,調整變速讓他不會跳齒!
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-3a0c6a40ea1d99902d377fdb666f4224.jpg)
----分隔線----
同場加映,更換轉把變速線

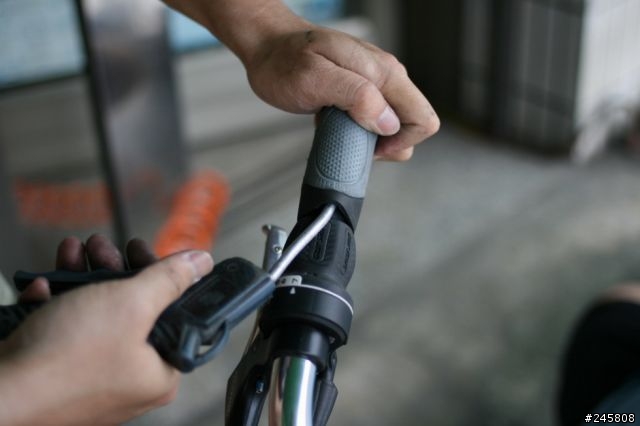

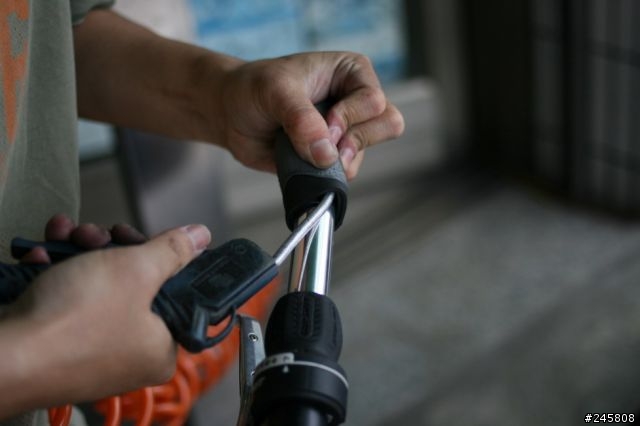

用空壓機把把手吹出來
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-56c7770e5b411598dde449fec100d4ce.jpg)
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-9687e6ee92d9d936f6638490cec050fb.jpg)

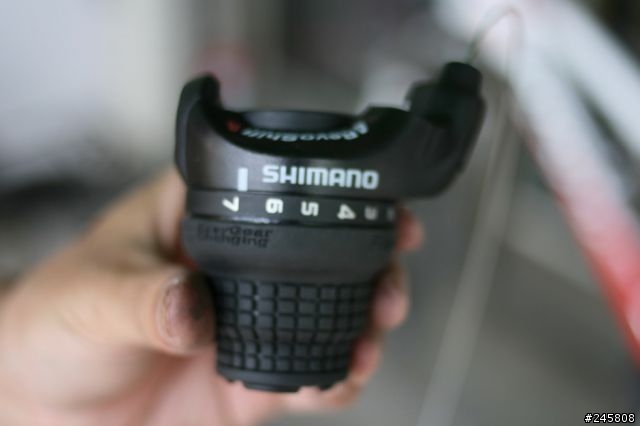

主角變把
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-0ead716d47910d13ce7f9e4078105505.jpg)

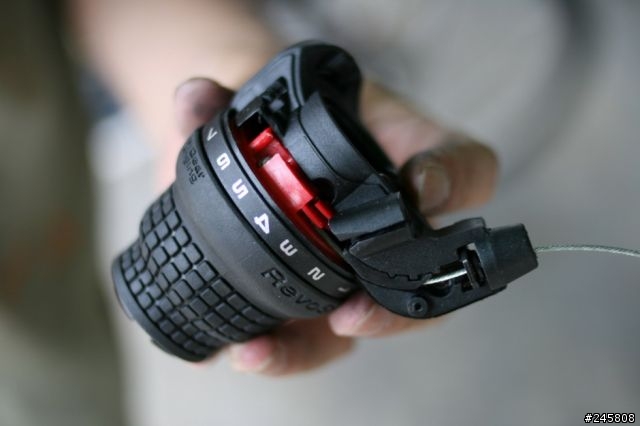

把上蓋打開
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-a39c79fdf575c3a68eb95adc38dcb1a8.jpg)

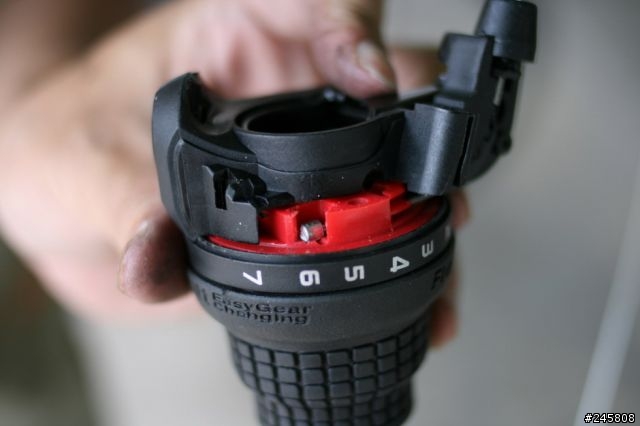

把變速線抽出,換上新的
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-90d5a6d1975ca7276f0f480b9d9ca466.jpg)

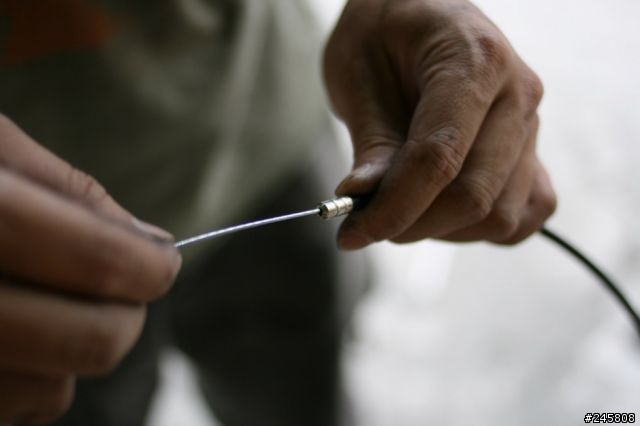

把線穿入導管
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-bb9eca8ceced5ca998bcff6389dafc7f.jpg)

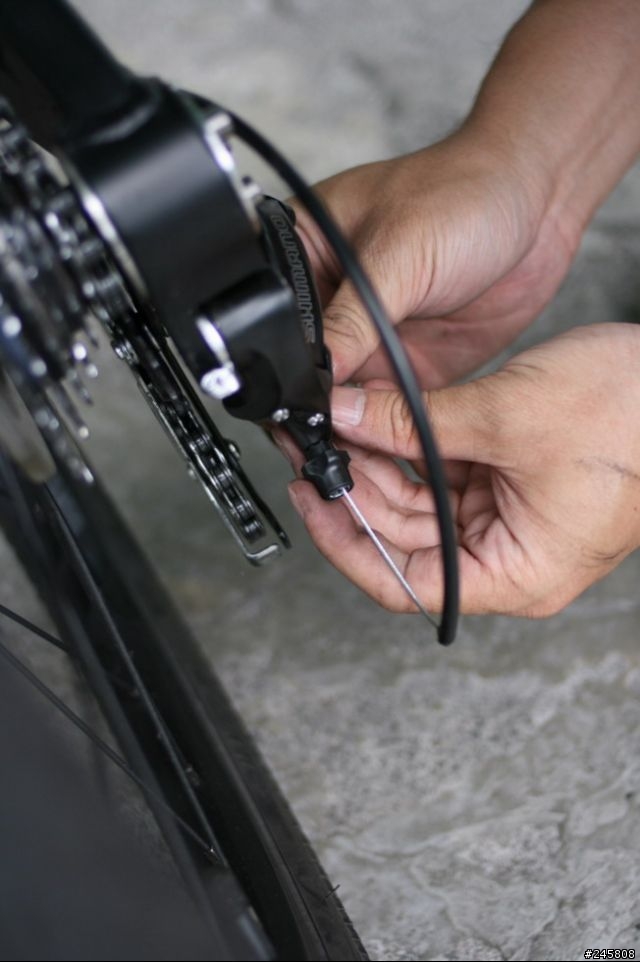

裝上後變
![[DIY] FD-17S 自行改飛輪](http://attach.mobile01.com/attach/200803/mobile01-915672a965516688f16051309cfa2c28.jpg)
之後就是慢慢調整後變,跟轉把的細部調整...
這樣應該就有人可以跟著DIY更換飛輪了..
