美利達2010 Road Ride 905-30與Road Race 905-com車架如何選擇

hook6347
個人積分：23分
文章編號：14291785

23分

樓主

2009-08-25 16:32

小弟目前想購入美利達2010 Road Ride 905或Road Race 905-com
但我在網站發現Road Ride 905-30與Road Race 905-com
同是size50的車架,Road Ride 905-30標示50S
而Road Race 905-com標示為50M
為什麼同車款速別不同所標示的車架大小不一樣?
小弟我身高175跨高79
有的店家說我騎m號有的說s號
請各位大大幫忙小弟解惑~
感激不盡!

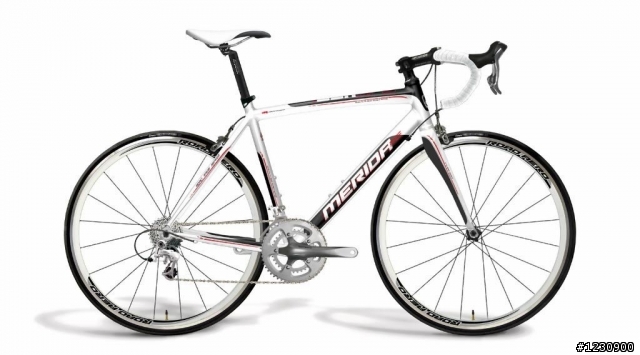

以下是這兩款車的規格及圖片
美利達2010 Road Ride 905-30與Road Race 905-com車架如何選擇

美利達2010 Road Ride 905-30與Road Race 905-com車架如何選擇

Road Ride 905-30
Frame : Road Ride HFS-Single
size : 47XS-50S-53M-56L-59XL-62XXL
color : 0
shock: 0
fork : Carbon Road
bb set : attached
b-lever : attached
brake-F : Shimano Ultegra
brake-R : Shimano Ultegra
chain : Shimano CN-5600
chainqurad : NO
chainwheel : Shimano Ultegra 52-39-30
Dera-F : Shimano Ultegra Triple
Dera-R : Shimano Ultegra-GS
Freewheel : Shimano CS-5600 11-25
Bar-End : 0
Grip : Merida Pro White
Handle bar : FSA Gossamer 31.8
stem : FSA OS-190 -6
head set : BB410 Neck
Hub-F : Shimano Ultegra 28H
Hub-R : Shimano Ultegra 28H
Pedal: NO
Rim : Alex Road Aero 32-White-NC
Saddle : XM Side-White
Seat clamp : Merida Aero 35 Allen ST
Seat post : FSA SL280 SB25 31.6
Shifter : Shimano Ultegra 3 /10
Spoke : Black stainless
inner tube : 0
Tire-F : Vittoria Rubino 23 60 kevlar
Tire-R : Vittoria Rubino 23 60 kevlar

美利達2010 Road Ride 905-30與Road Race 905-com車架如何選擇

Road Race 905-com
Frame : Road Race HFS-Single
size : [45XS]-48S-50M-52.5L-55XL-57.5XXL
color : 0
shock: 0
fork : Carbon Road
bb set : attached
b-lever : attached
brake-F : Shimano Ultegra
brake-R : Shimano Ultegra
chain : Shimano CN-5600
chainqurad : NO
chainwheel : Shimano Ultegra 50-34
Dera-F : Shimano Ultegra Double
Dera-R : Shimano Ultegra SS
Freewheel : Shimano CS-5600 11-25
Bar-End : 0
Grip : Merida Pro White
Handle bar : FSA Gossamer 31.8
stem : FSA OS-190 -6
head set : BB410 Neck
Hub-F : Shimano Ultegra 28H
Hub-R : Shimano Ultegra 28H
Pedal: NO
Rim : Alex Road Aero 32-White-NC
Saddle : XM Side-White
Seat clamp : Merida Aero 35 Allen ST
Seat post : FSA SL280 SB25 31.6
Shifter : Shimano Ultegra 2 / 10
Spoke : Black stainless
inner tube : 0
Tire-F : Vittoria Rubino 23 60 kevlar
Tire-R : Vittoria Rubino 23 60 kevlar

2009-08-25 16:32 發佈

文章關鍵字美利 Road Race 905-com 車架 2010 905 30

tekken

tekken
個人積分：7204分
文章編號：14294757

7204分

2樓

2009-08-25 18:56

我以前曾經有想買過這台，所以略有研究
以你的身高我覺得S的機會比較大
S的上管是530mm，M可是到550mm啊，我的朋友181CM才騎550mm的車喔

我的身高176CM，跨高82CM，我目前是騎上管535mm，頭管95mm的車
你是175CM，跨高79CM，代表你身體比我長一點，你的上管應該也是535mm附近的會比較適當
兩個選近的還是530mm的比較適合你，但是我不知道905的頭管是多少mm就是

http://www2.merida-bikes.com/en_INT/Bikes.Detail.205

◆Bike：ORBEA aqua ◆Vehicle：CB650F+Tiida 5D

hook6347

hook6347
個人積分：23分
文章編號：14299780

23分

樓主

2009-08-25 23:09

tekken大~
另外請問是否Ride 905-30選擇S車架,Race 905-com選擇M車架呢?
好像3盤跟2盤曲柄長度好像不一樣,而引響車架大小的選擇呢?
Frame sizes XXS XS S M L XL
Frame size (CT) 44CM 47CM 50CM 53CM 56CM 59 Top tube (mm) (A) 515 525 530 550 570 585 Seat tube (mm) (C) 380 410 440 470 500 530
Dropout inner width 130 130 130 130 130 130
Chain stays (D) 410 410 410 410 410 410
Head tube angle (Q1)71° 71° 71.5° 72° 73° 73°
Seat tube angle (Q7) 75° 74° 74° 73° 73° 72.5°
Bottom bracket height (H)65 65 65 65 65 65
Bottom bracket width 68 68 68 68 68 68
Wheel base (W) 984 985 986 992 1002 1011
Fork offset (F) 45 45 45 45 45 45
Head tube length (L) 125 125 145 180 205 230

Road Race 905-com
Frame sizes XS S M L:XL XXL
Frame size (CT) 45CM 48CM 50CM 52.5CM 55CM 57.5CM
Top tube (mm) (A) 520 530 555 575 590 605
Seat tube (mm) (C) 395 420 440 470 490 515
Dropout inner width 130 130 130 130 130 130
Chain stays (D) 408 408 408 408 408 408
Head tube angle (Q1) 71° 71.5° 72.5° 73° 73° 73°
Seat tube angle (Q7) 74.5° 74° 73.5° 73.5° 73° 72°
Bottom bracket height (H)61 61 61 61 61 61
Bottom bracket width 68 68 68 68 68 68
Wheel base (W) 983 985 997 1012 1022 1025
Fork offset (F) 45 45 45 45 45 45
Head tube length (L) 105 125 145 170 195 215
