雖然跑去逛,但是我對車子零件可說是沒啥概念,
於是乎直接以預算來搜尋成車....

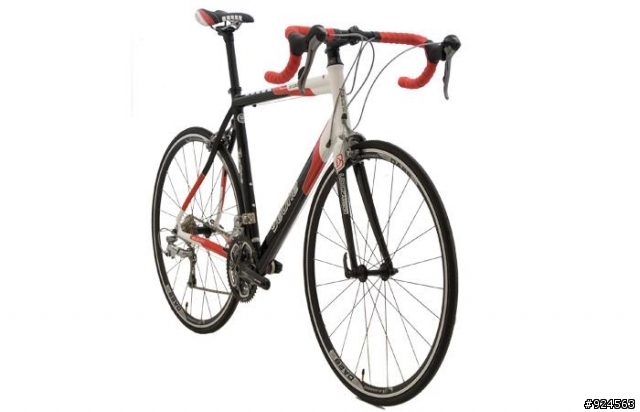

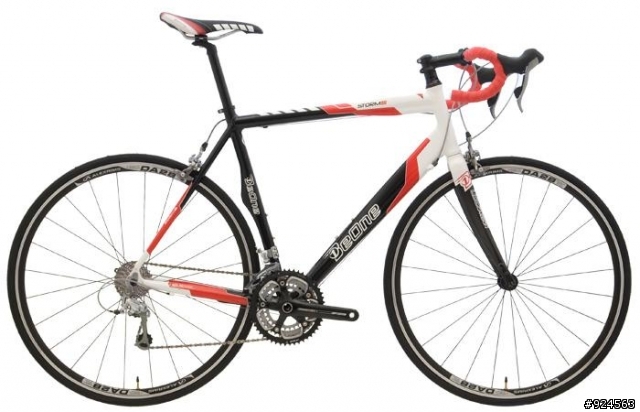

看上了這一台....BeOne Storm 1.0 /2.0 2008
• Frame: 6061 T6 Alloy (車架)
• Forks: Alloy/Carbon (前叉)
• Stem: Alloy (豎管?,在哪?)

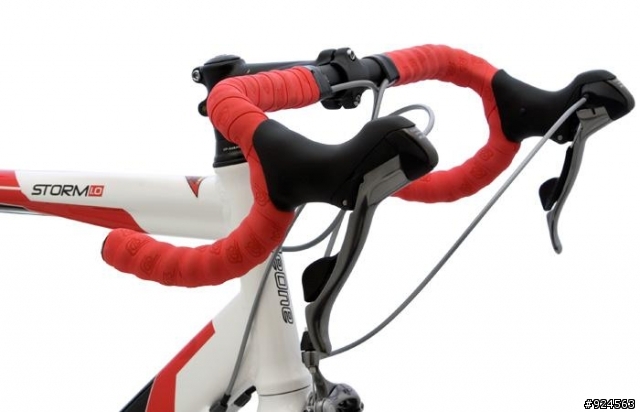

• Handlebars: Alloy (把手)
• Rear mech: Shimano 105 (後變)
• Front mech: Shimano 105 (前變)
• Shifters: Shimano 105 (大概是變速把吧??)
• Brakes: Shimano 105 (煞車)

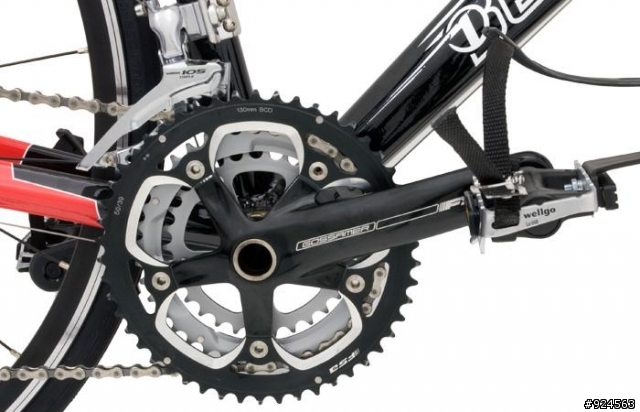

• Cranks: FSA Gosammer (曲柄)
• Cassette: Shimano 105 (飛輪,是什麼東東?)
• Chain: KMC DX 10 (鏈條)
• Rims: Alex DA 28 (輪圈)
• Hubs: Looseball (花鼓,我不喜歡lose)
• Tyres: CST C-Zar (輪胎)
• Pedals: None (踏板)
• Seatpost: Alloy (座管)

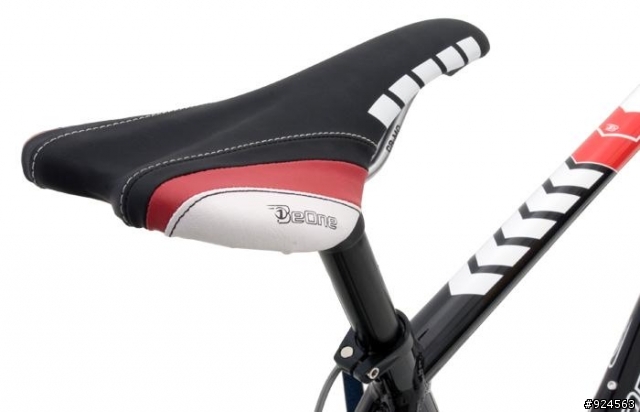

• Saddle: BeOne (座墊)
• Weight: 8,9kg (車重)
Model : BeOne Storm 1.0 /2.0 2008 (型號)
Frame size(c-t) : 57cm
Seat Tube(c-t) : 56cm
Top Tube(eff) : 51cm
head Tube(dia) : N/A
Head Angle : 73.5º
Seat Angle : 73.5º
Headtube : N/A
Wheelbase :100.3cm
Seatpost(dia) : N/A
看了一堆資料,才想到Fitting的問題....哈,於是又找了一個幫你算出適合你身材車架的網站.....
http://www.competitivecyclist.com/za/CCY?PAGE=FIT_CALCULATOR_INTRO&INTRO_LINK=NOREDIR我就隨便量了一下....
腳長:76.5 cm
身長:63.5 cm
前臂:31 cm
臂長:61 cm
大腿:60 cm
小腿:55.5 cm
胸高:144 cm
身高:172 cm
得出來的fitting數據.....
| The Competitive Fit | The Eddy Fit | The French Fit | |
| Seat tube range c-c | 49.5 - 50.0 | 50.7 - 51.2 | 52.4 - 52.9 |
| Seat tube range c-t | 51.1 - 51.6 | 52.3 - 52.8 | 54.0 - 54.5 |
| Top tube length | 52.7 - 53.1 | 52.7 - 53.1 | 53.9 - 54.3 |
| Stem Length | 10.2 - 10.8 | 9.1 - 9.7 | 9.3 - 9.9 |
| BB-Saddle Position | 69.0 - 71.0 | 68.2 - 70.2 | 66.5 - 68.5 |
| Saddle-Handlebar | 49.2 - 49.8 | 50.0 - 50.6 | 51.7 - 52.3 |
| Saddle Setback | 2.6 - 3.0 | 3.8 - 4.2 | 3.3 - 3.7 |
很顯然的....最初想敗的那台車是不適合我滴,殘念了!
哈哈!阿皓你也來量量看吧!
