請教一下NEW SWIFT原廠音響後方的接線端子那一個是AUX IN?(有圖)

su723

su723
個人積分：1331分
文章編號：35082843

1331分

樓主

2012-04-10 12:07

網路上看到很多人都有改，但是實在找不到實際介紹要用什麼規格接線的文章，有網友介紹桃園的會長，但是實在是有點遠，昨天去問汽車音響店，老板說他也不知道，因為他都是直接改裝成電視主機，所以不需要做這種小改裝.....

不知道有人知道這台國際牌的主機要用什麼規格的接頭(AUX IN)嗎?

謝謝指教

2012-04-10 12:07 發佈

文章關鍵字 New Swift aux in 原廠音響後方接線端子

minghuan

minghuan
個人積分：7分
文章編號：35116010

7分

2樓

2012-04-11 16:51

我也想知道~~

請知道的大大告知~~

su723

su723
個人積分：1331分
文章編號：35138009

1331分

樓主

2012-04-12 13:58

找到一個國外的分享，照這樣看來應該是用模擬換片機的方式....

原文如下:
----------------------------------------------------------

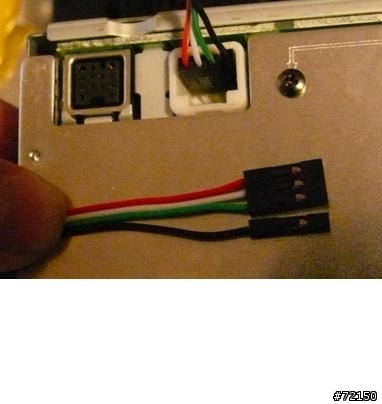

Hi everyone, i just finished installing the aux cable in my swift. I had to remove the radio to do it. I just want to leave a little tutorial to do it.

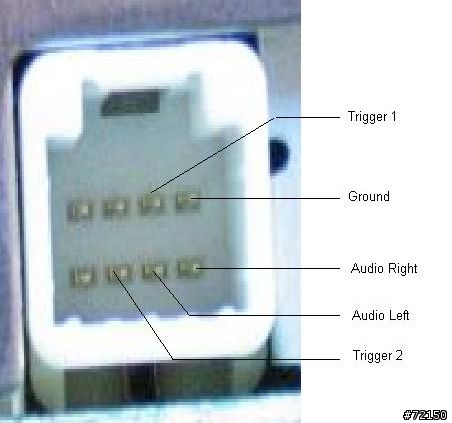

I used 2 small 4-pin connectors (using pin connectors for computer motherboards) and soldering a 1.5Kohm resistor between trigger 1 and trigger 2 according to the diagram. (connection diagram.jpg). This connection works for the swift, there is another picture in the blog but that didn't worked for the swift.

For me it was difficult to connect the cable to the radio without taking the radio out of the dashboard. To remove the radio just remove two screws, one at each side of the radio. (picture1.jpg)

Then you just have to push really hard to take it out, it has four "staples", i'm not sure how to call them, one in each corner that makes really hard to remove the radio.

That's all you need to do, it works great, just push the CD button twice to select the AUX input.

-------------------------------------------------------------

有空再來試看看...
