原廠的倒車顯影不知道有沒有支援?
神人把參數放出來了.
Study IC:
720-04-01 B0 B1 B2 B3 B4 B5(checksum) in HEX
B0:B1 - it is checksum for full configuration of car (IC)
720-04-23 B0 B1 B2 B3 B4 B5(checksum) in HEX
B4 - it is (in BIN):
b7 - 0 or 1 = function is not known
b6 - 0 or 1 = 1 - Cruise Control with LIM
b5 - 0 or 1 = 1 - Standard Cruise Control/MRCC
b4 - 0 or 1 = 1 - W/O Cruise Control/MRCC
b3 - 0 or 1 = function is not known
b2 - 0 or 1 = function is not known
b1 - 0 or 1 = function is not known
b0 - 0 or 1 = function is not known
720-04-27 B0 B1 B2 B3 B4 B5(checksum) in HEX
B2 - it is (in BIN):
b7 - 0 or 1 = function is not known
b6 - 0 or 1 = function is not known
b5 - 0 or 1 = function is not known
b4 - 0 or 1 = function is not known
b3 - 0 or 1 = 0 - analogue rear view camera W/O path assist lines or 1 - rear view camera with path assist lines (rear view camera with CAN bus)
b2 - 0 or 1 = function is not known
b1 - 0 or 1 = function is not known
b0 - 0 or 1 = function is not known
coolalec wrote:
就倒車的時候轉動方...(恕刪)
這個功能讚喔~感謝分享~
剛剛稍微了解了一下~
這個功能除了原廠倒車攝像頭搭配之外~
還牽涉到其他硬體~
例如：方向盤轉角判定，轉角Sensor台灣版是否有搭配。
有i-Stop車型會偵測方向盤角度，但是不確定是否裝配的是轉角Sensor，
還是一般的極限開關而已。
剛剛發現另一個就是原文所說的...
b3 - 0 or 1 = 0 - analogue rear view camera W/O path assist lines or 1 - rear view camera with path assist lines (rear view camera with CAN bus)

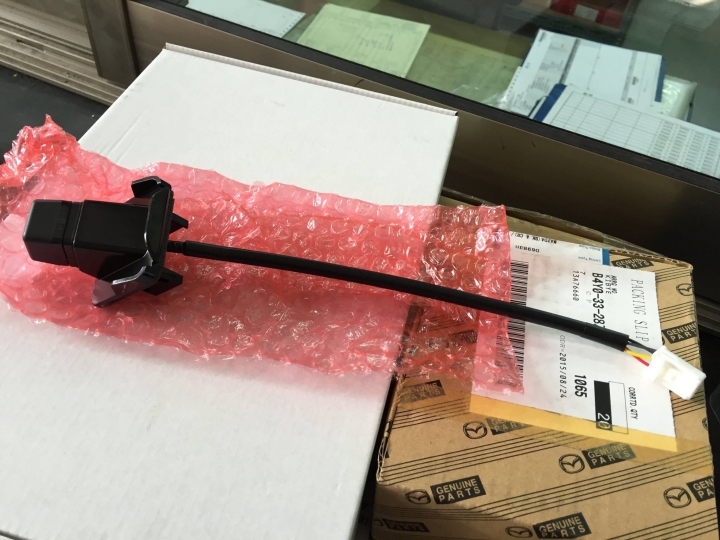

我們台灣配的原廠rear view camera似乎是四線版(+VCC,PGND,Video out,VGND)Pin define，
analog W/O path assist lines，並非帶CANBus的六線版本...

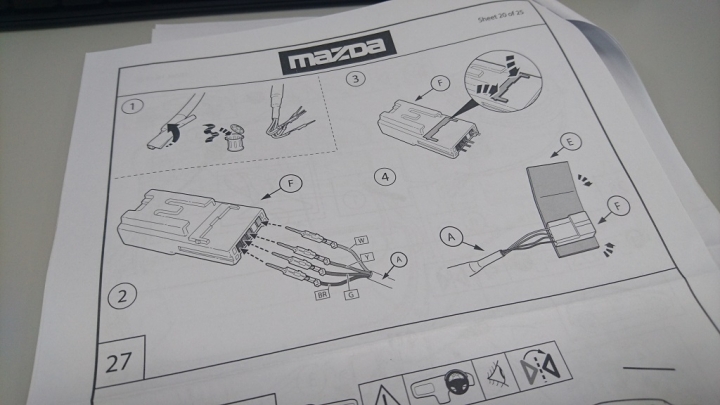

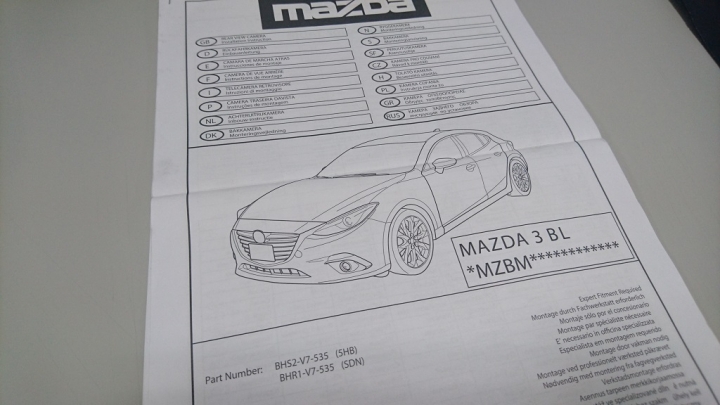

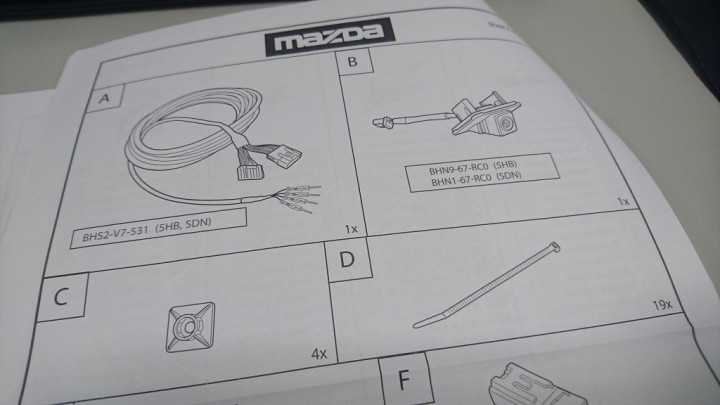

附上台版原廠倒車攝像頭的安裝說明~
