陳志昌 wrote:
打擾一下各位了，請...(恕刪)
608813 wrote:請問有感測器的照片嗎...(恕刪)
我來做個說明、澄清：首先我們談的是4AT變速箱（用於早期sentra，Tiida C11，Livina等）；變速箱型式：RE4F03B
先看一段原文：
The turbine revolution sensor (power train revolution sensor) detects forward clutch drum rpm (revolutions per minute). It is located on the input side of the automatic transaxle. The vehicle speed sensor A/T (Revolution sensor) is located on the output side of the automatic transaxle.
With the two sensors, input and output rpms are accurately detected. As a result, optimal shift timing during deceleration and shift quality can be improved。

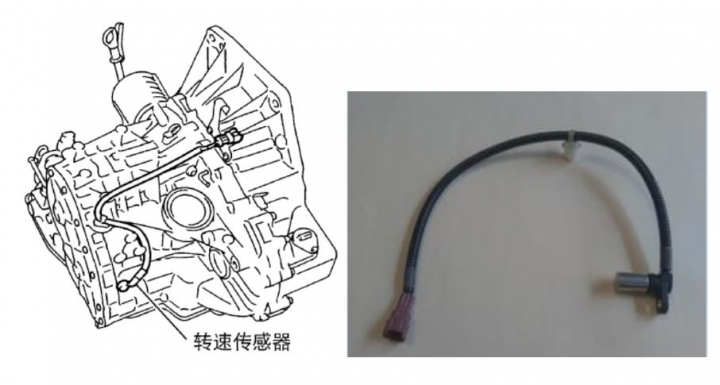

變速箱上的速度感知器有兩個：
1.輸入軸（由引擎飛輪傳到變速箱)turbine revolution sensor；（可能翻譯成脈衝感知器）
料件編號：31935-8E007；價格較便宜
2.輸出軸（由變速箱到差速齒輪）vehicle speed sensor (Revolution sensor) ；
料件編號：31935 -3AX0A；價格較貴，可能是前者的3倍價格
