海鷗簡介
中國上海照相器材公司所出產的 TLR 大概可以分為6款, 分別為 海鷗4型, 海鷗4A型, 海鷗4B型, 海鷗4B-1型,海鷗4C型和海鷗4A-1型. 其製作和用料都因出產年期的不同而有所分別. 海鷗4型可以說是其他 TLR 的原形機, 後來發展出更高級的4A型和4A-1型, 還有簡化的4B型, 4B-1型和4C型. 必須一提的是海鷗4型之前還有一台叫做上海4型的 TLR, 但當時中國政府不許任何產品以城市名稱來命名, 所以後來改名為海鷗4型.
海鷗的 TLR 是以 Rollei 的 TLR 作"參考", 所以其設計跟 Rollei 的 TLR 有很多相同之處. 但當然, 其用料和做工是不能夠和 Rollei 的 TLR 相題並論. 以我要跟大家分享的4A型為例, 其相片的畫質就比其他同用3組3片柯克鏡頭 (Cooke Tripet) 的相機有著明顯的差距. 縱然如此, 小弟還是認為海鷗的 TLR 是一個非常適合第一次接觸 120 菲林的初學者.
基本資料
生產年份: 1967年開始生產
鏡頭焦距: 75mm
取景鏡頭: f/2.8
照相鏡頭: 3組3片 柯克鏡頭 (Cooke Tripet)
鏡頭光圈: f/3.5 - f/22
對焦距離: 1米到無限遠
快門: 1秒 - 1/300秒 加B快門
畫幅: 6x6畫幅 (十二張)

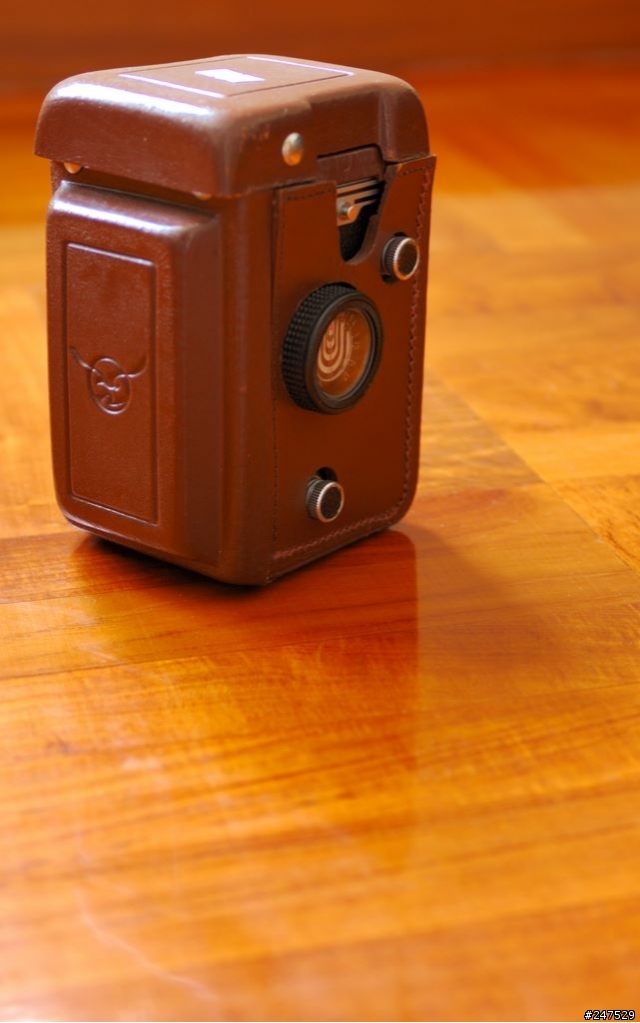

4A型的專用皮套
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-c6e0f142d824bd34118c22b283cc343e.jpg)

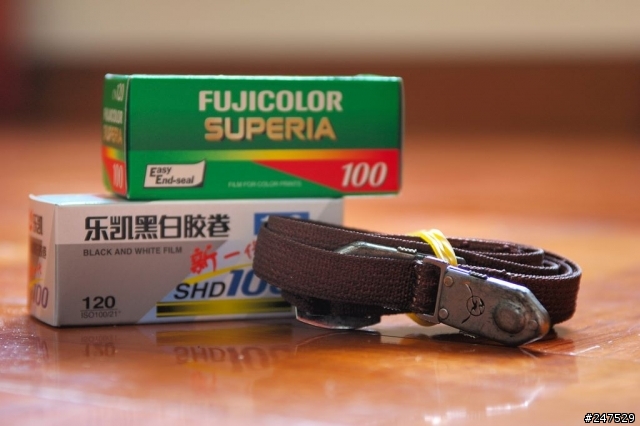

印有海鷗商標的相機背帶
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-a78952c13432a02a7e74c4b23d675e35.jpg)

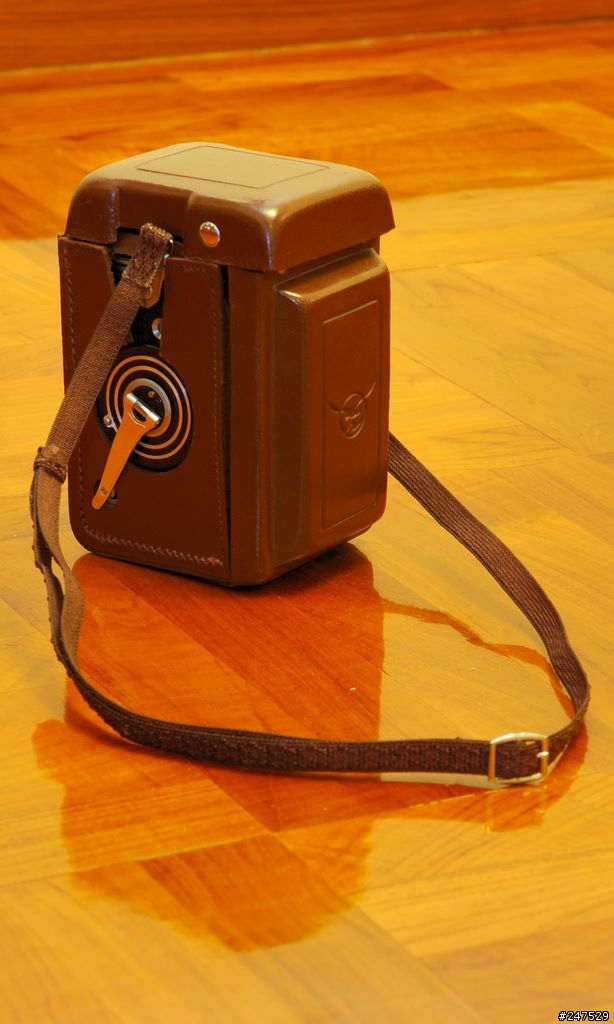

相機右邊的搖把式卷片
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-9ba7522a944c125f9a5172130b3c7bb3.jpg)

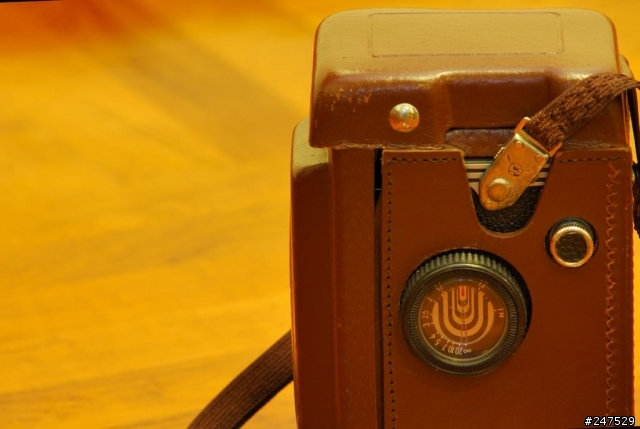

相機左邊的調焦鈕
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-61a98a9b653b8f71814afdcf44b9e95b.jpg)

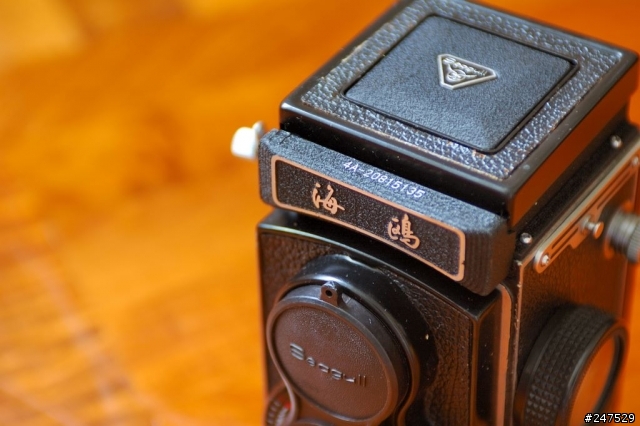

相機頂部的取景器
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-8d33bbeca7257ddacd9e1f9aeb4ee77a.jpg)

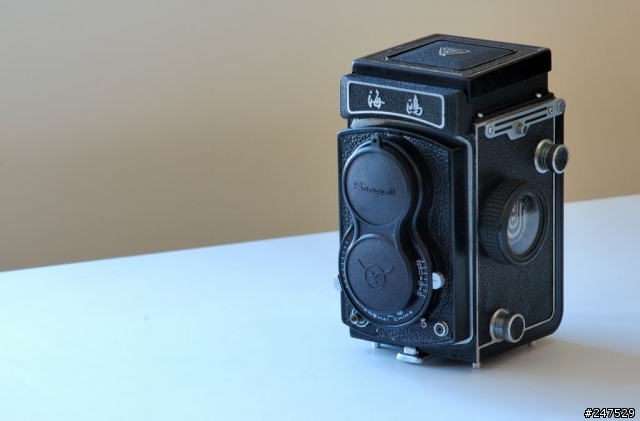

海鷗4A型雙反
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-50419da1536c7a482cb6884dfeaf503b.jpg)

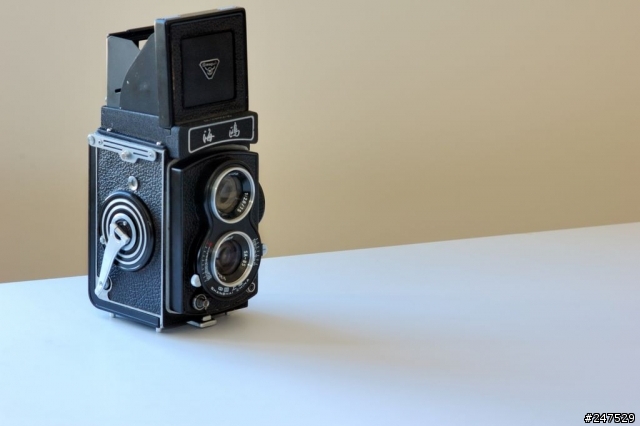

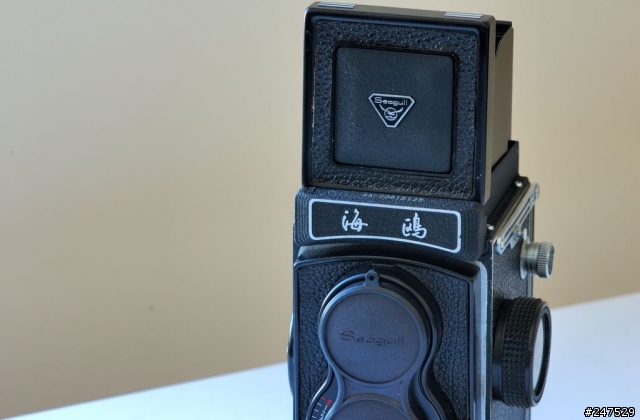

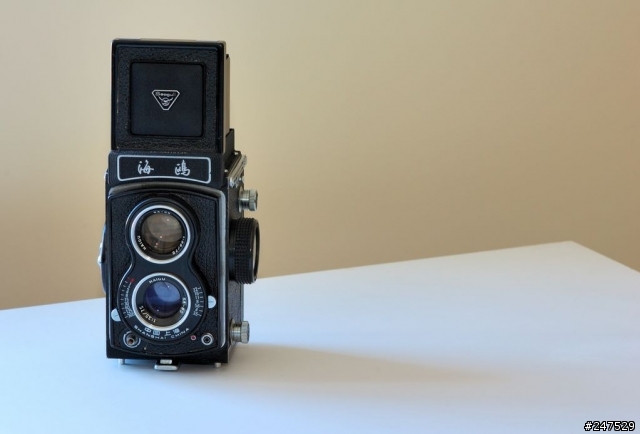

打開取景器
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-8e61aba35e31019c64cbeb85e5ccf15d.jpg)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-a66a47b6ccd849c6131d8b8b1c9eec43.jpg)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-2a613506397d96baa154743153c0dfee.jpg)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-54ad244f2d87f8503e6923e9e31ad36b.jpg)

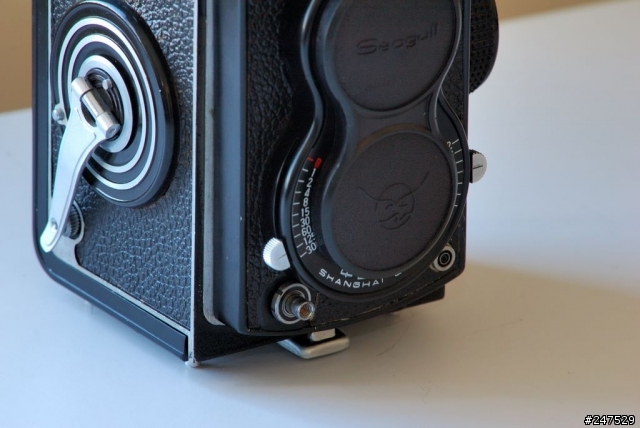

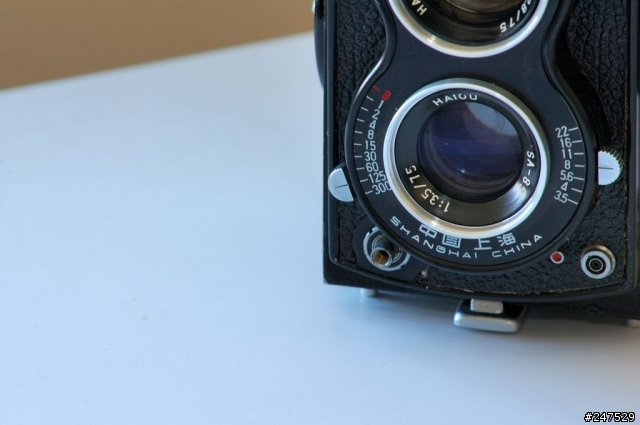

鏡頭特寫 - 3組3片 柯克鏡頭
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-055cceda2f24cfcbf4433ebffd22d191.jpg)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-34992c6121fa4357b59ffcb5955ddc0e.jpg)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-21f33cac41787b83720c5cf3d731ba6f.jpg)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-aa263e44f76b3429fd8c01366233e63e.jpg)

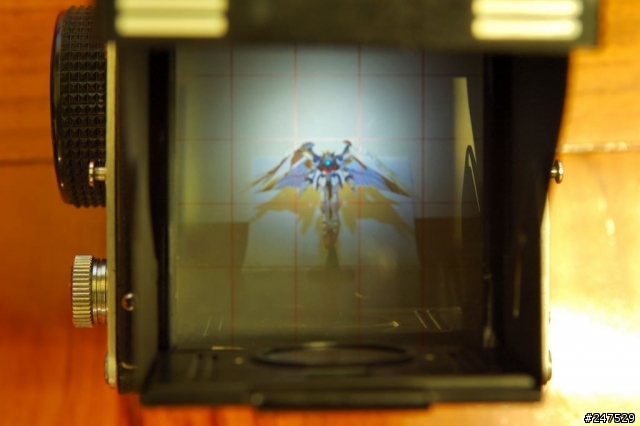

從取景器看出去的景像是左右相反
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-c2440ec21c9b2283884dbb4c04524682.jpg)

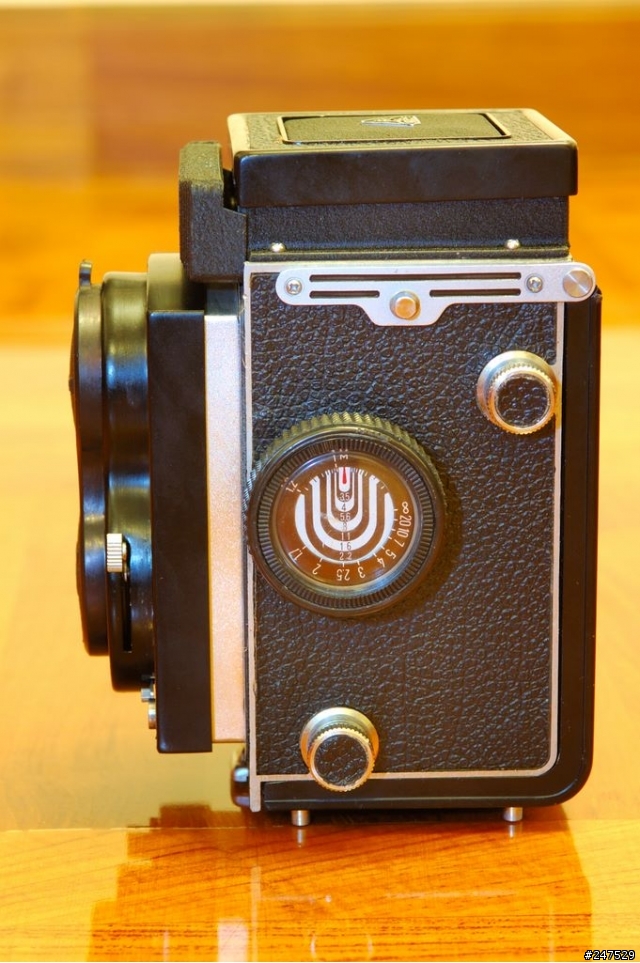

對焦到1米 (最近對焦距離為1米, 但可以外加近攝鏡)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-90353ea4cf125db41d5e3bf23018f63f.jpg)

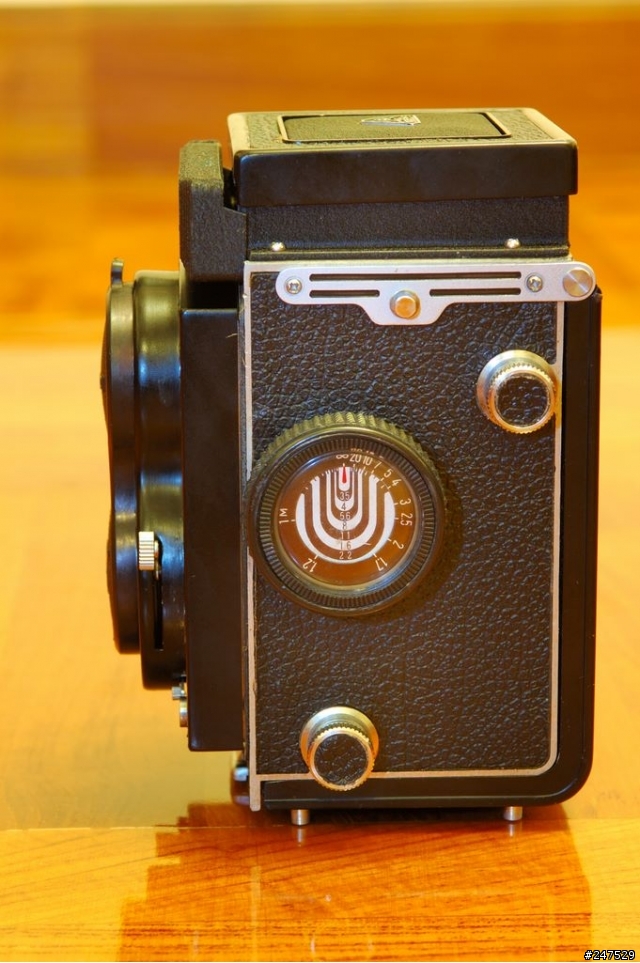

對焦到無限遠
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-638ae225f84ae97c321d1c57a44f4abe.jpg)

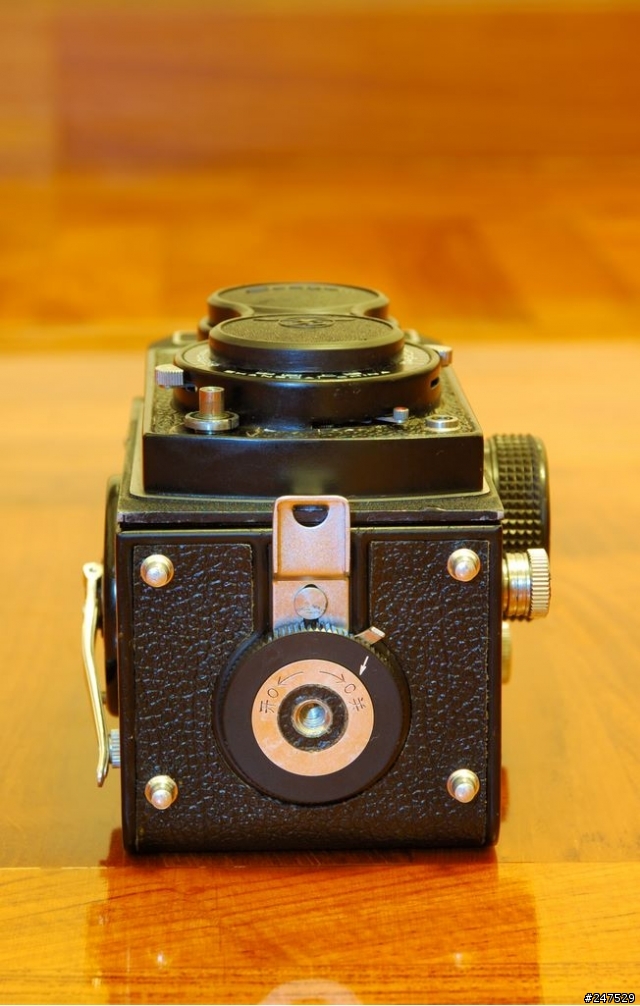

相機底部
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-a81d77ff891af1d326d2a6bdaa4e244f.jpg)
上菲林的步驟

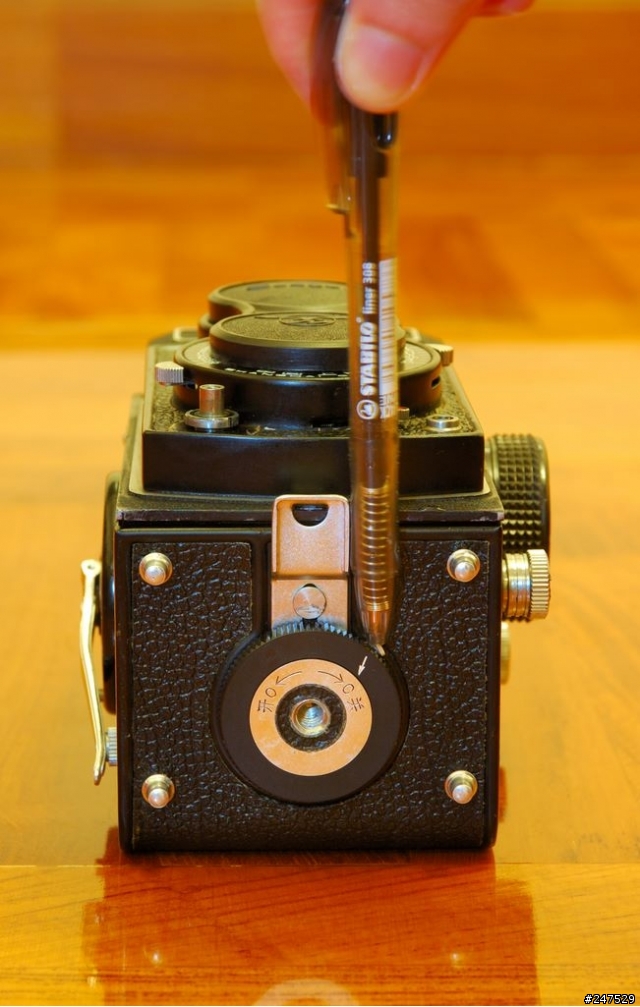

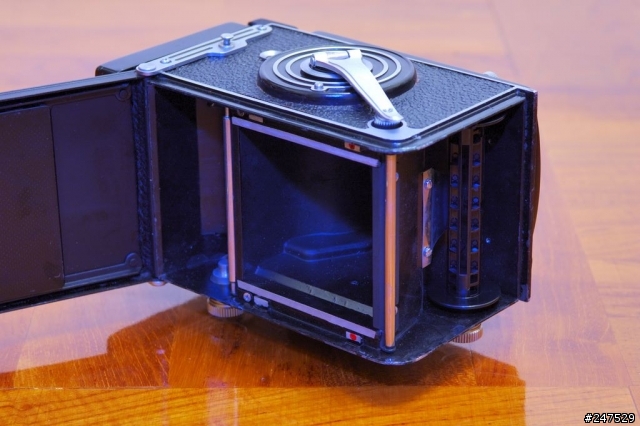

按下底蓋鎖來打開菲林倉後蓋
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-bd9238f6a1ef6fa6e530095bdc0c8753.jpg)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-6ac3f9ac2968fef152350425c435b830.jpg)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-3489de7d4cb1b526ae8a615fb3432563.jpg)

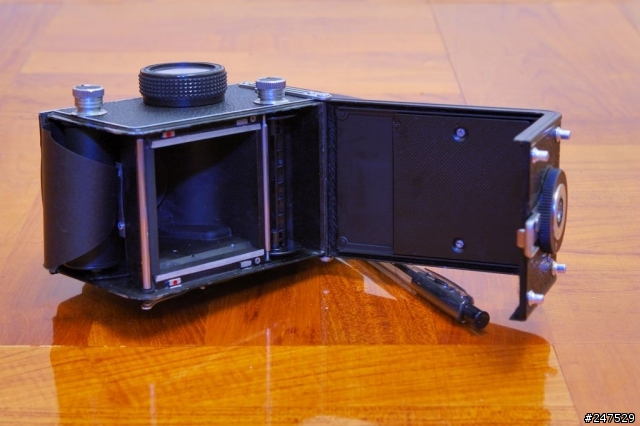

把菲林裝卸鈕拔動(相片上左邊銀色的那個)就可以裝上菲林
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-738dc2db6c0d387d7a08b53bf7ee12e6.jpg)

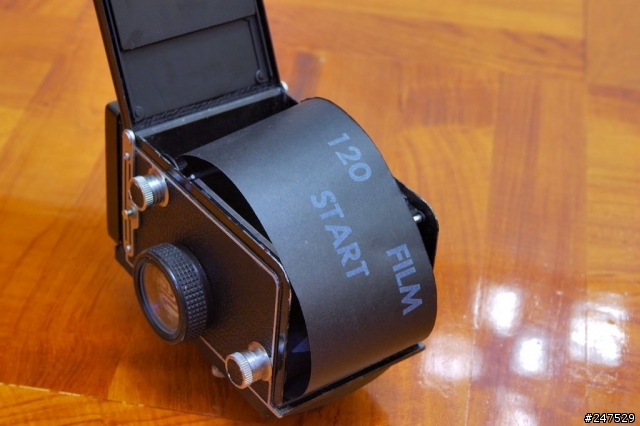

把菲林牽引紙插進右邊的菲林芯
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-b0cd9288ee0cb238e9648319a2fa4dac.jpg)

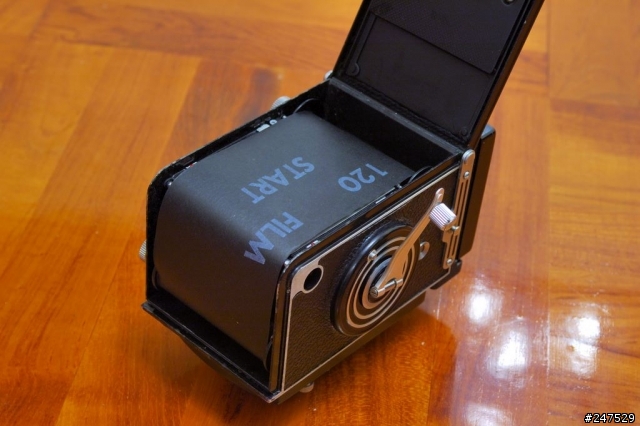

順時針的轉動卷片搖把
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-4890cf8b53bf5a59db5b39fccf5e896b.jpg)

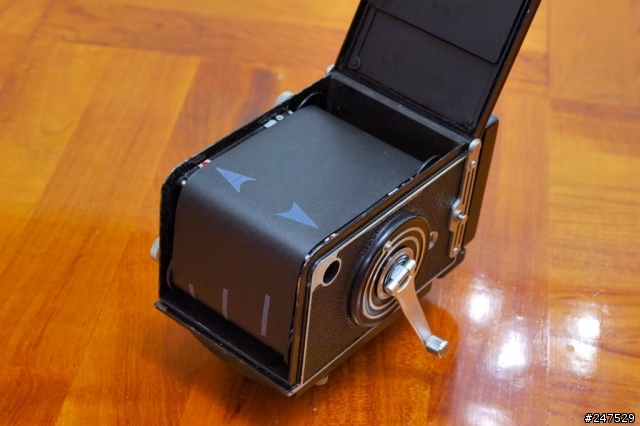

轉動卷片搖把直到菲林上的箭頭記號和相機的記號成一直線
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-fdce1bae3e6919d901c23afd2e77299d.jpg)

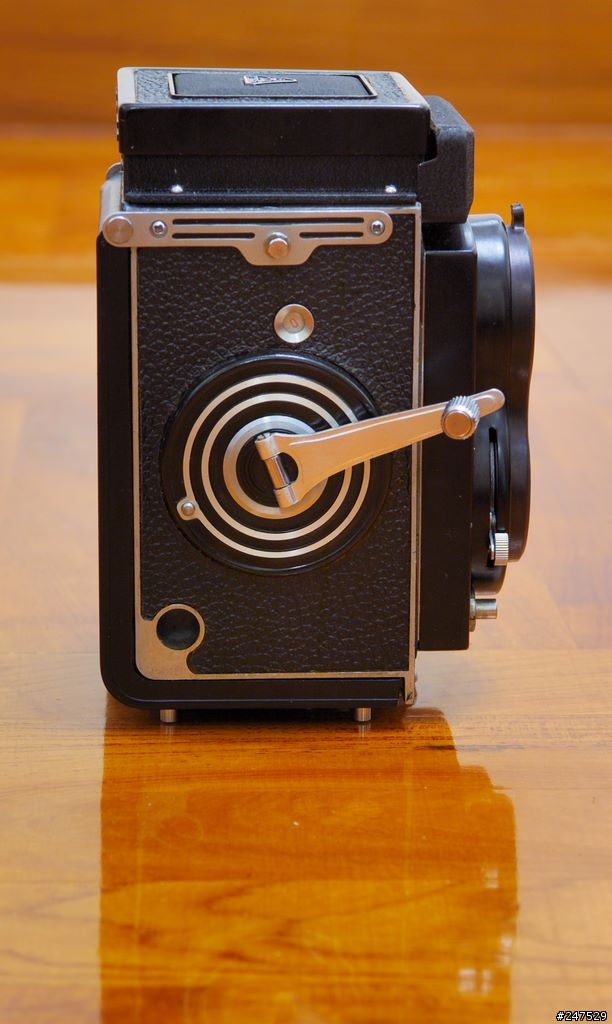

把菲林倉後蓋關上, 現在的相片記數為 0
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-c86eddb774d5fccce26ea67e0cfe2390.jpg)

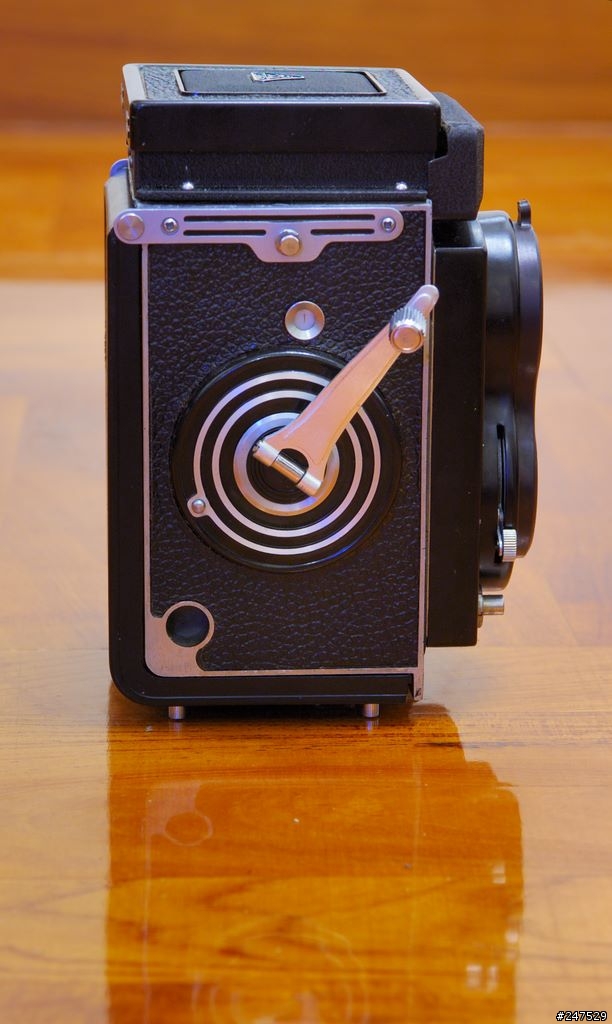

繼續轉動卷片搖把, 現在的相片記數為 1. 可以拍照了!
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-90b6ab4b41acc65afd0956432d966148.jpg)
====================
以下是小弟用這台海鷗所拍的一些劣作.
Fujicolour Superia 100
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-79c34e3f22004158c4d26fafd76ef33d.jpg)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-11ad16091e2924ebd0cdb5cf265685c3.jpg)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-d17c2a8930a112f07687022bf12377bb.jpg)
![[分享] 海鷗雙鏡反光機](http://attach.mobile01.com/attach/200812/mobile01-adba4af8ce8ce72d63815b5141d60665.jpg)
小弟其它的作品: http://www.iamSL.com
====================
希望大家看過這篇文章後會對這海鷗的 TLR 有多一點了解. 如果上述的資料有誤, 請版上的各前輩指點. 謝謝大家賞面!
(小弟不太習慣用中文書寫, 所以文筆會不太通順, 請見諒)
SL
