請問有人知道X61s 有支援express 開機嗎

請問有人知道X61s 有支援express 開機嗎? 想買張express SSD用說~
2009-03-16 0:20 發佈
文章關鍵字 express X61s
TETHL wrote:
請問有人知道X61s...(恕刪)


X61s 本身支援....Express SSD 不見得支援..
And Express -> PCMCIA -> South BG .(Lenovo SATA 魔咒)

我以為是主板之不支援的問題說 想買這張 讀寫100MB/s

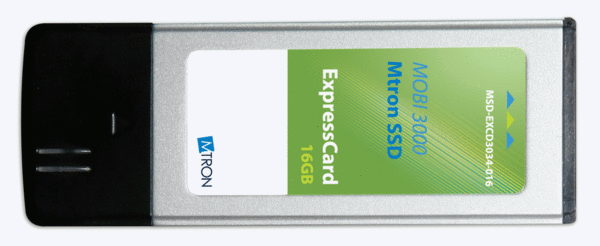

MOBI-3000 EXPRESS CARD 16GB SLC晶片



> Performance
• Maximum sustained read: 100MB/s
• Maximum sustained write: 107MB/s
• Maximum IOPS: 20,000(sequential write by 512B unit)
> Form factor: 92.0mm x 34.0mm x 5.0mm
> Memory type: SLC NAND flash memory
> Interface standard: PCI Express 1x
> Transfer mode:Supports 1-Lane 2.5Gbps PCI Express bus
> Storage capacity: 16GB
> Input voltage: 3.3VCC (±5%)
> Flash management algorithm: static and dynamic wear-leveling, bad block management algorithm
> ECC (Error Correction Code): BCH 7 bits ECC
> Write endurance: >70 years @ 50GB write/day at 16GB SSD
> Read endurance: unlimited
> Data retention: 10 years
重點是…X61s沒有PCMCIA Express介面吧…
博觀而約取 厚積而薄發
EDC79 wrote:
重點是…X61s沒有...(恕刪)



轉接卡.....PCMCIA......
前面講過了...一整個慢...
要快....APIO 那張 SATAII -> 轉接卡 -> PCMCIA -> SB ........可以接受的IOPS...
X61s 應該是express
PCMCIA應該是 X40

另找了一下 Express 頻寬應該250mb/s, PCMCIA 60mb/s, SATAI 150mb/s, SATAII 300mb/s.
X61s應該是pc card介面吧
我印象是到X200後才開始改成express card介面啊
我之前是用x61t就是pc card介面,我想應該都是一樣主機版吧
糟糕,好像是PCMCIA沒錯,白高興一場.

HL
查了一下好像有轉接? 不知有沒有 X61s 的大大可幫忙看依下

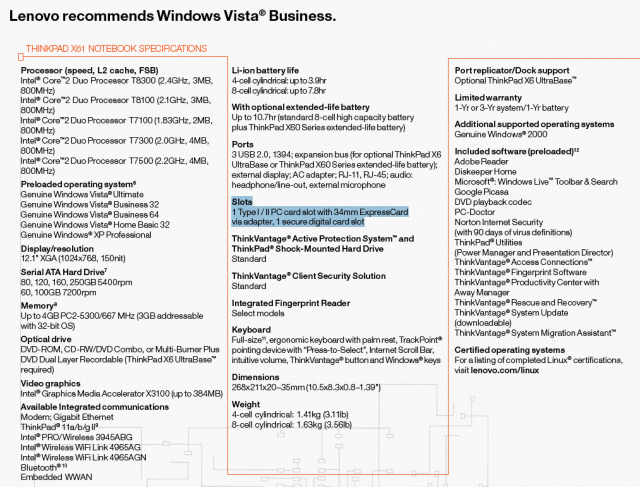

最後一絲希望 SPEC as below:

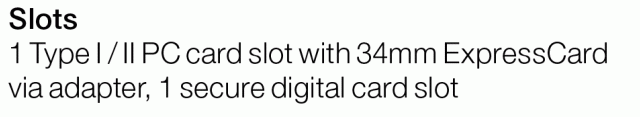

Slots
1 Type I / II PC card slot with 34mm ExpressCard
via adapter, 1 secure digital card slot





X61s確定是PCMCIA沒錯…
而且BIOS裡面Boot選項,並沒有PCMCIA開機可選…

正在用X61s回這篇文的黑友 留。
博觀而約取 厚積而薄發
