為 Precision M2300 (Latitude D630) 加裝指紋辨識模組

前些天在Y拍上尋寶看到 Latitude D630/D830 專用的TouchPad + 指紋辨識模組,
想到去年買 Precision M2300 時, 還不知道指紋辨識模組是如此方便, 所以當時未選配,
後來用了公司ThinkPad T61之後, 才發現指紋登入超方便, 所以雖然價格貴了一點點, 還是咬牙買下!

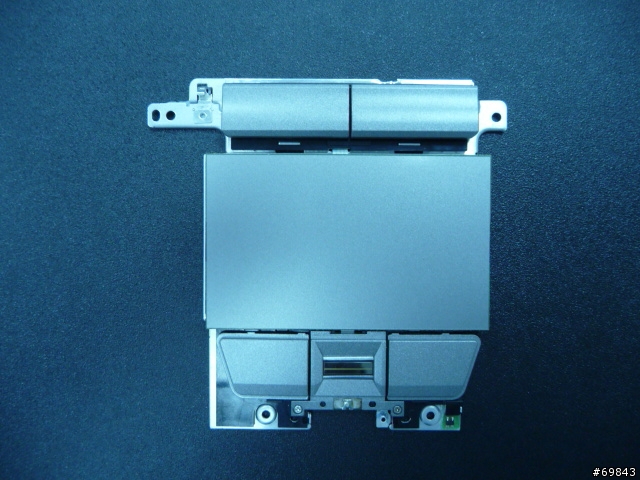

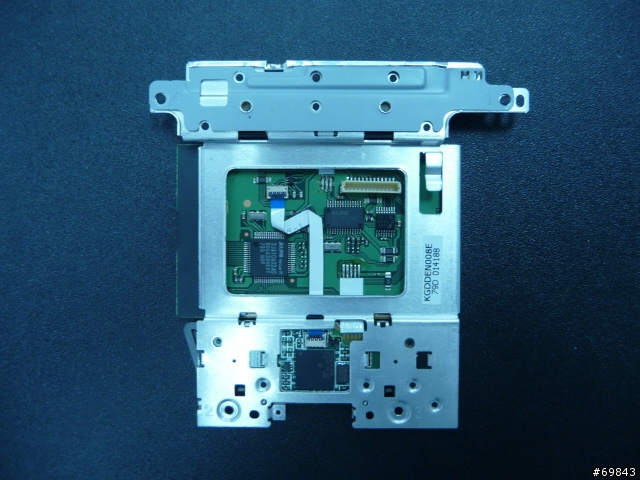

先看看這個指紋辨識模組的正反面近照:

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組
為 Precision M2300 (Latitude D630) 加裝指紋辨識模組

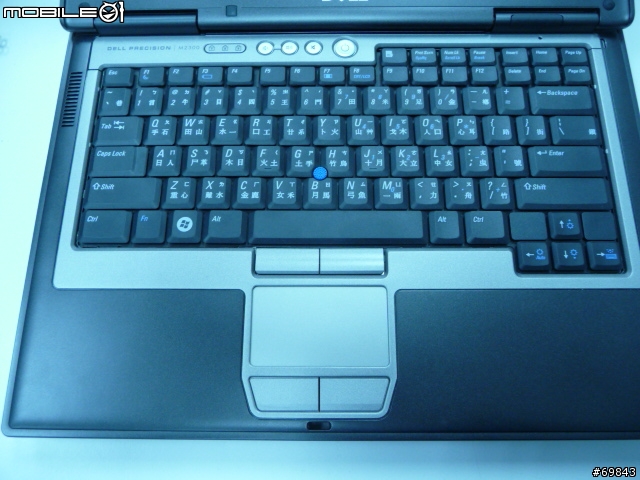

再來一張Precision M2300的照片 (未裝指紋辨識模組)

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組


開始拆機, 先用細的一字起子撬起 hinge cover

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組

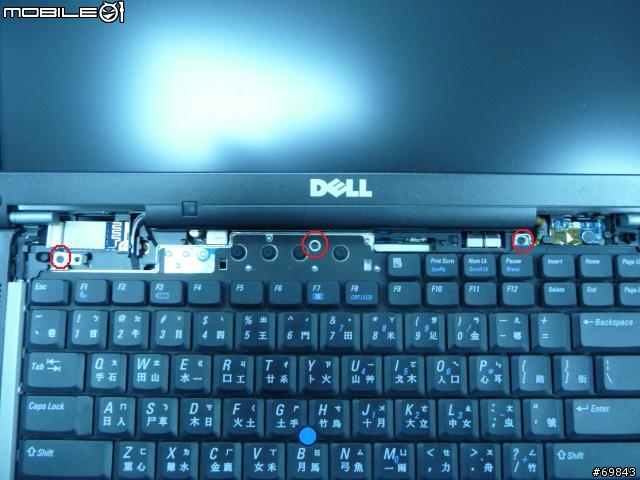

再鬆掉紅圈三顆螺絲以卸下鍵盤:

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組

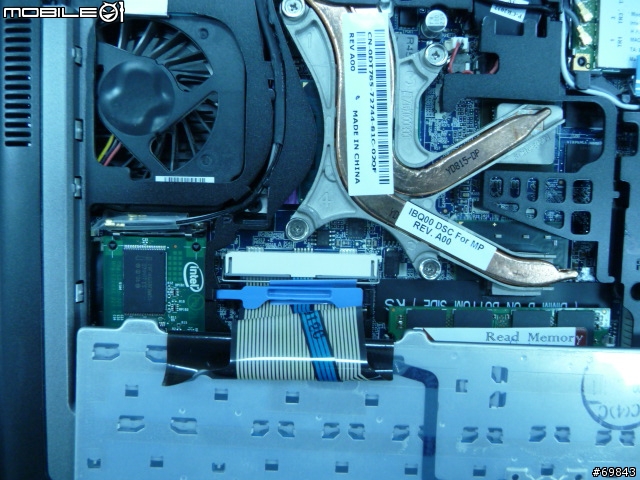

還有藍色卡筍要解決才能把鍵盤完全分離:

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組


下一步是把螢幕整個分離:

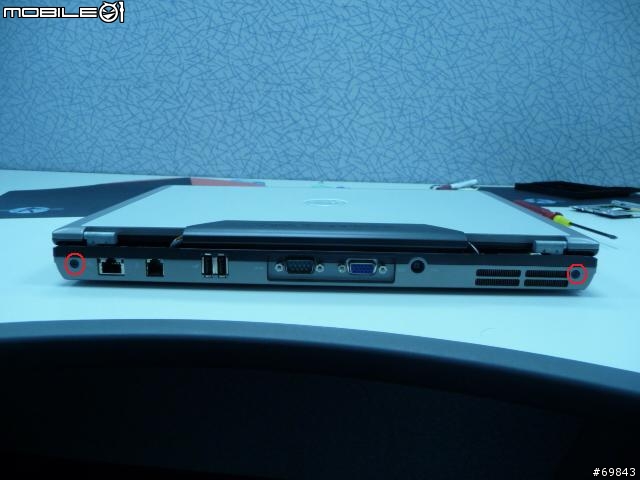

先把紅圈的兩顆螺絲卸下:

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組

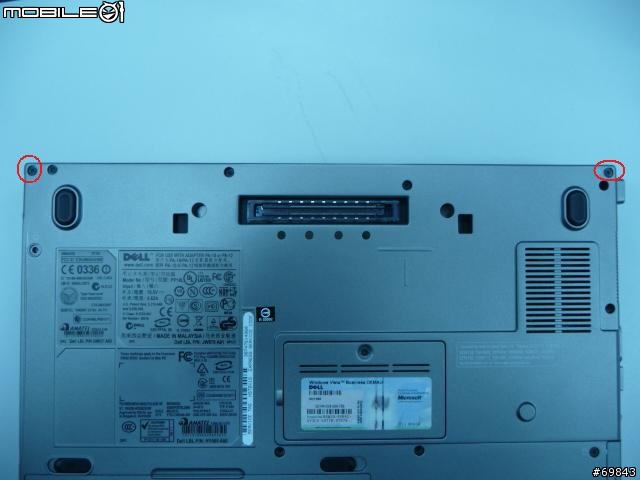

再將筆電翻過來將紅圈的兩顆螺絲卸下:

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組


最後將天線接頭與螢幕排線小心拔掉:

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組

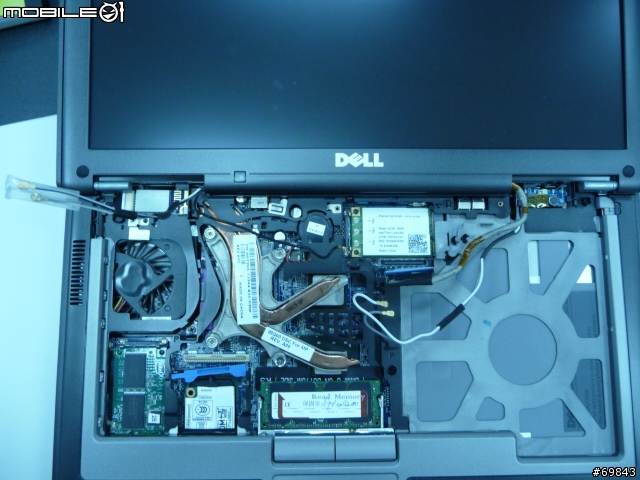

成功分離!

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組



把光碟機與硬碟先拆下, 接下來就是重頭戲了: 拆本體上蓋

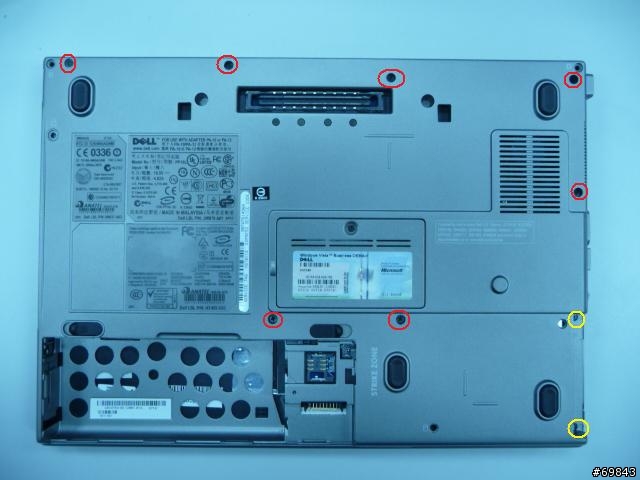

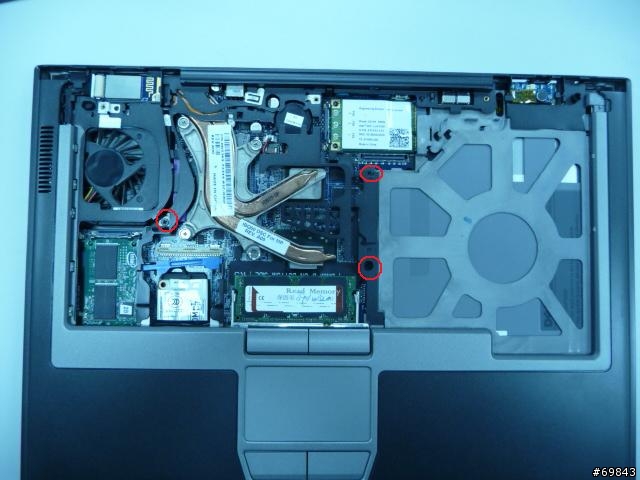

正反面一共有10顆螺絲要卸下, 還有黃圈內兩顆是鬆開就好:

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組
為 Precision M2300 (Latitude D630) 加裝指紋辨識模組

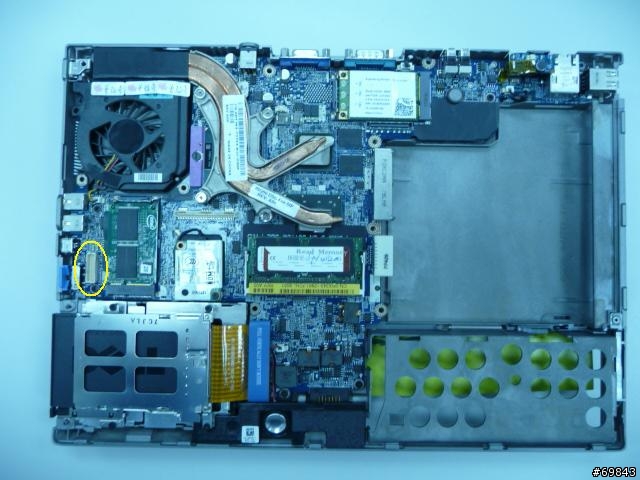

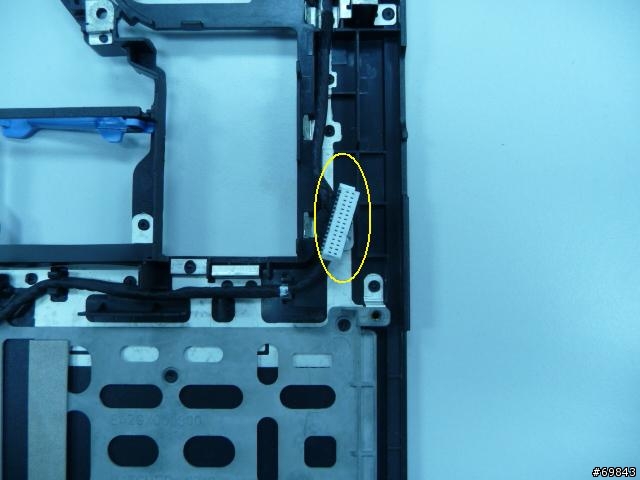

上下蓋分離時只要小心的掰開, 注意連接上下蓋靠鍵盤左邊的一條排線即可:
為 Precision M2300 (Latitude D630) 加裝指紋辨識模組

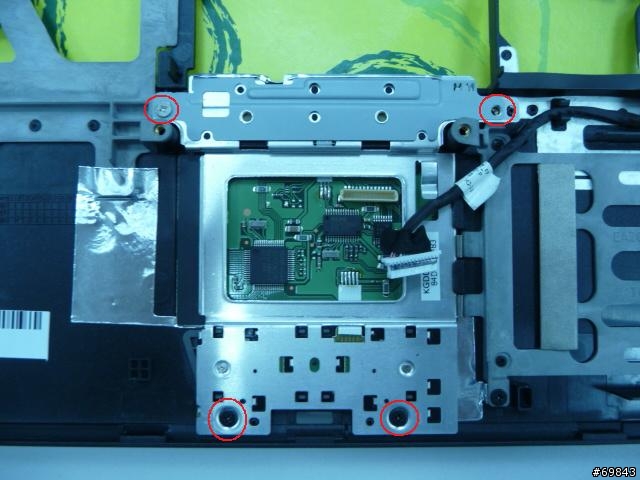

上蓋拆下來後翻過來就可以看到原來的TouchPad模組:
鬆開四顆螺絲就能換上新模組:

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組

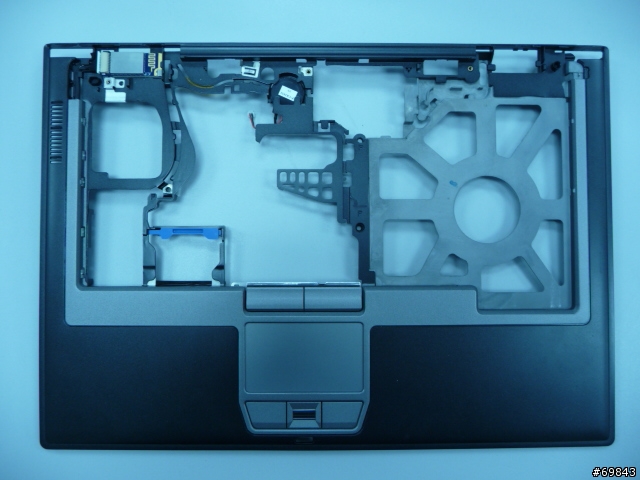

完工後的上蓋:

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組

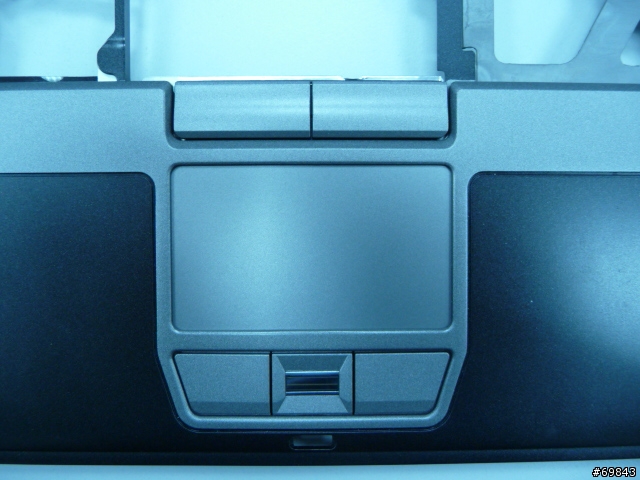

近距離完成圖:

為 Precision M2300 (Latitude D630) 加裝指紋辨識模組


如果要換CPU的同好基本上也可以根據這篇介紹, 只要將本體上蓋卸下後, 再拆掉散熱模組就能換CPU了!
2009-09-13 17:30 發佈
