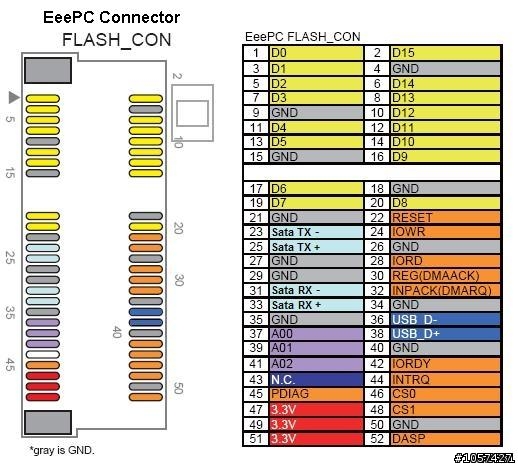

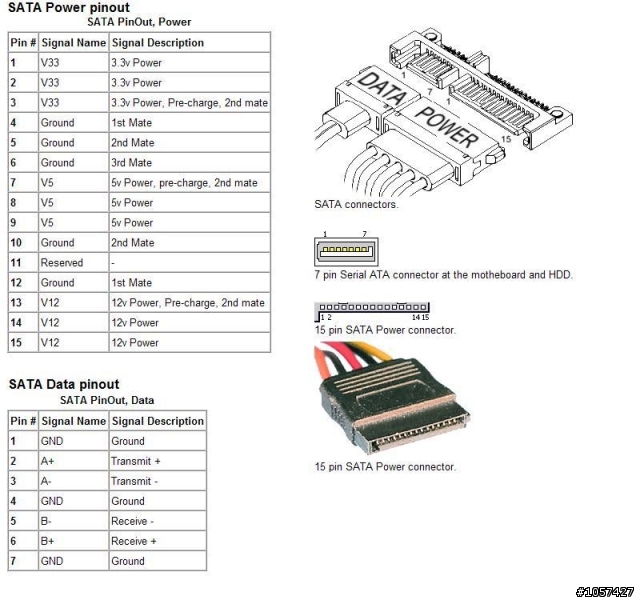

有沒可能在主版上找到sata的線路
拿來外置esata的可能嗎?
謝謝
pemini to sata
不知道多少錢呢
PEMINI2X1 is a PCI Express Mini to PCI Express X1 adapter. It features power on/off switch, power LEDs and flexible configurations for easy connection. It requires an external power input with 12V and 5V to operate. Currently, a piggy back power conversion module can accept a standard four pin PC floppy drive power connector. Other power input modules could also be developed. The standard configuration includes a PE-X1 connector, mounted perpendicular to the PCB. The adapter's small size allows the adapter to be clipped into a PE-MINI socket. The -S option, adds an extra PE-X1 straddle mount connector at one end. The -F option adds a flexible cable assembly to the adapter, so it can be placed away from the socket. There is also a -CSR option, which will add three current sensing resistors to the 12V, 3.3V and 3.3V_aux power rails. The CSRs can be used for current measurements. The standard configuration has the dimension and form factor of a PE-MINI card at 30mm x 51mm (1.18" x 2.0").
你看看 PEMINI2X1-F
