因DDR3版本實在太貴~所以只入手DDR2 1GB的
不過還是很滿足啦
才$2500
獻醜囉~~超級不專業開箱+改機文
今天剛收到~

![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-f77e947e4dcab1133a8319cb6a06950e.jpg)
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-7ee0a55f5fec067a84784ddbefd1e782.jpg)
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-b5c39c634c1b87d0014bf6554b0ddea5.jpg)

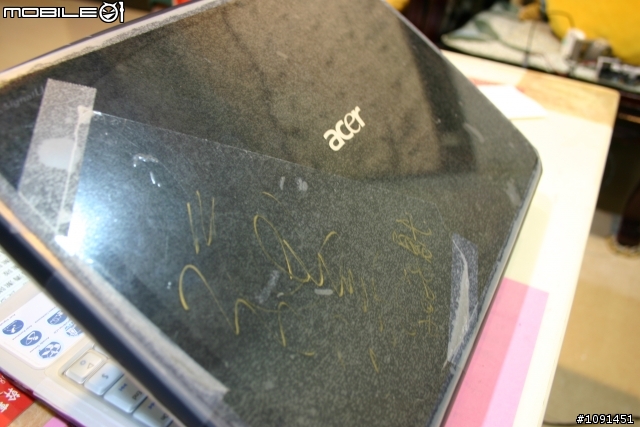

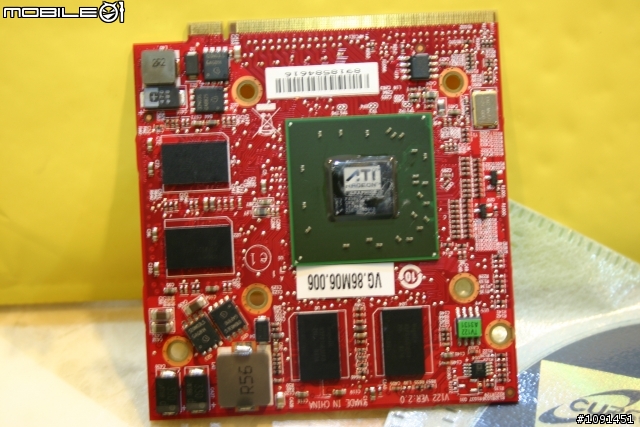

這次開刀對象~醜醜的4920G ~~不過有桂綸鎂親筆簽名

![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-5e287cd0f9e28f974143029f8397a3a2.jpg)

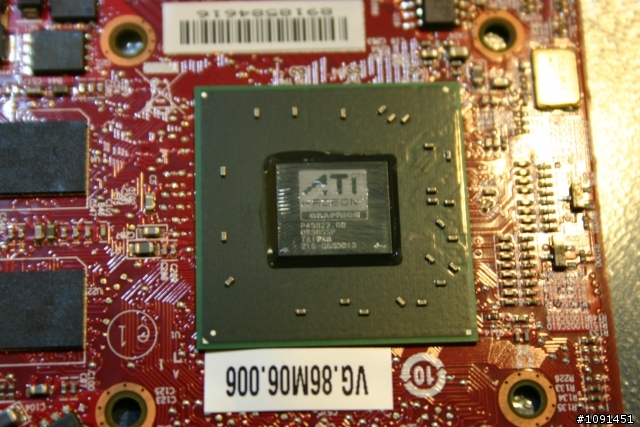

驗明正身~ HD 3650 海力士 DDR2 1GB 128 bit
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-cca2c7d8dde1fc8ccbb265f9ef908aa5.jpg)

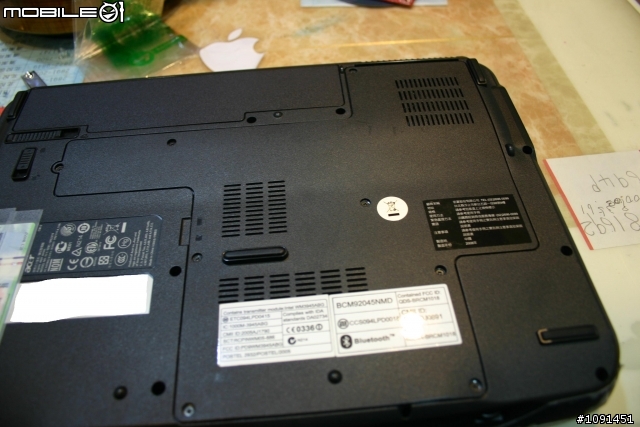

翻身了~4920G的屁屁

![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-609485e7cecd2c9cdebae9f11c84365d.jpg)

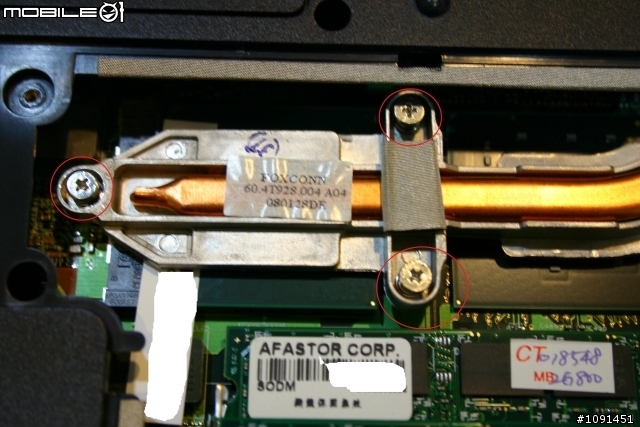

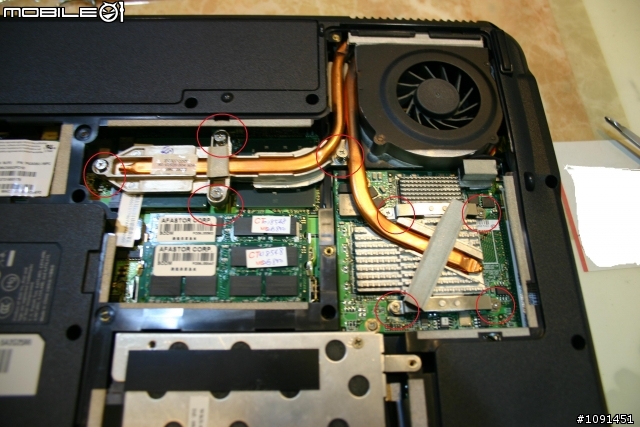

拆機囉~~紅色圈起來螺絲一定要卸下
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-9802781501397c02e3da75751f52dfe2.jpg)
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-40806ddc6afa9be1dbe8dfc59568e851.jpg)
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-147b152f92bc1200f7135a35ba9f2d83.jpg)

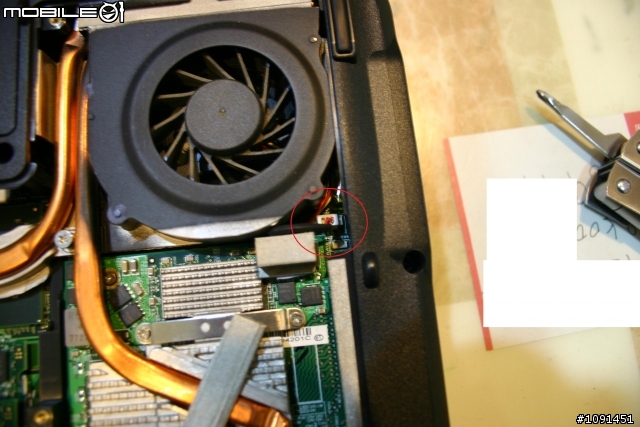

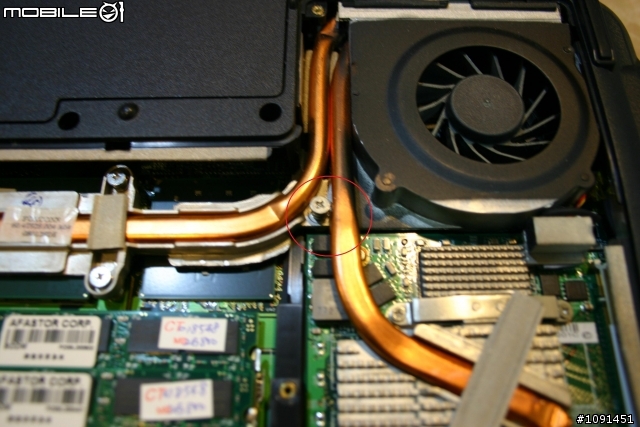

這裡有風扇的電源線~~線很長其實可以不用拔
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-25cde50b552d646ee5f4ce736d02cde7.jpg)
中間有幾張圖忘記拍了

用文字敘述一下
風扇跟導熱管及散熱片是"黏在一起"的
所以會整組同時卸下~~
拆卸時輕輕往上扳一下~就會鬆開囉~~
再稍微移動風扇組就能拿下來
顯卡拿下來~背面有支撐的鐵片記得要拿下來給新的用
因為上面的膠很黏
可以用吹風機加溫
比較好拿哦~

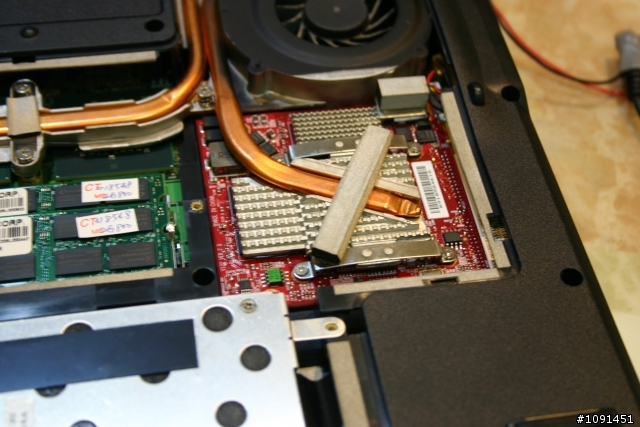

完成圖!!
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-0bf3e834f9d0ed1d8dcbffa63d260b2d.jpg)

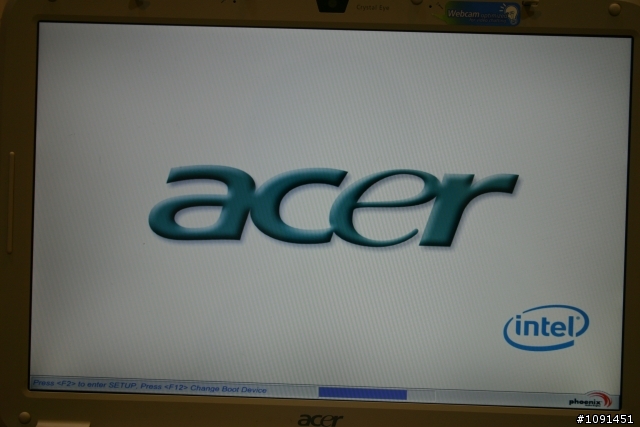

開機測試~~~熟悉的ACER標誌+CENTRINO圖
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-c3012dfc8485545ee8c726ea1e7cf742.jpg)

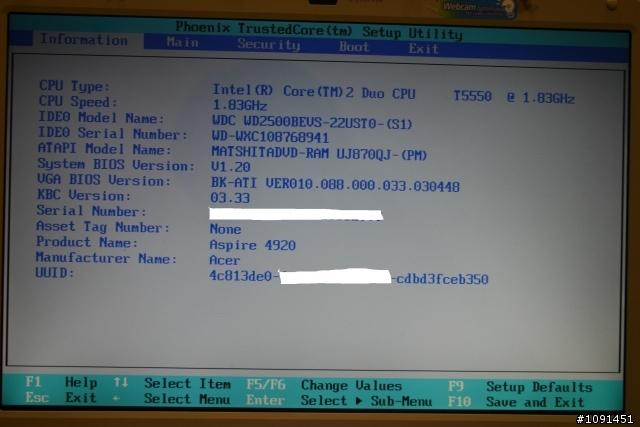

進入BIOS~正確抓到顯卡~
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-e70370692ea36f318ae2ee8fde280c35.jpg)

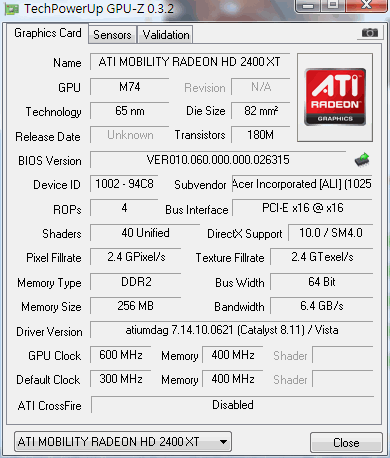

改機前~GPU-Z
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-37189ada4e409255bfe75e15ac62c2ab.gif)

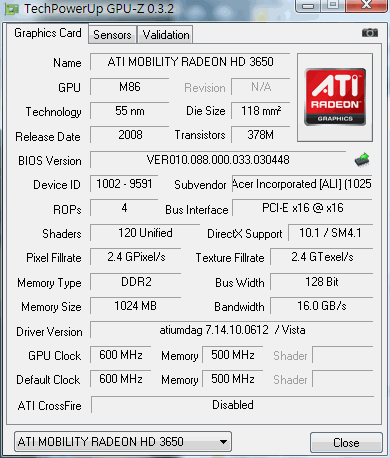

改機後~GPU-Z
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-41ca334e10ce4cb6c46f8f2d272e2c7d.gif)

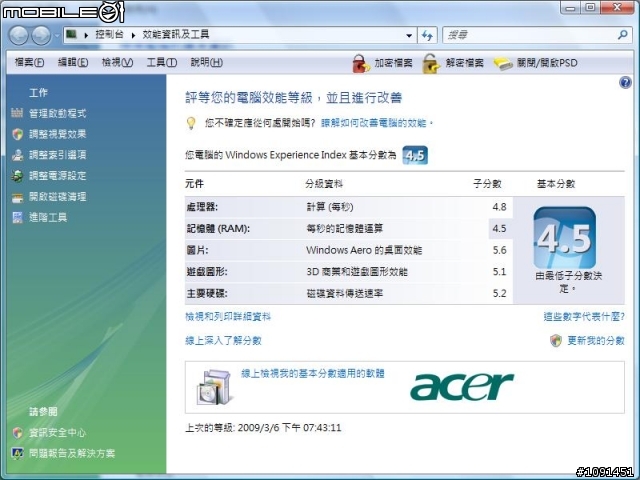

改機後Windows 分數
![[分享]4920G升級HD3650 MXM實戰](http://attach.mobile01.com/attach/200903/mobile01-2b1a16e3ddd110df7ceeafeffe33f386.jpg)
拆解過程中有個小小插曲
買4920G才不過9個月
CPU上的散熱膏就乾掉了

還好家裡有剩的就順便塗新的上去
溫度有差哦!!大概降了3度(正常使用狀態下)
謝謝觀賞~~

另外感謝n123564大於前篇回文幫忙
攝影器材: Canon 350D 18-55mm F3.5
