在PPC上使用USB 裝置..有可能嗎?(非MIO558)

taowei

taowei
個人積分：23分
文章編號：125322

23分

樓主

2004-03-05 20:59

今天敗了一塊 COMPACT to CF 轉接卡
想試試看使否能用兜的

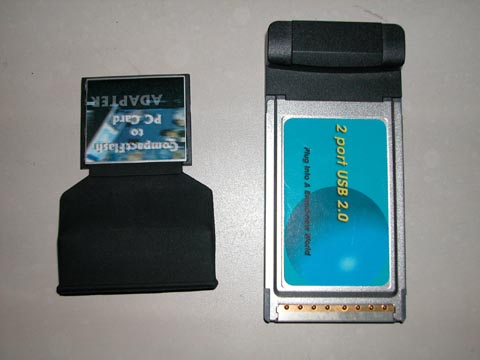

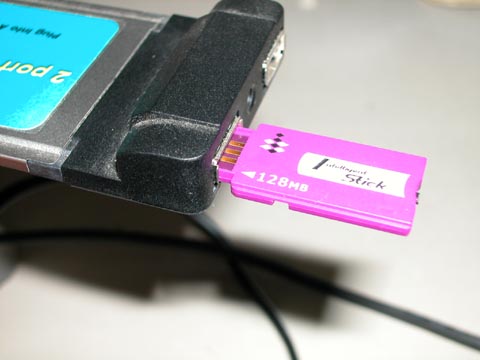

把 PPC + COMPACT to CF +USB CARD = 一台可用USB裝置的PPC

如圖
在PPC上使用USB 裝置..有可能嗎?(非MIO558)

但是....
我找不到
USB Driver for PPC2003......
希望大大們可以幫幫忙...謝謝

2004-03-05 20:59 發佈

文章關鍵字 PPC USB 裝置非MIO558

taowei

taowei
個人積分：23分
文章編號：125354

23分

樓主

2004-03-05 21:52

剛剛逛了國外網站,找到一個有趣的產品

一快要美金139......

不知道國內有類似的產品嗎?

http://shop.store.yahoo.com/firewireshop/newusb11hosa.html

anson0706

anson0706
個人積分：176分
文章編號：125765

176分

3樓

2004-03-06 18:58

taowei wrote:

今天敗了一塊 COMPACT to CF 轉接卡
想試試看使否能用兜的
把 PPC + COMPACT to CF +USB CARD = 一台可用USB裝置的PPC

如圖

但是....
我找不到
USB Driver for PPC2003......
希望大大們可以幫幫忙...謝謝

看看這篇先吧!!

csdog

csdog
個人積分：0分
文章編號：240826

0分

4樓

2004-08-19 4:49

請問驅動程式找的了嗎?
我翻了很久都沒看到....

謝謝

matika

matika
個人積分：1181分
文章編號：240975

1181分

5樓

2004-08-19 10:55

csdog wrote:
請問驅動程式找的了嗎?
我翻了很久都沒看到....

謝謝

上面已經有連結討論過沒USB host 就不能用, 可以請你把那幾篇文章看完嗎?

ihweb

ihweb
個人積分：2分
文章編號：241757

2分

6樓

2004-08-20 9:46

matika wrote:

csdog wrote:
請問驅動程式找的了嗎?
我翻了很久都沒看到....

謝謝

上面已經有連結討論過沒USB host 就不能用, 可以請你把那幾篇文章看完嗎?

http://shop.store.yahoo.com/firewireshop/newusb11hosa.html

http://shop.store.yahoo.com/firewireshop/newusb11hosa.html

Add USB 1.1 Host downstream port to your PDA.

Only one USB Host Adapter CF card in the world.

Works on Compaq iPAQ and Dell Axim, expands your application and ideas of PDA based systems.

Attach bar code scanners, magnetic stripe card readers, keypads or other USB HID devices.

Supports USB Flash Memory reader/writers, USB Flash Memory sticks, Zip, Mo and other removable storage devices. Allows to save, restore big data from/to your PDA, to exchange big data simply with WindowsPC.

Easy to install, fully compatible with Windows Microsoft ActiveSync.

100mA USB Bus-Power is available at the USB port, don't need AC adapters for Low-Power USB devices such as Keypads, Flash Memory reader/writers, Bar code scanners or USB Flash Memory sticks.

Low power consumption allows a long battery life.

System Requirements:

- One free CF TypeII compatible slot. - OS Pocket PC 2000 or Pocket PC 2002. ActiveSync and WindowsPC with CD-ROM drive are required to install the drivers into PDA.

Certified PDA and USB devices PDA · Compaq iPAQ with CF Jacket, PC Card Jacket. · Dell Axim · Fujitsu Pocket Loox USB device HID class devices 　 Mass Storage devices · Keyboards 　 · USB Flash memory stick · Bar code scanners 　 · ZIP drive · Magnetic stripe card readers 　 · Removable HDD · RF-ID tag readers 　 · Flash Memory card reader/writers

Specifications:

Product name USB 1.1 Host Adapter CF Card Product Number CFU1U Bus Interface CF+ and Compact Flash Specification Rev.1.4 compliant USB port interface USB 1.1 compliant, supports Full(12Mbps) and Low(1.2Mbps). USB port Connector Series A female (down stream). USB Bus-Power availability 100mA(5V) maximum. Physical Dimensions CF TypeII 42.8(W) x 36.4(L) x 4.9(H) mm 1.69(W) x 1.43(L) x 0.13(H) inch

Cable length 300mm(12 inch)

Weights CF Card : 10g. 0.35oz. Cable : 20g 0.70oz. Power Consumption Standby 5V Vcc 27mA(Not included USB Bus power output current). 3.3V Vcc 34mA(Not included USB Bus power output current).

OS Support Pocket PC 2000, Pocket PC 2002. Certification VCCI/FCC Part 15, Class B. Warranty Removable Cable 90 days, Card 5 years. Package includes · CFU1 USB 1.1 Host Adapter CF card. · Removable cable. · Software CD-ROM - USB Host driver and INF file. - USB Device Class drivers(HID, MassStorage) For Pocket PC 2000 and Pocket PC 2002. · User's Guide

这里好象说可以支持IPAQ的，而据我了解，IPAQ是没有USB HOST的，再说，如果PDA本身就有USB HOST………………那还需要CF2USB 吗？！本身不就可以接USB 一些设备了吗？？

注意：是一些USB设备，就是说有驱动的，而USB Memory 本身好象是支持的。也包括了
USB HD等………………
