TITLE: HP iPAQ Pocket PC h2210 ROM Update
VERSION: 1.10.00 Rev A
DESCRIPTION: This SoftPaq contains the ROM Update Utility (RUU) and
ROM image for the listed handheld model.
IMPORTANT: This update utility replaces the current ROM image and erases
the partnership and all user data and programs on the handheld. It is
important to read and understand the information in the Readme.txt file
included with this update BEFORE installing this SoftPaq.
NOTE: Do not perform the ROM update through a USB hub. Installing through
a USB hub may cause the host PC to receive a General Protection Fault error
thereby forcing a reboot of the host PC upon completion of the ROM update.
Users updating the ROM through a serial connection on a host PC running
Microsoft Windows 2000 or Microsoft Windows XP could receive a "Connection
Error" during the update. If this occurs, simply follow the on-screen
instructions and try again. If the problem persists, unplug the serial
connection and perform the update using a direct connection to the USB
port of the host PC.
PURPOSE: Recommended
SOFTPAQ NUMBER: SP27813
SUPERSEDES: None
EFFECTIVE DATE: May 24, 2004
CATEGORY: BIOS
SSM SUPPORTED: No
PRODUCT TYPE(S):
Handhelds
PRODUCT MODEL(S):
HP iPAQ Pocket PC h2210
OPERATING SYSTEM(S):
Microsoft Pocket PC 2003
LANGUAGE(S):
Traditional Chinese
ENHANCEMENTS:

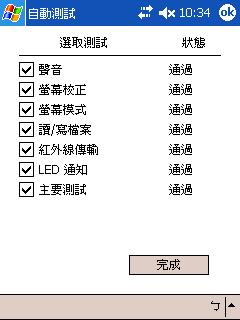

- Adds Self Test.
- Adds Support for the Extended Battery.
- Added Support for "Wake on Ring" (this feature requires third-party
software to function correctly)
- Connectivity:
- Adds Wi-Fi Protected Access (WPA).
- Improves wireless connectivity technologies.
- Enables Microsoft Pocket Internet Explorer to correctly encode URLs with
"&lang" references.
- Enables Microsoft Pocket Internet Explorer to use cached pages when offline,
even for local servers.
- Allows configurable header for Microsoft Pocket Internet Explorer.
- Enables connection with IEEE 802.1x to Microsoft Windows Server with
PEAP fast reconnect enabled.
- Contacts: Sorts contacts according to the country selected in Regional Settings.
- Inbox: Clarifies location of SMS inbox.
- Localization:
- Adds ability to enter full IP address for DNS entry in Spanish.
- Adds ability to save contacts with Far East characters in both first
and last names.
- Adds ability to use partial Cyrillic name to find contacts.
- KOR keyboard now allows for
- Settings: Enables CHT owner information to be shown on Power-On.
- Shell:
- Improves USB reliability.
- Adds use of high-quality MIDI playback for alarms and meeting reminders.
- Improves data integrity when file system is nearly full.
FIXES:
- Fixes the Sleep Mode SD power drain.
- Fixes iPAQ Backup shutdown after 10 seconds when a backup is scheduled.
- Connectivity:
- Fixes the JavaScript event handler to operate correctly.
- Updates Bluetooth driver to resolve Bluetooth hang issue.
- Enables connectivity bubble to correctly display GPRS status
when connected through a proxy.
- Contacts: Removes duplicate radio telephone number from Contacts List view.
- Inbox:
- Replace type short messages are not duplicated.
- SMS messages with alphanumeric address are parsed correctly.
- Instant Messenger: IM signs in.
- Localization: Errant character no longer inserted by Action button on KOR
- Settings: Handheld properly returns to Power Off state after an alarm.
KNOWN ISSUES:
Performing the ROM update through a USB hub is not recommended. Installing
through a USB hub may cause the host PC to receive a "General Protection Fault"
error, thereby forcing a reboot of the host PC upon completion of the ROM update.
PREREQUISITES:
Synchronization software such as Microsoft ActiveSync 3.7.1 or later
HOW TO USE:
1. Download the SoftPaq .EXE file to a directory on your hard drive.
2. Execute the downloaded file and follow the on-screen instructions
to unpack the ROM Update files to a directory. (NOTE: This directory
should not contain any file or folder from any previous ROM Upgrade).
3. Establish an Activesync connection between the iPAQ Pocket PC and
host PC using either a USB or serial connection.
4. Execute the UpgradeUt.exe file in the directory created in Step 2
to begin the upgrade process. Follow the on-screen instructions
displayed by the ROM Upgrade Utility.
5. Delete the self-extracting file downloaded in Step 1, if desired.
INSTALLATION NOTES:
1. During the update, the ROM Update Utility will:
- Query your device for current ROM image information.
- Validate that the new ROM image is compatible with your device.
- Automatically place the iPAQ in flash mode.
- Update the ROM image on your device.
- Request that you Reset your device upon completion.
2. Important: Disable the Standby and Hibernation modes on the host PC.
If Standby or Hibernation mode is activated during the upgrade process,
a critical error may occur.
3. Important: Plan for enough time to start and complete the update process.
The total time required to perform a ROM update is estimated to be as follows:
- USB connection - 20 minutes
- Serial connection - 90 minutes
4. Important: Do not interact with your device or remove it from AC power
or the cradle/cable once the status bar appears on the iPAQ and the actual
update has started.
5. If an error message is displayed during the process, follow any available
instructions to correct the condition and start the utility again.
6. The update process can be performed while connected to a host PC either
as a Guest or with an established partnership.
Copyright (c) 2004 Hewlett-Packard Development Company, L.P.

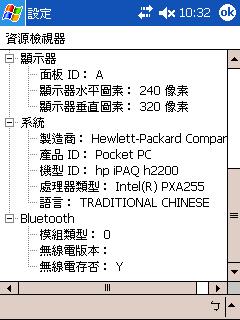

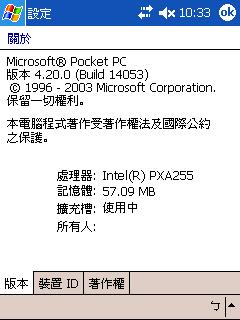

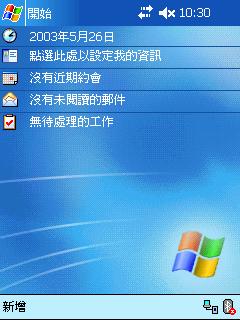

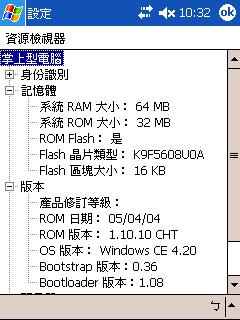

來一些圖囉~~
