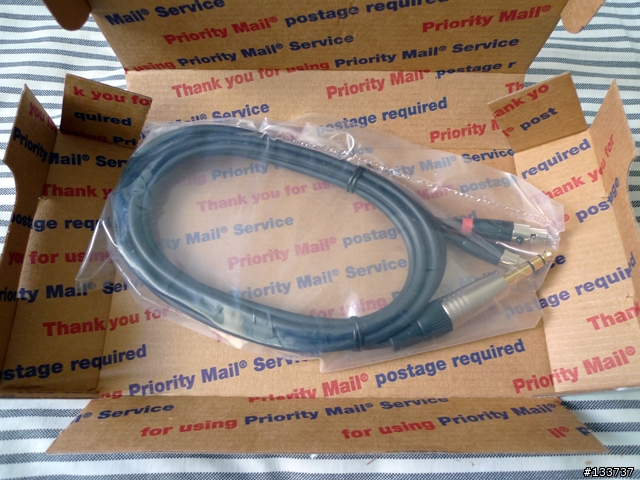

Cable Overall Length – 2.5 meters or 8.2’ with 8” split Weight: 119 grams

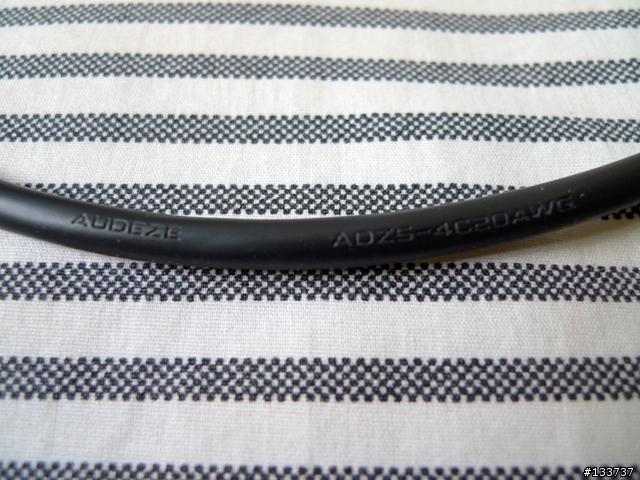

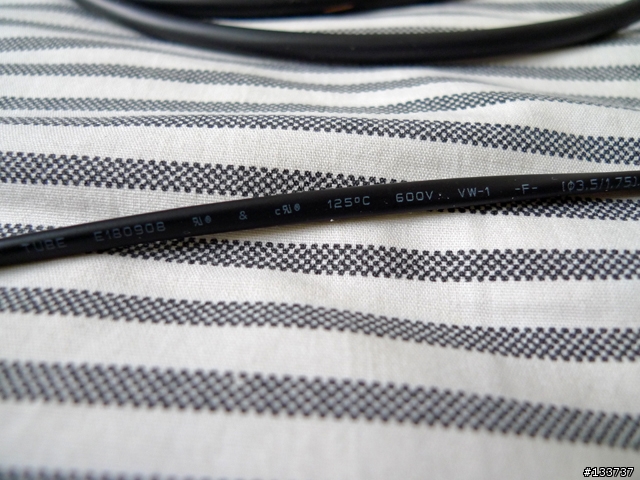

Wire Construction 140 strands of high purity audio grade copper 20AWG for very low impedance, high current capacity with extended high frequency range Low inductance and Capacitance Maximum operating voltage 500V AC or DC Very flexible, tangle free cable Non-Microphonic

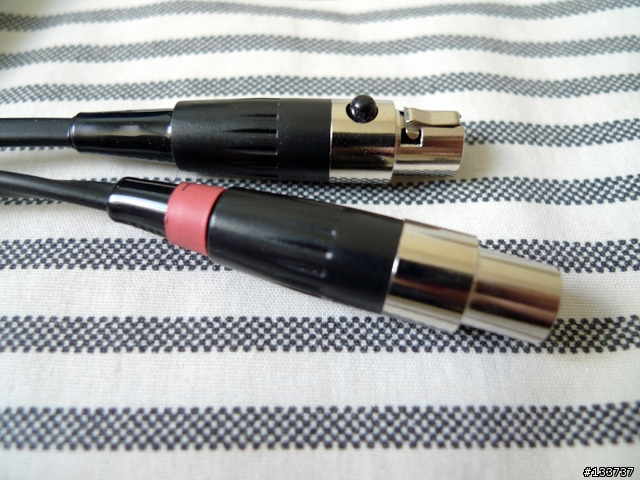

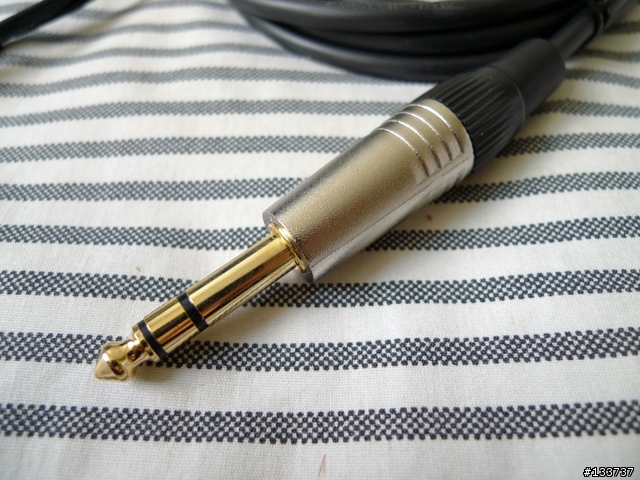

Connectors Professional ¼” gold plated stereo plug for input signal Professional gold plated latching 4 pin mini XLR connectors
Electrical Specifications Dielectric strength: 500V AC Resistance: 170 milliohms for returned path of 2.5m long cable; this includes the contact resistance of our mini XLR connector on LCD-2 housing Capacitance: 250 pF, including mini XLR connector on LCD-2 housing Response: -3dB @ 12.7 MHz Inductance: 1.8 microH
