請推薦菜單自組電腦預算在15K,跑Autocad及Solidwork

請版上的高手推薦預算15K(可小超一點沒關係)跑Autocad及Solidwork的菜單?
因對於繪圖需要的配備不太了解,有請大大推薦菜單~
2014-07-13 10:29 發佈

pk6210 wrote:
請版上的高手推薦預算...(恕刪)


這些是用原價屋系統配的

AMD FX6300【六核】3.5G + 技嘉 78LMT-USB3/M-ATX/1A1D1H/全固/前U3/4年, $4990
AMD AM3+ 腳位

記憶體 RAM 威剛 4G DDR3-1600【組裝支援價】, $1089
桌上型記憶體 DDR3 單支

內接硬碟HDD|固態SSD Toshiba 500GB (DT01ACA050)/32M/7200轉/二年保 (紅綠配省$50), $1550
3.5" SATA3 HDD硬碟

顯示卡VGA 麗臺 Quadro K600/1G DDR3/CUDA:192/128bit/16cm(三年保), $6390
nVIDIA專業繪圖卡

CASE 機殼(+電源) GZ-ZGF1 / 顯卡長 24cm.風扇高 14cm / U3內置.黑化機身 紅配綠省200, $850
技嘉 原廠 優惠機殼

電源供應器 全漢 黑武士 350W / 80+銅牌.主日系電容 / 五年保固.二年換新, $990
全漢三年免費/POWER界霸主

TDP耗電208瓦  含稅 現金價:15859 紅綠配現省 250 現金優惠價:15609
兩個方案參考

●AMD方案


●INTEL方案

玩3D繪圖,RAM至少需要8GB,不然記憶體空間用完用到硬碟暫存速度會慢很多
若是要使用Intel平台,可先考慮先用內顯,CPU I5-4440~4690..(單子幫您配I5-4690)
顯示卡可先不買...真的要拿來工作賺錢,日後再購買當時新的繪圖卡

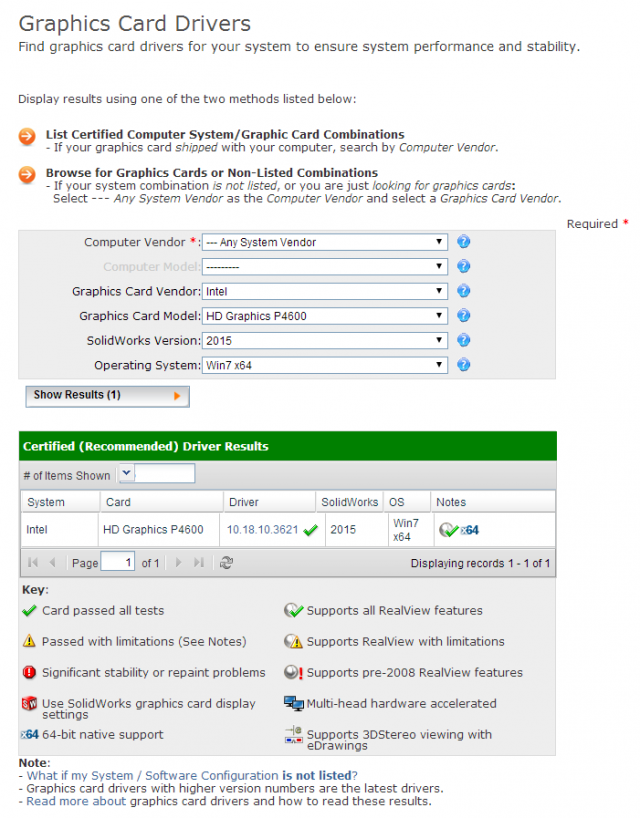

INTEL HD4600↑、AMD FirePro V3800↑、NVIDIA Quadro 410↑顯示支援SolidWorks 2015
AUTOCAD 2015方面,需求和SolidWorks 2015大同小異




































































System requirements for AutoCAD 2015
Operating System

  • Microsoft® Windows® 8/8.1

  • Microsoft Windows 8/8.1 Pro

  • Microsoft Windows 8/8.1 Enterprise

  • Microsoft Windows 7 Enterprise

  • Microsoft Windows 7 Ultimate

  • Microsoft Windows 7 Professional

  • Microsoft Windows 7 Home Premium

CPU Type For 32-bit AutoCAD 2015:


  • 32-bit Intel® Pentium® 4 or AMD Athlon™ Dual Core, 3.0 GHz or higher with SSE2 technology

For 64-bit AutoCAD 2015:

  • AMD Athlon 64 with SSE2 technology

  • AMD Opteron™ with SSE2 technology

  • Intel® Xeon® with Intel EM64T support with SSE2 technology

  • Intel Pentium 4 with Intel EM64T support with SSE2 technology

Network

  • Deployment via Deployment Wizard.

  • The license server and all workstations that will run applications dependent on network licensing must run TCP/IP protocol.

  • Either Microsoft® or Novell TCP/IP protocol stacks are acceptable. Primary login on workstations may be Netware or Windows.

  • In addition to operating systems supported for the application, the license server will run on the Windows Server® 2012, Windows Server 2012 R2, Windows Server 2008, Windows 2008 R2 Server editions.

  • Citrix® XenApp™ 6.5 FP1

Memory 2 GB (8 GB recommended)
Display Resolution 1024x768 (1600x1050 or higher recommended) with True Color
Display Card Windows display adapter capable of 1024x768 with True Color capabilities. DirectX® 9 or DirectX 11 compliant card recommended but not required.
Disk Space Installation 6.0 GB
Pointing Device MS-Mouse compliant device
Digitizer WINTAB support
Plotter/Printer Same as AutoCAD 2013-2014 — system printer and HDI support
Media (DVD) Download and installation from DVD
Browser Windows Internet Explorer® 9.0 (or later)
Side-by-side Install Supported
ToolClips Media Player Adobe® Flash® Player v10 or up
.NET Framework .NET Framework Version 4.5






















Additional requirements for large datasets, point clouds, and 3D modeling
CPU Type Intel Pentium 4 processor or AMD Athlon, 3.0 GHz or higher with SSE2 technology; Intel or AMD Dual Core processor, 2.0 GHz or higher
Memory 8 GB RAM or greater
Disk Space 6 GB free hard disk available, not including installation requirements
Display Card 1280x1024 True Color video display adapter 128 MB or greater, Pixel Shader 3.0 or greater, Direct3D®-capable workstation class graphics card.
CPU選擇六核心 + NVIDIA的顯示卡

可以參考
01腦包多,詢問組機文請小心有心人士!有任何問題請到「楓萍浪靜的緣分天空」中發問
cpu拿強一點 繪圖比較重cpu
內顯勉強可以撐 只要不要太複雜的圖都不是問題

處理器 CPU Intel 第四代 I5-4440【四核】3.1GHz(↑3.3GHz)/6M快取/HD4600/84W, $5580

主機板 MB 華擎 B85M Pro4/M-ATX/1A1D1H/U3S6/全固/前U3, $1900

記憶體 RAM 金士頓 8G DDR3-1600, $2270

內接硬碟HDD|固態SSD Seagate 1TB (ST1000DM003) 64M/7200轉/單碟1TB/二年【二年換新】(送購物金$50), $1850

燒錄器 CD/DVD/BD LITE-ON iHAS324/24XDVD燒錄(黑), $489

CASE 機殼(+電源) Chaser A21-暗黑版 / 顯卡長 32cm.風扇高 15.5cm / U3內置.SSD*1, $1290

電源供應器 金緻冰核 REVOLUTION X"t 430W、80+金牌.13.9cm磁力氣壓滾珠風扇 全扁平式半模組, $1990

TDP耗電181瓦  含稅 現金價:15369
