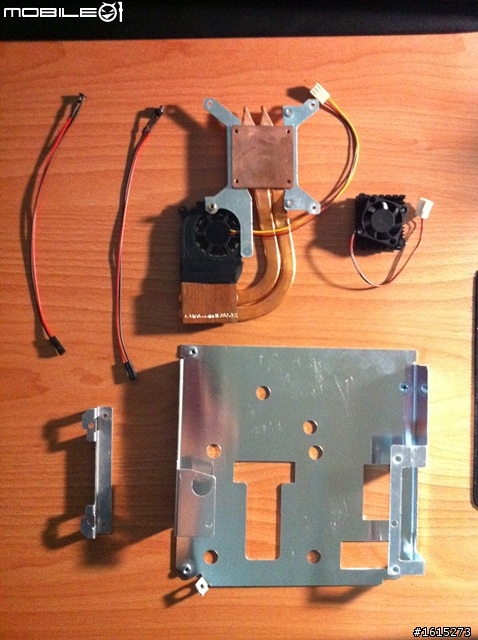

1.電源開關+LED指示燈+主板基架+H61晶片風扇+CPU散熱器+硬碟固定架
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-193ee09a97c12c6320ba6c5eae5780ba.jpg)
2.MAC MINI CASE
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-1de5ccdfd32e5e5e7518b75b52f95c77.jpg)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-ce3dc1ea3623840da3e25fc612906ad6.jpg)
3.INTEL DH61AG主板
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-4a3e056773a404d2b4423b41f8ec91a8.jpg)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-100839e48845a3a4bf0e24571496784d.jpg)

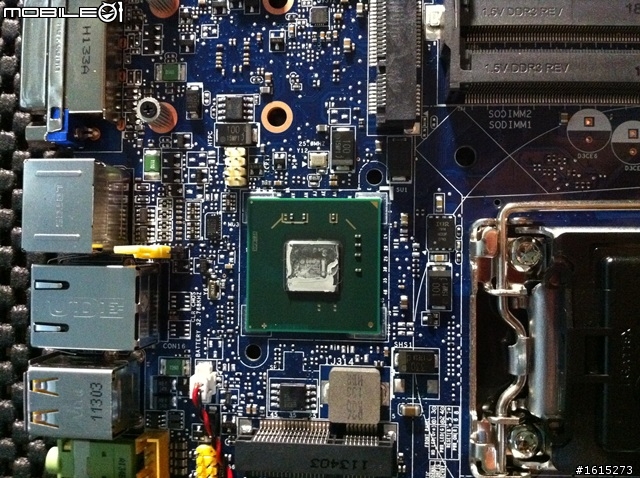

4.拆開H61晶片原裝散熱器
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-3ceb93f036f70c18f41e8fde3afc86d2.jpg)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-99bd9f40c5b825c8375d1110977df116.jpg)
5.將散熱膏清理乾淨
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-142714320ea312c8a0362ac0a86820aa.jpg)

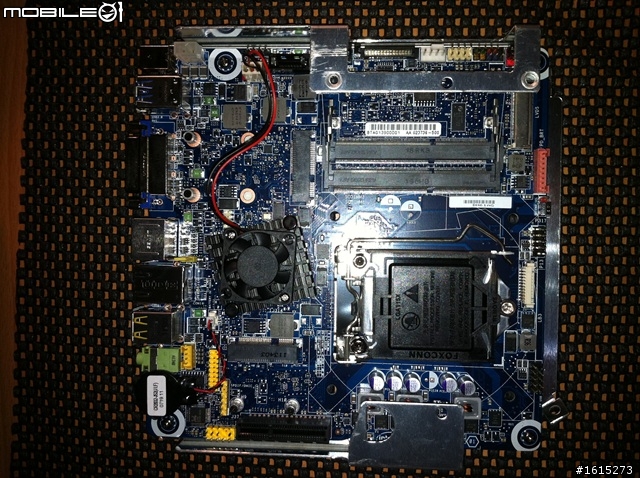

6.主板上主板基架+安裝H61散熱組件
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-7ae7dc1172c5bd3721ed281a96d82b28.jpg)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-b98115fee049c2f384da4dbcb514135b.jpg)
7.裝入CPU+RAM
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-6cbc91177cd905bce0c6112de2703b00.jpg)
8.安裝CPU散熱器與硬碟(硬碟採用SATA3_SSD_120G)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-06513d1a8c76a95489c2970aec025652.jpg)
9.放入MINI CASE(放入前需將原裝內部零件清空，不然放不進去)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-bb26c108ee31e1e6915085e94c3079c4.jpg)
10.安裝DIY藍芽(原裝藍芽模塊)可以GOOGLE
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-cc5b76e9ee30f816d8a5c9726c5f0eb1.jpg)
11.安裝APPLR 原裝無線網卡及無線天線(可是天線太長了還DIY一下將它變短)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-6de380f344fc8ff4b328856367a633d1.jpg)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-7929ae192f31a524ef0986ec6a05bbf5.jpg)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-67b48be6431a068d746ad17d46f82cec.jpg)

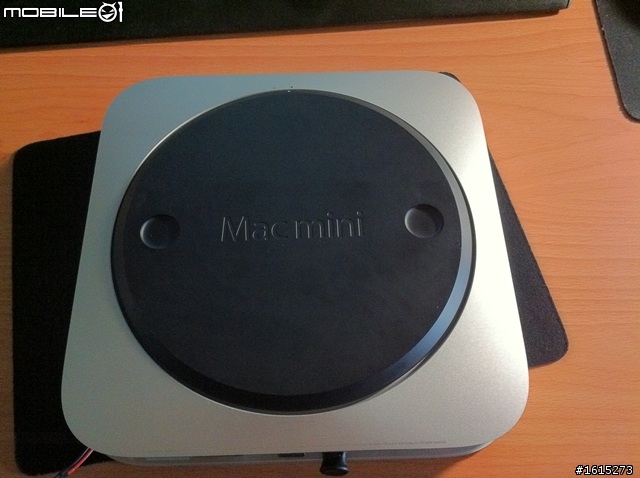

12.蓋上底蓋
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-1acde5c98d4fc91bfbbfa59e7a44e402.jpg)
13.剩下IO側
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-908112344ffacddf906fd6a9830e3f24.jpg)
14.訂製的IO擋板2012/2/26才收的到
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-c3b21a8f2e67030715f117d8885cce87.jpg)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-6ba37ca5d066b1157c44833ac4b53fb4.jpg)
15.訂製的SWITCH 固定座
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-ec4f7f49915539d54a74288f24ba89ab.jpg)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-2e81fa753cf1d91020ee7ae669b49fe9.jpg)

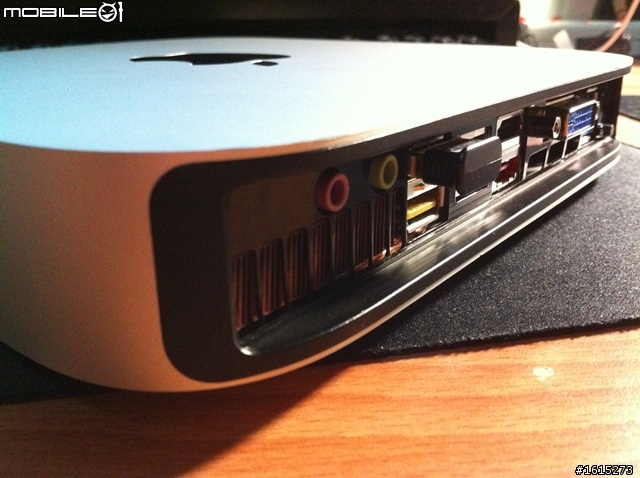

16.裝上IO擋板後
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-961847ad54f1907f675f334b59be63e3.jpg)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-185e5aa55ad5c19c62b5292f2e5d8ac6.jpg)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-97a43808e01f073bf094d807d8b650b4.jpg)
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-0df8a454897cd316211f9df1dbea6895.jpg)
17.完成，其實這樣子的$$可以買一台原裝的MINI了呵呵！一切只是想DIY然後也是為了
![[分享] Mac mini CASE 放入intel DH61AG+I3_2125](http://attach.mobile01.com/attach/201202/mobile01-4b3772b022454a81d818f891f36cd352.jpg)
就因為他是蘋果，黑的！呵呵呵
以上的硬體資源都來自對岸的ICEMAN，感謝他~~~
此帖第一次發帖在MOBILE01。
