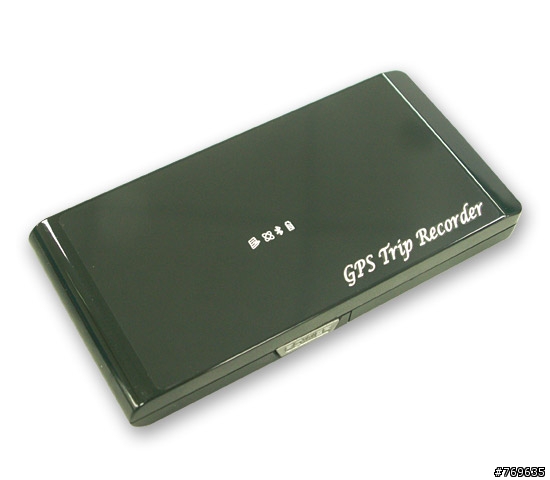

• 51-Ch. Bluetooth GPS Data Logger
At just 10mm thick, this BT GPS logger features an all in one, cost effective portable GPS logging solution. With its on-board memory, it allows you to log your route. Through user friendly utility, it shows your track on Google Earth. And by coupling smart power-saving options with fuzzy auto on/off, it's also the most power-efficient receiver available. Highly sensitive and super-efficient, this device enjoys wide consumer appeal.
Features:
• w/ 32Mb serial Flash, up to 150,000 way points
• More than 18 hrs operating time
• Bluetooth GPS with 51 channels
• Ultra high sensitivity up to -158 dBm (Tracking)
• Smart Power Save Mechanism (Transystem Patent)
• Fuzzy Auto On/Off (Transystem Patent)
Application:
• Record your travels and show on Google Earth
• Manage business trip expenses
• Fleet management
• Keep an eye on valuable merchandise
• Show your photos on Google Map
• Support photo Geo Tagging
Specifications:
Category Parameter Description
General Frequency L1, 1575.42MHz
C/A Code 1.023MHz chip rate
Channels 51 CH for tracking
Antenna Built-in patch with LNA
Datum WGS-84
Acquisition Cold Start 36 sec, average
Warm Start 33 sec, average
Hot Start 1 sec, average
Reacquisition <1sec
Accuracy
(none DGPS) Position Without aid: 3.0m 2D-RMS <3m CEP(50%) without SA(horizontal)
Velocity 0.1 m/sec without SA
Time 50 ns RMS
Sensitivity -158dBm
Dynamic Altitude < 18,000m
Velocity < 515m/sec
Acceleration 4g max.
Protocol GPS Output NMEA-0183 (V3.01) - GGA, GSA, GSV, RMC (default)
GLL, VTG (optional)
Data bit : 8, stop bit : 1(Default)
Interface Bluetooth™ Version 1.2 compliant
Output Power Class 2 (10 meter in free space)
Frequency 2.4 to 2.48 GHz
Power Battery Rechargeable 750mAh Lithium battery
Work Hours 18 hrs
Standby Time 250 hrs
DC Input 5V
Power Charge Mini USB
Environment Operating - 10°C to + 60°C
Storage - 20°C to + 60°C
Charging 0°C to + 45°C
Humidity 5% to 90% non-condensing
Physical Dimension 93.5 x 46 x 10.8mm
Weight 49.5g
Others Certification CE / FCC
LED Bluetooth, Navigation, Battery / changer status
