[消息]nokia於車上行動電話的研發

前言:在亂逛網站下，又找到一郭怪東東，先放一些圖讓大家看一下唄....

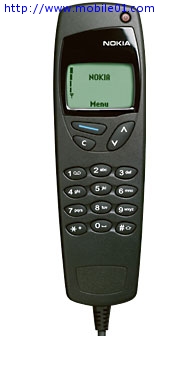

首先，這是nokia車上行動電話的始祖NOKIA6090:



再來是欲發售的NOKIA810

這個是螢幕

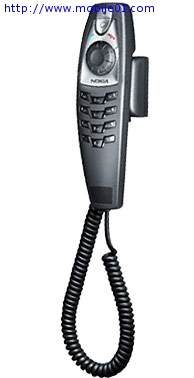

這是手機實體:

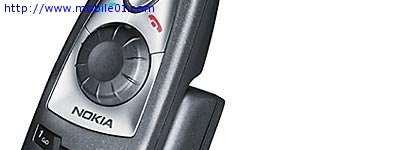

人性化的調節環:



特點是手機跟螢幕分開 (y)

nokia810實際flash展示

更舒適的車上行動電話空間…

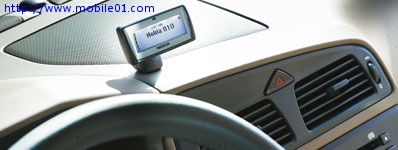

分離式螢幕帶來科技的享受…



以下是noia發表的新聞稿(from : sogi)

基亞發表創新的Nokia 810車用電話，可望使汽車中的語音和數據通訊的便利舒適性更上一層樓。使用者可以透過新型Navi™控制輪輕鬆使用各種功能。此外，Nokia 810 車用電話的免持聽筒音質以加強，透過有線電纜連接器連結的外接天線更提升了GSM系統的涵蓋範圍。 Nokia 810 雙頻車用電話 （GSM 900/1800）支援語音通訊和HSCSD、GPRS系統的高速數據，並支援藍芽技術。Nokia 810預期於第三季起在歐洲、非洲及亞太地區部份市場上市。

諾基亞行動電話事業部行動配件產品主管歐洛斯(Razvan Olosu)表示：「對重視效率的駕駛人而言 ，新型的Nokia 810 車用電話整合了最佳的使用性和方便性，確保駕駛人能迅速地操作各種行動電話功能。」他同時指出，「藍芽技術和語音辨識能力的整合是車用電話的一大創新，駕駛人只要使用語音指令，即可操作手機上的功能，也可與藍芽耳機結合使用。」
Nokia 810 車用電話最重要的功能是新型Navi™控制輪，可順時鐘或逆時鐘轉動，迅速使用各種駕駛人所需的功能，例如：姓名與電話號碼，而其他功能只要按一個鍵也就可以簡單的方式操作。Nokia 810 車用電話的大型獨立顯示螢幕字體清晰、可調整安裝位置、並有自動背光照明功能，方便使用。

Nokia 810 車用電話的記憶體可讓不同的兩個人獨立使用，而僅僅需要一張SIM卡。這種個人化功能最適合用在駕駛有一人以上的公務車。電話簿內容、語音撥號、訊息、與鈴聲等電話設定都存在兩套獨立的記憶體中，可輕易啟動。駕駛人可使用相容的藍芽耳機，進行對話。Nokia 810車用電話還可透過藍芽或RS 232數據線連接筆記型電腦或汽車內建系統等週邊裝置。透過AT指令操作，Nokia 810也可當作數據機或車隊管理應用工具。

註：請注意各地對行車環境使用行動地電話的相關法規




格式與規格:

Full Specifications
Dual-band EGSM 900/GSM 1800 operation
Internal SIM card reader
Ignition sense
Navi™ wheel
Bluetooth interface
RS232 connector
Modem and fax function via RS232 and Bluetooth interface
GSM data transfer:
- HSCSD up to 43.2 kbps
- GPRS up to 40.2 kbps
AT command set
User-guided phone configurations
Memory for 2 user profiles including contacts, voice tags, and personal settings
Contacts download from compatible mobile phone supporting Bluetooth technology
Forwarding of business cards and calendar entries to a compatible phone via either text message or wireless Bluetooth technology

Audio Features
Handsfree with excellent audio quality, option to use compatible existing car loudspeakers
Support fot car radio mute
Switch between compatible headset supporting Bluetooth technology and car audio
Ringing tone and speaker volume adjustment with Navi™ wheel
Switch between normal, silent, and standby modes

Voice Features
User-dependent voice dialing, memory for up to 12 names per user profile
3 user-dependent predefined voice commands per user data set:
- Replay voice memos
- Download contacts
- Replay name tags
- Replay command tags

Call Features
Call initiation:
- Voice dialing with name tags
- From phonebook
- From call registers
- From favorites list
- Number dialing
- Speed dialing
Accept/reject an incoming call
Voice call back to SMS sender
Closed User Group
Fixed Dialing Number

Messaging
Read SMS
Send predefined SMS templates

Interfaces Supported
GSM 900/1800 antenna
Bluetooth profiles:
- Object Push
- Dial-up Networking
- Fax
- Serial Port
- Headset
- Handsfree
RS232 connector

Languages (no Chinese= =?)
Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian

Sales Package Contents
Radio Unit TFE-4R
Display Unit XDW-1R
Handset HSU-4
Mounting Plate MKE-1
Microphone HFM-8
External HF Speaker SP-2
Power Cable PCU-4
Data Cable AD-3
Installation and User's guides

Radio Unit TFE-4R
Weight: 305 g
Dimensions: 140mm x 106mm x 41mm
Operating voltage: approximately 10.8V-16V, normally 12V
Power consumption: Active (call) < 1.5A; Standby < 300mA, Off < 1mA<br>Normal operating temperature: -10° C to +55° C
Intermittent operating temperature: -30° C to +80° C
Storage temperature: -30° C to +80° C

Display Unit XDW-1R
Weight: 52 g e/o cable
Dimensions: 79mm x 65mm x 46mm
LCD: Monochrome, 84 x 24 pixels
Background light: White LED
Indicators: Fixed icons above active-pixel matrix and scrollbar
Normal operating temperature: -10° C to +55° C
Intermittent operating temperature: -30° C to +80° C
Storage temperature: -30° C to +80° C


Handset HSU-4
Weight: 265 g
Dimensions: 172mm x 46mm x 30mm
4 function keys: Send, End/Clear/Back, voice control, audio control
Navi™ Wheel for scrolling and selection
Keypad: ITU-T/12 keys
Background light: White LED
Normal operating temperature: -10° C to +55° C
Intermittent operating temperature: -30° C to +80° C
Storage temperature: -30° C to +80° C


Microphone HFM-8
Weight: 37 g
Dimensions: 42.6mm x 23.6mm x 12.4mm


External HF Speaker SP-2
Weight: 238 g
Dimensions: 88mm x 65mm x 40mm

資料來源:nokia
