[分享]6230耳機轉接頭

前言:
今天心血來潮...心想6230雖然可直接擴音撥放mp3....不過.收音機卻一定得用原廠耳機聽才行..不過.因為原廠耳機音質不是很好...因此.手癢動手製作個轉接頭.

材料是:耳機.線材.3.5"耳機母.

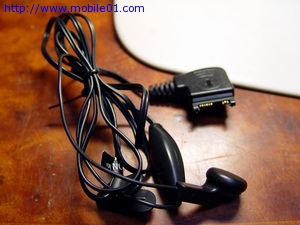

而被開刀的耳機...當然是路邊99元的7250單耳耳機.

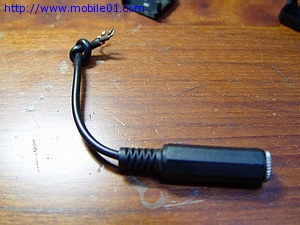

而3.5'的耳機母接頭可以去電子材料電購買.

(手機端子與耳機端子在下面補述)

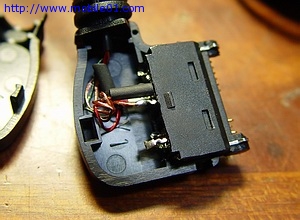

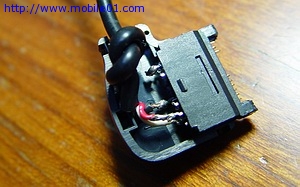

一切都很順利..也測出左右聲道的音源線路...

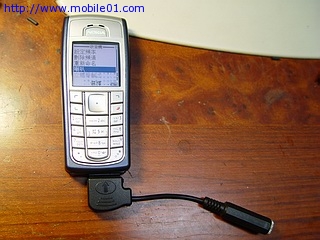

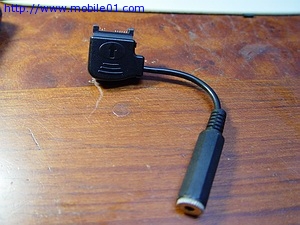

完成了轉接頭..也接上電腦喇叭試聽....嗯...音質不錯.

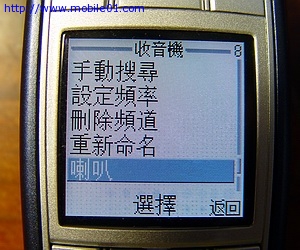

不過.若不想用耳機時.....收音機聲音也可從手機的擴音喇叭出來.(不過須插轉接頭喔)



手機底部腳位資訊如下:

(記得先確定腳位..再用(7250立體)耳機接頭對準線路..
Pop-port

(left) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 (right)
Screen facing up


1 Charge (V Charge)

2 GND (Charge GND)
3 ACI (ACI - Insertion & removal detection)
4 VOUT (DC out)

5 NC (Not connected)
6 FBUS RX
7 FBUS TX
8 GND (Data GND)

9 XMIC N (Audio in - Ext. Mic input)
10 XMIC P (Audio in - Ext. Mic input)
11 HSEAR N (Audio out - Ext. Audio out - left)
12 HSEAR P (Audio out - Ext. Audio out - left)
13 HSEAR R N (Audio out - Ext. audio out - right)
14 HSEAR R P (Audio out - Ext. audio out - right)

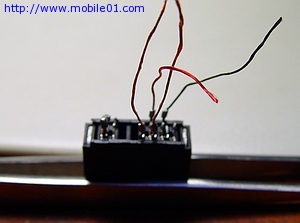

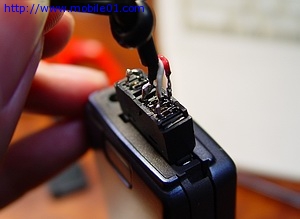

而耳機接頭位置:

2 GND (Charge GND)...................................................1
3 ACI (ACI - Insertion & removal detection)....................2
4 VOUT (DC out)..........................................................3

9 XMIC N (Audio in - Ext. Mic input)..............................4
10 XMIC P (Audio in - Ext. Mic input)............................5
11 HSEAR N (Audio out - Ext. Audio out - left)..............6
12 HSEAR P (Audio out - Ext. Audio out - left) ..............7
13 HSEAR R N (Audio out - Ext. audio out - right)..........8
14 HSEAR R P (Audio out - Ext. audio out - right)...........9
