可以與OVPN的ethernet模式進行Layer2隧道連接,類似於Eoip-Tunnel.
| Office1 配置: #建立bridge1 ,並橋接與之的端口(ether2) /interface bridge add name=bridge1 protocol-mode=rstp /interface bridge port add bridge=bridge1 interface=ether2 #建立屬於ethernet mode的profile(ovpn-bridging) 與帳密 /ppp profile add name=ovpn-bridging bridge=bridge1 use-encryption=yes /ppp secret add profile=ovpn-bridging name=123 password=123 \ local-address=172.16.0.0 remote-address=172.16.0.1 /interface ovpn-server server set auth=sha1 certificate=cert1 port=1194 cipher=blowfish128 default-profile=default \ mode=ethernet enabled=yes netmask=24 #啟用ovpn-server,並將mode切換至ethernet |
| Office2 配置: /interface bridge add name=bridge1 protocol-mode=rstp /interface bridge port add bridge=bridge1 interface=ether2 #與ovpn-server雷同 /ppp profile add name=ovpn-bridging bridge=bridge1 use-encryption=yes #profile與ovpn-server雷同,方可回應橋接 /interface ovpn-client add auth=sha1 certificate=cert1 port=1194 connect-to=123.123.123.123 name=ovpn-out1 \ mode=ethernet profile=ovpn-bridging user=123 password=123 #對Office1(123.123.123.123)進行ovpn撥號,mode切換至ethernet |
設置完成後,當client與server連接,

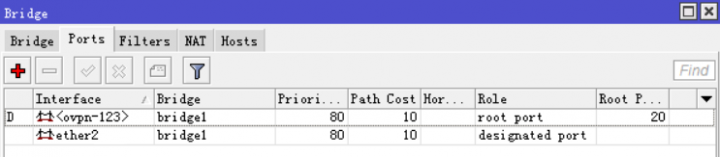

在bridge的port裡可以看到123帳號的連接在bridge port被自動添加
