gfx wrote:
您用複雜的方式處裡簡...(恕刪)
您好!!
想請問題正確設定方式是怎麼設定的?
主要需求單純就是希望三台電腦可以透過不同ip開設服務出去
感謝您~
kuanhsien wrote:我把設定匯出來,您修改後匯入即可
您好!!想請問題正確...(恕刪)
/ip firewall mangle
add action=mark-connection chain=prerouting in-interface=pppoe-out1 \
new-connection-mark=pppoe1_conn
add action=mark-connection chain=prerouting in-interface=pppoe-out2 \
new-connection-mark=pppoe2_conn
add action=mark-connection chain=prerouting in-interface=pppoe-out3 \
new-connection-mark=pppoe3_conn
add action=mark-routing chain=output comment="PPPoE\\A5X\\A4f" connection-mark=\
pppoe1_conn new-routing-mark=to_pppoe1 passthrough=no
add action=mark-routing chain=output connection-mark=pppoe2_conn \
new-routing-mark=to_pppoe2 passthrough=no
add action=mark-routing chain=output connection-mark=pppoe3_conn \
new-routing-mark=to_pppoe3 passthrough=no
add action=mark-routing chain=prerouting comment=DVR connection-mark=pppoe1_conn \
new-routing-mark=to_pppoe1 passthrough=no src-address=192.168.1.57
add action=mark-routing chain=prerouting connection-mark=pppoe2_conn \
new-routing-mark=to_pppoe2 passthrough=no src-address=192.168.1.58
add action=mark-routing chain=prerouting comment=IPCAM \
connection-mark=pppoe3_conn new-routing-mark=to_pppoe3 passthrough=no \
src-address=192.168.1.50
/ip firewall nat
add action=dst-nat chain=dstnat comment=DVR in-interface=pppoe-out1 \
to-addresses=192.168.1.57
add action=dst-nat chain=dstnat interface=pppoe-out2 to-addresses=\
192.168.1.58
add action=dst-nat chain=dstnat comment=IPCAM in-interface=\
pppoe-out3 to-addresses=192.168.1.50
/ip route
add distance=1 gateway=pppoe-out1 routing-mark=to_pppoe1
add distance=1 gateway=pppoe-out2 routing-mark=to_pppoe2
add distance=1 gateway=pppoe-out3 routing-mark=to_pppoe3
gfx wrote:
在命令視窗(New ...(恕刪)
您好!!
這是我目前的設定
我先在192.168.1.3做測試希望達到ppoe3可以對應到192.168.1.3 開啟所有服務port出去
目前這樣設定後，發現無法上網了...
麻煩您了

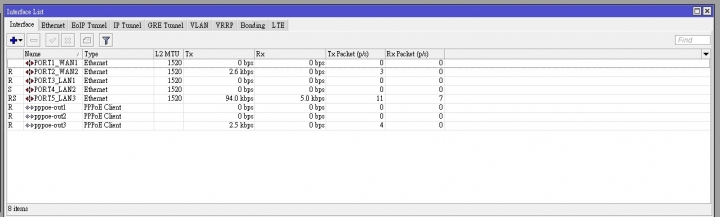

/interface ethernet
set [ find default-name=ether1 ] name=PORT1_WAN1
set [ find default-name=ether2 ] name=PORT2_WAN2
set [ find default-name=ether3 ] name=PORT3_LAN1
set [ find default-name=ether4 ] master-port=PORT3_LAN1 name=PORT4_LAN2
set [ find default-name=ether5 ] master-port=PORT3_LAN1 name=PORT5_LAN3
/ip pool
add name=dhcp_pool1 ranges=192.168.1.100-192.168.1.199
/ip dhcp-server
add address-pool=dhcp_pool1 disabled=no interface=PORT3_LAN1 name=dhcp1
/port
set 0 name=serial0
/interface pppoe-client
add ac-name="" add-default-route=no allow=pap,chap,mschap1,mschap2 \
dial-on-demand=no disabled=no interface=PORT2_WAN2 keepalive-timeout=\
disabled max-mru=1480 max-mtu=1480 mrru=1600 name=pppoe-out1 password=\
seednet profile=default service-name="" use-peer-dns=yes user=seednet
add ac-name="" add-default-route=no allow=pap,chap,mschap1,mschap2 \
dial-on-demand=no disabled=no interface=PORT2_WAN2 keepalive-timeout=\
disabled max-mru=1480 max-mtu=1480 mrru=1600 name=pppoe-out2 password=\
seednet profile=default service-name="" use-peer-dns=yes user=seednet
add ac-name="" add-default-route=no allow=pap,chap,mschap1,mschap2 \
dial-on-demand=no disabled=no interface=PORT2_WAN2 keepalive-timeout=\
disabled max-mru=1480 max-mtu=1480 mrru=1600 name=pppoe-out3 password=\
seednet profile=default service-name="" use-peer-dns=yes user=seednet
/ip address
add address=192.168.1.1/24 interface=PORT3_LAN1 network=192.168.1.0
/ip dhcp-server network
add address=192.168.1.0/24 dns-server=139.175.1.1,168.95.1.1,8.8.8.8 gateway=\
192.168.1.1

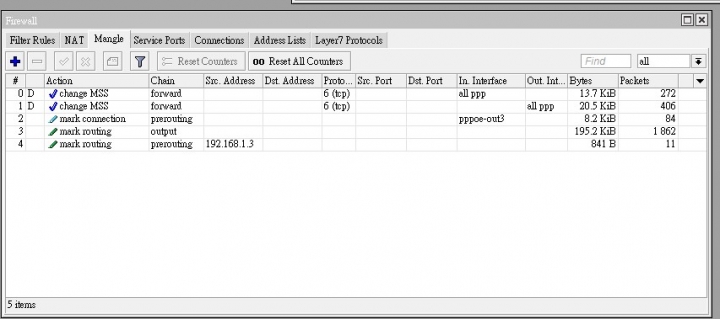

/ip firewall mangle
add action=mark-connection chain=prerouting in-interface=pppoe-out3 \
new-connection-mark=pppoe3_conn passthrough=no
add action=mark-routing chain=output connection-mark=pppoe3_conn \
new-routing-mark=to_pppoe3 passthrough=no
add action=mark-routing chain=prerouting connection-mark=pppoe3_conn \
new-routing-mark=to_pppoe3 src-address=192.168.1.3

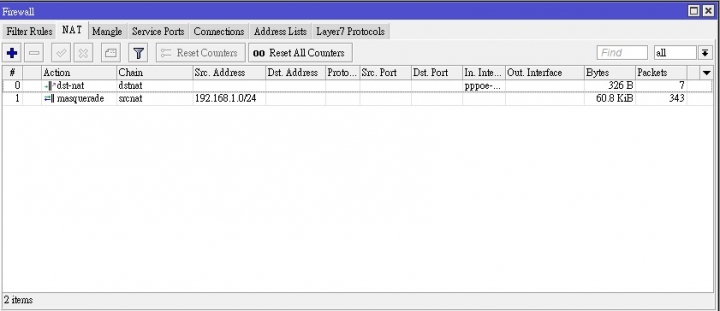

/ip firewall nat
add chain=dstnat dst-address=192.168.1.3 src-address=192.168.1.3
add chain=dstnat protocol=tcp src-port=0-65535
add action=dst-nat chain=dstnat in-interface=pppoe-out3 to-addresses=\
192.168.1.3
add action=masquerade chain=srcnat src-address=192.168.1.3

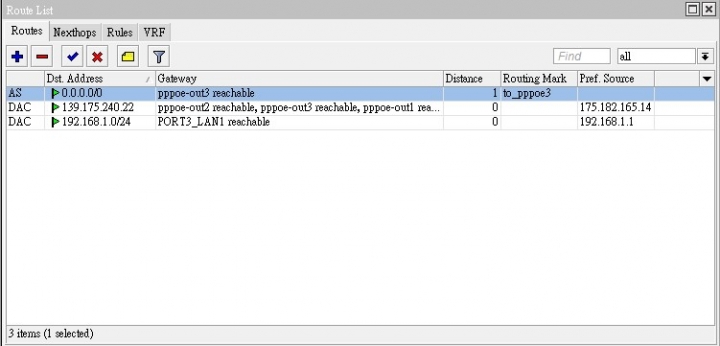

/ip route
add distance=1 gateway=pppoe-out3 routing-mark=to_pppoe3
/ip upnp
set allow-disable-external-interface=no
/system clock
set time-zone-name=Asia/Taipei
/system clock manual
set time-zone=+08:00
kuanhsien wrote:先讓您的系統能上網為優先!
您好!!
這是我目前...(恕刪)
請把下面的code全部複製起來,然後一口氣全部貼到執行視窗(New Terminal)
/interface pppoe-client set [find name="pppoe-out1"] user-peer-dns=no
/interface pppoe-client set [find name="pppoe-out2"] user-peer-dns=no
/interface pppoe-client set [find name="pppoe-out3"] user-peer-dns=no
/ip firewall nat remobe [find action="masquerade"]
/ip firewall nat add action=masquerade chain=srcnat out-interface=pppoe-out1
/ip firewall nat add action=masquerade chain=srcnat out-interface=pppoe-out2
/ip firewall nat add action=masquerade chain=srcnat out-interface=pppoe-out3
/ip firewall mangle add chain=prerouting \
src-address=192.168.1.0/24 dst-address=192.168.1.0/24
/ip firewall mangle set [find in-interface="pppoe-out3"] passthrough=yes
/ip firewall mangle add action=mark-connection chain=prerouting \
in-interface=pppoe-out2 new-connection-mark=pppoe2_conn
/ip firewall mangle add action=mark-routing chain=output \
connection-mark=pppoe2_conn new-routing-mark=to_pppoe2 passthrough=no
/ip firewall mangle add action=mark-connection chain=prerouting \
in-interface=pppoe-out1 new-connection-mark=pppoe1_conn
/ip firewall mangle add action=mark-routing chain=output \
connection-mark=pppoe1_conn new-routing-mark=to_pppoe1 passthrough=no
/ip firewall mangle add add action=mark-routing chain=prerouting \
new-routing-mark=to_pppoe1 src-address=192.168.1.0/24
/ip route add distance=1 gateway=pppoe-out1 routing-mark=to_pppoe1
/ip route add distance=1 gateway=pppoe-out2 routing-mark=to_pppoe2
貼上code的後,在/ip firewall mangle會有新增的action=accept ,把它給置頂(重要)
再打開電腦瀏覽器,看網路部份是否正常.
若您PPPoE都要對應的特定的裝置,那您應該再開pppoe-out4來對應.
不應該pppoe-out1既設定dmz對應裝置,又使用一般上網.
另外/ip firewall裡的設定都有排序先後,
您要透過整裡將優先往上置頂,不然運行起來結果會大不相同.
