ZyXEL 8埠GS-108S v2開箱

gfx
個人積分：1603分
文章編號：51887738

1603分

樓主

2014-08-30 19:05

8埠的Switch有什好看的?

的確沒什好提的...不過支援layer3驗證的Switch不多,大多是layer2吧.
不過layer3驗證可用在MOD或VoIP視訊電話,將資料傳到正確的Port,這點就與眾不同.
http://blog.xuite.net/azelmk2/eday/83824141

尤其layer3與layer2的Switch價格相同的情況下,您又會做何選擇?

聽了Edkang大的建議,於是抱了"ZyXEL 8埠 GS-108S v2"回家.

過程店員一直在旁邊洗腦要我改買Buffalo的8埠Switch是怎麼回事?
不過我知道我的需求...layer2的Switch閃邊去吧

ZyXEL GS-108S還有個兄弟是5埠的GS-105S ,差價在$300之間.
不過兩兄弟都不到$1000元的情況下,我選擇了GS-108S

2014-08-30 19:05 發佈

文章關鍵字 GS-108S v2 ZyXEL 8埠開箱 108

Edkang

Edkang
個人積分：452分
文章編號：51888865

452分

2樓

2014-08-30 21:04

gfx wrote:
8埠的Switch有...(恕刪)

嗯...別開

...
阿...來不及了

...
GS-108S v2 未上市前資料有寫支援IGMP協定...但實際上市後資料卻消掉支援IGMP協定這句...
被合勤給表了一次...

似乎台灣常見8-PORT GBE無網管型的SWITSH晶片都還沒有支援IGMP...
有支援的都是5-PORT

NETGEAR 8 Port Gigabit Smart Switch (GS108T,GS108Tv2)就有..但台灣瀚錸好像沒代理..

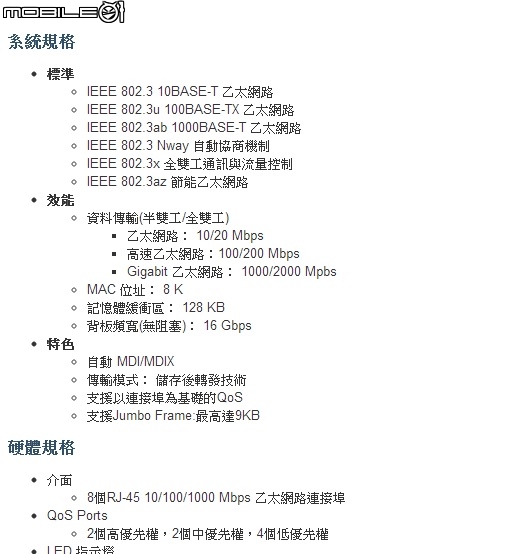

合勤當初的資料

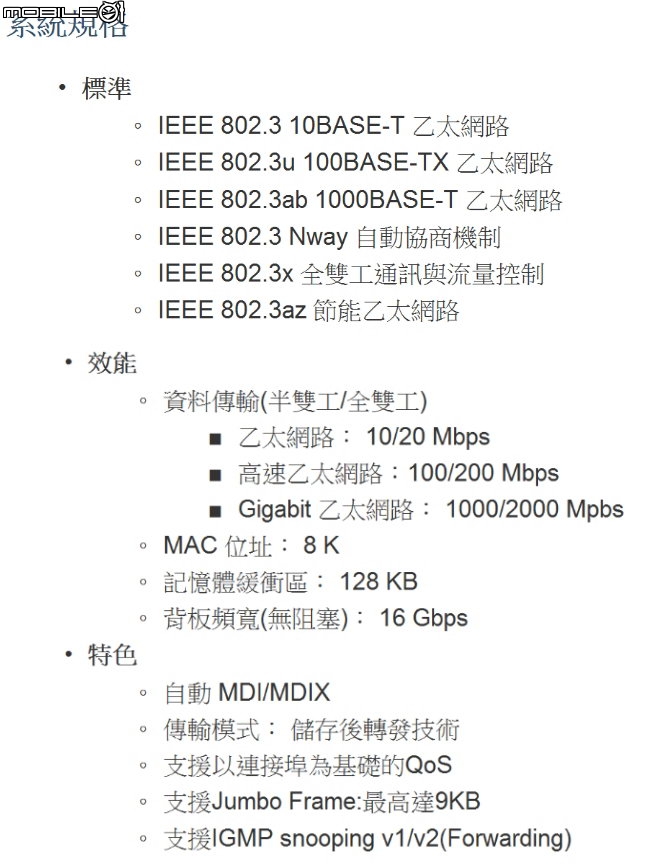

合勤現在的資料

gfx

gfx
個人積分：1603分
文章編號：51889460

1603分

樓主

2014-08-30 21:54

Edkang wrote:
GS-108S v2 未上市前資料有寫支援IGMP協定...但實際上市後資料卻消掉支援IGMP協定這句...
被合勤給表了一次...

是這樣嗎? 以為買到好東西~

不過沒差啦,自己的ASUS分享器也支援IGMP-Proxy /IGMP-Snooping

kenwang168

kenwang168
個人積分：102分
文章編號：51890097

102分

4樓

2014-08-30 22:37

看規格似乎是螃蟹晶片
網路設備小弟還是偏好 intel 或boardcom
前幾天才買 1299
netgear 8port giga 交換器

Edkang

Edkang
個人積分：452分
文章編號：51891214

452分

5樓

2014-08-30 23:50

gfx wrote:
是這樣嗎? 以為買到...(恕刪)

GS-108S v2

應該是使用Realtek晶片 RTL8370/RTL8370M
嗯...Realtek 資料上有寫
RTL8370(M) supports IPv4 IGMPv1/v2/v3 and IPv6 MLDv1/v2 snooping.

所以要看ZyXEL有沒有開啟支援...

Layer 2 Managed 10/100/1000 Switch Controllers

General Description
The RTL8370 is an LQFP128 E-PAD, high-performance 8-port Gigabit Ethernet switch, and the RTL8370M is a TQFP176 E-PAD, high-performance 8+2-port Gigabit Ethernet switch.
Both the RTL8370 and RTL8370M feature low-power integrated 8-port Giga-PHYs that support 1000Base-T, 100Base-T, and 10Base-T.

The RTL8370M supports two extra GMII/RGMII/MII ports for specific applications. The RTL8370 and RTL8370M integrate all the functions of a high-speed switch system; including SRAM for packet buffering, non-blocking switch fabric, and internal register management into a single CMOS device. Only a 25MHz crystal is required; an optional EEPROM is offered for internal register configuration.

The embedded packet storage SRAM in the RTL8370(M) features superior memory management technology to efficiently utilize memory space. The RTL8370(M) integrates an 8K-entry look-up table with a 4-way XOR Hashing algorithm for address searching and learning. The table provides read/write access from the EEPROM Serial Management Interface (SMI), and each of the entries can be configured as a static entry. The entry aging time is between 200 and 400 seconds. Eight Filtering Databases are used to provide Independent VLAN Learning and Shared VLAN Learning (IVL/SVL) functions.

Unfinished file and contains much errors. Do not use for anything. The Extension GMAC0 and Extension GMAC1 of the RTL8370M implement dual GMII/RGMII/MII interfaces for connecting with an external PHY or MAC in specific applications. This interface could be connected to an external CPU or RISC as 8-port Gigabit Router applications. In router applications, the RTL8370(M) supports Port VID (PVID) for each port to insert a PVID in the VLAN tag on egress. When using this function, VID information carried in the VLAN tag will be changed to PVID.
Note: The RTL8370M (only) Extra Interface (Extension GMAC0 and Extension GMAC1) supports:

Gigabit Media Independent Interface (GMII)
Reduced Gigabit Media Independent Interface (RGMII)
Media Independent Interface (MII)
The RTL8370(M) supports standard 802.3x flow control frames for full duplex, and optional backpressure for half duplex. It determines when to invoke the flow control mechanism by checking the availability of system resources, including the packet buffers and transmitting queues. The RTL8370(M) supports broadcast/multicast output dropping, and will forward broadcast/multicast packets to non-blocked ports only. For IP multicast applications, the RTL8370(M) supports IPv4 IGMPv1/v2/v3 and IPv6 MLDv1/v2 snooping.

In order to support flexible traffic classification, the RTL8370(M) supports 64-entry ACL rule check and multiple actions options. Each port can optionally enable or disable the ACL rule check function. The ACL rule key can be based on packet physical port, Layer2, Layer3, and Layer4 information. When an ACL rule matches, the action taken is configurable to Drop/Permit/Redirect/Mirror, change priority value in 802.1q/Q tag, and rate policing. The rate policing mechanism supports from 8Kbps to 1Gbps (in 8Kbps steps).

In Bridge operation the RTL8370(M) supports 16 sets of port configurations: disable, block, learning, and forwarding for Spanning Tree Protocol and Multiple Spanning Tree Protocol. To meet security and management application requirements, the RTL8370(M) supports IEEE 802.1x Port-based/MAC-based Access Control. For those ports that do not pass IEEE 802.1x authentication, the RTL8370(M) provides a Port-based/MAC-based Guest VLAN function for them to access limited network resources. A 1-set Port Mirroring function is configured to mirror traffic (RX, TX, or both) appearing on one of the switch’s ports. Support is provided on each port for multiple RFC MIB Counters, for easy debug and diagnostics.

To improve real-time or multimedia networking applications, the RTL8370(M) supports eight priority assignments for each received packet. These are based on (1) Port-based priority; (2) 802.1p/Q VLAN tag priority; (3) DSCP field in IPv4/IPv6 header; and (4) ACL-assigned priority. Each output port supports a weighted ratio of eight priority queues to fit bandwidth requirements in different applications. The input bandwidth control function helps limit per-port traffic utilization. There is one leaky bucket for average packet rate control for each queue of all ports. Queue scheduling algorithm can use Strict Priority (SP) or Weighted Fair Queue (WFQ) or mixed.

The RTL8370(M) provides a 4K-entry VLAN table for 802.1Q port-based, tag-based, and protocol-based VLAN operation to separate logical connectivity from physical connectivity. The RTL8370(M) supports four Protocol-based VLAN configurations that can optionally select EtherType, LLC, and RFC1042 as the search key. Each port may be set to any topology via EEPROM upon reset, or EEPROM SMI Slave after reset.

In router applications, the router may want to know the input port of the incoming packet. The RTL8370(M) supports an option to insert a VLAN tag with VID=Port VID (PVID) on each egress port. The RTL8370(M) also provides an option to admit VLAN tagged packet with a specific PVID only. If this function is enabled, the RTL8370(M) will drop all non-tagged packets and packets with an incorrect PVID.

Features
RTL8370M: Single-chip 8+2-port gigabit non-blocking switch architecture; RTL8370: Single-chip 8-port gigabit non-blocking switch architecture
Embedded 8-port 10/100/1000Base-T PHY
Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
Supports 9216-byte jumbo packet length forwarding at wire speed
Supports Realtek Cable Test (RTCT) function
RTL8370M Extra Interface (Extension GMAC0 and Extension GMAC1) supports
Dual-port Media Independent Interface (MII)
Dual-port Reduced Gigabit Media Independent Interface (RGMII)
Dual-port Gigabit Media Independent Interface (GMII)
Supports 64-entry ACL Rules
Search keys support physical port, Layer2, Layer3, and Layer4 information
Actions support mirror, redirect, dropping, priority adjustment, traffic policing, CVLAN decision, and SVLAN assignment
Supports 5 types of user defined ACL rule format for 64 ACL rules
Optional per-port enable/disable of ACL function
Optional setting of per-port action to take when ACL mismatch
Supports IEEE 802.1Q VLAN
Supports 4K VLANs and 32 Extra Enhanced VLANs
Supports Un-tag definition in each VLAN
Supports VLAN policing and VLAN forwarding decision
Supports Port-based, Tag-based, and Protocol-based VLAN
Up to 4 Protocol-based VLAN entries
Supports per-port and per-VLAN egress VLAN tagging and un-tagging
Supports IVL, SVL, and IVL/SVL
Supports 8K-entry MAC address table with 4-way hash algorithm
Up to 8K L2/L3 Filtering Database
Supports Spanning Tree port behavior configuration
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree with up to 16 Spanning Tree instances
Supports IEEE 802.1x Access Control Protocol
Port-Based Access Control
MAC-Based Access Control
Guest VLAN
Supports Quality of Service (QoS)
Supports per port Input Bandwidth Control
Traffic classification based on IEEE 802.1p/Q priority definition, physical Port, IP DSCP field, ACL definition, VLAN based priority, MAC based priority, and SVLAN based priority
Eight Priority Queues per port
Per queue flow control
Min-Max Scheduling
Strict Priority and Weighted Fair Queue (WFQ) to provide minimum bandwidth
One leaky bucket to constrain the average packet rate of each queue
Supports rate limiting (64 shared meters, with 8kpbs granulation)
Supports RFC MIB Counter
MIB-II (RFC 1213)
Ethernet-Like MIB (RFC 3635)
Interface Group MIB (RFC 2863)
RMON (RFC 2819)
Bridge MIB (RFC 1493)
Bridge MIB Extension (RFC 2674)
Supports Stacking VLAN and Port Isolation with 8 Enhanced Filtering Databases
Supports IEEE 802.1ad Stacking VLAN
Supports 64 SVLANs
Supports 32 L2/IPv4 Multicast mappings to SVLAN
Supports 4 IEEE 802.3ad Link aggregation port groups
Supports OAM and EEE LLDP (Energy Efficient Ethernet Link Layer Discovery Protocol
Supports Loop Detection
Security Filtering
Disable learning for each port
Disable learning-table aging for each port
Drop unknown DA for each port
Broadcast/Multicast/Unknown DA storm control protects system from attack by hackers
Supports Realtek Green Ethernet features
Link-On Cable Length Power Saving
Link-Down Power Saving
Supports 1 interrupt output to external CPU for notification (RTL8370M only)
Each port supports 3 parallel LED or scan LED outputs
Supports EEPROM SMI Slave interface to access configuration register
Supports 16K-byte EEPROM space for configuration
Integrated 8051 microprocessor
Supports Flash Interface
25MHz crystal or 3.3V OSC input
RTL8370M: TQFP 176-pin E-PAD package RTL8370: LQFP 128-pin E-PAD package
Applications
8-Port 1000Base-T Switch
8-Port 1000Base-T Router with Dual MII/RGMII/GMII

yungyao

yungyao
個人積分：290分
文章編號：51891217

290分

6樓

2014-08-30 23:51

Edkang wrote:
NETGEAR 8 Port Gigabit Smart Switch (GS108T,GS108Tv2)就有..但台灣瀚錸好像沒代理.....(恕刪)

GS108Tv2 這台淘寶賣842+33(黑貓宅配)

GS108E 這台露天看到是7400 淘寶是320+20(黑貓) 不知有沒看錯.....

shille

shille
個人積分：10分
文章編號：51894454

10分

7樓

2014-08-31 10:15

小弟買的是GS1100-16
沒有網管的交換器

kp.tseng

kp.tseng
個人積分：36分
文章編號：51896205

36分

8樓

2014-08-31 13:08

Edkang wrote:
嗯...別開...阿...(恕刪)

請教一下有沒有支援IGMP 在使用上的差異是?

小弟是買合勤8port 鐵殼的

gfx

gfx
個人積分：1603分
文章編號：51896361

1603分

樓主

2014-08-31 13:24

kp.tseng wrote:
請教一下有沒有支援I...(恕刪)

MOD與電腦同接在小烏龜,
當MOD播映影片不會讓電腦上網受影響是因為小烏龜內建IGMP-Snooping的功能.

IGMP-Snooping可以讓mod封包只往mod送,而不會往電腦跑.

如果小烏龜沒預先開啟IGMP-Snooping ,
那mod要接在分享器或Switch上就只依靠這些機器支援IGMP,
不然電腦與MOD同接在LAN埠時就會發生封包亂竄的衝突...

導致MOD播放出現馬賽克,電腦網路發生降速的情形.

Edkang

Edkang
個人積分：452分
文章編號：51897323

452分

10樓

2014-08-31 15:01

kp.tseng wrote:
請教一下有沒有支援I...(恕刪)

這...用白話一點的說明好了...

multicast多重傳播數據流範圍為224.0.0.0到239.255.255.255

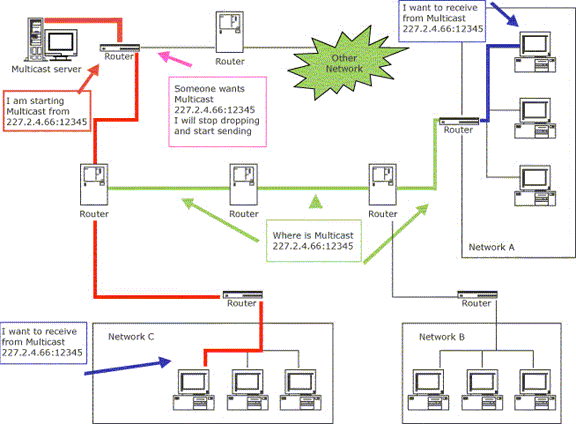

這是做為減少網路資源消耗,所做的群播協定...如圖本來同一訊號分三次傳變成一次訊號傳..
但是他屬於L2廣播派送...在一般的SWITCH並不會去判別...
收到一個multicast和broadcast封包時做的事是一樣的..
把這個封包拷貝成很多份丟到每一個switch port上...
然後就會傳到沒在使用群播的機器上,造成壅塞...

為了改善產生壅塞問題...所以就搞了一個IGMP協定...
讓路由器能知道如果下層終端機不需要接收multicast,就會丟棄該封包...
就更能節省網路頻寬...

目前應該遇得到的是IGMP V2的應用...
IGMP Snooping
是SWITCH自行建立一張對照表,作用於這一個SWITCH所使用PORT
如果內部網路有IP camera 或NAS做多媒體主機...這功能要優先考慮...

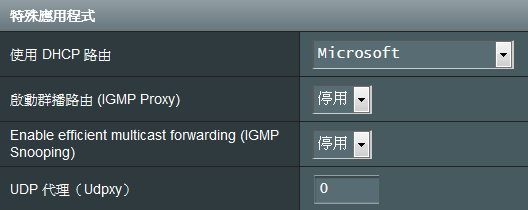

以gfx大大的華碩AC66u就是LAN1-4 port

IGMP proxy
是作用於一個專用PORT,像特殊的多媒體用SWITCH會有一個PORT專門接多媒體主機..
ROUTER的話通常會做在對外的埠...
以gfx大大的華碩AC66u應該就是WAN port
