SCHIIT RAGNAROK
購入日期： 2018/03/24
代理商： 音悅音響有限公司
售價： 20,000 NTD,
(可以面交)

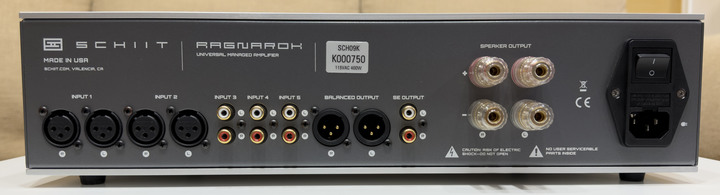

輸入端： (見說明書第 4 頁)
輸入選擇: (見說明書第 6 頁說明)
Input 1: Balanced Input
Input 2: Balanced Input
Input 3 - 5: Single-Ended Input
3 段增益： 1, 5, 20 (見說明書第 6 頁)
輸出端: (見說明書第 4 頁)
Balanced Output x 1,
Single-Ended Output x 1,
Speakers Output,
輸出選擇：(見說明書第 7 頁 USING ONLY HEADPHONES OR SPEAKERS 說明)
1.Both speaker and headphone output at the same time (default.)
2.Just speakers.
3.Just headphones.
規格
Frequency Response: 20Hz-20Khz, -0.1db, 2Hz-180KHz, -3dB
Maximum Power, 4 ohms: 100W RMS
Maximum Power, 8 ohms: 60W RMS
Maximum Power, 32 ohms: 15W RMS
Maximum Power, 50 ohms: 10W RMS
Maximum Power, 300 ohms: 1.7W RMS
Maximum Power, 600 ohms: 850mW RMS
Maximum Power, single-ended headphone output: 3W into 32 ohms
THD: Less than 0.006%, 20Hz-20KHz, at 1V RMS, all gain modes
IMD: Less than 0.008%, CCIR at 1V RMS, all gain modes
SNR: More than 103db, unweighted, referenced to 1V RMS, in gain = 1 mode
Crosstalk: Less than -80dB, 20Hz-20KHz
Damping Factor: 266 into 8 ohms
Output Impedance, balanced headphone output: less than 0.1 ohms
Output Impedance, single-ended headphone out: 3.3 ohms
Gain: 20 (26dB), 5 (14dB), 1 (0db) via front panel switch
Topology: Fully discrete Crossfet™ circlotron-style output stage with
direct-coupled solid state gain stage, no DC servo.
Protection: microprocessor monitoring of fault conditions including
DC, overcurrent, and transient phenomena, with relay muting on
any fault
Power Supply: 400VA transformer with 4 separate circlotron output
rails, plus 56VA transformer for five separate regulated supplies for
front end and control section; over 100,000uF filter capacitance total
Power Consumption: 75W quiescent, 400W max
Size: 16 x 12 x 3.875”
Weight: 32 lbs (約 14.5 公斤)
SCHIIT RAGNAROK 說明下載網址
